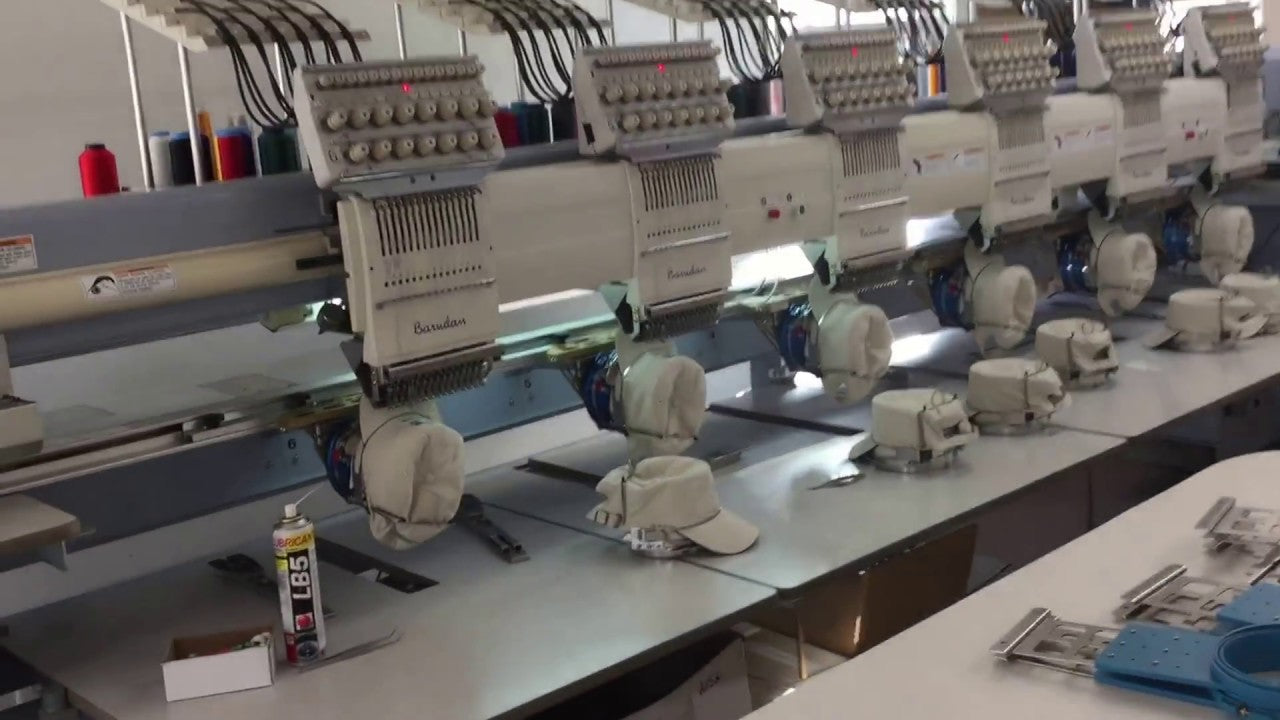

Barudan 6-Head Embroidery Machine: Comprehensive Guide to Features, Performance & Optimization

1. Introduction to Barudan 6-Head Capabilities

Enter high-volume embroidery and you quickly meet the Barudan 6-head embroidery machine—built to elevate commercial production with speed, precision, and repeatable quality. Six synchronized heads let you stitch multiple items at once, ideal for uniforms, sportswear, and branded apparel.

Engineered for efficiency, it blends SmartHead SH technology, servo-driven accuracy, expansive embroidery fields, and streamlined digital controls. The result is stable, consistent output across diverse materials and jobs.

This guide covers technical specs, cost and ROI, performance optimization, material handling, reliability, and how Barudan compares with Ricoma and Tajima—plus practical tips to keep production moving. We also touch on accessories such as barudan hoops that streamline cap and flat work.

2. Technical Specifications & Core Technologies

2.1 SmartHead SH Technology & Servo Motor System

At the core of the K‑Series 6‑head, SmartHead SH pairs mechanical precision with automation. High‑torque servo motors deliver up to 1,100 SPM on flats and 1,000 SPM on caps, maintaining stitch accuracy while minimizing vibration. A rigid bridge‑type welded chassis anchors large embroidery fields (up to 450 mm x 520 mm) for stability at speed.

Automated thread management—electronic thread clamps, automatic trimming, and color‑change automation—reduces manual intervention. A 10.4‑inch color touchscreen with LAN and USB simplifies design loading and parameter changes for single or multi‑machine setups.

Key highlights:

• 15 needles per head for multi‑color designs
• Memory capacity: up to 100 designs and 70 million stitches
• Positive Needle Drive technology for fabrics from silk to heavy‑duty materials
• ETL‑certified for industrial safety standards

2.2 Embroidery Area Configurations (520mm vs 380mm)

Barudan offers two main field options to match job sizes:

The "stretch" model is a standout for oversized designs like jacket backs. The Advantage EX Cap Frame System enables tool‑free transitions between flat and cap embroidery and can mount two cap frames per head. A sturdy embroidery frame pairing keeps setup quick and consistent.

3. Cost Analysis & Competitor Comparisons

3.1 Pricing Breakdown ($30K–$35K) & ROI Drivers

The K‑Series 6‑head typically ranges from $30,000–$35,000. Built for commercial throughput, it pays off when orders scale.

ROI example: Produce 100 caps per day at a $5 profit and you net $500 daily—about $15,000 per month—so payback can arrive in a few months, depending on production and operating costs.

Additional ROI drivers:

• Production capacity: Six heads reduce per‑unit costs
• Energy efficiency: About 0.4 kW consumption lowers expenses
• Warranty coverage: 5 years on main motor, 3 on electronics, 2 on other parts

3.2 Barudan vs Ricoma CHT2-1506 vs Tajima TMAR-K1506C

Analysis:

• Barudan balances speed, precision, and a generous field; its 70M stitch memory minimizes reloads.
• Ricoma’s lower cost and higher max speed appeal to budget‑minded buyers; the field is smaller.
• Tajima commands a premium for its auto‑adjusting presser foot and industrial pedigree.

Bottom line: Barudan is a "Goldilocks" choice for mid‑to‑large operations that want robust features and durability without the top‑tier price.

4. Performance Optimization & Maintenance Protocols

4.1 Resolving D12 Trimmer Errors & Thread Break Prevention

D12 trimmer errors and thread breaks are frustrating but solvable with a systematic approach.

Step‑by‑step to resolve D12 trimmer errors:

1. Remove fabric and the throat plate to access the trimmer/hook area.
2. Clean the trimmer and rotating hook to clear lint and thread debris.
3. Check and realign the slider position per the model’s manual.
4. Inspect and, if needed, replace the wave washer.
5. Verify blade timing and sharpness; adjust as required.
6. Reassemble and run a test design to confirm smooth cycling.

Thread break prevention:

• Check thread tension per head and fabric
• Replace bent or dull needles regularly (every 1–2 million stitches or as needed)
• Keep software/firmware updated to resolve trimming and thread‑management bugs

Sewtalent Magnetic Hoops: A practical assist

If tension inconsistency is causing puckering or breaks, consider upgrading to magnetic embroidery hoops (for garment embroidery only). Their even clamping helps stabilize tricky or thick materials and reduces operator fatigue.

When to call support: If D12s persist after cleaning, alignment, and updates, consult a Barudan technician—electrical or sensor faults may require pro service.

4.2 Lubrication Schedule & Sensor Maintenance

Lubrication essentials:

• Weekly: Bearing oil on crank rods and lever points
• Every 6 months: Lithium grease on presser foot cam
• Every 4–6 hours (during heavy use): Oil the rotating hook
• Weekly: Lightly oil the needle bar with a swab

Sensor checkpoints:

• Calibrate the magnetic encoder for accurate head positioning
• Set presser foot height to match fabric thickness and avoid loops or puckering

Magnetic hoops can reduce mechanical wear

Using magnetic hoops for embroidery machines provides even tension, easing stress on bearings and drive components. That stability can stretch lubrication intervals and reduce maintenance.

Safety and habits: Power down before service and keep the area clean. Download official maintenance guides and set reminders; prevention beats emergency repairs.

5. Material Handling & Fabric Compatibility

The 6‑head is built for versatility—from delicate silks to rugged denim and even 3D foam—thanks to Positive Needle Drive and compatible accessories.

5.1 Positive Needle Drive Technology in Action

3D puff on thick caps or layered garments benefits from the radius cylinder arm plus Positive Needle Drive. The needle tracks straight through dense materials, reducing skips and breaks.

Sewtalent’s 430x390mm magnetic hoops are designed for heavy or multi‑layer jobs: fast hooping, even tension over large surfaces, and less operator fatigue. Pairing with a barudan magnetic embroidery hoop helps keep thick garments stable so designs stay crisp.

5.2 Reducing Hoop Burn on Delicate Fabrics

Hoop burn ruins otherwise perfect work, especially on fragile textiles. Traditional screw hoops concentrate pressure; magnetic solutions distribute it.

Magnetic hoops, like those from Sewtalent—alongside barudan magnetic hoops—spread force evenly to reduce marks. Their PPSU engineering plastic (BASF Ultrason P3010) glides over fabric to avoid snagging or scuffing.

Quick tips:

• Use the correct hoop size for each design
• Add a protective layer (stabilizer or lightweight cloth) between hoop and fabric
• Avoid over‑tightening; let the hoop design do the work

6. Long-Term Reliability & User Experiences

Reliability metrics and takeaways:

• Impact cycles: Up to 56,100 vs. Tajima’s 18,900—fewer replacements and less downtime
• Stitch error rates: Under 1% even on fine text and complex designs
• Operational lifespan: 10+ years with proper care (competitors like SWF and Tajima tout 20+ years)

Maintenance cadence and parts:

Observations:

• Expect ongoing needle costs from routine replacement
• Bearing wear drops when using stable magnetic hoops; clean the hook assembly about every 4 hours during heavy use

Total Cost of Ownership (TCO): Initial spend is $30,000–$35,000, plus consumables and occasional parts/service. The 70M stitch memory cuts reload interruptions, and high stitch speed (up to 1,300 SPM) boosts throughput—though running at max speed can accelerate wear.

Competitive view:

User feedback: Community reviews and videos praise build quality and consistency. Early trimming errors or D12 codes are typically resolved via cleaning, firmware updates, or a technician visit. Once dialed in, the 6‑head is a dependable workhorse.

7. Conclusion: Is Barudan 6-Head Right for Your Business?

For established shops managing large apparel runs, the Barudan 6‑head offers speed, ≤1% stitch error consistency, and 70M stitch memory—plus six‑at‑once productivity that scales. If you are moving beyond single‑head bottlenecks, its ROI potential is compelling.

The price ($30,000–$35,000) can feel steep for startups; budget‑friendly alternatives like Ricoma may offer an easier entry. But if orders are growing, Barudan’s reliability and throughput can be transformative. Add compatible magnetic solutions—such as barudan embroidery machine hoops—to further protect fabrics and accelerate setup.

8. FAQ: Common Barudan 6-Head Questions

8.1 Q: How often do D12 trimmer errors occur, and what's the best way to resolve them?

A: Frequency varies; some users see recurring issues until a firmware update or a sensor repair resolves them. Clean the hook and trimmer assembly, check thread tension, replace bent needles, and keep software up to date. If problems persist, contact a Barudan technician.

8.2 Q: What thread brands are recommended for optimal performance on the Barudan 6-head?

A: Madeira, Isacord, and Robison‑Anton are frequently recommended for durability and color. High‑quality thread reduces breakage during fast or complex runs.

8.3 Q: How do I update the software or firmware on my Barudan 6-head machine?

A: Updates are provided by the manufacturer or authorized dealers. Check official channels and follow instructions carefully to avoid data loss and ensure performance improvements.
