Barudan Embroidery Machines: Technical Guide & Smart Investment Strategies

1. Introduction to Barudan Machine Capabilities

Barudan stands as a pillar in the commercial embroidery world, celebrated for its robust engineering, innovative features, and unwavering reliability. With over six decades of expertise, Barudan embroidery machines have earned a reputation for powering both boutique studios and high-output factories. But what truly sets Barudan apart? It's a blend of cutting-edge technical specifications, flexible purchasing options, and a commitment to operational excellence.

This guide unpacks Barudan’s core strengths: from the technical prowess of models like the BEKT-S1501CAII to the intricacies of file format compatibility with leading software such as Wilcom EmbroideryStudio. We’ll also navigate the decision-making maze between new and refurbished investments, demystify warranty structures, and spotlight the productivity benchmarks that matter most to embroidery professionals. Whether you’re optimizing workflow, troubleshooting, or seeking smart investment strategies, this deep dive will equip you to make confident, informed decisions for your embroidery business.

Table of Contents

• 1. Introduction to Barudan Machine Capabilities
• 2. Technical Specifications & Software Integration
• 3. New vs Refurbished Machine Investment Analysis
• 4. Troubleshooting Common Barudan Errors
• 5. Optimizing Production Efficiency
• 6. Competitive Landscape Analysis
• 7. Conclusion & Next Steps
• 8. FAQ: Barudan Machine Operations

2. Technical Specifications & Software Integration

2.1 Key Barudan Models and Performance Metrics

Barudan’s industrial embroidery machines are engineered for versatility and high-volume output, offering a spectrum of configurations to match any production need. Let’s break down two flagship models—BEKT-S1501CAII and BEKS-S1515C—and highlight the performance metrics that matter.

Positive Needle Drive Technology: A standout across these models, Positive Needle Drive ensures precision stitching even on challenging materials like leather or 3D foam. This technology delivers a remarkably low error rate—just 1% on thick materials—making Barudan a go-to for complex, high-density designs.

Memory & User Interface: With a massive 70 million stitch memory (accommodating up to 100 designs), operators can handle intricate jobs without constant file transfers. Intuitive LCD touchscreens streamline setup and monitoring, while the Radius Cylinder Arm and EX Cap Frame enable seamless transitions between flat and cap embroidery.

Multi-Head Configurations: Barudan’s K-Series supports everything from 2-head to 20-head setups. For example, a 6-head configuration can generate up to 1,728 designs per week, ideal for businesses scaling up production.

Material Handling: Features like the Advantage EX Cap Frame and Radius Cylinder Arm stabilize garments and caps, reducing setup time and boosting accuracy—think of it as having a pit crew for your embroidery operation.

Connectivity: All major models include USB and LAN ports, supporting fast data transfer and integration with workflow management tools.

2.2 File Format Compatibility with Wilcom Software

In the world of embroidery, file compatibility can make or break your workflow. Barudan embroidery file format support includes both industry-standard and proprietary formats.

Wilcom Integration: Wilcom EmbroideryStudio primarily exports .DST files, which Barudan machines read natively. However, .DST files don’t capture Barudan’s advanced features—like thread break detection or complex color changes. To unlock these, you’ll need to convert .DST files to Barudan’s .DSB or .FDR formats using proprietary tools.

Workflow Example:

1. Design in Wilcom and export as .DST.

2. Convert to .DSB or .FDR for advanced Barudan features.

3. Transfer via USB or LAN to your Barudan machine.

4. Stitch with full access to Positive Needle Drive and servo-driven precision.

Networking & Software: Barudan’s LEM Jr. software and LAN/USB connectivity enable real-time monitoring, design management, and seamless updates. This integration is crucial for shops managing multiple machines or large design libraries.

Considerations: While .DST is the industry’s lingua franca, tapping into Barudan’s full power means mastering file conversion and possibly investing in additional training for advanced features.

3. New vs Refurbished Machine Investment Analysis

3.1 7-Year Warranty Breakdown & Cost Projections

Barudan’s investment appeal goes beyond upfront specs—warranty and cost-of-ownership are equally vital. Here’s how the numbers stack up:

Warranty Coverage:

• New Machines:
• 7-year warranty on non-wear parts (motors, electronics, labor) with annual authorized servicing.
• 5-3-2 Protection Plan: 5 years (motor), 3 years (electronics), 2 years (non-consumable parts).
• 7-year stitch quality guarantee (with annual service).
• Refurbished Machines:
• Certified units receive 5/3/2-year coverage (motor/electronics/parts).
• Both new and refurbished meet CSA/ULC safety standards.

*With annual service.

Pricing Benchmarks:

• New Machines:
• 2-Head: $25,000–$30,000
• 4-Head: $8,299–$9,999
• 6-Head: Up to $60,000
• 12–15 Head: Special order
• Refurbished Machines:
• 2-Head: $7,500–$15,000 (30–50% off new)
• 6-Head: $6,500–$8,000

Productivity Metrics:

• 6-Head New: 1,728 designs/week (19% more than refurbished)
• 6-Head Refurbished: ~1,456 designs/week

ROI Framework (5-Year TCO):

Assumes new retains 28% value, refurbished 30%.

Key Takeaways:

• New machines offer higher productivity and a longer warranty, but require a larger upfront investment.
• Certified refurbished units deliver substantial savings (30–50% off), retain strong resale value, and maintain robust warranty coverage.
• Multi-head systems (6+) are best for industrial workflows, while 2- or 4-heads balance cost and output for smaller shops.

3.2 Refurbishment Quality Standards Verification

Not all refurbished Barudan machines are created equal. Choosing Barudan refurbishing through certified refurbishers ensures your investment is protected:

Refurbishment Process Highlights:

• Machines are restored to near-new condition by experienced technicians.
• Each unit undergoes rigorous quality control, including electrical safety checks (CSA/ULC compliance).
• Certified units come with 5-year motor warranties and professional after-sales support.

Why Certification Matters:

• Only certified refurbishers guarantee warranty compliance and stitch quality.
• Professional refurbishing extends machine lifespan, reduces downtime, and boosts resale value (multi-head systems retain ~70% of original value in North America).

What to Expect:

• Transparent service history and clear warranty documentation.
• Access to technical support for both new and refurbished units.
• Assurance that your machine meets industry safety and performance standards.

Bottom Line: Whether you’re buying new or certified refurbished, Barudan’s commitment to quality—backed by robust warranties and professional servicing—makes it a smart investment for embroidery businesses aiming for long-term success.

4. Barudan Embroidery Machine Troubleshooting: Common Errors

4.1 Solving D12 Trimmer Slider Errors Step-by-Step

Few things stall production like a cryptic error code flashing on your Barudan’s screen. The infamous D12 trimmer slider error is one such culprit—a tiny glitch that can bring even the most seasoned embroidery operator to a standstill. But don’t worry: with the right approach, you can turn this headache into a quick fix and get your machine humming again.

What Causes the D12 Error?

The D12 error signals trouble with the trimmer slider mechanism, and it usually boils down to one of four main issues:

1. Thread Obstruction: Untrimmed thread or lint gets caught in the slider or grabbers.
2. Mechanical Binding: Debris, wear, or misalignment causes the slider to stick.
3. Blade Dullness or Misalignment: Trimmer blades become dull or shifted out of place.
4. Sensor Blockage: Debris or thread interferes with the optical sensors that track slider movement.

Step-by-Step Resolution

Let’s break down the barudan embroidery machine troubleshooting process, so you can get back to stitching with minimal downtime:

1. Manual Thread Removal
   • First, break any untrimmed thread manually and pull about 2 inches (50mm) to clear the slider path.
   • Carefully clean the trimmer area, removing any visible lint or debris.
2. Blade Inspection and Replacement
   • Examine both the fixed and moving knives for sharpness and proper alignment.
   • If you spot dull edges or misalignment, replace or adjust the blades as needed.
   • Don’t forget to check the wave washer—replace it if it shows signs of wear.
3. Slider Adjustment and Lubrication
   • Manually move the slider to ensure smooth motion. If it feels sticky, clean and lubricate the mechanism.
   • Adjust the trimmer’s position so it aligns perfectly with the needle.
4. Sensor and Component Checks
   • Make sure the grabbers are fully raised and visible to the sensors.
   • Inspect the micro switch and solenoid lever for any alignment issues.

Maintenance Best Practices

• Regular Cleaning: Clean the trimmer area, throat plate, and tension assembly weekly to prevent lint buildup. Lubricate moving parts as recommended.
• Thread Management: Adjust upper and center tensioners, and use high-quality thread to minimize breakage.
• Component Replacement: Replace trimmer blades every 1–3 months, depending on usage. Keep an eye on wear parts like the wave washer and solenoid lever.

When to Call in the Pros

If you’re still seeing the D12 error after these steps—or if you encounter more complex issues like A07 memory corruption—it’s time to contact Barudan’s authorized technical support. Firmware updates, control board diagnostics, and hardware replacements (like encoders or rotary solenoids) should be handled by professionals using genuine Barudan components.

For refurbished units, thorough inspection and firmware updates are especially important to address any pre-existing issues. Always refer to official Barudan manuals and take advantage of video tutorials for visual guidance—there’s even a helpful YouTube demonstration linked in user forums for tackling D12 errors.

Pro Tip: Persistent D12 errors may signal deeper mechanical flaws. Don’t hesitate to leverage Barudan’s technical assistance programs for critical issues—especially if your machine is under warranty.

By following these troubleshooting and maintenance strategies, you’ll minimize downtime and keep your Barudan running at peak performance—because every stitch counts.

5. Optimizing Production Efficiency

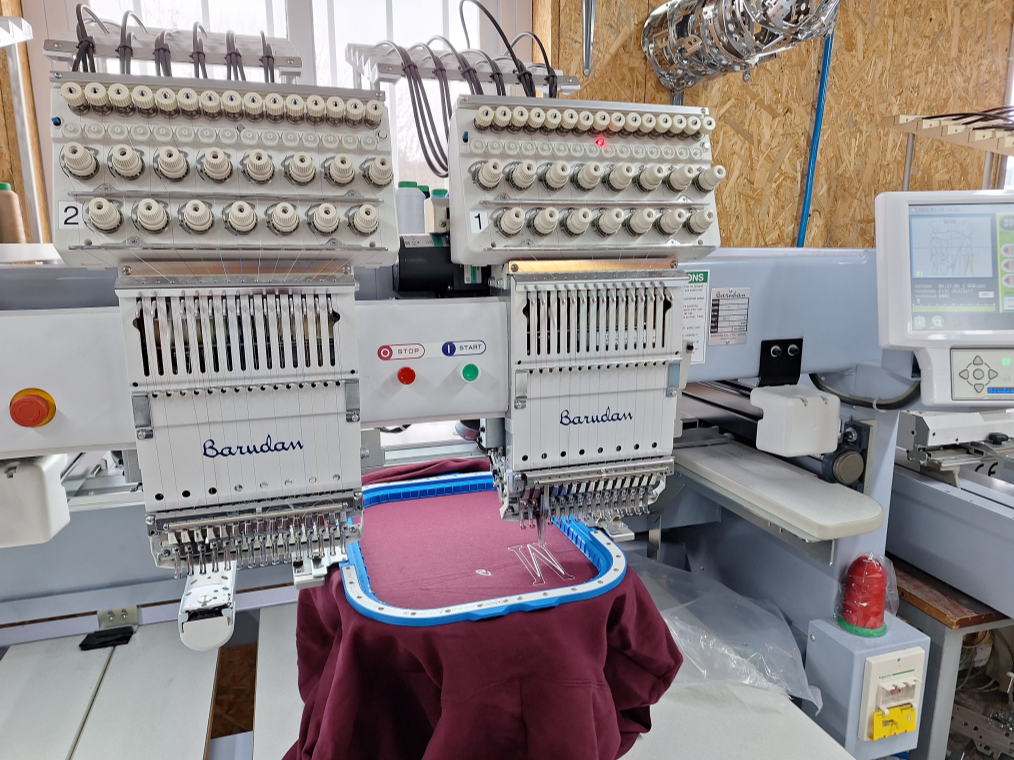

5.1 Magnetic Hoop Systems for Garment Embroidery

Time is money in embroidery, and nowhere is this more obvious than in the hooping process. Traditional hoops can turn a simple setup into a finger-numbing, time-consuming ritual. Enter magnetic embroidery hoops for Barudan systems—specifically, Sewtalent magnetic hoops—designed to revolutionize garment embroidery.

Why Switch to Magnetic Hoops?

• Lightning-Fast Hooping: With magnetic hoops, you can change frames in as little as 45 seconds—slashing hooping time by up to 90% compared to old-school screw-tightened hoops. That's not just a small win; it's a game-changer for high-volume shops.
• Operator Comfort: Forget the wrist strain of manual tightening. Magnetic locking means less effort and less fatigue, even on marathon production days.
• Versatility Across Fabrics: Sewtalent magnetic hoops adapt seamlessly to everything from delicate silks to rugged denim. The adjustable tension system ensures your fabric stays flat and distortion-free, no matter the project.
• Durability That Lasts: Built with high-grade PPSU engineering plastic and N50-grade rare-earth magnets, Sewtalent hoops outlast competitors by a significant margin. Rigorous impact and pressure tests show they can withstand 27–40 times more use than other leading brands. That means fewer replacements, less downtime, and more embroidery.

Comparison: Traditional vs. Magnetic Hoops

The Sewtalent Advantage

Sewtalent's magnetic hoops aren't just about speed—they're about smarter, more comfortable, and more reliable embroidery. Their powerful magnetic system delivers even tension, prevents hoop burn, and handles thick or layered fabrics with ease. Plus, with more than 17 sizes and compatibility across hundreds of machine brands (including Barudan), you're covered for virtually any garment embroidery scenario.

And when it comes to cost-effectiveness, the numbers speak for themselves: the time savings and reduced defect rates mean Sewtalent hoops can pay for themselves in as little as six months in a busy shop.

Curious how they stack up against other magnetic hoops? Sewtalent's durability and magnetic strength are backed by rigorous testing—lasting up to 40 times longer and clamping more layers than the competition. It's like upgrading from a flip phone to a smartphone: once you experience the convenience, there's no going back.

5.2 Networked Workflow Management Solutions

Modern embroidery isn't just about needles and thread—it's about data, connectivity, and streamlined workflows. Barudan machines shine here, offering robust networking options and smart management tools that keep your production floor running like clockwork.

BNET Pro Integration

• Real-Time Production Tracking: BNET Pro software enables real-time monitoring, automated design uploads, and thread color management via API integration. This means you can keep tabs on every job, from anywhere in your shop.
• Hybrid Workflows: Combine design software like Hatch with BNET Pro for seamless job dispatch and automated batch processing. No more manual file juggling—just smooth, automated production.
• File Transfer Protocols: Use USB or CompactFlash (CF) drives formatted as FAT32, and always place your designs in the SYSTEM folder to avoid the dreaded "folder not found" error. Barudan's LAN ports (featured on models like the BEKT S1501 CA2) support high-speed network transfers, making design delivery a breeze.

LEM Server and DFS Protocol

• Multi-Machine Networks: The Barudan Design File Server (DFS) supports up to nine machines, centralizing job management and design distribution. This setup delivers design transfers up to 10 times faster than traditional methods.
• Queue Management: Each machine can queue up to 95 designs, with prioritization tags for urgent jobs—so your production never skips a beat.

Workflow Management Best Practices

• Smart Batching: Group orders by dominant thread color to minimize changeovers. For example, a 15-head machine can process 12,000 stitches across eight heads while reloading the other seven—maximizing throughput.
• Design Optimization: Preload top designs and fine-tune stitch angles and underlay patterns for each material type. Adjust jump stitch thresholds to minimize thread breaks, and use real-time dashboards to monitor every aspect of production.
• Automation Tools: Set up watched folders for automatic design retrieval, and use barcode scanning for lightning-fast job identification and loading.

By integrating these networked solutions, you'll unlock industrial-scale efficiency—turning embroidery from an art into a science of productivity.

6. Competitive Landscape Analysis

6.1 Tajima vs Barudan: Speed & Storage Comparison

When it comes to commercial embroidery, the race isn’t just about who stitches fastest—it’s about who can handle the most complex jobs, store the biggest designs, and keep production flowing without a hitch. Let’s see how Barudan stacks up against its top competitors like Tajima vs Barudan.

Speed and Productivity

Barudan’s BEKT-S1501CBIII takes the lead with embroidery speeds that are 1.08× faster than Tajima’s TWMX-C1501. In high-volume environments, that edge translates to more finished pieces per shift and less time waiting for each job to complete. Ricoma’s MT-1501 and Barudan’s C01 both hit 1,200 stitches per minute (SPM), but Barudan’s focus on stitch accuracy (≤1% error rate) means fewer mistakes and less rework.

Stitch Storage and Design Handling

Barudan doesn’t just win on speed—it dominates in stitch storage, offering 35× more capacity than Tajima’s TWMX-C1501. That means you can load massive, intricate designs directly onto the machine without constant file swaps. Ricoma’s MT-1501 lags behind, storing 800,000 fewer stitches than Barudan’s C01.

Software and Usability

Tajima offers a multilingual interface (13 languages), making it user-friendly for global operations. Barudan, meanwhile, prioritizes design flexibility with broader format support, while SWF and Ricoma focus on ease of use and wireless/USB design transfers.

Pricing and Warranty

SWF’s entry-level machines start at $8,500, undercutting Ricoma and Tajima’s premium pricing. Barudan justifies its higher upfront cost with industrial-grade durability, while SWF and Tajima match Barudan’s 7-year warranty (Ricoma offers 5 years).

Accessories and ROI

Both Barudan and Tajima benefit from the use of Sewtalent magnetic hoops, reducing setup time by 90% (30 seconds vs. 3 minutes). SWF’s quick-change cap system with compatible magnetic hoops boosts production by 45%—a testament to the power of the right accessories.

Market Trends

- Barudan: Industrial-grade speed and storage for large-scale projects.
- Tajima: User-friendly interfaces and multilingual support.
- SWF: Competitive pricing and extended warranties for cost-conscious buyers.
- Ricoma: Balances usability and design flexibility for mid-tier commercial needs.

Bottom Line: Barudan’s technical superiority in speed and storage makes it the go-to for demanding, high-output environments. When paired with Sewtalent magnetic hoops and advanced workflow management, Barudan machines deliver unmatched efficiency and reliability—giving your business the edge in a fiercely competitive market.

7. Conclusion & Next Steps

Choosing the right Barudan embroidery machine is more than just a technical decision—it’s a strategic investment in your business’s future. As we’ve explored, Barudan’s robust technical specs, including advanced Positive Needle Drive technology, massive stitch memory, and seamless software integration, set a high bar for reliability and precision. The warranty structure—up to seven years for new units and comprehensive coverage for certified refurbished models—offers peace of mind and long-term value. Efficiency tools like networked workflow management and magnetic hoop systems further boost productivity and operator comfort.

Ready to take the next step? Consult with an authorized Barudan dealer to match your production needs with the ideal machine configuration and support plan. Whether you’re scaling up with a multi-head powerhouse or optimizing a boutique studio, Barudan’s blend of innovation, durability, and support positions your embroidery business for lasting success.

8. FAQ: Barudan Machine Operations

8.1 Q: What file formats do Barudan machines support, and how do I ensure compatibility with Wilcom EmbroideryStudio?

A: Barudan machines natively support .DST files, the industry standard, which work directly with Wilcom EmbroideryStudio. For advanced Barudan features—like thread break detection or complex color changes—you’ll need to convert .DST files to proprietary formats such as .DSB or .FDR using Barudan’s conversion tools. Always verify your machine’s model for specific format support.

8.2 Q: How often should I perform maintenance on my Barudan machine?

A: Regular maintenance is key to reliable performance. Clean the trimmer area, throat plate, and tension assembly weekly to prevent lint buildup. Lubricate moving parts as recommended in the official Barudan manual. Replace trimmer blades every 1–3 months, depending on usage, and monitor wear parts like the wave washer and solenoid lever.

8.3 Q: What are the advantages of multi-head Barudan machines for production?

A: Multi-head Barudan machines (from 2 up to 20 heads) dramatically increase output, making them ideal for high-volume operations. For example, a 6-head configuration can produce up to 1,728 designs per week, maximizing efficiency and reducing per-unit costs. These systems also support advanced workflow management and design queuing for seamless production.

8.4 Q: Can I network my Barudan machines for centralized workflow management?

A: Yes, Barudan machines feature LAN and USB ports for high-speed design transfers and integration with workflow management tools like BNET Pro and LEM Server. This allows real-time monitoring, automated job dispatch, and centralized design management across multiple machines.

8.5 Q: Where can I find technical support or troubleshooting resources?

A: For troubleshooting common errors (like the D12 trimmer slider issue), refer to official Barudan manuals and video tutorials. If problems persist, contact authorized Barudan technical support for diagnostics and repairs—especially for firmware updates or hardware replacements.

Have more questions? Reach out to your local Barudan dealer or visit the official support center for personalized assistance. Your embroidery success story starts with the right knowledge and the right machine!
