Essential Thread Gauges Guide: Types, Usage Tips, and Applications

1. Introduction to Thread Gauges and Their Industrial Significance

Thread gauges may look simple, yet they keep manufacturing on-spec by ensuring bolts, screws, and nuts fit without guesswork. From aerospace and automotive assemblies to precision embroidery machines, these gauges verify thread dimensions and tolerances so parts function as designed. This guide covers types, specs, measurement techniques, purchasing factors, brand comparisons, maintenance, and embroidery applications—so you can select correctly, prevent costly errors, and keep tools in peak condition.

If you work in embroidery workflows, the right accessories—such as magnetic embroidery hoops—can also streamline setup while protecting delicate fabrics.

2. Thread Gauge Types and Technical Specifications

Thread gauges underpin quality control for threaded parts. Their core purpose is to confirm that internal and external threads meet tight standards for fit and function.

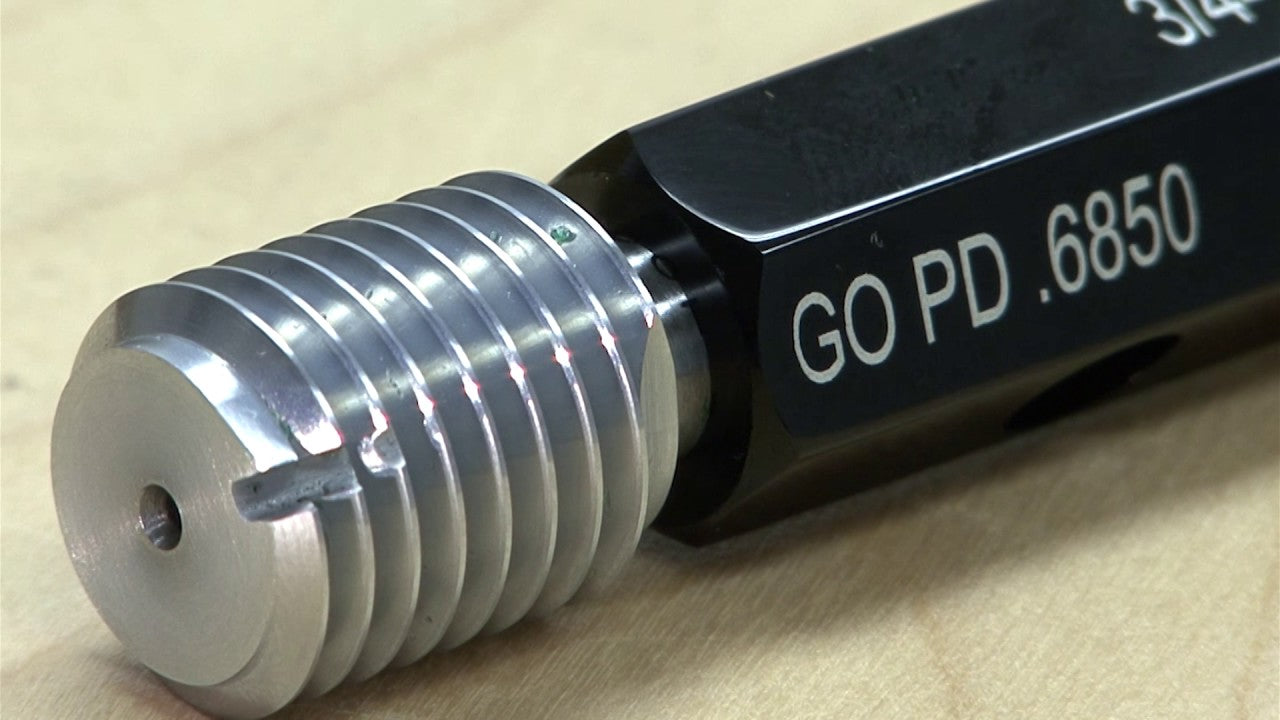

2.1 Plug Gauges: Inspecting Internal Threads

Plug gauges verify internal threads (nuts, tapped holes) and include:

• Standard Plug Gauges: Built to common standards like ANSI and ISO for general applications.
• Tapered Plug Gauges: For pipe threads that need leak-proof seals.
• Custom and Adjustable Plug Gauges: For non-standard profiles or prototyping.

GO/NOGO design (double-ended) is standard:

• GO plug checks the minimum major diameter and should enter smoothly; if not, the thread is undersized.
• NOGO plug verifies the maximum pitch diameter and must not enter beyond a set number of turns (often up to three). If it does, the thread is oversized.

Technical standards: ASME B1.1 (Unified Inch), ASME B1.2 (gaging), and ASME B1.13M (Metric). Example for a #0-80 UNF internal thread: GO pitch diameter 0.0519 in, NOGO pitch diameter 0.0542 in, tolerances ±0.0002 in.

Applications: High-stakes internal threads in aerospace, medical, and high-performance machinery.

2.2 Ring Gauges and Specialized Tools

Ring gauges validate external threads (bolts, studs, screws):

• GO ring must fully thread onto the part (minimum minor diameter check).
• NOGO ring must not thread onto the part (maximum pitch diameter validation).

Calibration: Periodic calibration with certified thread plugs in line with ANSI/ASME B1.2.

Specialized tools:

Pitch diameter tolerances example (#0-80 UNF):

Selection guidelines:

• Identify internal (plug) vs. external (ring) thread type
• Pick tolerance class (e.g., Class 2B standard, Class 3B looser fits)
• Choose durable materials (hardened steel is common)
• Plan calibration (use setting plugs per ANSI/ASME B1.2)

Advanced options: Combination thread checkers and thread caliper gauges integrate pitch identification with GO/NOGO checks for faster workflows.

In short: Match thread type and tolerance class to the right gauge and standard; use specialty tools for tight geometry or tolerance demands.

3. Step-by-Step Measurement Techniques and Best Practices

Accurate thread inspection depends on both the right tool and the right technique.

3.1 Preparing and Measuring Thread Pitch/Diameter

Preparation:

1. Clean the threads: Remove debris, oil, and contaminants for accuracy and tool life.
2. Identify thread type: - Plug gauges for internal threads - Thread checkers or ring gauges for external threads - Visual size estimate to narrow selection

Measuring diameters:

• External threads: Calipers crest-to-crest on the first/last full thread (tapered) or any thread (parallel).
• Internal threads: Calipers groove-to-groove.

YouTube insights: “How to Measure Threads - Mitutoyo Thread Gauges” and “NEW Daytona Multifunction Gauge” show how multifunction tools combine metric/imperial sizing, pitch checks, and even drill point angle checks.

3.2 GO/NOGO Testing and Error Avoidance

GO/NOGO testing:

• GO gauge must thread fully when in tolerance.
• NOGO gauge should stop after 2–3 turns (≤1.5 for precision cases).

Acceptance criteria:

• Pass: GO fits; NOGO does not.
• Fail: GO does not fit (too small) or NOGO fits (too large).

Common mistakes to avoid:

• Never force gauges; use normal hand pressure.
• Check calibration regularly; inspect dropped gauges before reuse.
• Match pitch first when using combination checkers.
• Rotate gently to avoid cross-threading.

Pro tips:

• Clean threads before gauging.
• Store gauges in protective cases; use rust preventative.
• Limit NOGO turns to 1.5–2 for fine threads; confirm per spec.

Key data:

• Three-wire formula: ( E = M - \text{Const} ) (e.g., for 1/2"–13 threads, Const = 0.06838").
• NOGO turns: ≤2–3 standard; ≤1.5 precision.
• TPI: Count full peaks in a 1 in span.

4. Top Suppliers and Purchasing Considerations

Selecting the right supplier affects compliance, calibration, lead time, and support.

4.1 Leading Industrial Suppliers Compared

Thread Check Inc. (Ronkonkoma, NY): Broad portfolio—chrome/tin coat, carbide/ceramic plug and ring gauges, tri-roll comparators, API pipe gauges. Offers ISO 17025 calibration, NIST-traceable certificates, and technical support.

WESTport Corp: Strong on American Gage Design, functional inspection, and compliance (ANSI B1.2, ASME B47.1). Free NIST certificates and a 100% satisfaction guarantee support custom work.

Gage Crib Worldwide, Inc. (Grand Rapids, MI): Fast access to standard plug, ring, and setting plugs for sectors such as automotive, aerospace, and oil/gas.

Universal-Gauges Pvt. Ltd.: Export-focused general-purpose gauges emphasizing durability and accuracy.

Critical selection factors:

• Product customization: Thread Check, WESTport (custom); Gage Crib (rapid standard inventory)
• Compliance & certification: NIST traceability and ANSI/ASME adherence
• Lead times: Distributors for speed; manufacturers for custom lead
• Support: Calibration and technical assistance

Pricing: Costs vary by material (carbide/ceramic), customization, and calibration. Free NIST certificates and satisfaction guarantees can improve value. Compare quotes and lead times.

4.2 Embroidery Efficiency Solutions

Embroidery demands speed, fabric care, and consistency. Enter the Sewtalent magnetic embroidery hoop: a significant upgrade for garment embroidery.

Why Sewtalent? Hooping time can drop by 90%—from three minutes to 30 seconds—thanks to strong magnetic clamping that adapts to varied fabric thicknesses without screws or slippage.

Durability that lasts: Industrial-grade PPSU (used in aircraft interiors) makes Sewtalent hoops last up to 40× longer than standard plastic hoops, reducing replacements and downtime.

Cost savings: Faster workflow, lower labor, and fewer hoop-related defects mean a quick return for high-volume shops.

5. Brand Performance: Durability, Accuracy, and Value

Different brands balance ruggedness, precision, and cost in distinct ways.

5.1 Industrial Brand Comparison (Mitutoyo, AltitudeCraft)

Durability

• AltitudeCraft: Corrosion-resistant materials and precision-machined templates; ergonomic for reduced fatigue.
• CalibraTools: Built for repeated industrial use; adheres to ISO 9001 and ANSI/ASME.
• Sisco: GCr15 bearing steel delivers excellent wear resistance; double-end metric plug options.

Accuracy

• AltitudeCraft: High-contrast markings and precise machining improve readability and consistency.
• CalibraTools: Tight adherence to ANSI/ASME specs supports demanding sectors.
• Sisco: Selectable accuracy (0.2–24 mm) and robust builds suit automotive and aerospace.

Cost-effectiveness

Key takeaways:

• AltitudeCraft and CalibraTools excel when precision is critical.
• Sisco and Cross Company suit cost-sensitive standard verification.
• Thread Check fits niche, custom applications at a premium.

Industry-specific picks:

• Aerospace/Automotive: CalibraTools (compliance) or Sisco (bearing steel durability)
• General Manufacturing: Cross Company (budget) or AltitudeCraft (accuracy)
• Custom: Thread Check

Critical considerations: Regular calibration, corrosion-resistant materials for harsh environments, and standards compliance.

6. Maintenance, Calibration, and Longevity

Calibration and care drive accuracy and extend tool life.

6.1 Cleaning, Storage, and Wear Prevention

Post-use cleaning: Remove debris with a soft-bristle brush; use light solvent only for stubborn grime. Favor dry cleaning methods (compressed air, lint-free cloths). Oils/greases can trap contaminants.

Material-specific tips: Gauges used on abrasive materials or fine-pitch threads wear faster—clean more often and inspect carefully. Even 50 microinches of flank wear can shift pitch diameter.

Storage and environment: Store at 20°C (68°F), the industry reference temperature. For high precision, use climate control. Keep gauges in individual cases labeled with calibration dates and standards.

6.2 Calibration Techniques and Compliance

Methods:

• Three-Wire Method: Certified thread wires plus a micrometer (≥10 microinch resolution; anvils ≤4.0 microinch parallelism) for pitch diameter.
• Thread Setting Plug Method: Sets ring gauges using reference plugs.
• Two-Ball Method: Alternative when setting plugs are unavailable.

Standards and documentation:

• ASME B1.3 governs calibration of threaded plug gauges.
• ISO/IEC 17025 ensures accredited calibration, NIST traceability, and uncertainty management.
• For X-class gauges, use lab-grade equipment and controlled environments.

Scheduling and wear monitoring:

• Obtain calibration certificates detailing results and uncertainties.
• Recalibrate every 6–12 months (more often for abrasive use).
• Replace at >0.0002 in pitch diameter wear, especially on fine threads.

Advanced strategies: Functional/pitch diameter systems can reduce wear and calibration cycles; in-house calibration with ISO 17025-accredited labs offers control and cost benefits.

7. Tutorial Resources and Embroidery Applications

Tutorials and real-world demos make complex techniques approachable—and the right embroidery tools can boost quality and speed.

7.1 Industrial Tutorials: Three-Wire Method and Tools

The three-wire method is the gold standard for measuring external thread pitch diameter.

1. Wire selection: Best-size wire ≈ 0.57735 × pitch (e.g., for 0.1" pitch, 0.0577").
2. Placement: Two wires in adjacent grooves, third wire parallel to the axis.
3. Micrometer alignment: Keep the mic perpendicular to avoid skewed readings.
4. Calculation: ( E = M - \text{Const} ), subtracting the pitch-specific constant.

Video insights: “Pitch Diameter, Wires and Numbers Galore” and “How to Measure Threads - Mitutoyo Thread Gauges” demonstrate wire handling, micrometer alignment, and how thread classes (1A, 2A, 3A, etc.) affect interpretation.

Common pitfalls & best practices:

• Avoid wires < 0.505 × pitch to prevent deformation.
• Calibrate against certified standards; a 0.001" wire error can cause ~0.003" pitch diameter error.
• For fine threads, a Vernier caliper can help count TPI over 1".

Trends: Video-based learning and interactive tools are rising, but the three-wire method remains foundational.

7.2 Thread Tension in Machine Embroidery

Correct tension delivers crisp designs; poor tension leads to puckering, breaks, and inconsistency.

Understanding settings:

• Rayon: Typically 100–150 g
• Metallic: Around 170 g

Measuring and adjusting:

• Top thread: Gauge the pull; adjust until firm without snapping.
• Bobbin: Use a bobbin tension gauge or the drop test (slow descent when held by thread).

Troubleshooting:

• Puckering: Too much top tension or insufficient stabilizer.
• Thread breakage: Excessive tension, dull needle, or poor thread.
• Uneven stitches: Clean lint, rethread, balance top and bobbin.

Pro tips: Test on scrap, recheck after thread changes, use larger needles and slower speed for metallics.

Balanced tension pairs well with machine embroidery hoops that help keep fabric flat and evenly supported during stitching.

7.3 Optimizing Embroidery Workflow with Sewtalent

What if hooping could be faster, cleaner, and more consistent? Sewtalent brings that reality to garment embroidery.

For teams standardizing setups, magnetic hoops for embroidery machines simplify clamping and speed alignment without stressing fabrics.

These magnetic embroidery frames complement tension control by distributing pressure evenly and protecting delicate materials.

How Sewtalent hoops complement tension control:

• Even fabric tension: Magnetic clamping keeps fabric flat and taut, reducing puckering and skipped stitches.
• No hoop burn: Evenly distributed pressure protects sensitive fabrics from marks.
• PPSU durability: High-grade PPSU endures daily industrial use—up to 40× longer than standard plastic hoops.
• Lightning-fast hooping: Setup can be up to 50% faster, cutting fatigue and boosting throughput.

Why choose Sewtalent for garment embroidery?

• Versatility: Compatible with over 200 embroidery machine brands and available in more than 17 sizes.
• User-friendly: Guiding lines and ergonomics simplify alignment.
• Long-term savings: Longer lifespan and fewer defects reduce total cost.

8. Conclusion: Key Takeaways and Implementation Advice

Thread gauges ensure precision across manufacturing and embroidery. Choose appropriate plug or ring gauges, follow sound measurement (GO/NOGO and three-wire), and maintain calibration to stay in tolerance. In garment embroidery, Sewtalent’s magnetic solution accelerates hooping, protects fabrics, and lasts longer—showing how magnetic hoops for embroidery can upgrade both speed and quality.

9. FAQ on Thread Gauges

9.1 Q: How many turns should a NOGO gauge make before stopping?

A: A NOGO gauge should not engage more than three turns into a properly threaded part. If it goes beyond this, the thread is oversized and out of tolerance.

9.2 Q: How do you clean thread gauges?

A: Use a soft-bristle brush to remove debris, followed by a dry air blow. For stubborn grime, a light solvent can be applied, but avoid harsh chemicals to prevent corrosion.

9.3 Q: What is the three-wire method?

A: The three-wire method is a precise technique for measuring the pitch diameter of external threads. It involves placing three calibrated wires in the thread grooves and measuring over them with a micrometer, then subtracting a constant to calculate the pitch diameter.
