Happy Embroidery Machine Hoops: Ultimate Guide to Compatibility, Installation, and Optimization

1. Introduction to Happy Machine Hoop Essentials

Embroidery is more than just stitching—it's about precision, efficiency, and the right tools. For Happy embroidery machine users, choosing the perfect happy embroidery machine hoops is foundational to every project’s success. This guide unpacks the essentials: from understanding technical specifications like sewing field and arm spacing, to exploring the game-changing advantages of magnetic hoops and specialty applications. Whether you’re a seasoned professional or just starting out, mastering hoop selection and installation will elevate your embroidery results and streamline your workflow.

Table of Contents

• 1. Introduction to Happy Machine Hoop Essentials
• 2. Understanding Hoop Compatibility & Technical Specifications
• 3. Installing Non-Standard & Magnetic Hoops Safely
• 4. Premium Hoop Comparison: Precision & Performance
• 5. Specialty Hoops for Unique Applications
• 6. Hoop Maintenance & Customization Best Practices
• 7. Magnetic vs Traditional Hoops: Long-Term Value
• 8. Conclusion: Optimizing Your Hoop Workflow
• 9. FAQ: Happy Hoop Solutions

2. Understanding Hoop Compatibility & Technical Specifications

Selecting the right hoop for your Happy embroidery machine is a blend of art and science. The process hinges on understanding two critical measurements—sewing field (SF) and arm spacing (AS)—as well as the specific requirements of your machine model. Let’s break down these concepts and see how they shape your hooping strategy.

2.1 Key Measurements: Sewing Field vs Arm Spacing

The sewing field is the maximum embroidery area your machine can stitch in a single run. Think of it as the canvas size for your creative expression. For example, the Happy HCD3-1502 boasts a generous sewing field of 450mm × 500mm (17.7" × 19.7") per head, making it ideal for larger or multi-design projects.

Understanding Arm Spacing (AS)

Arm spacing refers to the distance between the machine’s arms that hold the hoop. This measurement determines the maximum width of hoop you can use. For many Happy commercial embroidery machines, common arm spacing options include 360mm (14.2"), 450mm (17.7"), and 500mm (19.7"). Choosing hoops designed for your machine’s widest arm spacing minimizes downtime and reduces the need for frequent adjustments—a tip echoed by industry leaders like Allied Grid-Lock.

Why These Measurements Matter

Failing to match your hoop’s size to your machine’s SF and AS can lead to headaches: misaligned designs, needle collisions, or even costly equipment damage. Always verify both measurements before purchasing a new hoop or accessory.

Metric/Imperial Conversion Chart

2.2 Model-Specific Hoop Requirements

Happy machines come in various models, each with its own compatible hoop sizes and configurations. Here’s how some popular models stack up:

HCR3-1508 (Multi-Head)

- Round Hoops: 12cm, 15cm, 18cm (approx. 4.7", 5.9", 7")
- Arm Spacing: Typically 360mm (14.2"), but always confirm before ordering.

HCD3-1502

- Included Hoops: 12cm, 15cm, 32cm square, 44cm x 420cm large square, and cap hoops.
- Sewing Field: 450mm x 500mm (17.7" x 19.7") per head.
- Tubular Frame Field: 440mm x 420mm.

Journey Series

- Square Hoop: 12.5" x 12.5"
- Round Hoop: 5.9"

Magnetic and Third-Party Hoops

Magnetic hoops like MaggieFrame and Mighty Hoop offer universal fit for many Happy models, with sizes ranging from 3.9" to 17". However, always verify compatibility with your machine’s SF and AS before use.

Quick Reference Table: Hoop Sizes by Model

Pro Tips

- For maximum productivity, select hoops designed for the widest arm spacing your machine supports.
- Happy machines can load custom hoop maps for virtually any compatible hoop, giving you flexibility for specialty projects.



3. Installing Non-Standard & Magnetic Hoops Safely

Ready to push your Happy machine beyond the basics? Integrating non-standard or magnetic hoops unlocks new creative potential—but only if you install them correctly. Let’s walk through the process step by step, then see how magnetic hoops like Sewtalent can transform your workflow.

3.1 Step-by-Step Configuration for Custom Hoops

1. Measure Your Hoop

- Use a ruler and (for curved hoops) a protractor to determine the inner dimensions and shape. - Record these measurements carefully—they’ll be critical for programming your machine.

2. Prepare a Configuration File

- Open Notepad or any text editor and create a .txt file. - Input parameters such as type, name, and form (shape), followed by your measured dimensions. - Example:

type=1 name="CustomHoop" form=1 x=130 y=130

(Replace x and y with your actual measurements.)

3. Transfer to Your Machine

- Save the .txt file to a USB drive. - Insert the USB into your Happy machine and navigate to the custom hoop settings. - Import your file and set the axis to zero for accurate placement.

4. Set a Safety Perimeter

- Define a safety line inside the hoop to prevent needle collisions. The machine will display a red line indicating the safe embroidery area.

5. Physical Installation

- Attach the hoop to the machine’s arms at the correct spacing (e.g., 360mm or 450mm positions). - Secure with the appropriate screws or brackets. - For magnetic hoops, use adhesive-backed stabilizers to prevent fabric slippage, especially with stretchy materials.

6. Test Before You Stitch

- Always perform a trace test around your design to ensure the needle won’t hit the hoop. - Adjust as needed before starting full production.

Troubleshooting Tips

- If you experience hoop burn or distortion, adjust tension or rely on the magnetic hoop’s automatic regulation. - Recheck safety perimeters if needle collisions occur. - Test stabilizer-hoop combinations on scrap fabric to avoid surprises.

Safety First: Use your machine’s emergency stop if fabric slips or tension becomes uneven.

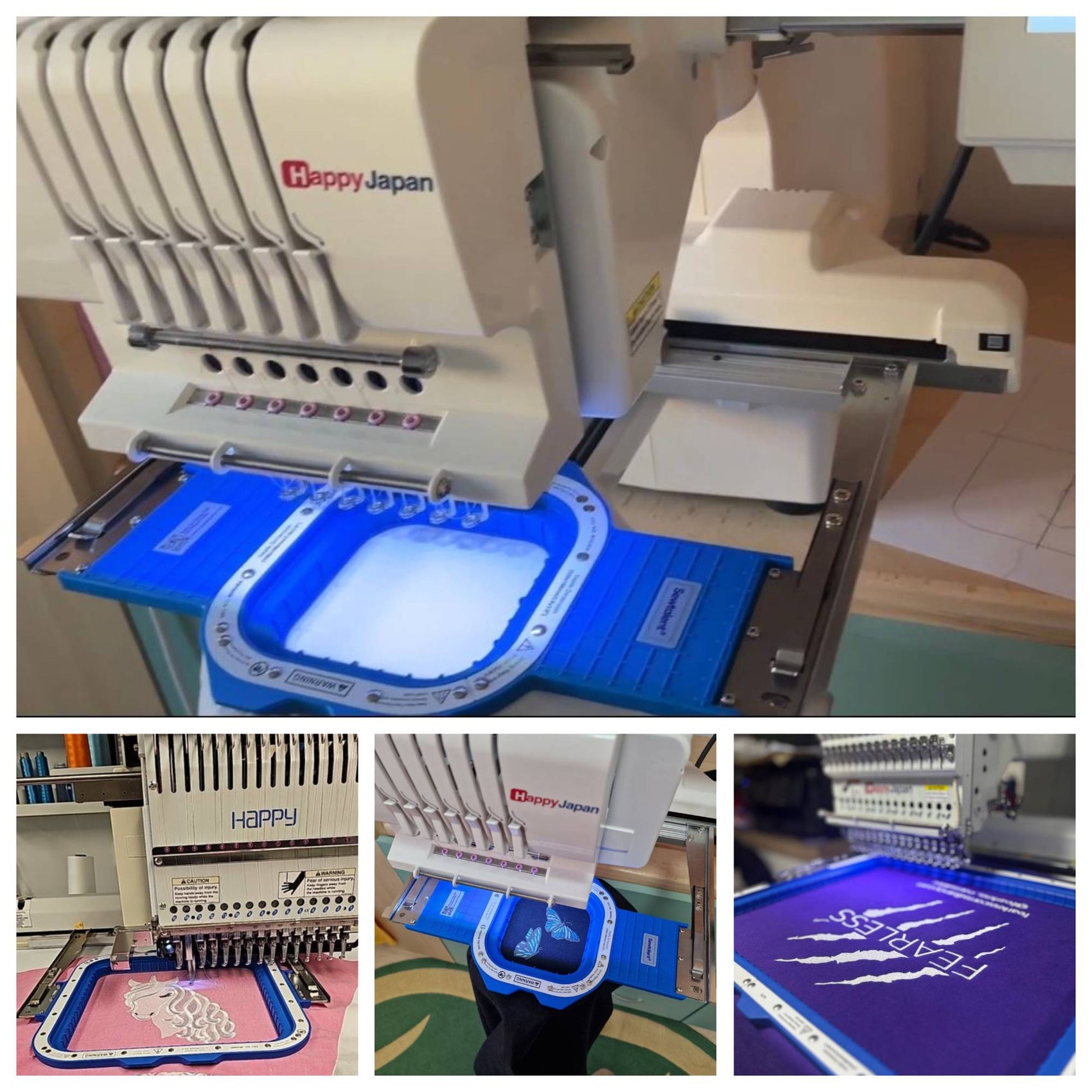

3.2 Magnetic Hoop Advantages in Garment Embroidery

Magnetic hoops are a revolution for garment embroidery—and Sewtalent’s N50 magnet system leads the pack. Here’s why:

Sewtalent’s happy embroidery software ecosystem bridges not only speed up your workflow but also ensure even tension and fabric protection. The powerful N50 magnets securely grip everything from delicate silk to heavy denim, eliminating the guesswork and frustration of manual adjustments.

Why Choose Magnetic Hoops for Garments?

- Effortless operation—no more wrestling with screws. - Consistent results across a wide range of fabrics. - Extended product lifespan means fewer replacements and lower long-term costs.

Note: Sewtalent magnetic hoops are designed specifically for garment embroidery and are not suitable for cap or hat hooping.

---

Ready to transform your embroidery game? Choosing the right hoop—and installing it safely—can make all the difference between frustration and flawless results. Up next, we’ll dive deeper into premium hoop comparisons and advanced optimization strategies for your Happy machine.



4. Premium Hoop Comparison: Precision & Performance

Selecting the right embroidery hoop isn’t just about size—it’s about precision, grip, and the kind of performance that keeps your production running smoothly. For Happy machine users, the showdown between Allied Grid-Lock and standard tubular hoops is more than a technical debate; it’s a question of how much time, fabric, and frustration you’re willing to save.

4.1 Grid-Lock vs Tubular Hoop Face-Off

Imagine trying to hang a picture frame perfectly straight without a level. That’s what hooping without alignment guides feels like. Allied Grid-Lock hoops for happy industrial embroidery machines eliminate this guesswork with their patented built-in grid lines—horizontal and vertical markings etched right onto the inner arms and circumference. These grids act as your embroidery GPS, making it easy to visually align garments and designs, ensuring every stitch lands exactly where you intended. Standard tubular hoops? They leave you to rely on eyeballing or external measuring tools, which can quickly lead to crooked logos and rejected garments.

But alignment is just the first act. Allied Grid-Lock hoops also bring muscle to the table with a double-height inner hoop and a proprietary non-slip plastic surface. This means a 79% larger gripping area compared to single-height designs, so your fabric stays taut and your stitches stay sharp—even on thick denim or leather. Standard hoops, with their smoother, single-height surfaces, simply can’t compete when it comes to holding power.

Material matters too. Allied’s proprietary plastic blend delivers flexibility and strength, resisting cracks and breakage that can plague cheaper alternatives. Standard hoops, often made from lower-cost plastics, are more likely to wear out or snap under pressure, leading to unexpected downtime.

And let’s not forget about usability. Allied Grid-Lock’s 79mm extra-long adjustment screw—complete with a knurled head and slot—makes tightening a breeze, even on bulky jackets or bags. Standard hoops use shorter, less ergonomic screws, making adjustments fiddly and frustrating, especially for thick materials.

In the long run, Allied Grid-Lock’s higher upfront cost pays for itself. Fewer misaligned garments, less downtime, and rare replacements mean your investment keeps giving back—while standard hoops, though cheaper at first, rack up costs in wasted fabric and lost time.

Bottom line: Allied Grid-Lock hoops deliver on alignment, grip, and durability, making them a smart upgrade for commercial embroidery shops where every stitch—and every minute—counts.

4.2 Cost-Benefit Analysis for Commercial Users

Let’s talk numbers. Is the premium price tag of Allied Grid-Lock hoops justified for a busy studio or commercial shop? Consider this: A single Allied Grid-Lock hoop may cost $90.95, but its robust construction and alignment features drastically reduce misaligned embroidery and the need for frequent replacements.

Compare that to generic hoops, which might seem like a bargain at checkout but often require replacement due to breakage or wear. Factor in the hidden costs—like wasted garments, rework time, and production delays from misalignment or hoop failure—and the scales tip quickly in favor of the premium option.

Over a five-year period, the durability and precision of Allied Grid-Lock hoops can translate into significant savings by:

- Reducing rejection rates thanks to built-in alignment grids.

- Minimizing downtime from hoop breakage or adjustments.

- Cutting replacement costs due to extended lifespan.

In short, investing in quality hoops isn’t just about spending more—it’s about spending smarter, ensuring your embroidery business runs smoother, faster, and with fewer headaches.



5. Specialty Hoops for Unique Applications

Embroidery isn’t one-size-fits-all. From caps to sleeves to shoes, Happy machines support a dazzling array of specialty hoops that let you tackle projects traditional hoops can’t touch. Let’s explore the right tools for those out-of-the-box jobs.

5.1 Cap & Sleeve Embroidery Solutions

Caps present a unique challenge—curved surfaces, thick seams, and tricky placements. Happy embroidery machine hat hoop solutions like HappyJapan’s wide-cap frames, with an embroidery field of 80mm × 360mm, are engineered for “ear-to-ear” stitching, allowing large, seamless designs across the front and sides of hats. For low-profile caps, a 70mm × 180mm frame zeroes in on the front panel, perfect for logos or monograms.

Third-party options abound. The Hooptech Gen 2 Cap Frame features a spring steel bill retainer and internal alignment fingers, providing secure positioning and easy setup (just remember you’ll need a T-Bar framing gauge and compatible cap driver). Magnetic cap hoops—like those with 360mm arm spacing—offer ergonomic hooping and reduce fabric strain, making them ideal for thicker or multi-layered hats.

Sleeve embroidery gets a boost from rectangular and wide-cap hoops. Happy’s 80×360mm wide-cap frame isn’t just for hats—it’s a go-to for sleeves and elongated designs. For multi-head machines like the HCR3-1508, a 32cm (12.6") square hoop opens up jacket backs or banners, while the HCH PLUS’s 12.5"×12.5" square hoop, with auto-height presser feet, handles layered or thick materials with ease.

YouTube demonstrations show how these specialty hoops simplify tricky placements—just slide the sleeve or pant leg onto the hoop, align your design, and let the machine do the rest. It’s like having a tailor-made solution for every niche embroidery challenge.

5.2 Shoe Clamps & Small Item Techniques

When it comes to shoes, belts, or tiny tags, precision is everything. Happy’s shoe clamp frames (60×100mm embroidery area) are purpose-built for these small, stubborn items. The adjustable arms securely hold shoes in place, ensuring your design lands exactly where you want it—no slipping, no distortion.

Best practices from top-ranked sources recommend pairing these clamps with the right stabilizer. For shoes or thick accessories, a strong cutaway stabilizer helps maintain crisp edges and prevents puckering. For delicate tags or belts, a lighter stabilizer may suffice, but always test on a scrap first.

The compact size of these clamps means minimal fabric distortion and maximum stitch accuracy, letting you confidently expand your embroidery offerings to products that once seemed out of reach.



6. Hoop Maintenance & Customization Best Practices

Keeping your hoops—and your Happy machine—in peak condition isn’t just about longevity; it’s about consistent, high-quality results. A little preventive care and smart customization go a long way.

6.1 Preventive Care Schedule

Oiling and Cleaning:

• For heavy commercial use, apply one drop of white sewing machine oil to the rotary hook race every 8 hours.
• For standard use, oil the needle bars, reciprocator shafts, and presser foot shafts every 40 hours.

Cleaning Protocols:

• Clean the rotary hook area daily (for commercial setups) or every 3–4 uses (for home users) with solvent and compressed air to remove lint and oil buildup.
• Remove the needle plate for deep cleaning access.

Diagnostic Checks:

• Replace the rotary hook if you notice excessive wear, timing issues, or debris buildup.
• Inspect needle bars for damage or sticking, and presser foot shafts for corrosion.

Timing Adjustments:

• Maintain a 0.1–0.2 mm clearance between the needle and hook. Adjust the dial disc to 23–25 degrees during maintenance for optimal performance.

Service Intervals:

By following these happy embroidery machine repair routines, you’ll extend the lifespan of both hoops and machine, reduce downtime, and ensure every stitch is as perfect as the last.

6.2 Creating Custom Hoop Maps via USB

Want to use a non-standard or specialty hoop? Happy machines make it easy to import custom hoop maps, giving you the freedom to expand your creative horizons.

Step-by-step process:

1. Measure Your Hoop: Use a ruler (and a protractor for rounded edges) to record the inner dimensions and shape.
2. Create a .txt File:
   • Open Notepad and enter parameters like type (e.g., “Circular” or “Oval”), name (custom identifier), and form (coordinates for the safety perimeter).
   • Input your measurements, separated by commas, and finish with “END” on a new line.
3. Transfer the File:
   • Save the .txt file to a USB stick.
   • Insert the USB into your Happy machine and navigate to the custom hoop settings.
4. Select and Confirm:
   • Choose your imported hoop from the menu and confirm the safety perimeter.
   • Set X/Y axis coordinates to zero for accurate alignment.
5. Critical Safety Steps:
   • Always perform a trace test around the design edge to ensure the needle won’t hit the hoop frame.
   • Adjust as needed before starting your embroidery.

This process, as detailed in YouTube tutorials, empowers you to safely use magnetic hoops, specialty clamps, or any custom frame—without risking needle collisions or misalignment. The ability to tailor your hoop maps means your Happy machine can adapt to virtually any project, from oversized jackets to tiny tags.

By mastering premium hoop selection, specialty applications, and smart maintenance, you’re not just protecting your investment—you’re unlocking the full creative and commercial potential of your Happy embroidery machine.



7. Magnetic vs Traditional Hoops: Long-Term Value

Let’s pull back the curtain on a debate that’s reshaping embroidery studios everywhere: Are magnetic hoops really worth the investment over traditional screw-based hoops? If you’ve ever wrestled with uneven tension, fabric slippage, or the relentless cycle of replacing worn-out plastic frames, you’re not alone. In this section, we’ll dig deep into the durability and cost-effectiveness of magnetic hoops—especially Sewtalent’s—across all the fabrics you throw at them.

7.1 Durability Across Fabric Types

When it comes to longevity, magnetic hoops like Sewtalent’s set a new gold standard. Imagine a hoop that doesn’t just survive your busiest seasons but thrives through them—cycle after cycle, fabric after fabric. According to brand and industry data, Sewtalent’s magnetic hoops are engineered to endure up to 40,000 cycles—a staggering leap over the ~5,000 cycles common with traditional screw-based hoops. That’s eight times the lifespan, thanks to innovations like high-grade N50 magnets and reinforced engineering plastics.

But what does this mean for your actual embroidery projects? Let’s break it down by fabric type:

Why does this matter? If you’re running a business, every ruined garment or wasted minute adds up. Magnetic hoops deliver a gentle yet firm grip, adapting automatically to fabric thickness—no more cranking down screws or worrying about hoop marks on silks. The result? Consistently crisp embroidery, whether you’re working on a run of denim jackets or a batch of delicate scarves.

And let’s not forget the range of sizes. Sewtalent offers over 17 hoop dimensions, from 3.9" x 3.9" up to a massive 17" x 15.5", so you can tackle everything from baby onesies to oversized jacket backs—without swapping out your favorite hooping system.

7.2 Cost-Saving Calculations for Studios

Here’s the million-dollar question (or, more accurately, the $104,550 question): How much can you actually save by switching to magnetic hoops? Let’s get specific.

While magnetic hoops like Sewtalent’s may have a higher upfront cost, their extended lifespan and efficiency gains quickly tip the scales. Over five years, the happy embroidery machine cost savings from durability—driven by reduced defects, zero replacement costs, and massive labor efficiency—reach $104,550. Let’s visualize the difference:

Let’s put this in real-world terms: If you’re hooping dozens of garments a day, shaving even 90 seconds off each setup adds up to 3.75 hours saved daily. That’s more time for production, less time for frustration, and a healthier bottom line.

But the savings don’t stop at the bank account. Magnetic hoops also reduce operator fatigue—no more repetitive screw tightening—and minimize fabric waste thanks to their even tension and gentle grip. For high-volume shops, the switch isn’t just smart; it’s transformative.

Curious if magnetic hoops are right for your workflow? Picture this: You’re prepping a run of thick sweatshirts, then switching to a stack of silk scarves. With Sewtalent, you’re not swapping tools or fiddling with adjustments—you’re just hooping, stitching, and moving on to your next masterpiece.



8. Conclusion: Optimizing Your Hoop Workflow

Choosing the right hoop isn’t just a technical detail—it’s the backbone of efficient, high-quality embroidery. By checking compatibility, embracing the speed and consistency of magnetic hoops, and exploring specialty frames for unique projects, you unlock smoother workflows and better results.

Sewtalent’s garment embroidery hoops, with their powerful magnets, robust durability, and broad compatibility, offer a proven path to higher productivity and fewer headaches.

Ready to level up your embroidery game? Make your next hooping decision count.

9. FAQ: Happy Hoop Solutions

9.1 Q: My Happy machine isn’t recognizing my new hoop. What should I do?

A: Double-check that you’ve selected the correct hoop size in your machine’s settings. For custom or non-standard hoops, ensure you’ve imported the correct .txt hoop map via USB and set axis coordinates to zero. Always do a trace test before stitching to avoid needle collisions.

9.2 Q: How can I prevent fabric from slipping or puckering during embroidery?

A: Use the appropriate stabilizer for your fabric type and make sure the fabric is hooped taut, not stretched. For stretchy or delicate materials, consider using a hooping station or reference lines to align your fabric precisely.

9.3 Q: Are third-party hoops compatible with Happy embroidery machines?

A: Yes, many third-party hoops—including magnetic and specialty frames—can be used with Happy machines. Always verify sewing field and arm spacing compatibility, and import custom hoop maps as needed for accurate design placement.

9.4 Q: What’s the best way to troubleshoot hoop-related errors?

A: Start by checking that the hoop is properly installed and the machine settings match the hoop size. If you encounter misalignment or needle strikes, re-import the hoop map and perform a trace test. For persistent issues, consult your machine’s manual or seek support from your dealer.
