Master Embossing Embroidery: Techniques, Projects & Expert Tips

1. Introduction to Embossing Embroidery

Embossing embroidery turns plush fabrics into sculpted canvases. By compressing the nap (pile) of materials like terry cloth and fleece, it leaves some areas recessed while letting motifs and letters appear raised—clean, tactile, and irresistibly touchable. In this guide, you’ll learn core techniques (fabric choice, stabilizers, hooping, digitizing), plus project ideas for towels, blankets, robes, and apparel. We’ll also note how magnetic hoops can improve precision on garments by keeping layers steady. Ready to see terry cloth transformed from fluffy to “whoa”? Let’s stitch smart and make texture the star.

Table of Contents

• 1. Introduction to Embossing Embroidery
• 2. Core Techniques for Stunning Embossed Effects
• 3. Inspiring Embossed Embroidery Projects
• 4. Embossed vs. Regular Embroidery: Key Differences
• 5. Tools & Materials: Foam, Threads & Hoops Compared
• 6. Finding & Using Embossed Design Files
• 7. Troubleshooting Common Embossing Challenges
• 8. Conclusion: Elevating Your Craft
• 9. FAQ: Embossing Embroidery Essentials

2. Core Techniques for Stunning Embossed Effects

2.1 Fabric & Stabilizer Selection Secrets

High-nap fabrics do the heavy lifting in embossed embroidery.

• Best fabrics: terry cloth towels, fleece (including nubby varieties), microfiber plush, faux fur, and thick terry cloth. These offer enough pile height for dramatic raised-versus-compressed contrast. Pre-wash terry cloth to avoid post-stitch shrinkage or distortion.
• Two-layer stabilizer system:
  • Base: a medium-weight cutaway stabilizer (about 2.5 oz) gives lasting support for stretchy terry and similar knits, helping designs hold up through washing.
  • Topping: water-soluble stabilizer (WSS), such as Sulky Solvy, on top. It prevents stitches from sinking, reduces “pokies,” and keeps edges crisp on textured surfaces. For extra-high nap, use a heavier WSS topper.

Pro tip on color: For subtle sophistication, match thread to the fabric; for definition, go one shade lighter on dark fabrics or one shade darker on light fabrics. Variegated thread can add soft blended or plaid-like dimension depending on color-change frequency.

2.2 Hooping Methods & Tension Control

Use the floating hooping technique for plush textiles:

• Hoop only the cutaway stabilizer first (tension appropriate to its weight). Lightly spray temporary adhesive on the stabilizer.
• Smooth the fabric on top (do not stretch). Add the water-soluble topping to create a stabilizer–fabric–topping “sandwich.”
• Before stitching, check thread tension and run a trace to ensure the design won’t collide with the hoop.
• Keep an eye on distortion: too-tight tension can pre-flatten the pile; too-loose tension invites shifting.

Where magnetic hoops shine on garments:

• They help hold bulky items (towels, fleece, denim) more evenly, reduce hoop marks, and speed up setup—especially helpful when maneuvering sweatshirts, robes, or layered garments.
• If you want a professional-grade upgrade, MaggieFrame magnetic hoops are designed for garment hooping (not for caps). They promote even fabric hold, reduce hoop burn, and are engineered for speed. Their built-in reference lines help with quick alignment, and users report saving significant hooping time—down from about 3 minutes to around 30 seconds per item (about 90% faster), alongside a reduction in embroidery defects (about 15%) when workflow is dialed in. They’re compatible with a wide range of commercial machines and excel on thick fabrics.

Note: Always follow your machine’s manual for tension and presser-foot adjustments when working with lofty materials or added layers.

2.3 Digitizing & Stitching Strategies

Using software machine embroidery, digitize for negative space and sculpted contours—the “nothing” is what creates the 3D “something.”

• Background lacework fills: Set X and Y spacing around 2.0 mm so fills compress the nap uniformly without creating board-stiff areas.
• Frames and borders: Satin frame widths around 3.0 mm help compact the pile along edges, sharpening the embossed silhouette.
• Letters and text: Use outline-only (no solid fill) so the interior nap stays raised. A 3.0 mm satin line outline with a center offset creates that crisp, embossed lettering.
• Embossed fills in software: Adjust pattern size, X/Y spacing, orientation, and stitch angles to control how the fill “flows” and compresses pile. Curved fills and multiple stitch angles can contour patterns around shapes for richer relief effects.
• Thread choices:
  • Matching tones = subtle, luxe texture.
  • Slight contrast (lighter on darks, darker on lights) = clear definition without shouting.
  • Variegated thread can produce a soft blend or a plaid-like rhythm as it travels across the fill—great for scenic or organic motifs.
• Secure the stack:
  • Use a basting stitch around the design before decorative stitching to prevent shifting.
  • Triple bean stitches are excellent for securing any foam or padding elements in combo techniques.
• Finish cleanly:
  • Trim the cutaway stabilizer, leaving about 0.5 inches around the design for support.
  • Remove the WSS topper by tearing away large sections, then use a damp sponge or tweezers for small bits (any tiny remnants will dissolve in the first wash if care allows).
  • Let the item dry fully before use.

3. Inspiring Embossed Embroidery Projects

3.1 Home Textiles: Towels, Blankets & Robes

• Monogrammed towels: Classic, giftable, and practical—embossed monograms or motifs elevate hand towels, bath towels, and guest sets without compromising absorbency. Create a coordinated bath set by scaling the same design across sizes.
• Seasonal fleece throws: Emboss borders, corner medallions, or center emblems on fleece blankets. The technique adds visual interest without extra weight—perfect for cozy, oversized throws or baby blankets where soft, non-irritating texture matters.
• Spa-ready robes: Plush terry or fleece robes carry chest monograms, collar details, or cuff accents beautifully with embossed techniques—understated, high-end personalization.

To preserve texture on high-nap fabrics:

• Use the two-layer stabilizer system (cutaway + WSS topper).
• Float the fabric rather than hooping it tightly.
• Calibrate stitch density to compress pile without stiffness.
• Gently brush the unstitched areas after WSS removal to restore loft and increase contrast.

3.2 Apparel & Wearable Art

• Hoodies and sweatshirts: Using an embroidery machine for sweatshirts, embossed words or outline-only text look bold yet refined on fleece and sweatshirt knits. Many makers layer foam under a tack-down for extra loft before stitching the garment layer—great for statement-worthy streetwear.
• Luxury robe accents: Subtle tone-on-tone embossing on shawl collars or cuffs looks boutique-level.
• Kids’ clothing: Embossed motifs add sensory-friendly texture—no scratchy, raised thread masses to catch on playground gear.

For stable garment embroidery, Sewtalent magnetic hoops are a solid choice for speed and even tension on thick fabrics like denim and fleece. If you prefer an alternative with the same professional goals, MaggieFrame magnetic hoops are purpose-built for garment hooping. They help minimize hoop marks, keep bulky items evenly hooped, and speed up the workflow—especially useful when wrangling sweatshirts and robes. Reminder: these hoops are for garment embroidery, not caps.

Call to action:

• If you’re stitching plush apparel or high-nap home goods regularly, consider upgrading to a magnetic hoop system like MaggieFrame to boost stability and efficiency on garments while keeping your embossed edges crisp.

4. Embossed vs. Regular Embroidery: Key Differences

4.1 Texture, Visual Impact & Durability

Embossed embroidery and regular embroidery build dimension in very different ways.

• Texture and structure:
  • Embossed (negative-space on nap): On high-pile fabrics like terry or fleece, embossed designs compress the nap to create recessed backgrounds and raised motifs. The “nothing” (open space) does the sculpting, so edges look crisp and shadowed. A water‑soluble topper (WSS) keeps stitches from sinking into pile for a clean outline on towels and plush fabrics.
  • Embossed (foam/raised): A foam layer can be positioned in the stack to lift elements with satin stitches for a sculpted, premium look (akin to trapunto or raised satin techniques). This is different from regular surface stitching and can create multiple dimensional levels.
  • Regular embroidery: Adds thread on the fabric surface. It reads flatter, color‑driven, and is ideal for logos, patches, and fine detail where thread is the star.
• Visual impact:
  • Embossed effects catch light through shallow relief, making tone‑on‑tone monograms and motifs look luxe and understated. Variegated thread can add soft blends or even a distinctive plaid rhythm in the travel paths—makers often “shop from the top” of the spool to preview color changes.
  • Regular embroidery delivers bold, saturated thread visuals with familiar sheen and stitch textures.
• Durability:
  • Regular embroidery is highly durable when stitched and stabilized correctly.
  • Embossed (negative-space) can actually firm up treated areas by compressing fibers, but pile needs a WSS topper to keep clarity. Raised sections—especially foam‑based—experience more friction and need gentler care. Air drying is recommended for 3D foam; avoid dry cleaning, which can degrade foam. Gentle washing preserves the relief for both embossed approaches.

4.2 Applications & Aesthetic Flexibility

• Where embossed shines:
  • Textured home goods: Terry towels, robes, microfiber plush, and fleece blankets are natural fits—crisp negative space stays readable and tactile. Embroidery Library demonstrates embossed backdrops plus monogram letters for gift‑ready towels, and their team consistently recommends cutaway + WSS on pile.
  • Athleisure and plush apparel: Hoodies and sweatshirt knits love embossed outline text for bold-but-soft statements. On velvet, single‑line stitches (e.g., stem/contour) with close color matches can read embossed or engraved with minimal pile crush.
  • Foam‑based raised styles: When design specs allow bold shapes and proper line thickness, foam creates dramatic height.
• Where regular embroidery wins: Flat surfaces, small details, and most logos—especially on caps and structured hats—benefit from standard stitching clarity (and, when desired, classic 3D puff on top). It’s the default for patches, uniforms, and tight letterforms, especially when using a multi needle embroidery machine.
• Design latitude:
  • Embossed offers subtle luxury (tone‑on‑tone, sculpted edges, negative-space storytelling). It’s ideal when the fabric’s texture is part of the art.
  • Regular embroidery maximizes thread color and detail, ideal for high‑contrast branding or intricate art where thread coverage drives the look.

5. Tools & Materials: Foam, Threads & Hoops Compared

5.1 Stabilizers & Specialty Threads

Dial in your stack and thread to make texture read cleanly.

• Stabilizers:
  • Base: Medium‑weight cutaway (about 2.5 oz) provides lasting support on terry and stretch knits. Trim to leave a margin around the design.
  • Topping: Water‑soluble stabilizer (WSS) on high‑nap fabrics is a must to prevent stitches from sinking. For extra‑lofty pile (faux fur, thick terry), use a heavier WSS topper. Small remnants dissolve with a damp sponge or in the wash.
• Foam for raised/3D effects:
  • Puff foam typically runs 2–3 mm thick and should match thread color so any edges blend. Line thickness for 3D puff works best in the 0.2–0.5 inch (5–12.5 mm) range with at least 0.05 inch (1.27 mm) spacing between elements. Satin density may be tightened (e.g., around 0.2 mm spacing) to encapsulate foam cleanly.
  • Alternative flexible foams (commonly used in bag‑making) yield a softer hand on garments but are scissor/hot‑knife trimmed instead of torn away. Multiple foam layers can increase loft; adjust presser foot height and top tension per your machine manual.
• Threads and color strategy:
  • Contrast optimization: Use slightly darker thread on light fabrics or slightly lighter on dark fabrics for readable embossed edges. Matching tones give subtle, high‑end texture.
  • Variegated thread: On embossed fills (especially the background compression areas), short-vs-long color intervals change the look—short intervals blend softly; longer intervals can create a plaid‑like effect as the stitches travel.
  • Polyester thread is a dependable choice for durability and repeated laundering.
• Digitizing note for embossed fills:
  • In software that supports embossed fills, you can tune pattern size, X/Y spacing, orientation, and even use multiple stitch angles or curved fills to contour texture around shapes—great for controlled compression and flowing relief.

5.2 Hoop Innovations for Complex Fabrics

Magnetic hoops vs traditional hoops on plush or thick textiles:

• Traditional hoops:
  • Rely on screw tension. On lofty fabrics, over‑tightening can pre‑flatten pile or leave hoop marks; under‑tightening invites shifting. Setup can be slower when you’re juggling bulky robes, hoodies, or towels.

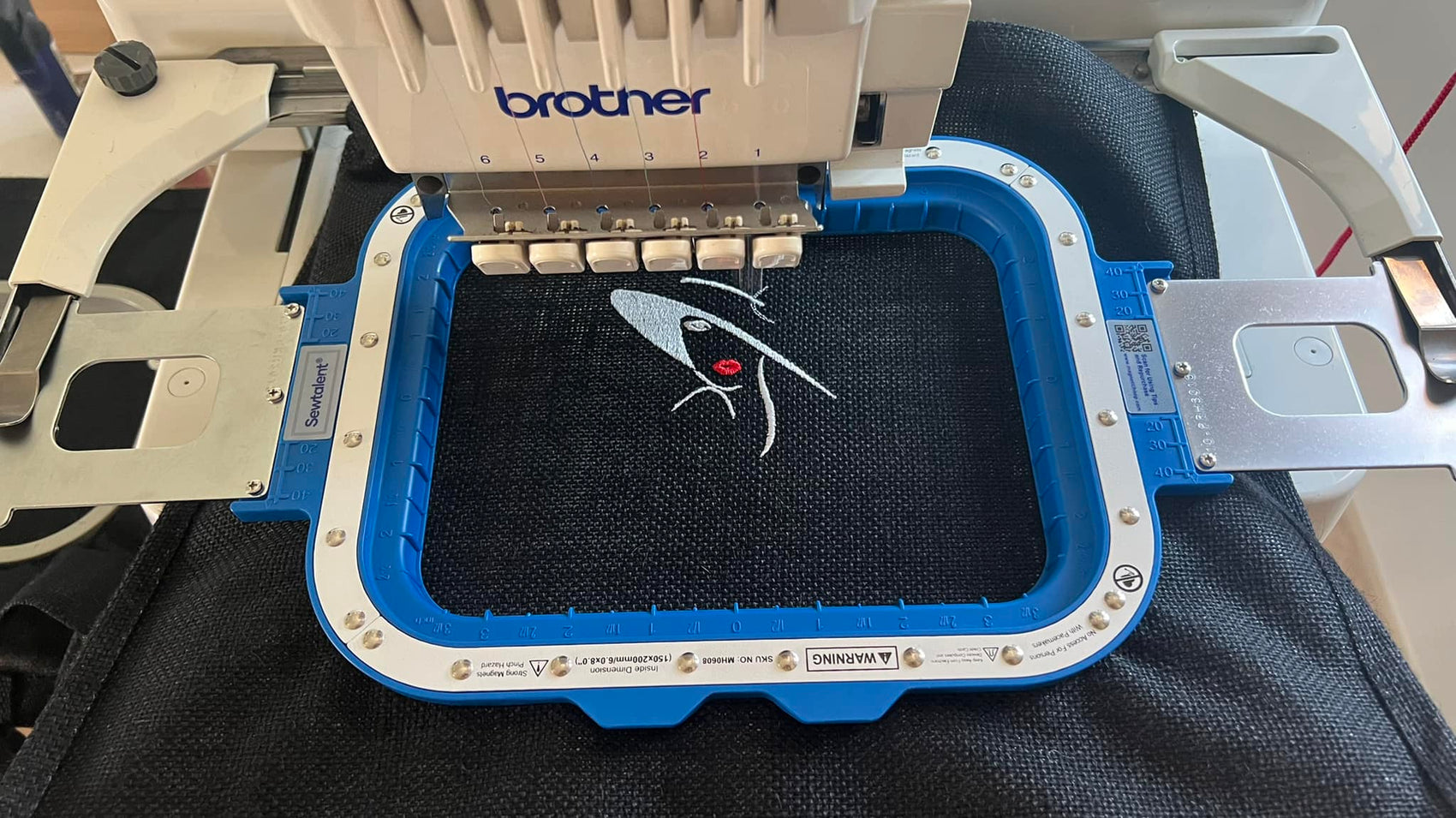

• Magnetic hoops:
  • Purpose: Speed setup, keep even hold across thicknesses (denim, fleece, terry), and reduce hoop burn on garments.
  • Sewtalent magnetic hoops: Makers use them for repeatable, fast hooping on thick apparel and towels, with smoother, more even fabric hold that supports stitch consistency.
  • MaggieFrame magnetic hoops: Designed for garment hooping (not for caps). They promote even fabric hold, reduce hoop marks, and are engineered for speed and stability on bulky items. Multiple reference lines aid quick alignment. Published durability testing shows MaggieFrame withstanding extensive impact and angle‑pressure cycles—on the order of 27–40 times more durable than a well‑known competing magnetic hoop brand in those tests. You can find the comparison CCTV videos by searching for “MaggieFrame and Mighty Hoop Durability Comparison Testing CCTV Video.”
  • Efficiency: Many embroiderers move from several minutes of setup per item with traditional hoops to a markedly faster hoop‑and‑go rhythm with magnet‑assisted hooping—especially valuable in production runs.

Tip: Regardless of hoop type, float plush fabrics with cutaway underneath and a WSS topper on top; don’t stretch the fabric in the hoop. Always run a trace before stitch‑out on bulky garments.

6. Finding & Using Embossed Design Files

Here’s where to source tested, machine‑ready embossed designs—and how to pick the right files.

• Trusted sources:
• EmbroideryDesigns.com: A large marketplace with technique filters, including embossed sections, and instant downloads.
• Embroidery Library: Deep catalog of embossed designs and themed packs (e.g., seasonal motifs). Their in‑house team emphasizes rigorous testing and tutorials; you’ll find towel‑friendly motifs and embossed monograms with clear instructions (cutaway + WSS topper).
• AnnTheGran: Offers free machine embroidery designs that are useful for testing embossed techniques before you buy.
• Formats and compatibility: Most platforms provide multiple formats—ART, DST, EXP, HUS, JEF, PEC, PES, SEW, VIP, VP3, XXX—covering major home and commercial machines (Brother, Baby Lock, Janome, Bernina, Husqvarna Viking, Pfaff, Singer, etc.). Download the format your machine reads natively.
• Licensing and usage: Standard terms allow personal use and typically permit selling finished goods; redistribution, sharing, or altering design files is prohibited. No‑refund policies are common unless a file is defective and cannot be corrected—reflecting industry‑wide IP protection for digital designs.
• What to look for in embossed files:
• Negative‑space optimization: Designs that preserve generous open areas read crisply on pile. Overly tiny voids can disappear on terry/fleece.
• Scalable reality: Many embossed scenes don’t shrink well to 4" × 4" because open spaces must remain large enough to “breathe.” Choose sizes that suit your fabric’s pile height.
• Fabric‑specific notes: Look for designer guidance on stabilizer stacks (e.g., cutaway + WSS) and thread suggestions (tone‑on‑tone vs contrast vs variegated).
• Test swatches: Because satin directions, fill angles, and pile behavior can vary by fabric, run a quick sample on the same textile before committing to a full towel or hoodie.

Pro move: For software users, embossed‑fill capable tools let you adjust pattern size, spacing (X/Y), orientation, and stitch angles to fine‑tune the compressed background—perfect for dialing in maximum relief on terry cloth, fleece, and microfiber plush.

7. Troubleshooting Common Embossing Challenges

7.1 Fixing Stitch Clarity & Tension Issues

When raised details look fuzzy or stitches keep snapping, work the problem from the stack outward.

• Balance top/bobbin tension
• If bobbin peeks on top or satin tunnels across foam, rebalance tension and rethread, making sure thread seats in the tension path correctly.
• Clean tension discs and the thread path (lint and residue cause inconsistent drag). A dampened paper towel with a gentle cleaner works for residue on discs.
• Replace a dull or bent needle; size it to your thread and fabric so it penetrates foam cleanly.

• Foam selection, cutting, and cleanup
• Use embroidery-grade puff foam; its density is engineered to cut cleanly under satin. Match foam color to thread so any micro-frays blend in.
• For non‑tear foams (e.g., flexible bag‑making foams), trim close to the tack‑down with sharp scissors or a hot knife on a sacrificial mat. Work flat, and avoid nicking the stabilizer.
• Tiny remnants that show after stitching can be shrunk with a heat/embossing gun held several inches away on the lowest setting—move continuously and test on scraps first.

• Digitizing for clarity (emboss and 3D puff)
• Keep raised satin elements within practical limits (about 0.2–0.5 inch wide) and leave at least ~0.05 inch between elements so the foam has room to “live” without mashing together.
• For foam work, add placement and tack‑down runs before satin. If clarity drops, slightly reduce density to avoid over‑compressing foam.
• On embossed negative‑space designs (no foam), choose fills that compress pile uniformly and consider multiple stitch angles or curved fills to control how light and shadow read.

• Stabilizer and topper habit
• On plush towels/fleece, the cutaway base + water‑soluble topper (WSS) combo prevents sink‑in and keeps edges crisp. Tear large WSS areas first; remove small bits with tweezers or a damp sponge (remaining specks wash out).

• Registration rescue
• If outlines drift, reinforce the base: add a second layer of cutaway (fusible polymesh is a solid option in garment workflows) or baste the full design area before decorative stitches. Run a trace to ensure clearances before you stitch.

Pro tip on thread: Polyester embroidery threads made for high-friction work over foam perform reliably; if breakage persists, step up thread quality (brands like King Star or Exquisite are proven performers in foam applications).

---

7.2 Preventing Fabric Distortion

Puckering, tunneling, and shifting usually trace back to support and handling—before a single stitch fires.

• Stabilize like you mean it
• High‑nap, stretchy, or plush fabrics do best with a medium‑weight cutaway as the base; float the fabric on sprayed cutaway when hooping is risky for pile.
• Always add a water‑soluble topper on terry, fleece, faux fur, or microfiber plush to keep stitches from sinking. For very lofty pile, use a heavier topper or even double the topper.
• For garments, fusible polymesh on the back can keep knits stable through stitching and laundering; some makers even double the fusible layer for larger, foam‑heavy lettering.

• Hooping and handling
• Float method: using an embroidery hoop, hoop the stabilizer alone, light spray, smooth the fabric on top without stretching, place topper—then baste the outline. This “sandwich” holds shape on plush textiles.
• Keep presser‑foot height and top tension appropriate for added thickness (foam + pile); follow your machine manual for these adjustments.
• Use a light, controlled spray in a lined box to avoid overspray and to keep foam or fabric from skating during the first passes.

• Magnetic hoops for garments and stretch fabrics
• Magnetic hoops help hold bulky sweatshirts, robes, denim, and towels evenly, cutting down hoop burn and fabric creep. If you want a stable, fast garment workflow, MaggieFrame magnetic hoops are engineered for garment hooping (not caps). They provide even hold across thicknesses and built‑in reference lines that speed alignment—benefits that reduce rehoops and the distortion they cause.

• Learn visually, then test
• YouTube tutorials from Embroidery Library and independent creators show step‑by‑step embossed setups: cutaway + WSS, floating method, foam placement/tack‑downs, hot‑knife trimming, tracing the design, and basting stitches. Watch the sequence and run a quick sample on your actual fabric before you commit.

Color and contrast note: For readable embossed edges, use a slightly lighter thread on dark fabrics or slightly darker on light fabrics. For subtle luxe, match thread to the fabric.

8. Conclusion: Elevating Your Craft

Embossed embroidery shines when fabric, stabilizer, hooping, and digitizing work in sync. Use a cutaway base with a water‑soluble topper, float plush fabrics to avoid stretch, and baste before you build texture. Try negative‑space fills for sculpted clarity or add foam for bold height. Start with small test swatches, tweak tension and presser‑foot height, and keep exploring pattern spacing and angles. With a few disciplined habits, you’ll turn terry, fleece, and plush into premium, tactile showpieces.

9. FAQ: Embossing Embroidery Essentials

9.1 Q: Can I emboss on low‑nap fabrics?

- A: You can, but results are limited. Embossed texture relies on compressing pile; on low‑nap or flat fabrics, the effect reads subtle at best. For stronger relief, choose terry, fleece, microfiber plush, or faux fur.

9.2 Q: How many stabilizer layers should I use?

- A: Start with two: a medium-weight cutaway base plus a water-soluble topper (WSS), which is compatible with the best sewing machine for quilting and embroidery. On very lofty pile or stretchy knits, you can add support—e.g., a heavier/double topper or a second cutaway/fusible polymesh—so the stack resists shifting and puckering.

9.3 Q: What thread is best for subtle effects?

- A: Matching thread to the fabric creates a refined, tone‑on‑tone look that lets the texture do the talking. If you want a bit more definition without shouting, go one shade lighter on dark fabric or one shade darker on light fabric. Variegated thread can add soft blending or a plaid‑like rhythm in embossed fills.
