Mastering Bobbin Threading: Your Step-by-Step Guide to Flawless Sewing

1. Introduction to Bobbin Threading Fundamentals

The bobbin supplies your machine’s lower thread; when it’s wound, installed, and brought up correctly, stitches lock cleanly and seams stay smooth. Beginners often find that proper threading immediately prevents thread bunching, skipped stitches, and jams—one Singer tutorial even notes that learning this solves about “80%” of first-use issues. In this guide, you’ll learn the exact steps: how to wind a bobbin, load top‑load vs front‑load systems, bring up the bobbin thread, interpret diagrams and video cues, and avoid common pitfalls with simple checks and tests.

Table of Contents

• 1. Introduction to Bobbin Threading Fundamentals
• 2. Step-by-Step Bobbin Threading for Beginners
• 3. Demystifying Bobbin Systems: Front-Load vs Top-Load
• 4. Visual Learning Resources: Tutorials and Diagrams
• 5. Bobbin Tension: The Secret to Balanced Stitches
• 6. Troubleshooting Bobbin Nightmares
• 7. Selecting Bobbin Thread: Weight, Material and Compatibility
• 8. Conclusion: Key Takeaways for Perfect Threading
• 9. FAQ: Bobbin Threading Essentials Answered

2. Step-by-Step Bobbin Threading for Beginners

2.1 Bobbin Winding Essentials: From Spool to Spindle

• Prepare your thread and machine
• Place the thread spool on the spool pin with the correct cap so the thread feeds smoothly (Singer Tradition video; The Spruce Crafts).
• On many machines, follow the dotted-line path to the bobbin pre-tensioner; “click” the thread fully into that pre-tensioner so the bobbin winds firm and even (Singer Tradition video).
• Secure the bobbin and engage winding
• Feed the thread through the bobbin’s small hole from the inside out, leaving a short tail (Perplexity; Singer videos).
• Seat the bobbin on the winding spindle and push it to the right to engage the winder. Some models also disengage the needle automatically; others use a handwheel declutch (Perplexity; Workroom Social).
• Wind evenly, avoid overwinding
• Start winding while holding the tail; stop and trim the tail flush early so it doesn’t interfere later (Singer Tradition video).
• Watch for even up‑and‑down layering across the bobbin surface (Workroom Social). Stop when the bobbin reaches capacity—don’t overfill (Perplexity; The Spruce Crafts).

Pro tip for main threading (after winding): when you route the upper thread, “floss” it deeply between the tension discs and follow the down‑up‑down path—many sewers visualize it like a cursive “E” (Singer Tradition video cues).

2.2 Installing Drop-In vs Front-Loading Bobbins

• Top‑loading (drop‑in) basics
• Orient the bobbin so the thread forms a “P” shape when viewed from above (Perplexity; Singer “How to Wind a Bobbin on a Singer”).
• Drop it in, place the tail in the center front crevice, then pull left following the arrows to catch the thread under the metal tension piece; many machines include a built‑in cutter for excess (Perplexity; Beginner Sewing drop‑in video).
• Front‑loading (bobbin case) basics
• With needle and presser foot up, remove the bobbin case. Place the bobbin so a gentle tug on the tail turns it clockwise—this spin test confirms orientation (Perplexity; Melco).
• Slide the thread through the case slit until it “clicks” under the tension finger, then reinsert the case until it clicks securely (Perplexity). Some machines specify counterclockwise in the case—always verify with your manual and the spin test (Workroom Social).

Quick checks that prevent headaches:

• Confirm the bobbin type/size for your machine and that the cover is aligned and locked; misalignment can cause tension and feeding issues (The Spruce Crafts; MH Thread page).
• Never use cracked or rough bobbins (The Spruce Crafts).

2.3 Bringing Up the Bobbin Thread: Pro Techniques

• Handwheel coordination
• Hold the upper (needle) thread in your left hand. Turn the handwheel toward you until the needle goes down and returns to its highest position—this completes one full stitch (Perplexity; Singer Tradition video).
• A loop of bobbin thread appears; gently pull the upper thread to bring the loop up. Place both tails under the presser foot and toward the back (Perplexity; Workroom Social).
• Easy loop capture
• Drop‑in demo tip: after the needle’s full rotation, swipe a pair of scissors under the presser foot to snag and pull the bobbin loop up cleanly (Beginner Sewing drop‑in video).
• Sanity check before sewing
• Snap the cover in place on top‑drop‑in models; many use a clear lid so you can monitor thread level, and some are marketed as jam‑resistant (SINGER 4423 video).
• Test on scrap. If you see loops underneath, rethread the upper path—upper threading errors are a common culprit (The Spruce Crafts).

3. Demystifying Bobbin Systems: Front-Load vs Top-Load

3.1 Mechanical Designs: Horizontal Rotary vs Vertical Oscillating Hooks

• Top‑loading (drop‑in): horizontal full‑rotary hook
• The bobbin sits horizontally under the needle. The hook completes full circular rotations for smooth, continuous thread delivery (Perplexity).
• Clear covers make thread levels visible at a glance; some designs emphasize jam‑resistant convenience (SINGER 4423 video).
• Front‑loading: vertical oscillating hook
• The bobbin sits vertically in a removable metal case. The hook moves side‑to‑side (oscillates) rather than rotating fully (Perplexity).
• The bobbin is hidden during sewing and tension is adjustable at the case—favored for precise control in heavy‑duty and industrial contexts (Perplexity).

In short: top‑loaders prioritize visibility and ease; front‑loaders prioritize adjustable tension and rugged performance.

3.2 Threading Procedures: Case Removal vs Drop-In Simplicity

• Front‑load sequence (with bobbin case)
  1. Raise needle and presser foot; open the front cover and remove the bobbin case (Perplexity; Workroom Social).
  2. Insert the bobbin with orientation verified (spin test), thread through the slit to the tension finger until it clicks (Perplexity).
  3. Hold the case latch, seat the case back into the machine until it clicks; bring up the bobbin thread with a handwheel turn (Perplexity; Workroom Social).
• Top‑load sequence (drop‑in)
  1. Remove the cover; orient the bobbin into a “P” shape and drop it in (Perplexity; Singer).
  2. Follow the printed arrows, pulling the thread left to engage the metal tension path; trim with the built‑in cutter if present (Perplexity).
  3. Replace and lock the cover—correct alignment prevents feeding/tension issues (MH Thread; The Spruce Crafts).

If stitches misbehave after installation, recheck: bobbin orientation, thread seating behind the case/cover tension points, and that the cover is fully snapped or the case fully clicked into position.

4. Visual Learning Resources: Tutorials and Diagrams

4.1 Anatomy of Effective Video Tutorials

The best bobbin videos show, then tell. Look for multi-angle close-ups of hands, guides, and the bobbin area, plus clear narration you can pause and replay. On YouTube, beginner-friendly lessons often run 7–8 minutes and cover the full journey: equipment ID, winding, installing, and verification.

What to watch for:

• Multiple angles and thread-path visualization
• Close-ups of the bobbin pre‑tensioner and the “click” when the thread seats correctly. Some instructors describe the upper-thread routing as a small, cursive “E”—a memorable way to visualize the down‑up‑down path through the tension discs and take‑up lever (Perplexity; Singer Tradition video).
• Machine‑specific adaptations
• Drop‑in examples show the thread “falling to the left” and following arrows under the metal tension piece, often with a built‑in cutter (Beginner Sewing drop‑in video; Singer 4423).
• Front‑load tutorials demonstrate removing the bobbin case via its latch, threading the slit and tension finger, and aligning notches so the case “clicks” back in (Workroom Social).
• Full procedure and verification
• Bringing up the bobbin thread: hold the upper thread, turn the handwheel toward you one full stitch, then pull the loop up. One drop‑in demo neatly “swipes scissors” under the presser foot to catch the loop (Beginner Sewing).
• Quality cues: The Singer Tradition tutorial emphasizes flossing the tension discs and using the built‑in needle threader, then testing on scrap—simple habits that solve many first‑use issues.

Pro tip: Some brand videos highlight convenience factors visually—transparent covers that let you see bobbin level and “jam‑proof” top drop‑in messaging—useful context when you’re learning to read what your machine is showing you (SINGER 4423 video).

4.2 Decoding Machine Diagrams and Symbols

Threading diagrams are your roadmap. Once you understand the icons, everything clicks faster:

• Directional arrows and “P” shape
• Drop‑in plates often print an arrowed path: tail to the front crevice, then left under a metal guide. Many brands teach a “P” orientation for correct direction in horizontal systems (Singer; How To Wind A Bobbin On A Singer Sewing Machine video).
• Tension disc icon and dotted/numbered paths
• Manuals and bed prints use dots/numbers to mark the winding and upper-thread routes. The Spruce Crafts highlights wrapping the top thread between discs correctly and engaging the bobbin-winding mechanism (brake/stopper or handwheel declutch).
• Case-and-slit symbol for front‑loaders
• Expect a slit/leaf‑spring icon on the bobbin case diagram—thread goes through that slit and under the tension spring before the case clicks back into the machine (Workroom Social; The Spruce Crafts).
• Maintenance/test visuals from technical docs
• Melco’s documentation illustrates the “bounce/drop” bobbin tension test: with the threaded case dangling, a proper setting drops smoothly about 2–4 inches when gently bounced; small clockwise/counterclockwise screw turns tighten/loosen (Melco). You’ll also see the final “pigtail” guide path in their images.

When a stitch goes off, reread your machine’s printed arrows and icons first—they’re designed to prevent misrouting. If loops appear underneath, rethread the upper path; loopy bottoms usually trace back to top-threading errors (The Spruce Crafts).

5. Bobbin Tension: The Secret to Balanced Stitches

5.1 Tension Adjustment Mechanics: Screws, Springs and Testing

Bobbin tension is precise—small moves make big differences. Unlike upper tension, the bobbin case’s spring plate responds to tiny screwdriver turns.

• How it works
• A small flat‑head screw compresses a spring plate that controls how fast bobbin thread releases. Right (clockwise) tightens; left (counterclockwise) loosens (Perplexity).
• Work in very small increments—pros suggest 1/8 to 1/4 turn, testing between each change (Perplexity).
• The bounce/drop test (baseline)
• Thread the bobbin case correctly (through the slit, under the spring), hold the thread tail, and let the case hang. When you give a gentle bounce, a proper setting drops smoothly about 2–4 inches (Melco).
• If it falls freely, tension is too loose. If it won’t budge, it’s too tight.
• Fabric clues you can see
• Too loose: bobbin thread shows on the top; bird’s nests underneath (Perplexity).
• Too tight: thread breaks, puckering, or skipped stitches (Perplexity).
• Use contrasting top/bobbin colors on scrap to pinpoint which side needs change (Perplexity).
• Order of operations and thread weight
• Set bobbin tension first, then fine‑tune upper tension (Perplexity).
• Heavier threads usually need looser bobbin tension; finer threads need tighter (Perplexity).
• Advanced precision
• A TOWA bobbin tension gauge provides numeric readings for repeatable setups across bobbins and projects (Perplexity).

Clean the case before chasing tension: lint under the spring or thread bits can mimic “mystery tension” problems. Melco recommends sliding a small piece of paper under the spring to clear debris—then retest tension, being careful not to bend the spring (Melco).

5.2 Fabric Stability’s Impact on Stitch Quality

Evenly hooped fabric makes tension work like it should. When the fabric shifts mid‑seam, stitches tighten or loosen unpredictably—what looks like a “tension issue” is often movement.

• Why magnetic hoops help (garment embroidery context)

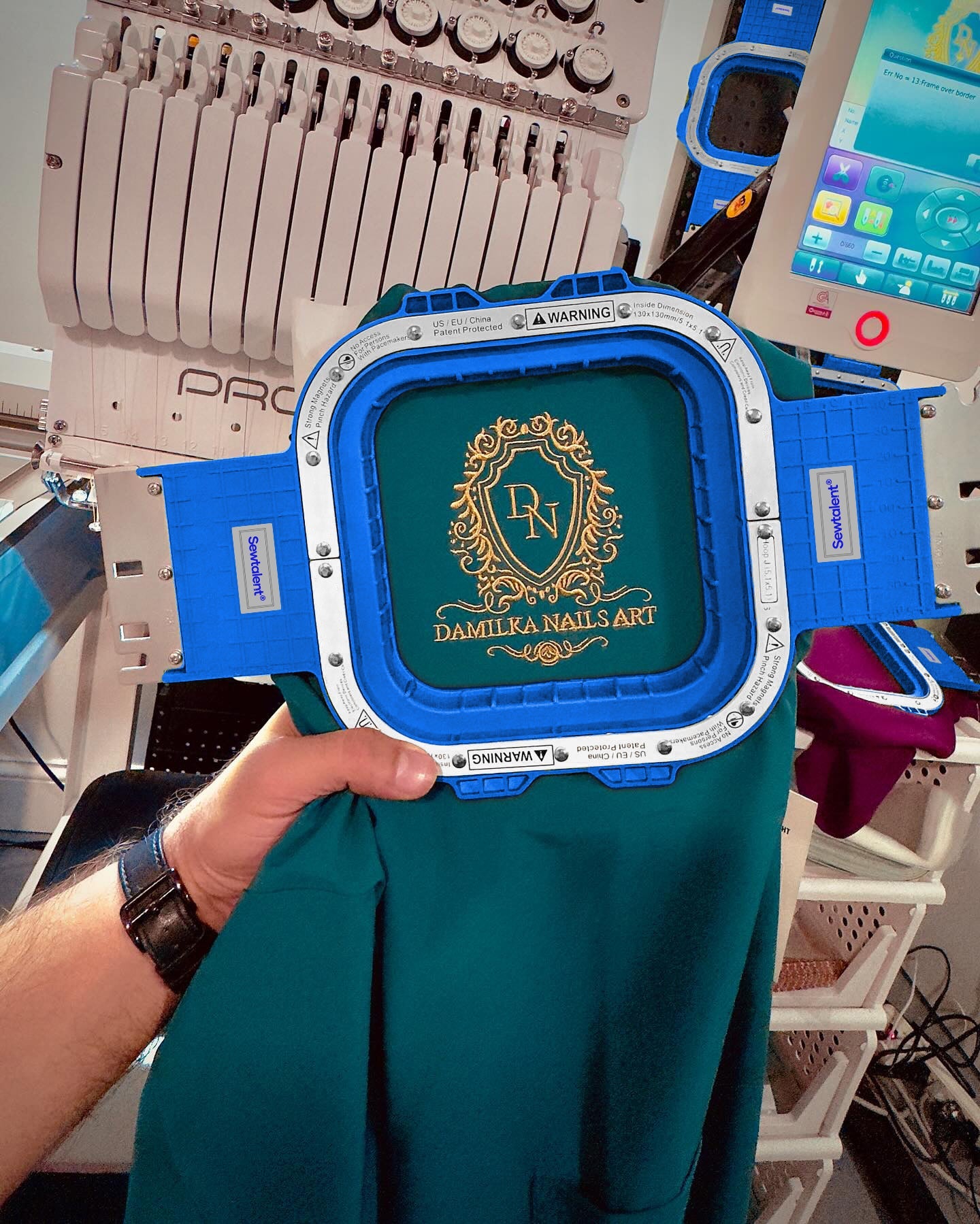

• Magnetic embroidery hoops (e.g., MaggieFrame and Sewtalent) spread pressure more evenly, helping prevent distortion and visible hoop marks versus screw‑style hoops that localize pressure (MaggieFrame brand info).
• They adapt to varying thickness—from light knits to multilayer denim or towels—so fabric stays stable as the machine runs (MaggieFrame brand info).
• For speed and consistency, magnetic hooping can cut garment hooping time dramatically compared with screw-tightened hoops, while reducing defects from fabric shift (MaggieFrame brand info).
• Contrast with traditional screw hoops
• Manual tightening takes time and can leave sections looser than others, inviting puckers, misalignment, and tension‑look‑alike issues (MaggieFrame brand info; The Spruce Crafts).
• Thick or uneven garments are harder to secure repeatably with screws, which amplifies stitch imbalance as layers move (MaggieFrame brand info).

Notes:

• MaggieFrame is designed for garment embroidery hooping only—not for caps/hats (MaggieFrame brand info).
• If you’re fighting tension on thick fabrics, stabilize first: hoop evenly, test on scrap, then adjust bobbin in 1/8–1/4 turns only as needed. Balanced fabric hold + balanced tension = clean stitches.

6. Troubleshooting Bobbin Nightmares

6.1 Solving Thread Breakage and Bird’s Nesting

Start simple: full rethread. Systematic rethreading of both upper and bobbin paths resolves roughly 60–70% of bobbin‑related complaints (Perplexity).

Step-by-step triage:

1. Power off. Cut threads, remove the bobbin/bobbin case, and clear tangles (Perplexity).
2. Clean thoroughly. Use a small lint brush; avoid compressed air that can blow debris deeper. For the bobbin case, slide a paper corner under the spring to clear wax/lint, taking care not to bend it (Perplexity; Melco).
3. Inspect hardware. Replace any rough, cracked, or rusty bobbins; rough edges can cut thread. If desperate, The Spruce Crafts notes you can carefully smooth rust and lightly oil—but replacing is best (The Spruce Crafts).
4. Verify orientation/installation. Confirm thread direction and that the case or cover is fully seated. A misaligned top cover or poorly seated case can cause feeding/tension issues (The Spruce Crafts; MH Thread).
5. Re‑thread upper path meticulously. Bottom loops and “bird’s nests” are often caused by incorrect top threading or a bad needle (The Spruce Crafts).
6. Test and adjust bobbin tension only if needed. Perform the 2–4 inch drop test, then correct in tiny increments. Watch for the fabric clues described in 5.1 (Melco; Perplexity).

If breakage persists, check needle condition and size/type versus thread and fabric (Perplexity). Mismatched or bent needles cause skipped pickups and erratic loops that look like bobbin failures.

6.2 Fabric Handling Solutions for Consistent Stitches

Thick fabrics like denim and towels challenge stability. When layers creep, stitches go haywire and jams follow. Secure, even hooping is your first defense.

• Magnetic hoops for garment embroidery
• Magnetic embroidery hoops (e.g., MaggieFrame and Sewtalent) hold thick stacks more evenly than screw‑tightened hoops, reducing slippage‑related jams and stitch inconsistency during garment embroidery (MaggieFrame brand info).
• These hoops are built to handle varied thicknesses without repeated manual readjustments—ideal when moving between sweatshirts, towels, and denim (MaggieFrame brand info).
• Durability you can count on
• Independent durability comparisons cited by MaggieFrame show its frames withstanding significantly more impact and angle‑pressure cycles than another well‑known brand, with reported lifespan improvements on the order of 27–40 times under test conditions. Tests also indicate about 5% stronger magnets for the same hoop size (MaggieFrame brand info). Details and CCTV videos are publicly referenced in MaggieFrame materials.
• Workflow benefits
• Faster, repeatable hooping reduces operator error and fabric shift—two silent drivers of “tension problems” that aren’t really tension at all (MaggieFrame brand info).

Important: MaggieFrame is for garment hooping only—not for caps/hats (MaggieFrame brand info).

Action step: If your “tension” issues spike on heavy projects, stabilize first. Hoop the garment evenly with a magnetic embroidery hoop, verify smooth fabric support around the stitch field, then fine‑tune bobbin and upper tension on scrap before the real run. Clean, balanced, and stable—that trio prevents most nightmares.

7. Selecting Bobbin Thread: Weight, Material and Compatibility

Choosing bobbin thread isn’t guesswork—it’s a balancing act between top thread, fabric, and tension. Get the pairing right, and stitches lock beautifully without bulk or breakage. Get it wrong, and you’ll chase “mystery tension” all afternoon. Use the guidelines below as your reliable baseline, then confirm with a scrap‑fabric test and minor tension tweaks.

7.1 Thread Weight Pairing: The 1-3 Size Rule

• Start with the core sizing principle
• Bobbin thread should be one to three sizes smaller than the top thread (Perplexity). Example: with a Size 138 top thread, use a Size 92 bobbin thread (Perplexity).
• Why it works: the finer bobbin reduces seam bulk while the heavier top thread defines the visible stitch.
• Decorative or heavyweight top threads
• When the top thread is thick and primarily aesthetic, go two to three sizes smaller on the bobbin to keep stitches balanced and economical (Perplexity).
• Typical bobbin weights and fabric pairing
• Bobbin thread commonly falls in the 60–80 weight range. On delicate fabrics, pair with fine needles (70/10 or 80/12) to protect drape and prevent puckering (Perplexity).
• Tension is part of the system
• Any change in thread weight may require minor adjustments. Set bobbin tension first, then fine‑tune upper tension, and always proof on scrap (Perplexity).

7.2 Material Showdown: Polyester, Rayon and Specialty Threads

• Polyester (versatile workhorse)
• Strong, elastic, and durable with excellent UV and mildew resistance—ideal for heavy fabrics, outdoor items, and high‑stress seams (Perplexity).
• Rayon (soft hand and graceful drape)
• Softer feel and flexibility benefit lightweight, natural‑fiber projects where drape matters. Note its lower tensile strength versus polyester (Perplexity).
• Monofilament (nearly invisible helper)
• Smooth surface and low visibility make it useful when bobbin show‑through must be minimized, especially in decorative stitching (Perplexity).
• Nylon vs. Polyester for heavy duty
• Both can work; choose based on environment. Polyester’s UV/mildew resistance suits outdoor use; nylon can be fine indoors when exposure isn’t a factor (Perplexity).
• Important misuse warning
• Thread labeled “bobbin thread” in stores is a very lightweight thread for machine embroidery or machine basting—it shouldn’t be used for normal sewing. For regular sewing, use the same type of thread as the upper thread (The Spruce Crafts). If you’re using heavy decorative tops, apply the 1–3 size rule above (Perplexity).
• Pre‑wound vs self‑wound
• Pre‑wound: consistent winding tension and time‑saving (Perplexity).
• Self‑wound: full control over material and tension, helpful with specialty pairings (Perplexity).

8. Conclusion: Key Takeaways for Perfect Threading

Balanced stitches come from a matched system: correctly wound/installed bobbins, the right thread pairing, and tuned tensions. Use the 1–3 size rule to pair weights, choose materials for strength or drape as your fabric demands, and test on scraps before real seams. If you change thread type or weight, expect to tweak tension. Keep the bobbin area clean and follow your machine’s specific loading method. Ready for rapid answers to common hiccups? Head to the FAQ next.

9. FAQ: Bobbin Threading Essentials Answered

9.1 Q: Why does my bobbin unwind or spill thread?

A: Common causes include incorrect orientation or skipping the bobbin case tension path. For front‑loaders, the thread must route through the slit and under the tension spring, with orientation verified (Melco; The Spruce Crafts). Ensure the bobbin cover/case is aligned and fully seated; a misaligned cover can trigger feeding/tension issues (MH Thread; The Spruce Crafts). Also avoid overfilling—the thread should not exceed the bobbin’s edges (The Spruce Crafts).

9.2 Q: Can I use any thread in the bobbin?

A: For regular sewing, use the same type of thread as the upper thread; avoid retail “bobbin thread” intended for embroidery/basting in normal sewing (The Spruce Crafts). If you’re running thick decorative tops, apply the 1–3 size rule—choose a finer bobbin to cut bulk and balance tension (Perplexity).

9.3 Q: How often should I clean the bobbin area?

A: Every time you change the bobbin, clean under the bobbin‑case spring to remove lint/wax, then recheck tension (Melco). Use a lint brush; avoid blowing debris deeper. A small paper corner can safely sweep under the spring—don’t bend it (Melco).

9.4 Q: Pre‑wound or self‑wound—what’s better?

A: Pre‑wound bobbins offer consistent winding tension and save time; they’re great for steady, repeatable results. Self‑wound bobbins maximize flexibility in material choice and winding tension, which helps when pairing specialty threads (Perplexity).

9.5 Q: What needle sizes pair with fine bobbin threads on delicate fabrics?

A: With 60–80 weight bobbin threads on lightweight/delicate fabrics, use fine needles such as 70/10 or 80/12 to protect drape and minimize puckering (Perplexity).

9.6 Q: I’m getting loops on the underside—what should I check first?

A: Rethread the upper path. Loopy bottoms are usually caused by incorrect top threading or a problem with the needle, not the bobbin itself (The Spruce Crafts). After rethreading, test on scrap and adjust tensions only as needed.
