1. Introduction to Inbro Machine Mastery

Navigating an Inbro embroidery machine can feel like unlocking a chest of creative potential—if you have the right map. This guide draws from official Inbro manuals and expert insights to walk you from initial setup to advanced maintenance. You will build eight core competencies: safe installation, precise origin calibration, threading mastery, needle and color management, troubleshooting, technical adjustments, preventive maintenance, and error code resolution. Along the way, modern accessories like magnetic embroidery hoops show how to streamline garment hooping without sacrificing stitch quality.

2. Essential Setup Procedures from Official Manuals

Proper installation and calibration, as outlined in the IB-C1201 manual, are the foundation of smooth stitching and long-term reliability. Think of setup as tuning an instrument: precision now prevents noise later.

2.1 Machine Leveling & Frame Assembly Fundamentals

Start with stability. Place the machine on a flat, sturdy surface and level it carefully. Follow the manual’s torque values and alignment checks to secure the base and protect against uneven stitching or mechanical strain.

Next, assemble the frames. Attach the embroidery frame according to the manual, verify that all fasteners are secure, and confirm that the frame glides smoothly on the X–Y rails. If you use specialty attachments (such as cap systems), fit each piece in its designated position as demonstrated in official references. Solid assembly sets the stage for consistent results.

2.2 Embroidery Origin Calibration Techniques

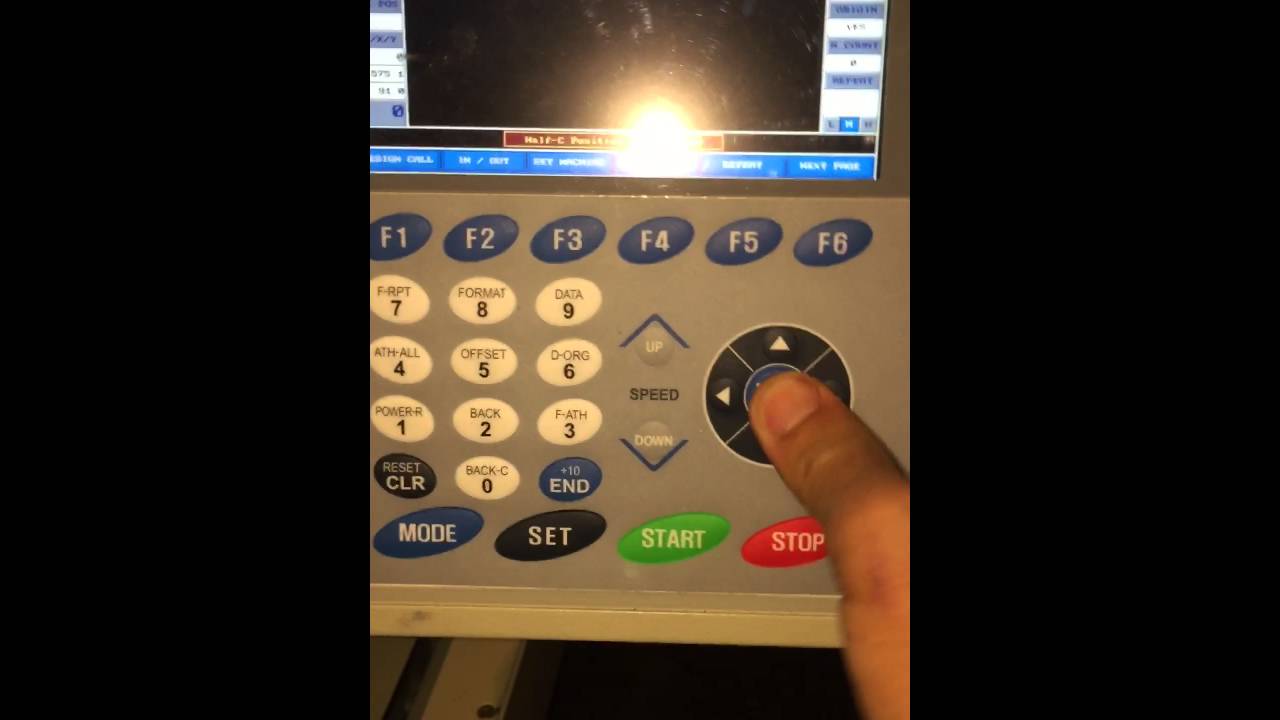

Teach the machine where to begin. Hoop your fabric, mount it, and navigate to "Embroidery Origin Setting" on the LCD. Use the arrow keys (↑, ↓, ←, →) to move the needle to the design center. When alignment is perfect, lock the setting to avoid mid-run surprises. This simple step separates dazzling outcomes from disappointments.

3. Technical Specifications Decoded: IB-RSC1201 vs IB-C1201

Both IB-RSC1201 and IB-C1201 are single-head, multi-needle workhorses designed for precision. Their mechanics and maintenance demands overlap, yet each model has nuances you should understand to keep performance at its peak.

3.1 Needle Positioning & Timing Synchronization

Precision begins at the needle. Each model supports a 12-needle setup; earlier versions often rely on pneumatic needle systems, while newer units use servo motors for smoother control. After any move or change, verify needle alignment to prevent skips and thread breaks, and keep the presser foot engaged during needle motion.

When replacing needles, follow the manual: remove the old needle, align the new one with the needle bar groove, tighten securely, and update memory to remove outdated settings. Synchronize the bobbin using Section 9-6 for seamless pickup.

Timing depends on belt health and tension. Press the main drive belt at its center to gauge deflection and fine-tune by moving the motor bracket vertically. For the X-belt, adjust the tension bolt beneath the X-cover to prevent width errors. Replace any belt showing cracks or fraying, and keep pulleys clean.

3.2 Maintenance Requirements Comparison

Daily cleaning and smart lubrication extend life and improve consistency. Clean the hook and bobbin case daily, oil the hook daily, and lubricate the lower needle bar every 40–50 hours. Grease gears quarterly to reduce friction. The IB-RSC1201 emphasizes structured lubrication and frame motor alignment, while related models like IB-TUN1206 (reference for IB-TU1204) highlight pneumatic threading upkeep. Memory capacity, embroidery area, and motor systems differ; consult official tables and manuals for exact figures.

Here is a quick comparison:

4. Safety Protocols & Error Code Resolution

Safety protects operators, uptime, and parts. The IB-C1201 manual outlines a rigorous framework for safe operation and systematic troubleshooting that reduces risks and accelerates recovery.

4.1 Thermal Management & Electrical Safety

Explosion and thermal hazards: - No explosive environments unless the machine is explicitly certified. - The main motor can reach ~70°C; allow it to cool before service. - Airborne noise may exceed 85 dB(A); use hearing protection.

Electrical and environmental safeguards: - Unplug after use, during cleaning, and when unattended. - Lockout/tagout before threading or needle changes. - Keep tools and objects out of machine openings. - Avoid proximity to heat sources like stoves or irons.

Puncture and lighting hazards: - Stop the machine before handling needles or threads. - Work in a well-lit area for accuracy and safety.

4.2 Troubleshooting Matrix: 58–68 Error Codes

Error codes are a roadmap to quick fixes. The IB-C1201 manual covers 11 troubleshooting sections, including detailed guidance for codes 58–68 related to thread breaks, sensors, and operating faults.

Common issues and fixes: - Frame Limit Exceeded: Reduce design size or adjust frame limits in the menu. - Start/Operation Errors: Inspect belts and check fuses before restarting. - Upper Thread Sensor Errors: Clean debris and ensure proper alignment. - Thread Breaks (58–68): Replace worn needles, adjust tension, and confirm thread compatibility. - Lower Thread Breaks: Verify bobbin type and winding consistency. - Jumping Errors: Clean sensors and rethread carefully. - Twisted Embroidery: Reduce stabilizer layers and confirm thread routing.

Real-world repair insight: Many jams and case misplacements trace back to rushed setup or skipped maintenance. When in doubt, stop, unplug, and inspect deliberately.

Emergency protocols: - For thread breaks, pause, raise the needle, and clear tangles from the bobbin case and fabric. - For complex repairs (e.g., take-up lever replacement), rely on authorized technicians.

5. Advanced Maintenance Visual Guides

Embroidery machines demand precision. One loose belt or misaligned hook can derail a run. These visualized processes from official manuals help you service confidently.

5.1 Hook Adjustment & Belt Tension Calibration

Hook adjustment: - Lower Dead Point: Rotate the main shaft handle to 180°. Use a needle plate setting-zig to set the needle tip at the hook’s center shaft, then lock the stopper. - Upper Dead Point: Position the main pulley at 0°, raise the needle bar, and secure the upper dead point stopper to the rubber cushion.

Belt tension calibration: - Monthly: Inspect the main motor belt for cracks, wear, or slack; adjust per the manual. - N°6 Head Lock Error: Check belt integrity and tension; test fuses (F1: 250V/3A, F2: 250V/4A) and the noise filter fuse (250V/6.3A).

Replace belts at the first sign of damage. Useful tools include two types of needle plate setting-zigs and a soft brush or compressed air for debris removal. For complex mechanical alignments, consult the operating manual’s illustrations and schematics.

5.2 Optimizing Garment Embroidery with Modern Accessories

A major upgrade for garment work is the adoption of magnetic solutions—especially sewtalent magnetic hoops.

Why they help: - Effortless Fabric Stability: A powerful magnetic hoop system adapts to various fabric thicknesses, securing everything from delicate silks to heavy denim. - Uniform Tension, Less Distortion: The textured surface and broad contact area improve tension uniformity, reducing puckering and hoop marks. - Time-Saving Efficiency: Hooping takes seconds instead of minutes, easing repetitive strain. - Durability and Compatibility: High-grade PPSU components and N50-grade magnets support long-term use across many machine platforms.

Real-world impact: Users report dramatic drops in hooping time and fewer defects—translating into smoother workflows and cleaner results.

Bottom line: Integrating magnetic embroidery frames into your garment setup turns prep time into production time while protecting fabric quality.

6. Preventive Maintenance Schedule Optimization

Preventive maintenance keeps production steady and extends component life. A disciplined routine is more effective than occasional fixes.

6.1 Daily/Weekly Checklist Implementation

Spare parts replacement intervals: - Needles: Replace every 8–10 hours of stitching to prevent burrs and misalignment. - Tension Discs/Needle Plates: Inspect regularly; replace if warped or damaged.

6.2 Lubrication Best Practices Across Models

Balance is critical: too little oil causes wear; too much contaminates thread. - Use high-viscosity, machine-approved oil for the lower needle bar (every 40–50 hours). - Oil the hook lightly to avoid seepage onto threads. - Grease gears every three months per the manual.

Pro tips: - Use OEM-approved lubricants. - Avoid over-oiling; excess attracts lint and can lead to thread breaks. - After lubrication, run test stitches on scrap fabric to validate clean operation.

Ready to raise your maintenance game? Follow these routines and consider garment hooping upgrades such as magnetic hoops for embroidery machines to support stable results.

7. FAQ: Expert Answers to Common Inbro Queries

7.1 Why won’t my Inbro machine recognize my USB drive or load designs?

USB loading failures typically relate to file formats or drive compatibility. Use supported formats (such as .dst or .dsb) and FAT16/FAT32 formatting. Try a different USB stick and inspect the port for bent pins if issues persist.

7.2 What causes color change errors, and how can I fix them?

Color change errors arise when the needle position cannot index or the color change motor is out of sync. Ensure the needle case is correctly positioned, power down to reset if stuck between positions, and check the color change sensor if errors continue.

7.3 My machine displays a "frame limit exceeded" warning—what should I do?

Your design is larger than the selected hoop or limits are mis-set. Verify frame limits and resize or reposition the design. If you use specialty hoops such as magnetic hoops or attachments, make sure settings match the physical hoop to avoid collisions.

7.4 How do I resolve frequent thread breakage or "thread sensor" errors?

Codes 58–68 often stem from worn needles, incorrect tension, or lint buildup. Replace needles every 8–10 hours, clean the thread path and sensors, and confirm thread compatibility. Realign the sensor if problems persist.

7.5 The machine won’t start or stops mid-operation—what’s wrong?

Check for error codes, open covers, or tripped safety switches. Ensure covers are closed, emergency stop is released, and power is stable. If the machine stops, inspect belts, fuses, and motor connections per the manual.

8. Conclusion: Maximizing Machine Longevity

Mastering an Inbro embroidery machine is about habits, not shortcuts. Follow the official schedule for cleaning, oiling, and greasing; use quality needles and threads; and hoop garments with care. Modern magnetic systems like Sewtalent hoops can reduce prep time, boost fabric stability, and help produce cleaner results. Combine disciplined maintenance with the right accessories to keep your Inbro running smoothly—stitch after flawless stitch.
