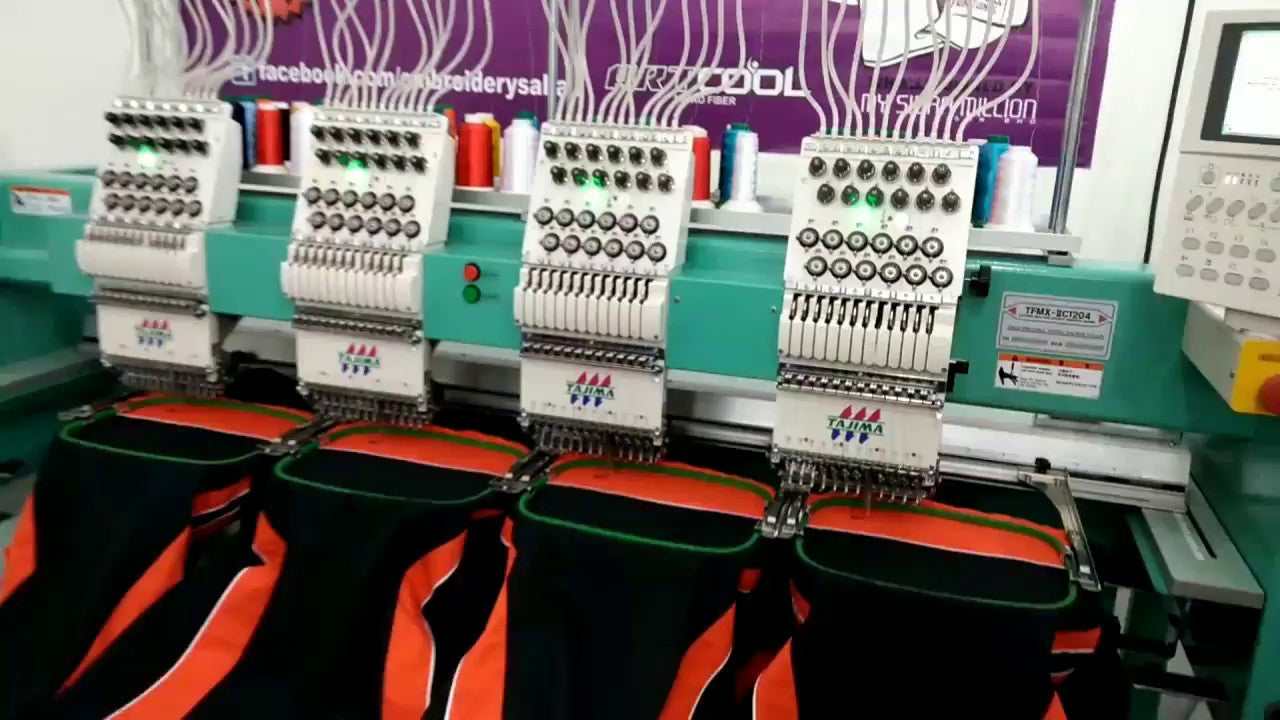

Tajima 4-Head Embroidery Machine: Technical Guide and Productivity Optimization

1. Introduction to Tajima 4-Head Systems

Since 1964, Tajima has been synonymous with innovation in multi-head embroidery technology—transforming intricate, labor-intensive embroidery into a scalable, accessible craft for businesses worldwide. The tajima 4 head embroidery machine stands as a benchmark for commercial embroidery, blending Japanese engineering precision with robust automation to meet the needs of high-volume shops, boutique studios, and ambitious creators alike.

In this guide, we’ll dive deep into the technical specifications that set Tajima’s 4-head systems apart, compare leading models like the TFMX-IIC and TMEZ-KC, and explore workflow optimization strategies that can boost your ROI. Whether you’re considering your first multi-head upgrade or seeking to maximize an existing setup, you’ll find actionable insights on head intervals, embroidery fields, automation features, and how to match the right configuration to your production goals. Ready to unlock the full potential of your embroidery business? Let’s get started.

Table of Contents

• 1. Introduction to Tajima 4-Head Systems
• 2. Technical Specifications Breakdown
• 3. Model Comparison: TFMX-IIC vs TMEZ-KC
• 4. Workspace Requirements & Maintenance
• 5. ROI Analysis: Standard vs Stretch Models
• 6. Operator Training Essentials
• 7. Hybrid Workflow Optimization
• 8. Conclusion: Maximizing Machine Potential
• 9. FAQ: Tajima 4-Head Operations

2. Technical Specifications Breakdown

Tajima’s 4-head embroidery machines are engineered for versatility and industrial-scale productivity. Let’s break down the core technical features that matter most for commercial users.

2.1 Head Intervals: 360mm vs 500mm Configurations

The “head interval” refers to the space between each embroidery head—a crucial factor influencing what types of products you can efficiently embroider.

360mm (Standard): Perfect for shops handling a mix of caps, shirts, and flat garments. The compact spacing allows for efficient production runs and is especially suited to high-volume, standard-sized apparel.

500mm (Stretch): If your orders include bulky items like jackets, blankets, or sweatshirts with large back designs, the stretch configuration’s wider interval is a game-changer. It provides a generous embroidery field—up to 450 × 500 mm (17.7" × 19.6")—making it possible to tackle oversized projects without compromise.

Frame Versatility: Both configurations support a range of frame types: border, wide cap, semi-wide cap, and tubular. This adaptability means you can switch between product types without missing a beat.

Sewtalent Magnetic Hoop Compatibility: For garment embroidery, Sewtalent’s magnetic hoops for Tajima embroidery machines are engineered with universal bracket systems, ensuring seamless fitment on both 360mm and 500mm Tajima models. Whether you’re hooping a slim t-shirt or a heavy jacket back, Sewtalent’s robust magnetic system adapts to fabric thickness and shape—streamlining setup and minimizing downtime. This compatibility empowers you to maximize your machine’s versatility and efficiency across all garment types.

2.2 Automation Features: Thread Management & Color Change

Tajima’s 4-head systems are packed with automation designed to minimize manual intervention and maximize stitch quality.

Auto Thread Trim: The machine trims threads automatically within the needle plate, eliminating the need for manual snipping and reducing production interruptions.

Auto Color Change: Needle bars switch automatically as your design requires, allowing for seamless transitions between colors and minimizing operator oversight.

Digitally Controlled Presser Foot (DCP): This feature automatically adjusts pressure based on fabric thickness—ensuring consistent tension whether you’re working with delicate silks or thick denim.

Intelligent Thread Management (i-TM): Tajima’s AI-driven system optimizes thread supply in real time (as fast as 0.05 seconds), adapting to stitch type, direction, and speed. The result? Uniform stitch quality and fewer thread-related issues.

Thread Locking System: After each trim, the thread is securely locked to prevent unraveling—a small detail that pays big dividends in reliability.

How Sewtalent Hoops Enhance Automation: Stable fabric placement is critical for high-speed, error-free embroidery. Sewtalent’s magnetic hoops provide a firm, even hold, reducing fabric slippage and distortion. This stability directly translates to fewer false thread break sensor errors—a common headache in multi-head operations, especially at high speeds. By minimizing vibration and maintaining even tension, Sewtalent hoops help Tajima’s advanced automation features perform at their best, supporting uninterrupted production and higher output quality.

Safety and Connectivity:

- Safety Beam Sensor: Halts operation instantly if the work area is obstructed, protecting both operator and project.

- LAN-Enabled: Network connectivity allows for remote monitoring and integration with Tajima DG16/Pulse software, streamlining your workflow from design to production.

3. Model Comparison: TFMX-IIC vs TMEZ-KC

Choosing the right Tajima 4-head model can feel like picking between a sports car and a luxury SUV—each excels in different scenarios. Here’s how the TFMX-IIC and TMEZ-KC (Tajima TMEZ-SC1501) stack up.

3.1 Speed vs Precision: 1000 SPM vs 1200 SPM

- TMEZ-KC (Tajima TMEZ-SC1501): With a top speed of 1,200 stitches per minute, this model is built for speed and bulk production. AI-driven optimization and advanced sensors keep quality consistent even at high throughput—ideal for large orders or time-sensitive jobs.

- TFMX-IIC: Capping at 1,000 stitches per minute, the TFMX-IIC emphasizes reliability and stitch precision, making it a solid choice for medium-volume runs or detailed work where consistency is key.

3.2 Cylinder Frame Compatibility

Both models use multi-head cylinder-type frames, enabling embroidery on tubular items like jackets, sleeves, and blankets. Here’s how they differ:

For Bulkier Items:

- TMEZ-KC (Tajima TMEZ-SC1501) shines with advanced thread management and tension control, making it the go-to for thick materials like denim or fleece.

- TFMX-IIC is optimized for standard apparel—shirts, caps, and uniforms—where its streamlined setup delivers cost-effective results.

Sewtalent’s 430x390mm Magnetic Hoops: When tackling large garment backs or oversized designs, Sewtalent’s 430x390mm magnetic hoops provide a robust solution. Their universal bracket system ensures compatibility with both TMEZ-KC (Tajima TMEZ-SC1501) and TFMX-IIC, allowing for fast, secure hooping of even the bulkiest items. The powerful magnetic grip keeps fabric flat and stable, reducing the risk of misalignment or hoop burn—a must for high-stakes, large-format embroidery.

---

Ready to match the right Tajima 4-head configuration to your business needs? Whether you’re scaling up for mass production or seeking the perfect balance between speed and stitch quality, understanding these technical distinctions—and pairing them with high-performance accessories like Sewtalent magnetic hoops—will set you up for embroidery success.

4. Workspace Requirements & Maintenance

When you upgrade to a Tajima 4-head embroidery machine, your workspace transforms from a cozy creative nook into a full-fledged production studio. But with great power comes great responsibility—especially when it comes to space planning and preventive maintenance. Let’s break down exactly what you need to keep your operation running smoothly and efficiently.

4.1 Space Planning for 4-Head Configurations

Before you even plug in your Tajima 4-head, you’ll need to play a little Tetris with your shop layout. These machines are no shrinking violets—think of them as the industrial looms of the modern embroidery world.

Key Dimensions and Layout Tips:

- Standard 4-head (360mm interval):
- Width: ~2,560 mm (100.7")
- Depth: ~1,355 mm (53.3")
- Height: Plan for ceiling clearance and overhead lighting.

- Stretch 4-head (500mm interval):
- Width: Up to 112" (2,845 mm)
- Depth: Remains similar, but you’ll need extra clearance for bulkier items.

Pro Tip: Don’t squeeze your machine flush against the wall. As seen in real-world shop upgrades, you’ll need at least 2 to 2.5 feet of clearance behind the machine for maintenance access—think oiling, timing checks, and emergency troubleshooting. Cramming your Tajima into a tight corner is like parking a limousine in a one-car garage: possible, but you’ll regret it the moment you need to pop the hood.

Other Considerations:

- Electrical:
- Supports both 3-phase 200V and single-phase 100–200V systems (regional standards apply).
- Weight:
- These machines are hefty—plan for reinforced flooring if needed.
- Workflow Integration:
- Position your machine for efficient movement between hooping, embroidery, and finishing stations.
- Ensure clear paths for loading/unloading garments, especially when running high-volume jobs.

Lighting & Visibility: LED sewing field lighting is a game-changer for design placement and quality checks. Make sure your workspace is well-lit to catch misalignments before they become expensive mistakes.

Bottom Line: Measure twice, move once. A well-planned layout will save you hours of frustration and keep your production flowing—even when you’re cranking out those 100+ piece rush orders.

4.2 Preventive Maintenance Checklist

A Tajima 4-head is a workhorse, but even the best machines need TLC to stay at peak performance. Skimping on maintenance is like skipping oil changes on a new car—eventually, you’ll pay the price.

Daily/Weekly Maintenance Musts:

1. Thread Sensor Calibration:
- Ensures accurate thread tension and reliable auto-trimming.
- Prevents frustrating thread pull-outs during multi-color runs.

2. Safety Beam Sensor Checks:
- The safety beam surrounds the work area, halting operations if interrupted.
- Regularly test and calibrate to keep both operators and projects safe.

3. Laser Alignment Maintenance:
- If your machine uses a crosshair laser, keep it calibrated for pinpoint design placement.

4. Hook Timing & Needle Bar Checks:
- Regularly inspect and adjust hook timing to prevent skipped stitches and thread breaks.
- Confirm needle bars are in proper position—misalignment can ruin an entire run.

5. Lubrication & Cleaning:
- Oil moving parts as recommended in your Tajima manual.
- Remove lint and debris from bobbin cases, thread paths, and needle plates.

6. LED & Control Panel:
- Check LED lights and digital control panels for proper function.
- Update software as needed for smooth workflow integration with Tajima DG16/Pulse or Writer Plus.

Real-World Insight: As shared in shop upgrade videos, initial setup and timing adjustments can take a day or more—don’t rush it. Ongoing, a little daily attention keeps you from losing days to troubleshooting down the line. When in doubt, schedule regular check-ins with your technician or distributor, especially before peak production periods.

5. ROI Analysis: Standard vs Stretch Models

Investing in a Tajima 4-head isn’t just about adding firepower to your embroidery arsenal—it’s a strategic business move. But how do you know if the standard or stretch model will deliver the best bang for your buck? Let’s break down the numbers and the logic.

5.1 Cost-Benefit of Extended Embroidery Fields

Initial cost vs. long-term savings of tajima embroidery machine cost: A Tajima 4-head machine requires a higher upfront investment than a single-head, but it pays you back in spades with lower maintenance costs and reduced downtime. The real magic happens when you factor in the stretch (500mm head interval) model:

Production Gains: The stretch model’s larger embroidery field lets you tackle oversized designs—think jacket backs or blankets—without splitting designs or rehooping. This not only expands your product offerings but also slashes labor hours per piece. For shops handling a mix of standard and bulky items, the stretch configuration is like upgrading from a sedan to a cargo van: more room, more flexibility, and fewer workflow headaches.

ROI Timelines & Performance:

- Tajima’s robust build and automation (auto color change, thread trim) mean higher throughput and labor savings over time.

- The stretch model’s ability to handle more complex jobs in fewer steps accelerates your return on investment, especially in high-volume environments.

- Compared to competitors, Tajima offers lower long-term maintenance costs and faster access to parts and service, minimizing costly downtime.

Financing & Support: While specific financing programs from Tajima America Corp. aren’t detailed, industry-standard leasing options can help you acquire equipment quickly, leverage tax benefits, and bundle accessories for a streamlined workflow.

Service Network: Tajima’s global support infrastructure means faster technician response and parts availability—critical for keeping your machines (and your profits) humming.

Strategic Takeaway: If your business is scaling up, or you see bulky custom orders in your future, the stretch model’s extended field is an investment that pays for itself in both productivity and versatility. For shops focused solely on standard apparel, the standard model keeps things compact and efficient.

6. Operator Training Essentials

The leap from a single-head to a multi-head Tajima system is exhilarating—but it’s also a rite of passage. Suddenly, you’re not just an embroiderer; you’re a conductor, orchestrating a symphony of threads, needles, and automation. Here’s how to master the transition and keep your team (and your sanity) intact.

6.1 Multi-Head Threading Strategies

Threading Complexity: Managing 90+ spools across four heads can feel like untangling a bowl of spaghetti—unless you have a plan. The key is precision and consistency:

Automatic Tension Adjustment: Tajima’s AI-driven systems take the guesswork out of tension, reducing manual calibration and ensuring uniform stitch quality across all heads.

Thread Locking Mechanisms: Prevents slippage during high-speed runs, so you’re not constantly rethreading or dealing with false break alarms.

Best Practices for Efficient Thread Management:

1. Organize Spools by Color and Needle:

- Use color-coded charts and keep spools in sequence for fast identification.

- Pre-plan color assignments to minimize mid-run changes.

2. Routine Thread Path Checks:

- Inspect for tangles, debris, or misalignment daily.

- Clean sensors and verify tension settings before each shift.

3. Leverage Automation:

- Rely on Tajima’s auto color change and digital presser foot to adapt to different fabrics and stitch types—reducing manual intervention.

4. Training for All Skill Levels:

- Structured programs (like those for Tajima DG16 by Pulse) cover everything from file management to advanced digitizing and multi-head coordination.

- New operators can go from zero to hero quickly, thanks to intuitive controls and AI-backed systems.

Troubleshooting Tips:

- If you encounter false thread break alarms, start by cleaning sensors and rethreading.

- For skipped stitches or synchronization issues, recalibrate head intervals and embroidery fields as needed.

Productivity Boost: With efficient threading strategies and Tajima’s automation, even multi-head setups become "push a button and go" solutions. Operators can focus on quality control and creative problem-solving, rather than wrestling with a web of threads.

Bottom Line: Mastering multi-head threading is a blend of smart organization, automation, and ongoing training. Nail this, and you’ll turn your Tajima 4-head into a productivity powerhouse—ready to tackle any order, any time.

---

Ready to take your embroidery operation to the next level? Smart workspace planning, diligent maintenance, strategic investment, and operator training are your keys to unlocking the full potential of your Tajima 4-head system.

7. Hybrid Workflow Optimization

In today’s fast-paced garment decoration industry, staying ahead means more than just running a world-class embroidery machine—it’s about fusing multiple technologies into a seamless, high-efficiency workflow. Tajima 4-head systems shine brightest when integrated into hybrid production lines, combining embroidery, DTF (Direct-to-Film) printing, and even laser cutting. Let’s break down how to synchronize these tools for maximum productivity and explore how Sewtalent’s magnetic hoops can supercharge your process.

7.1 Integrating DTF Printing with Embroidery

Imagine being able to offer vibrant, full-color prints and intricate embroidery on the same garment, all without bottlenecks or manual handoffs. That’s the promise of a hybrid workflow—where DTF printing and embroidery work in harmony, not competition.

Embroidery Optimization with Tajima 4-Heads: Tajima’s 4-head machines are built for high-volume, multi-color jobs, boasting up to 1,200 stitches per minute and an automatic color change system. This means you can run batch orders—think team uniforms or branded polos—with minimal downtime between color transitions.

Barcode Integration: By leveraging barcode design retrieval via LAN connectivity, you can reduce setup time by up to 40%. No more hunting for files or risking manual input errors—just scan and go.

AI-Assisted Scheduling: Tajima software’s PulseID system analyzes your production data, predicts maintenance needs, and helps keep your machines running at peak efficiency. It’s like having a digital production manager ensuring you never miss a beat.

DTF Printing Synergy: DTF printing brings its own set of workflow wins—a streamlined three-step process (print, adhesive, transfer) that’s faster than traditional screen printing. Automatic powder shakers ensure even adhesive application, while hover presses deliver crisp transfers at the perfect temperature and time.

Laser Cutting Integration: Laser systems can pre-cut fabric panels, aligning perfectly with both embroidery and DTF processes. Automated spreading and ERP-driven batch processing keep your materials flowing smoothly from one station to the next.

Putting It All Together: The magic happens when these systems talk to each other. LAN or USB connectivity enables rapid file transfers between embroidery, DTF, and laser cutting stations, keeping your data consistent and your workflow humming.

Key Takeaways:

- Multi-head embroidery and DTF printing can run in parallel, letting you decorate more garments, faster.

- AI-driven scheduling and barcode retrieval cut setup time and errors.

- Automated adhesive and laser cutting systems keep your production line moving—no bottlenecks, no wasted steps.

Future-Proofing: As cloud-based design management and predictive analytics become standard, your hybrid workflow will only get smarter. Eco-friendly DTF inks and laser cutting’s material efficiency also help you stay ahead of sustainability trends.

Ready to turn your shop into a 21st-century production powerhouse? Hybrid workflow is your ticket.

7.2 Magnetic Hoop Workflow Acceleration

If you’ve ever lost precious minutes (or hours) fiddling with traditional screw-based hoops, you’ll appreciate just how much a magnetic system can revolutionize your shop floor. Enter Sewtalent’s magnetic embroidery hoops—a game-changer for garment hooping on Tajima multi-heads.

The 30-Second Hooping Revolution: Traditional plastic hoops can take up to 3 minutes per garment to set up, especially when dealing with thick or tricky fabrics. Sewtalent’s magnetic hoops cut that down to a mere 30 seconds per piece—a 90% reduction in prep time. That’s not just a time-saver; it’s a competitive edge.

How It Works:

- Powerful Magnetic Clamping: High-strength magnets automatically adjust to fabric thickness, holding everything from delicate silks to heavy sweatshirts securely in place.

- Universal Bracket System: Sewtalent hoops fit seamlessly onto both standard (360mm) and stretch (500mm) Tajima 4-head configurations.

- Even Tension, Less Waste: The robust grip and textured surface prevent slippage and hoop burn, reducing embroidery defects and material waste.

Real-World Impact: Let’s put it into perspective: If you’re hooping 50 garments a day, switching to Sewtalent can save you nearly an hour of labor daily—translating into hundreds of hours (and thousands of dollars) over a year. Operators report less fatigue, fewer mistakes, and a smoother workflow, especially during rush orders or large batch runs.

Why It Matters in a Hybrid Workflow: When you’re running embroidery, DTF, and laser cutting in tandem, bottlenecks at any stage can slow the whole line. Sewtalent’s quick-change hoops keep your embroidery heads fed and your production line moving, ensuring you can keep pace with your most ambitious hybrid projects.

The Bottom Line: Sewtalent magnetic hoops aren’t just an accessory—they’re a workflow accelerator. For garment embroidery on Tajima 4-head machines, they deliver speed, consistency, and the freedom to focus on creativity, not setup.

8. Conclusion: Maximizing Machine Potential

The Tajima 4-head embroidery machine is more than a piece of equipment—it’s the engine of a modern, hybrid garment decoration workflow. By integrating advanced automation, AI-driven scheduling, and high-performance accessories like Sewtalent magnetic hoops, you can unlock new levels of productivity, quality, and creative flexibility. Whether you’re scaling up for mass production or pushing the boundaries of mixed-media design, the right tools and strategies will help you maximize every stitch, every hour, and every opportunity.

9. FAQ: Tajima 4-Head Operations

9.1 Q: Why does my Tajima 4-head machine sometimes skip stitches or trigger false thread break errors?

A: Stitch skipping and false thread break errors are common issues, especially during high-speed operation. Skipped stitches can result from incorrect hook timing, needle bar misalignment, or improper thread path setup. False thread break errors often occur if sensors are dirty, miscalibrated, or if there's excess vibration or fabric slippage. Regular maintenance—like cleaning sensors, checking thread paths, and recalibrating timing—helps minimize these problems. If issues persist, consult your technician or refer to your Tajima manual for troubleshooting steps.

9.2 Q: How do I reduce downtime and improve efficiency in a multi-head workflow?

A: Key strategies include leveraging barcode design retrieval for faster setup, using AI-assisted scheduling (like PulseID) to predict maintenance needs, and ensuring your workspace is organized for smooth material flow. Automating repetitive tasks and using reliable accessories can also help keep your operation running at peak efficiency.

9.3 Q: What's the best way to integrate embroidery with other decoration methods like DTF printing or laser cutting?

A: Synchronize your workflows using LAN or USB connectivity for rapid file transfers and consistent design management. Automated systems—like DTF powder shakers or laser cutting with ERP integration—ensure each stage feeds smoothly into the next, reducing manual handoffs and potential errors.

9.4 Q: How often should I perform preventive maintenance on my Tajima 4-head machine?

A: Daily or weekly checks are recommended. Focus on thread sensor calibration, hook timing, needle bar alignment, and cleaning of lint and debris. Regular maintenance prevents most common issues and extends your machine's lifespan.

9.5 Q: Can beginners operate a Tajima 4-head machine, or is advanced training required?

A: While multi-head machines are more complex than single-heads, Tajima's automation features and intuitive controls make them accessible to operators with basic training. Structured onboarding and ongoing practice are key to mastering efficient, error-free operation.
