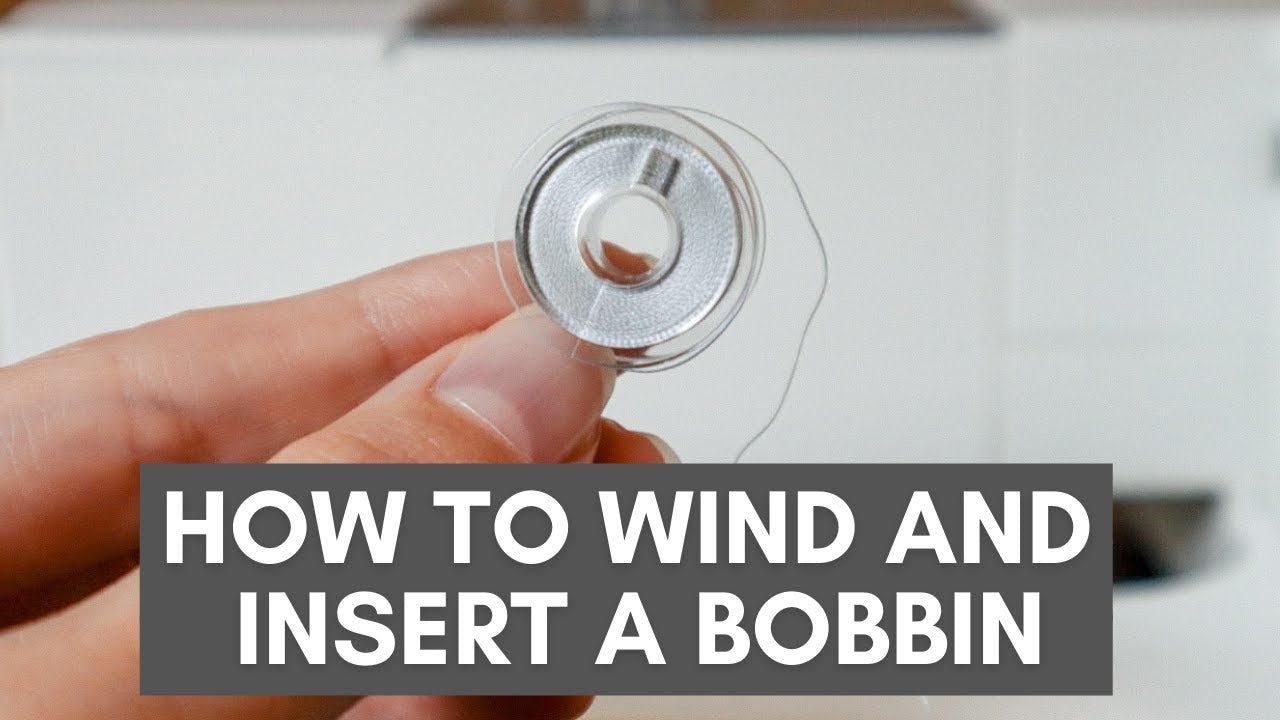

Thread a Bobbin Singer: Master Winding, Insertion, and Troubleshooting

1. Introduction: Unlocking Perfect Singer Sewing Machine Performance

A perfectly threaded bobbin is the secret ingredient behind every flawless stitch your Singer sewing machine embroidery delivers. Whether you're a seasoned pro or a curious beginner, mastering the art of bobbin winding and insertion is the gateway to smooth sewing, consistent tension, and creative freedom. In this guide, we'll unravel the step-by-step techniques for winding and inserting bobbins, decode the differences between front-load and top-load systems, and share essential troubleshooting tips. You'll discover how attention to detail in these foundational steps can prevent frustrating tangles, skipped stitches, and tension headaches—setting you up for embroidery and sewing success on any Singer model. Ready to transform your sewing experience? Let's dive in and thread your way to perfection!

Table of Contents

• 1. Introduction: Unlocking Perfect Singer Sewing Machine Performance
• 2. Step-by-Step Bobbin Winding Techniques for Singer Machines
• 3. Bobbin Insertion Mastery: Front-Load vs. Top-Load Systems
• 4. Thread Path and Tension Optimization Strategies
• 5. Troubleshooting Common Bobbin Issues
• 6. Advanced Techniques: Bobbin Types and Specialty Threads
• 7. Maintenance and Long-Term Performance Care
• 8. Conclusion: Achieving Flawless Stitches Consistently
• 9. Frequently Asked Questions

2. Step-by-Step Bobbin Winding Techniques for Singer Embroidery Machine Models

Winding a bobbin might seem like a small task, but it sets the tone for every stitch that follows. singer embroidery machine models, whether classic mechanical workhorses or sleek computerized models, thrive on well-wound bobbins and the right thread path. Here's your hands-on guide to getting it right every time.

2.1 Essential Preparations: Bobbin Types and Thread Direction

Before you even touch the spool, take a moment to identify your bobbin type and understand the thread direction—these details are the difference between smooth sailing and a tangled mess.

Bobbin Types:

• Class 66: Commonly found in basic Singer models like the 99 and Heavy Duty 4411. These are typically plastic or metal and have a slightly curved profile.
• Class 15: Used in many computerized models such as the M1250. These are usually flat-sided and may be plastic or metal.

Why does this matter? Using the wrong bobbin can cause tension issues, skipped stitches, or even damage your machine.

2.2 Winding Process for Basic vs. Computerized Models

Now, let's roll up our sleeves and wind that bobbin! The workflow varies slightly between basic mechanical and computerized Singer machines, but the core principles remain the same: even tension, proper fill, and a tidy thread tail.

3. Bobbin Insertion Mastery: Front-Load vs. Top-Load Systems

Inserting the bobbin is where many sewing adventures take a wrong turn—choose the right system, follow the right path, and you’ll avoid the dreaded “thread nest” under your fabric. Singer machines use two main systems: front-load (often found in vintage and heavy-duty models) and top-load (common in modern and computerized models). Let’s break down both.

3.1 Front-Load Systems (Vintage/Heavy-Duty Models)

Front-load systems are a classic—think Singer 15-91, 99K, and other heavy-duty workhorses. They require a bit more finesse but reward you with robust, reliable stitching.

Key Steps:

1. Open the Bobbin Case Door: Raise the presser foot and turn the handwheel toward you until the needle is at its highest point. Open the hinged cover.

2. Remove the Bobbin Case: Hold the bobbin case by the latch and pull it out.

3. Insert the Bobbin: Place the bobbin so the thread unwinds clockwise (the tail should be on the right side).

4. Thread the Case: Guide the thread through the slit and under the tension spring, forming a “figure-six” path. You should feel a slight resistance—this is the tension spring doing its job.

5. Tension Check (Optional but Smart!): Hold the bobbin case by the thread and give it a gentle bounce. It should drop an inch or two—if not, adjust the screw on the case.

6. Insert the Case: Hold the latch, align the case with the shuttle, and push until you hear a satisfying click.

Pro Tip: Always use Class 15 bobbins (metal or plastic as specified by your model). Avoid Class 15J bobbins, which can cause tension issues.

Audible Cue: A soft click means the case is locked in place—music to a sewist’s ears!

3.2 Top-Load Systems (Modern/Computerized Models)

Top-load systems, featured in models like the Singer Tradition and Start series, are beginner-friendly and make it easy to see how much thread you have left.

Key Steps:

1. Access the Bobbin Area: Raise the needle to its highest position. Remove the bobbin cover plate by pushing the release button.

2. Insert the Bobbin: Drop the bobbin into the compartment so it unwinds counterclockwise (the thread should exit the left side).

3. Guide the Thread: Pull the thread through the guide groove, usually at the “6 o’clock” position. Follow any arrows or diagrams on the bobbin door.

4. Leave a Tail: Leave about 6 inches (15 cm) of thread and guide it under the presser foot.

5. Secure the Cover: Replace the bobbin cover plate, ensuring it snaps securely.

Thread Visibility: Top-load systems often feature transparent covers, making it easy to spot when you’re running low.

Pro Tip: For both systems, always consult your machine’s manual or the diagram on the bobbin door for orientation cues—when in doubt, the right path is usually illustrated right where you need it.

Understanding your Singer’s bobbin system is like knowing the secret handshake—it’s the difference between frustration and flawless stitches. Now, with these steps, you’re ready to conquer any Singer bobbin, old or new, and sew with confidence!

4. Thread Path and Tension Optimization Strategies

Getting the thread path and tension right on your Singer sewing machine is like tuning a fine instrument—one small misstep, and you’ll be battling tangles, loops, or uneven stitches. Let’s break down the essentials for flawless, frustration-free sewing.

4.1 Correct Thread Routing for Tangle Prevention

Ever wonder why your stitches sometimes look like a bird’s nest underneath? Nine times out of ten, it’s a threading issue—not a tension dial problem. Here’s how to route your thread like a pro:

Top Thread Pathway:

- Start with the presser foot up. This is non-negotiable. Raising the presser foot opens the tension discs, allowing the thread to seat correctly. If you thread with the foot down, the tension discs stay closed, and your thread floats right over them—leading to those infamous loops on the underside of your fabric.

- Guide the thread through every path: From the spool, pass the thread through the upper thread guide, down into the tension discs, up through the take-up lever, and finally down through the guides above the needle. Each Singer model may have slight variations, but the principle is universal: don’t skip a step.

- Thread the needle front to back. Pull about 6 inches of thread through the eye for a generous tail.

Bobbin Thread Pathway:

- Insert the bobbin properly. For top-load (drop-in) systems, the thread should exit counterclockwise; for front-load systems, clockwise. Always check your manual or the diagram near the bobbin case.

- Engage the leaf spring: Pull the thread through the slot and under the leaf spring (the little metal flap in the bobbin case). This ensures the thread feeds smoothly and maintains the right tension.

- Leave a tail: About 6 inches is ideal—enough for the needle to catch when you start sewing.

Pro Tips:

- Always use the same thread weight in both the needle and bobbin for best results.

- If you’re unsure, consult your machine’s manual or the diagram on the bobbin door—manufacturers know their stuff!

4.2 Balancing Top and Bobbin Tension Settings

Now that your thread is routed perfectly, let’s talk tension. Think of tension like a tug-of-war between the top thread and the bobbin thread—when balanced, your stitches look beautiful on both sides.

Top Tension (Dial):

- Default setting: Most Singer machines work well with the dial set around 4 or 5. Higher numbers tighten the top thread; lower numbers loosen it.

- Adjust in whole numbers: Don’t be shy—if your stitches aren’t balanced, turn the dial a full number up or down and test again.

- Test on scrap fabric: Use a zigzag stitch to clearly see if the threads are pulling to one side.

Bobbin Tension (Screw):

- Tiny adjustments: Use a small screwdriver to turn the tension screw on the bobbin case—¼ to ½ turns at a time. Clockwise tightens, counterclockwise loosens.

- The “bounce test”: Hold the bobbin case by the thread and give it a gentle bounce. It should drop an inch or two—if it plummets or barely moves, adjust accordingly.

- Leave it to the pros: Most home sewists rarely need to adjust bobbin tension. If in doubt, have a technician check it during service.

Keep Fabric Stable for Perfect Tension:

Consistent fabric tension is just as crucial as thread tension—especially in embroidery. If you’re working on Singer industrial embroidery machine projects, using a Sewtalent magnetic embroidery hoop can make a world of difference. Its powerful magnetic clamping system holds fabric securely and evenly, preventing slippage and puckering during stitching. This stability ensures your tension settings actually do their job, resulting in crisp, professional stitches every time. (Remember: Sewtalent hoops are for garment embroidery, not for caps/hats.)

Bottom Line:

Prioritize threading accuracy before fiddling with tension. Use identical thread weights, test on scrap, and keep your fabric stable for best results. When in doubt, consult your Singer manual—it’s your best friend in the sewing room.

5. Troubleshooting Common Bobbin Issues

Even seasoned sewists get tripped up by singer sewing machine embroidery bobbin woes from time to time. The good news? Most problems have simple fixes if you know what to look for. Let’s tackle the most common bobbin headaches and get you back to smooth stitching.

5.1 Solving Thread Jams and Tangles

There’s nothing like the sinking feeling of hearing your machine grind to a halt mid-seam. Here’s how to diagnose and fix those pesky jams:

Top Causes:

• Incorrect bobbin direction: For top-load systems, the thread should unwind counterclockwise; for front-load, clockwise. Double-check the diagram on your machine or manual.
• Debris buildup: Lint, stray threads, or dust in the bobbin area and tension discs can block smooth thread movement.
• Improper threading: Skipping a tension disc or threading with the presser foot down means the thread isn’t seated correctly.
• Thread quality: Old, frayed, or bargain-bin thread increases friction and jam risk.

Step-by-Step Fix:

1. Stop and remove the fabric. Don’t force the handwheel—this can damage your machine.
2. Take out the bobbin and case. Inspect for knots, tangles, or stray threads.
3. Clean the area: Use a lint brush (never compressed air) to remove debris from the bobbin case and tension discs.
4. Re-thread everything: Carefully follow the correct path, making sure the presser foot is up during threading.
5. Replace with quality thread: If your thread looks fuzzy or breaks easily, swap it for a fresh, high-quality spool.

5.2 Fixing Uneven Winding and Tension Failures

Unevenly wound bobbins and tension mishaps can turn your stitches into a rollercoaster ride. Here’s how to smooth things out:

Common Culprits:

• Overwinding: Filling the bobbin past its capacity creates tight spots and breakage.
• Mixed threads: Layering different thread types or colors on one bobbin disrupts tension.
• Incorrect winding technique: Pulling too tightly or loosely while winding leads to uneven thread distribution.
• Bobbin mismatch: Using a plastic bobbin in a vintage metal-compatible machine (or vice versa) can throw off tension.

How to Fix:

• Wind evenly: Fill the bobbin to about 80–90% capacity. Avoid overlapping threads and keep a steady speed.
• One thread per bobbin: Don’t mix types or colors—dedicate each bobbin to a single thread.
• Check compatibility: Use plastic bobbins for top-load systems and metal for front-load/vintage models as specified.
• Maintain tension discs: Clean regularly to prevent lint buildup that can affect thread flow.

Pro Tip: If you’re still getting uneven stitches after these steps, test your tension on scrap fabric and make small adjustments as needed. Regular cleaning and careful winding are your best defense against bobbin blues.

6. Advanced Techniques: Bobbin Types and Specialty Threads

Ready to level up your Singer sewing game? Understanding the nuances between plastic and metal bobbins—and how to handle specialty threads—can make all the difference in stitch quality and machine longevity.

6.1 Plastic vs. Metal Bobbins: Compatibility Guide

Not all bobbins are created equal, and using the wrong one can lead to jams, breakage, or even damage to your Singer. Here’s what you need to know:

Plastic Bobbins:

• Best for: Modern, computerized, or drop-in (top-load) Singer models (e.g., Quantum XL, Confidence Quilter 7469).
• Features: Lightweight, transparent for easy thread monitoring, and designed for smooth operation with automatic features.
• Threading: Use the machine’s pre-tensioner (spring-loaded button) to ensure tight, even winding. Thread should wind counterclockwise, with the tail exiting left to right.

Metal Bobbins:

• Best for: Vintage, treadle, or heavy-duty Singer models (e.g., Singer 8228).
• Features: Heavier, more durable, and capable of holding more thread—ideal for demanding projects.
• Threading: No pre-tensioner; thread is wound directly onto the bobbin. Insert with the thread exiting right to left, ensuring a snug fit.

Critical Compatibility Notes:

• Never use metal bobbins in plastic-compatible machines (risk of damage).
• Avoid plastic bobbins in machines designed for metal—they may wobble, break, or cause tension problems.
• Always check your Singer manual for the correct bobbin type and style (Class 15, L-style, etc.).

OEM Compliance: Stick with Singer-approved bobbins for your model. Non-OEM bobbins can cause stitch issues or even mechanical damage.

6.2 Metallic/Heavyweight Thread Handling

Specialty threads like metallics or heavyweight cotton can add drama to your designs—but only if you handle them with care. Here’s how to keep your machine (and your nerves) intact:

For Metallic Threads:

• Winding: Use Singer embroidery software-guided pre-tensioner to guide the thread under tension discs for even winding. Metallic threads are slippery—ensure they’re seated properly to prevent slippage.
• Tension: Tighten the bobbin tension slightly (about 1/8–1/4 turn clockwise on the bobbin screw) to prevent backlash, where the thread unspools too quickly.
• Testing: Use a TOWA bobbin tension gauge for precision, aiming for a light but steady pull.

For Heavyweight Threads:

• Winding: Avoid overfilling the bobbin to prevent jams—stop at about 2/3 full.
• Tension: Loosen the bobbin tension slightly to accommodate thicker thread.
• Needle: Use a larger needle size to prevent breakage.

Fabric-Specific Adjustments:

• Delicate fabrics (silk, chiffon): Lower top tension (dial 3–4), maintain factory bobbin settings.
• Thick fabrics (denim, canvas): Raise top tension (dial 5–6), loosen bobbin tension a touch.
• Specialty fabrics (leather, vinyl): Use heavyweight thread and adjust both top and bobbin tension as needed. Always test on scrap fabric first.

Bottom Line: Mastering bobbin types and specialty threads is your ticket to professional results—no matter how creative your project gets. Always consult your Singer manual for model-specific guidance, and don’t be afraid to experiment on scrap fabric until you find your machine’s sweet spot.

Ready to troubleshoot, tweak, and create with confidence? Your Singer—and your stitches—will thank you.

7. Maintenance and Long-Term Performance Care

Keeping your Singer sewing machine humming along isn’t just about threading and tension—it’s about smart, regular care. Just as a concert pianist tunes their instrument, you’ll want to keep your bobbin case clean, oiled, and precisely calibrated for years of flawless stitches. Let’s dive into the best practices that separate the seasoned sewists from the frustrated beginners.

7.1 Bobbin Case Cleaning and Lubrication

Neglecting your bobbin case is like letting dust settle on a masterpiece. Over time, lint and stray threads build up, causing skipped stitches, thread breakage, or even mechanical damage. Here’s how to keep things pristine:

How Often Should You Clean? Aim to clean your bobbin case every 2–5 bobbins. If you’re sewing dense fabrics or high-pile materials, bump up the frequency. The more you sew, the more often you should clean.

Step-by-Step Cleaning Routine:

1. Remove the Bobbin Case: On models like the Singer 4411 or 4423, loosen the screws and gently lift out the case.

2. Sweep Away Lint: Use a stiff brush, makeup brush, or vacuum crevice tool to whisk away lint from the hook, feed dog, and tension spring area. Avoid compressed air—it can push debris deeper inside.

3. Inspect for Damage: Scan for cracks, burrs, or needle punctures. If you spot rough edges, gently sand them with 500-grit sandpaper. Replace bent or dull needles every 8–10 hours of sewing to prevent further damage.

4. Oiling and Lubrication: After cleaning, oil sparingly—just a drop on the hook race area. Over-oiling attracts lint, so less is more. Always consult your manual; some modern Singer models don’t require extra oiling.

Pro Tip: A clean, lubricated bobbin case is your insurance policy against unexpected jams and stitch disasters. Make it a habit, and your machine will reward you with smooth, even stitches.

7.2 Precision Tension Calibration

If you’ve ever wondered why your stitches sometimes go haywire, tension calibration is often the culprit. Achieving that “just right” balance is part science, part art.

Start with the Bobbin Tension:

- For Singer Featherweights, a tension meter reading of 23 grams is the sweet spot. Adjust the central screw in tiny increments—righty-tighty for more tension, lefty-loosey for less.

- On vintage models, use the knurled nut to fine-tune the tension discs. For later models with numbered dials, aim for a setting of 4–5 on medium-weight fabric.

Top Tension (Thread Dial):

- Begin at the default setting of 4. Adjust in small steps: higher numbers for tighter stitches, lower for looser. Always test on scrap fabric before diving into your project.

- Avoid extreme settings. If you find yourself cranking the dial all the way up or down, pause and recheck your bobbin tension.

Testing and Tools:

- Use a TOWA gauge for precise tension readings.

- Try the “bounce test”: hold the bobbin case by the thread and give it a gentle bounce. It should drop an inch or two—if not, adjust accordingly.

Keep Fabric Stable for Consistent Tension: When working on garments—especially with high-tension projects—fabric slippage can sabotage even the best tension settings. This is where a Sewtalent magnetic embroidery hoop shines. Its powerful magnetic system holds fabric evenly and securely, minimizing slippage and ensuring your tension adjustments translate into crisp, professional stitches. (Remember: Sewtalent hoops are designed for garment embroidery, not for caps or hats.)

Bottom Line: Regular cleaning, careful oiling, and precise tension calibration are the trifecta for your Singer industrial machine maintenance. Pair these habits with a stable hooping system, and you’ll enjoy flawless performance for years to come.

8. Conclusion: Achieving Flawless Stitches Consistently

Mastering your Singer’s bobbin system is the key to consistent, beautiful stitches. By threading with care, balancing tension, and maintaining your machine, you set yourself up for sewing success.

Remember: practice on scrap fabric, consult your manual for model-specific tips, and don’t hesitate to revisit the basics when troubleshooting. Your Singer—and your creativity—deserve nothing less.

9. Frequently Asked Questions

9.1 Q: Why does my bobbin unwind clockwise?

A: The direction your bobbin unwinds depends on your Singer model. For most front-load systems, the thread should unwind clockwise; for top-load systems, counterclockwise. Always check your machine’s manual or the diagram near the bobbin case to confirm the correct orientation.

9.2 Q: How often should I replace tension springs?

A: Tension springs don’t have a set replacement schedule, but if you notice persistent tension issues, skipped stitches, or visible wear, it may be time for a replacement. Regular cleaning and inspection will help you catch problems early.

9.3 Q: How do I fix tension flaws on a vintage Singer 201?

A: For vintage Singer 201 models, ensure the bobbin is threaded correctly through the tension slots and spring, with the thread making a right-angle turn and the bobbin rotating counterclockwise. If tension remains off, check for lint buildup, worn springs, or improper threading. Consult your manual for detailed diagrams and adjustment tips.

With these answers and the techniques above, you’re well-equipped to conquer any Singer bobbin challenge. Happy sewing!
