1. Introduction: Mastering the Toyota ESP 9000 Workhorse

The Toyota Expert ESP 9000 embroidery machine has long been a staple in the commercial embroidery industry, celebrated for its robust performance and reliability over the past two decades. This machine is not just a tool but a workhorse that has stood the test of time, helping countless businesses thrive in the competitive embroidery market. In this guide, we will explore the ESP 9000's enduring legacy, diving into key aspects such as machine comparisons, technical operations, software integration, and maintenance optimization. These insights will equip you with the knowledge to maximize the potential of your ESP 9000.

Moreover, as technology advances, so do the tools we use. Enter the Sewtalent magnetic hoops—modern accessories that enhance productivity by offering superior fabric grip and ease of use. These hoops, with their powerful magnetic clamping system, are designed to complement the ESP 9000, ensuring that your embroidery tasks are not only efficient but also precise. As we journey through this guide, you'll discover how integrating such accessories can transform your embroidery operations, making them more streamlined and effective.

2. Toyota ESP 9000 vs Competitors: Commercial Machine Showdown

2.1 Head-to-Head: ESP 9000 vs Tajima TEMX C-1201 Specs

When comparing the Toyota ESP 9000 to the Tajima TEMX C-1201, as highlighted in Toyota embroidery machine reviews, several key specifications stand out. The ESP 9000 boasts a stitching area of 360 x 500 mm, accommodating larger embroidery projects, while the exact dimensions for the Tajima remain unspecified. Both machines offer a maximum speed of 1,200 stitches per minute, but the ESP 9000's AC servo motors provide consistent stitch formation, a feature highlighted in various YouTube demonstrations.

In terms of cap embroidery, the ESP 9000 is equipped with a dedicated 270° cap system, optimizing it for hat embroidery. This is a distinct advantage over the Tajima, which lacks explicit cap features. Additionally, the ESP 9000's robust build and noise-reduction mechanisms ensure durability, making it a reliable choice for high-volume commercial use.

2.2 Task-Specific Performance: Hats vs Backpacks

The Toyota ESP 9000 excels in task-specific performance, particularly when it comes to hats and nylon backpacks. Its tubular frame is compatible with the demands of nylon backpack production, offering a large stitching area that supports bulk items. In contrast, the Tajima TEMX C-1201 may face limitations in hat embroidery stability, as noted in various user reviews and forum discussions.

For businesses focusing on hat embroidery, the ESP 9000's dedicated cap system provides a stable and efficient solution. Meanwhile, its compatibility with larger items like backpacks makes it a versatile choice for diverse embroidery tasks.

2.3 Modernizing Legacy Machines: Sewtalent Hoop Solutions

As the embroidery industry evolves, so too must the tools we use. Sewtalent's magnetic hoops, available in 17 sizes, offer a modern solution to enhance the performance of legacy machines like the ESP 9000. These hoops are engineered with PPSU engineering plastics, providing a durable and reliable grip on fabrics during high-speed embroidery.

The powerful magnetic clamping system of Sewtalent hoops ensures even tension across various fabric types, reducing the risk of slippage and improving the overall quality of embroidery. By integrating these hoops with the ESP 9000, users can experience a significant boost in productivity and precision, making Sewtalent an invaluable addition to any embroidery setup.

3. Technical Mastery: Operation & Troubleshooting Protocols

3.1 Threading Walkthrough with Video References

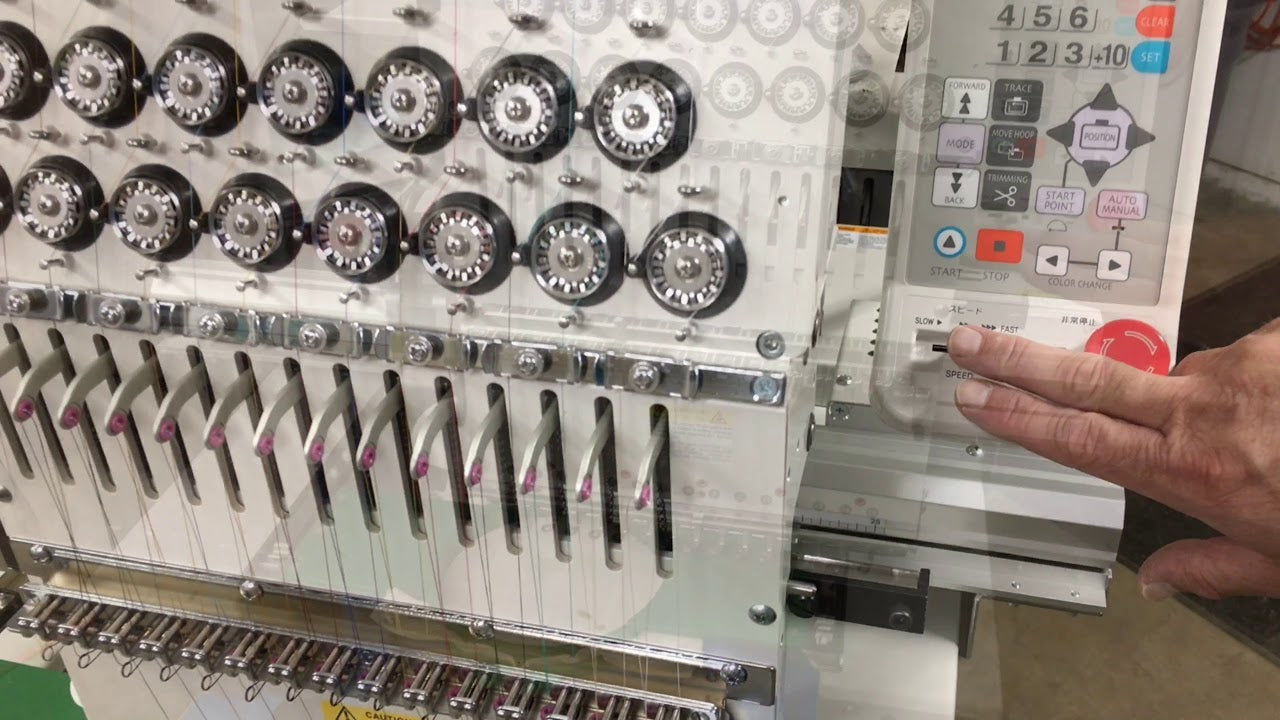

Mastering the threading process of the Toyota ESP 9000 is crucial for optimal performance. The machine features a 15-needle threading path, which can be daunting at first but becomes intuitive with practice. Begin by ensuring the machine is powered off. Use the threading tool provided to guide the thread through the spiral tubes and tension discs, making sure it passes to the left of the guide pins. This step is vital for maintaining proper tension.

For troubleshooting, a common issue is the picker solenoid, which can affect thread pickup after trimming. Cleaning the solenoid and ensuring it operates freely can resolve many threading problems, as highlighted in various online forums and video tutorials.

3.2 USB Conversion & Error Code Decryption

Transitioning from floppy disks to USB can significantly enhance the functionality of your ESP 9000. Using solutions like PLC Electronics' floppy-to-USB conversion kits, you can modernize your machine's data transfer capabilities. This involves copying embroidery files from floppy disks to a computer, converting them to USB-compatible formats, and loading them onto USB reader for toyota embroidery machines-compatible drives for machine use.

Addressing R232 connection errors often involves checking cable integrity, driver installations, and software settings. DIP switch configurations on the ESP 9000 can also play a role, as detailed in user forums and technical manuals. By understanding these protocols, you can effectively troubleshoot and maintain your machine's performance.

4. Software Integration: Bridging 90s Tech with Modern Workflows

The Toyota ESP 9000, a stalwart of 1990s embroidery technology, continues to serve well in today's digital landscape, albeit with some necessary adaptations. This section will guide you through Toyota embroidery machine software integration with your ESP 9000, ensuring seamless operation and enhanced productivity.

4.1 Wilcom ES Setup: Serial Port Configurations

Integrating the Wilcom ES software with the Toyota ESP 9000 requires precise serial port configurations. The ESP 9000 relies on a 9-pin RS-232 serial port for data transfer, necessitating a USB-to-serial converter for most modern computers. Key settings include a baud rate of 9600, odd parity, and standard stop bits. Here's a step-by-step guide to configuring your setup:

1. Connect the Machine: Use a USB-to-serial adapter to link your ESP 9000 to a PC. Ensure the adapter is compatible with your operating system, such as Windows 10.

2. Configure Software Settings: In Wilcom ES, select the appropriate COM port and set the baud rate to 9600. Ensure that the parity is set to 'Odd' and the stop bits are correctly configured.

3. DIP Switch Adjustments: While specific documentation for the ESP 9000 is limited, general guidelines suggest setting DIP switches to match these communication parameters. Consult your machine's manual for precise configurations.

By following these steps, you can effectively bridge the gap between legacy hardware and contemporary software, maintaining the ESP 9000's relevance in modern workflows.

4.2 Network Upgrade Limitations & Workarounds

The Toyota ESP 9000 lacks native LAN support, a feature available in its successor, the ESP 9100NET. However, this doesn't mean you can't integrate network capabilities into your ESP 9000. Here's how you can work around these limitations:

- USB-to-LAN Converters: Consider using USB-to-LAN converters to enable network connectivity. These devices allow your ESP 9000 to communicate over a network, facilitating remote management and data transfer.

- Performance Considerations: When selecting a USB-to-LAN converter, prioritize models with proven performance metrics to ensure stable and efficient operation. This setup can mimic the functionality of more modern machines, extending the utility of your ESP 9000.

By implementing these strategies, you can enhance the connectivity of your Toyota ESP 9000, enabling it to function effectively within a networked environment.

5. Maintenance Rituals for 25+ Year Lifespan

To ensure your Toyota ESP 9000 remains operational for decades, a rigorous maintenance schedule is essential. This section outlines the key steps and modern accessories and Toyota embroidery machine parts that can help extend the life of your machine.

5.1 Lubrication Schedule from Service Manuals

Regular lubrication is crucial for maintaining the performance of your ESP 9000. Here's a detailed schedule based on service manual recommendations:

• Rotary Hook Rail: Lubricate every 3-4 hours of operation to prevent friction and wear.
• Drive Shaft of Presser Foot Parts: Apply lubricant daily to ensure smooth movement.
• Needle Bar Drive Shaft: Lubricate daily for presser foot components and weekly for the needle bar.
• Felt Packing (Needle Bar): Replace or re-lubricate every three months.
• Cylinder Bed and Arm: Lubricate weekly to maintain optimal performance.

For lubrication, SF multi-grade oil types are recommended, providing the necessary viscosity and protection for high-stress components.

5.2 Preventive Care with Modern Accessories

Incorporating modern accessories can further enhance the longevity of your ESP 9000. Sewtalent hoops, known for their vibration-dampening properties, are an excellent addition:

• Vibration Reduction: Sewtalent hoops minimize mechanical stress during high-speed runs, reducing wear on your machine.
• Enhanced Stability: The superior grip of these hoops ensures consistent fabric tension, preventing unnecessary strain on the machine's components.

By integrating these accessories, you can significantly reduce maintenance needs and extend the life of your Toyota ESP 9000.

6. Pushing Performance Limits: Speed & Precision Metrics

Maximizing the performance of your Toyota ESP 9000 involves understanding its speed capabilities and optimizing for precision. This section explores techniques to push these limits while maintaining quality.

6.1 Stitch Speed Optimization Techniques

The Toyota ESP 9000 is capable of operating at a maximum speed of 1,200 stitches per minute (SPM), but real-world conditions often see it functioning around 800 SPM. To optimize stitch speed:

• Tension Calibration: Proper tension settings are crucial for high-speed operation. Regularly perform tension tests, such as the 4–6" bobbin drop test, to ensure optimal thread management.
• Motor Efficiency: The AC servo motors in the ESP 9000 provide precise control, reducing errors during high-speed embroidery. Regular maintenance of these motors can enhance performance.

By focusing on these areas, you can achieve higher operational speeds without compromising stitch quality.

Toyota embroidery design stability enhancements for caps

Cap embroidery presents unique challenges due to the curved surfaces involved. The ESP 9000's throat plate design, combined with toyota embroidery design stability enhancements from Sewtalent's magnetic grip, offers significant advantages:

• Throat Plate Design: The ESP 9000's throat plate supports a 270-degree cap system, allowing for seamless stitching on curved surfaces.
• Magnetic Grip: Sewtalent's magnetic hoops improve hat positioning accuracy, ensuring precise embroidery even at high speeds.

These enhancements make the ESP 9000 an excellent choice for businesses focusing on cap embroidery, providing both speed and precision.

7. Conclusion: ESP 9000 in the Modern Embroidery Ecosystem

The Toyota Expert embroidery machine remains a powerful contender in the embroidery industry, even as technology advances. Its robust design and proven reliability make it a viable choice for commercial users looking to maintain high production standards. When paired with modern accessories like Sewtalent magnetic hoops, the ESP 9000 can achieve even greater efficiency and precision. These hoops enhance fabric grip and reduce setup time, allowing for smoother operations and less downtime.

To ensure the longevity of your ESP 9000, regular maintenance and consultation of service manuals are essential. By following recommended lubrication schedules and utilizing self-diagnostic systems, you can keep your machine running smoothly for years to come. Embrace the blend of classic reliability and modern innovation to maximize your embroidery potential with the ESP 9000.

8. FAQ: Expert Answers to Common ESP 9000 Queries

8.1 Q: What are the costs associated with USB conversion for the ESP 9000?

A: Converting the ESP 9000 from floppy disk to USB can significantly enhance its functionality. The cost of conversion kits, such as those from PLC Electronics, typically ranges from $100 to $200. This investment allows for easier data transfer and compatibility with modern operating systems.

8.2 Q: How can I troubleshoot tension issues on the ESP 9000?

A: Proper tension is crucial for quality embroidery. Start by performing a bobbin drop test to ensure correct tension settings. Adjust the bobbin tension using the large screw on the tension spring, and fine-tune the upper thread tension with the tension knobs. Regular checks and adjustments can prevent common tension-related problems.

8.3 Q: Which software versions are compatible with the ESP 9000?

A: The ESP 9000 is compatible with various embroidery software, including Wilcom ES. Ensure your software settings match the machine's communication parameters, such as a baud rate of 9600 and odd parity. Using a USB-to-serial converter can facilitate connectivity with modern computers.

8.4 Q: What are the best practices for hat embroidery with the ESP 9000?

A: For optimal hat embroidery, utilize the ESP 9000's dedicated 270° cap system. Ensure the throat plate and needle are appropriately aligned to accommodate the curved surface of hats. Sewtalent's magnetic hoops can further enhance stability and accuracy during high-speed operations.

8.5 Q: How can I source discontinued parts for the ESP 9000?

A: Finding parts for older machines like the ESP 9000 can be challenging. Websites such as so many parts.com offer a wide range of components for various embroidery machines. Networking with other embroidery professionals and joining online forums can also provide leads on sourcing hard-to-find parts.
