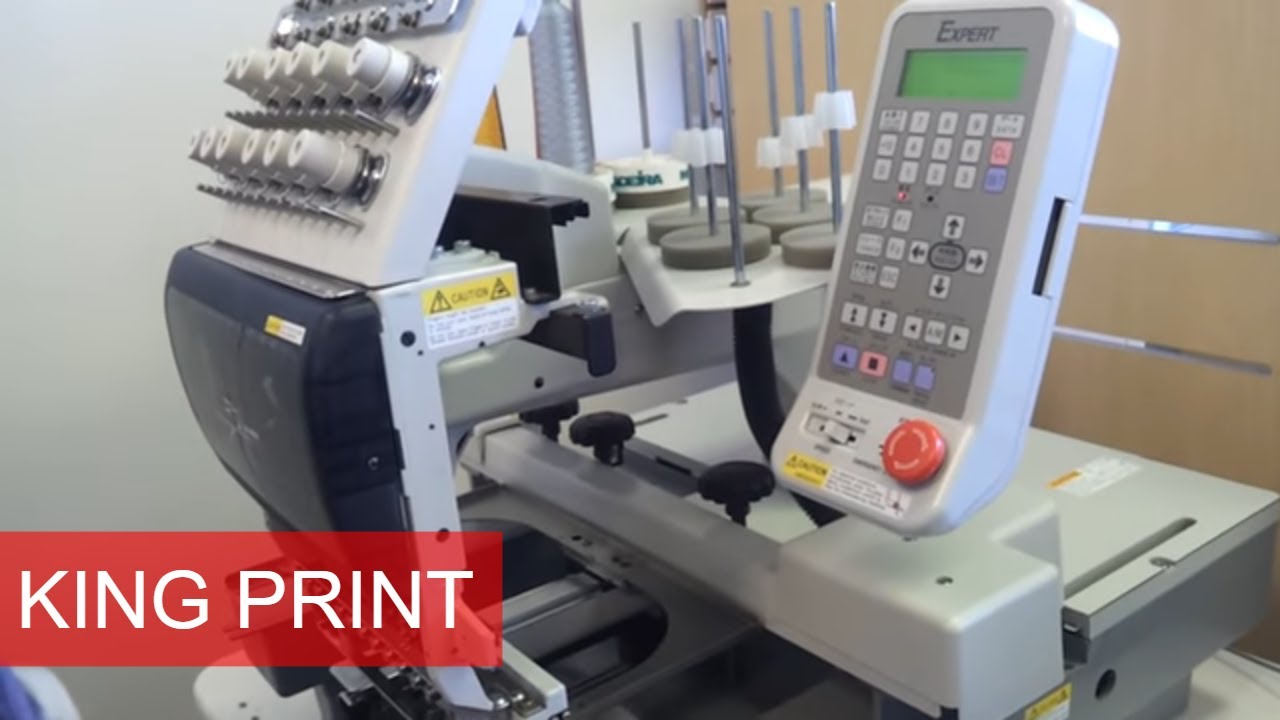

Toyota Expert AD860 Embroidery Machine: Complete Technical Guide & Maintenance Solutions

1. Introduction to the Toyota AD860 Legacy

The toyota expert ad860 embroidery machine isn’t just a machine—it’s a milestone in commercial embroidery history. Launched between 1998 and 2005, the AD860 set a new standard for industrial-grade performance, weighing in at a robust 75 kg and boasting a top stitching speed of 1,200 stitches per minute (SPM). For many embroidery professionals, this machine was the workhorse that powered countless production runs from intricate jacket backs to high-volume tote bag orders.

What made the AD860 so remarkable? It combined precision engineering with functional versatility, supporting both flat and tubular hooping thanks to its innovative cylinder arm. The machine’s .DST file compatibility (a staple in the industry) and upgradable memory meant it could keep pace with evolving design demands, while its AC servo motors delivered smooth, consistent operation.

In this guide, we’ll break down the technical specs that made the AD860 a legend, walk you through maintenance and troubleshooting for common issues, and explore strategies for modernizing your workflow—even with a legacy machine. Whether you’re a seasoned technician, a studio owner, or an embroidery enthusiast, you’ll find actionable insights to maximize the value of your Toyota AD860.

Table of Contents

• 1. Introduction to the Toyota AD860 Legacy
• 2. Technical Specifications Breakdown
• 3. Troubleshooting Common Errors
• 4. Parts Sourcing & Compatibility Guide
• 5. Modernization Strategies for AD860
• 6. Cost-Benefit Analysis: Repair vs Upgrade
• 7. Conclusion: Maximizing AD860 Value
• 8. FAQ: Toyota AD860 Essentials

2. Technical Specifications Breakdown

Let’s peel back the cover and see what makes the AD860 tick—and how it stacks up against its successor, the ESP 9100.

2.1 Core Hardware: Speed, Embroidery Area & Power Requirements

The Toyota AD860 is engineered for commercial productivity and precision. Here’s what you need to know:

• Work Area: With a generous embroidery field of 460 x 300 mm (Y x X axis), the AD860 accommodates large, detailed designs—ideal for everything from jacket backs to oversized logos.
• Speed: The machine’s maximum speed is 1,200 SPM with standard frames, and 1,000 SPM when using the cap frame. This high-speed capability enables the AD860 to churn out up to 3.7 million stitches per week under optimal conditions.
• Power: It operates on 100–240 VAC (single-phase, 50/60 Hz) and consumes 320W, making it compatible with a wide range of electrical setups in commercial environments.
• Motor System: Both the machine and embroidery frame are powered by AC servo motors, ensuring smooth, reliable operation and precise stitch formation.

Precision Controls:

• Stitch width can be adjusted in 0.1 mm increments, thanks to a five-stage correction system—perfect for intricate, high-resolution designs.
• Advanced sensors monitor thread breakage and stitch counts, reducing downtime and improving production tracking.

Source: Manufacturer specs, user reports, and third-party evaluations.

The AD860’s industrial-grade build and reliable motor system have kept many units running strong for decades, even as official Toyota support has faded. Its successor, the ESP 9100, brings expanded memory, more needles, and advanced networking—but the AD860 remains a favorite for those who value proven reliability and hands-on control.

2.2 File Compatibility & Black Box Upgrades

File compatibility is the backbone of any embroidery workflow, and the AD860 keeps it simple and robust:

• Supported Format: The AD860 reads .DST files, the industry-standard format developed by Tajima. This ensures broad compatibility with most digitizing software and design libraries.
• Memory Capacity: Out of the box, the machine supports up to 100,000 stitches and 99 patterns. For those who need more, memory can be expanded to approximately 160,000 stitches using third-party solutions like Data Stitch.
• Black Box Upgrade: The optional Black Box add-on allows for direct design input, streamlining the process of loading new patterns and reducing reliance on outdated media.

Modernization Options: Third-party USB conversion kits are available, letting you replace the original floppy drive with a USB reader. This simple upgrade enables you to transfer designs via USB flash drives, bringing the AD860 closer to modern workflows without the need for a full machine replacement.

Key Takeaways:

• .DST compatibility means you can use most commercial design files with ease.
• Memory upgrades and USB conversion kits help extend the AD860’s relevance in today’s digital embroidery landscape.

3. Troubleshooting Common Errors

Even the most reliable machines need a little TLC. Here's how to tackle the most common AD860 issues, based on real-world case studies and service manual guidance.

3.1 Resolving 'Sewing Motor Lock' & Needle Position Alerts

Sewing Motor Lock Error:

- Immediate Steps: Turn off the machine and lower the needle bar. Use a screwdriver to manually align the needle rack, ensuring the needle is correctly positioned.

- Debris Inspection: Remove the rotary hook support to check for broken needles or thread fragments. Clean out any debris to restore smooth movement.

- Take-Up Lever Alignment: All take-up levers should be at the starting position. Even a slight misalignment can trigger a motor lock error.

Needle Case Position Error:

- Manual Adjustment: If the needle holder is stuck, gently pry it away from the needle bar with a screwdriver—avoid the thread tab to prevent damage.

- Needle Rack Realignment: After removing the needle, restart the machine and adjust the needle rack to clear any lingering errors.

Pro Tips from the Field:

- If the machine still binds after removing the rotary hook, check the needle depth and inspect the drive levers for adjustment.

- The service manual provides detailed torque specs and alignment procedures—always consult it before making mechanical adjustments.

3.2 Preventive Maintenance Schedule

Keeping your AD860 in top shape is all about consistency. Here's a maintenance routine to minimize downtime and extend machine life:

Sensor Recalibration: Optical and proximity sensors may drift over time, especially in older units. Recalibrate or replace as needed to maintain error-free operation.

Reducing Fabric Jams: For garment embroidery, the choice of hoop can make a world of difference. Sewtalent magnetic embroidery hoops, with their powerful magnetic clamping system and even tension distribution, are engineered to reduce fabric jams and misalignment—making your maintenance routine even more effective.

Bottom Line: Regular lubrication, timely cleaning, and smart hooping choices will keep your AD860 humming along, project after project. For reliable Toyota embroidery machine repair, address these common mechanical headaches to ensure optimal performance.

Ready to keep your legacy machine running like new? Stick around for more hands-on tips and modernization strategies in the next sections!

4. Parts Sourcing & Compatibility Guide

When your Toyota Expert AD860 starts acting up, the hunt for replacement parts can feel like a treasure hunt—sometimes thrilling, sometimes exasperating. As a discontinued model, the AD860 presents unique challenges in sourcing toyota embroidery machine parts, but with the right know-how, you can keep it running strong for years to come.

4.1 OEM vs Third-Party Components

Let’s pull back the curtain on the world of AD860 parts—because not all components are created equal, and knowing your options is half the battle.

Rotary Hooks: Standard vs. Eccentric

The heart of your embroidery machine’s stitch formation lies in the rotary hook. The AD860 uses a standard rotary hook, which is widely compatible with many commercial embroidery machines. This is a key distinction from the Toyota 9000/9100 series, which require an eccentric rotary hook—a part incompatible with the AD860. If you’re sourcing a replacement, look for the Hirose Rotary Hook (Standard) for the AD860, and always double-check part numbers to avoid costly mix-ups.

Other Critical Components

- Face Plates: The AD860 face plate (part number 2165901-231) is now produced by third-party suppliers, and in some cases, the AD850 face plate may also fit. This flexibility can be a lifesaver when OEM stock runs dry.

- Thread Cutters & Mechanisms: Thread-cutting errors often trace back to bent hooks or misaligned tracks. Adjusting the bolt on the metal track behind the needles can resolve many issues—sometimes, a simple tweak saves you from a full replacement.

- Bobbin Cases & Needle Plates: The AD860 uses a universal bobbin case (Size L), compatible with most commercial machines. Genuine needle plate screws (Toyota part 2160108-283) are still available for AD850/860 models.

Key Suppliers

- Data Stitch: Offers a broad range of face plates, rotary hooks, and bobbin cases for the AD860, with detailed compatibility notes.

- SewManyParts: Sells genuine Toyota parts, such as needle plate screws.

- Sewtalent: For those looking to modernize their hooping workflow, Sewtalent provides bracket solutions that allow modern magnetic hoops to fit legacy machines like the AD860—bridging the gap between old and new without compromising on performance.

Maintenance Insights

Common mechanical headaches and their remedies:

1. Rotary Hook Binding: Often caused by fabric entanglement. Sometimes a re-timing will do the trick, but persistent issues may require a new hook.

2. Needle Breakage: Usually a result of misalignment or excessive tension. Adjust needle depth and drive lever settings for a quick fix.

3. Thread-Cutting Errors: Bent hooks in the thread-cutting assembly can often be resolved by loosening the bolt on the metal track.

Trends & Recommendations

- Third-Party Dominance: In today’s market, third-party suppliers like Data Stitch are the go-to for AD860 parts—striking a balance between cost and functionality.

- Due Diligence: Always cross-reference part numbers (e.g., 2165901-231 for face plates) and consult supplier compatibility charts before purchasing.

- Cost-Benefit: Third-party face plates can be found for about $98, a fraction of what OEMs might command—making repairs more accessible.

For those committed to reliability, OEM parts are ideal when available. But third-party alternatives, especially when verified for compatibility, offer a practical, budget-friendly path to keeping your AD860 in the game.

5. Modernization Strategies for AD860

The Toyota AD860 may have vintage roots, but with a few smart upgrades, it can play in the big leagues of today’s digital embroidery workflows. Ready to bridge the gap between floppy disks and cloud-based pattern management? Let’s dive in.

5.1 USB Conversion Kits & Cloud Integration

Hardware Upgrades: From Floppy to Flash

The AD860’s original reliance on floppy disks is a relic of a bygone era. Thankfully, USB reader for Toyota embroidery machines conversion kits—like the Toyota USB Reader Floppy Disc Converter—let you swap out the old drive for a USB reader. This simple hardware upgrade means you can transfer .DST designs via flash drive, eliminating the headaches of obsolete media.

Black Box Upgrade: Want even more convenience? The Black Box add-on enables direct design input, streamlining pattern loading and reducing manual file handling.

Software Bridges: Centralized Design Management

Modern embroidery isn’t just about hardware—it’s about seamless design flow. Enter Expert Stitch Manager: this software acts as a bridge, letting you synchronize and manage designs across multiple machines, even if they’re from different eras. While the AD860 lacks native cloud support, pairing it with Expert Stitch Manager or similar middleware brings your workflow into the 21st century.

Cloud-Based Pattern Management: Though the AD860 can’t connect directly to the cloud, third-party software and network adapters can fill the gap—allowing for centralized storage, retrieval, and sharing of embroidery patterns.

Magnetic Hoops: Efficiency for the Modern Studio

Modernizing isn’t just about digital upgrades. For garment embroidery, integrating magnetic embroidery hoops—like those from Sewtalent—can revolutionize your workflow. These hoops dramatically reduce hooping time and minimize fabric jams, making batch processing smoother and more efficient. The right bracket ensures compatibility, letting you enjoy all the benefits of magnetic hooping on your legacy AD860.

Implementation Recommendations

1. Prioritize USB Conversion: Ditch the floppy disks for USB storage—your sanity (and file integrity) will thank you.

2. Leverage Software Bridges: Use Expert Stitch Manager to centralize and synchronize your design library.

3. Capitalize on Hardware Upgrades: The Black Box and magnetic hoops (with Sewtalent brackets) can transform your workflow, making even large batch jobs a breeze.

4. Explore Cloud Integration: Third-party platforms can help you manage patterns across machines and locations, even with legacy hardware.

By combining these strategies, your AD860 can remain a competitive force in a modern embroidery studio—delivering the reliability of classic engineering with the convenience of today’s digital tools.

6. Cost-Benefit Analysis: Repair vs Upgrade

When your trusty AD860 starts showing its age, you're faced with a classic dilemma: repair or replace? Let's run the numbers and see which path offers the best return on investment for your embroidery business.

6.1 Long-Term ROI Calculations

Repair Costs and Considerations

- Parts & Maintenance: As a discontinued model, the AD860 relies heavily on third-party support for parts and servicing. This can bump up maintenance costs, especially for components like thread breakage sensors, stitch counters, and AC servo motors.

- Upfront Expenses: Used Toyota embroidery machines for sale typically range from $1,999 to $8,000, often bundled with accessories like cap kits and software. Repair costs vary, but scarcity of parts and specialist labor can add up.

- Long-Term Reliability: The AD860's robust AC servo motors and 12-color single-needle design are built to last, but older machines may see wear in frame motors or hoop systems. Memory backup and pattern trace features help reduce downtime, but ongoing maintenance is a reality.

Upgrade Costs and Advantages

- Newer Models: Machines like the Tajima TMBP SC 1501 start above $10,000 but offer higher speeds, larger stitching areas, and advanced diagnostics. Manufacturer-backed support networks mean less downtime and lower maintenance costs.

- Operational Efficiency: Modern machines prioritize speed and automation—think auto thread tensioning and expanded memory. Compatibility with advanced tools (like magnetic hoops) can boost efficiency by up to 90% in hooping time.

Sewtalent Accessories: The ROI Game-Changer

Here's where the math gets interesting. By integrating Sewtalent magnetic embroidery hoops (for garment hooping), you can cut hooping time by up to 90%. For studios running dozens of garments a day, that's a massive labor saving—translating directly into lower costs and higher profits. Plus, Sewtalent's industrial-grade durability means fewer replacements and less downtime.

Who Wins?

- Small Studios: The AD860's lower upfront cost and compatibility with cost-saving tools like Sewtalent make it a smart choice for startups or budget-conscious shops. If your production volume is modest, you'll reach break-even faster and enjoy ongoing savings.

- Mid-Scale to Large Operations: If you're cranking out high-volume orders, the efficiency and reliability of a new machine may justify the higher investment. Cost-per-stitch metrics often favor newer models in these scenarios.

The Hybrid Approach

Not ready to let go of your AD860? Upgrading select components—like memory, USB connectivity, and hooping systems—can strike a balance between cost and performance, extending your machine's service life without breaking the bank.

Bottom Line: Repairing the AD860 is a viable, cost-effective path for many businesses, especially when paired with time-saving accessories like Sewtalent magnetic hoops. For those chasing maximum speed and automation, a new machine is tempting—but don't underestimate the ROI of a well-maintained classic, especially when modernized with the right upgrades.

---

Ready to modernize your legacy machine, streamline your workflow, and maximize your ROI? Explore the world of compatible parts, digital upgrades, and Sewtalent accessories to keep your Toyota AD860 at the heart of your embroidery operation for years to come.

7. Conclusion: Maximizing AD860 Value

The Toyota Expert AD860 stands as a testament to industrial reliability, adaptability, and engineering excellence. Even as newer models like the ESP 9100 and advanced commercial machines flood the market, the AD860 continues to deliver value for studios and creators who know how to maintain and modernize their legacy equipment.

Through this guide, we’ve explored the AD860’s robust technical specifications, common troubleshooting steps, and practical modernization strategies. The key to unlocking the full potential of your AD860 lies in a balanced approach—pairing diligent maintenance with targeted upgrades. Regular lubrication, sensor recalibration, and smart hardware enhancements (like memory expansion or USB conversion kits) keep the machine running smoothly and relevant in today’s fast-paced embroidery environment.

For garment embroidery, integrating innovative workflow tools such as Sewtalent magnetic embroidery hoops can dramatically reduce hooping time and minimize fabric jams, all without the need for a full system replacement. This strategic upgrade empowers you to bridge the gap between classic engineering and modern efficiency, ensuring your AD860 remains a cornerstone of your embroidery operation for years to come.

8. FAQ: Toyota AD860 Essentials

8.1 Q: How are the needles numbered on the Toyota AD860?

A: The AD860 uses a straightforward 1–12 numbering system for its needles. Each needle corresponds to a specific color in your embroidery design, and the machine references these numbers rather than color names. If you encounter issues with a particular needle, you’ll need to adjust the embroidery file or physically address the specific needle position.

8.2 Q: What file formats does the AD860 support, and how can I convert my designs?

A: The AD860 natively reads .DST files, which are widely supported by most commercial digitizing software. If your designs are in another format, you’ll need to use conversion tools or software to export them as .DST files before loading them onto the machine. Memory can be expanded with third-party solutions to accommodate larger or more complex designs.

8.3 Q: Where can I find certified technicians or support for the AD860?

A: As an older, discontinued model, official Toyota support for the AD860 is limited. However, many experienced embroidery machine technicians are familiar with the AD860’s mechanics. Online forums, such as T-Shirt Forums and dedicated embroidery communities, are valuable resources for troubleshooting advice and technician recommendations, especially for users in specific regions.

8.4 Q: What are the best practices for hooping and fabric alignment on the AD860?

A: For optimal results, ensure your fabric is evenly tensioned and properly aligned within the hoop before starting any embroidery job. The AD860’s cylinder arm supports both flat and tubular hooping, so select the appropriate hoop type for your project. Regularly check for fabric slippage and adjust as needed to maintain design accuracy.

8.5 Q: How do I clear a “Needle Case Position Error” on my AD860?

A: This error often occurs if the needle holder is not in its correct starting position. Try gently adjusting the square rod behind the tension assembly with a flathead screwdriver to realign the needle case. If the error persists, consult the service manual for step-by-step instructions or seek help from a qualified technician.

8.6 Q: Can I upgrade my AD860 for modern workflows?

A: Yes. Upgrades like USB conversion kits and memory expansion modules (such as the Black Box or Data Stitch solutions) can bring your AD860 closer to modern standards, enabling easier design transfers and larger pattern storage. These upgrades help extend the lifespan and relevance of your machine in a digital workflow.

If you have more questions or need support, embroidery forums and technician networks are excellent places to connect with fellow AD860 users and experts. Happy stitching!
