1. Introduction to Happy Embroidery Machine Maintenance
Happy embroidery machines have carved out a reputation as the backbone of professional embroidery studios worldwide. In fact, an impressive 87% of embroidery workshops rely on Happy machines for their daily production—an endorsement that speaks volumes about their reliability and performance. But with great popularity comes the universal challenge: how do you keep these Happy embroidery machine troubleshooting running at their best, day in and day out?
Whether you’re a seasoned studio owner or a passionate hobbyist, the key to maximizing your Happy machine’s lifespan lies in understanding its parts and implementing smart maintenance strategies. This guide unpacks the most common maintenance hurdles—like sourcing the right parts, decoding complex diagrams, and troubleshooting elusive errors—so you can keep your Happy humming, stitch after stitch.
Table of Contents
- 1. Introduction to Happy Embroidery Machine Maintenance
- 2. Complete Parts Breakdown for Key Happy Models
- 3. Authorized Parts Suppliers & Replacement Strategies
- 4. Cross-Model Compatibility Guide
- 5. Troubleshooting Common Mechanical Issues
- 6. Essential Maintenance Resources
- 7. Conclusion & Pro Maintenance Tips
- 8. FAQ: Happy Machine Parts & Upgrades
2. Complete Parts Breakdown for Key Happy Models
When it comes to maintenance or repairs, knowing the anatomy of your Happy embroidery machine is half the battle. Let’s dive into the critical components, their OEM part numbers, and essential diagrams for two of the most popular Happy models: the HCS-1201-30 and HCD-1501-40.
2.1 HCS-1201-30 Critical Components & Diagrams
The HCS-1201-30 is a workhorse for many embroidery professionals. Its robust design is supported by a network of specialized parts, each playing a vital role in smooth operation.
Thread Stand Assemblies (CSEA01):
- HCS20111: Thread stand assembly
- HCS20131: Thread stand felt
- HCS20121: Thread stand pin
- HCS20012: Thread guide pillar
- HCSU20010: Thread guide bracket assembly
The thread stand ensures consistent thread delivery, minimizing snags and tension issues. The assembly’s felt and guide pins are particularly prone to wear and should be checked regularly.
Moving Head Components (CDG401):
- HCB12093: Take-up lever assembly
- HCD12070: Take-up lever shaft
- HCD12066: Connecting block (left)
- HCD12057: Connecting block (right)
- HCD12011: Moving head assembly
These parts are at the heart of the machine’s stitching motion. The take-up lever assembly (HCB12093) and shaft (HCD12070) are essential for precise thread movement, while the connecting blocks anchor the mechanism.
Electrical Components:
- CPU Board: Central processing for all machine functions
- PMD Board (X/Y Axis): Controls axis movement
- Inverter: Powers the motor system
Electrical boards are the “brains” of the operation. If you encounter erratic behavior or error codes, these components are often the first to check.
Maintenance Hotspots:
- Thread Cutting Driver: Adjust both the moving and fixed knives for clean cuts.
- Needle Bar Change Unit: Includes the pulse motor (HCD02123) and needle bar boss check plate (HCD12021). Regular checks prevent misalignment and skipped stitches.
Reference Diagrams: happy japan embroidery machine manual provide exploded diagrams for each assembly, making it easier to identify and order replacement parts. For DIY repairs, these diagrams are invaluable—think of them as your machine’s roadmap.
2.2 HCD-1501-40 Rotary Hook System Maintenance
The HCD-1501-40 is built for high-volume, precision work, and its rotary hook system is the linchpin of its performance.
Rotary Hook System:
- HCD02123: Rotary hook shaft
- HCD902050: Rotary hook shaft collar (front)
- HCD02260: Detecting board bracket B
A properly maintained rotary hook ensures flawless stitch formation. According to official guides and YouTube tutorials, checking the rotary hook timing is crucial—misalignment can lead to skipped stitches or even needle strikes. The timing should be set so the rotary hook point meets the needle at exactly 25 degrees, with the gap between hook and needle barely visible.
Cap Frame Components:
- HCD37060: Holder (option)
- FRA43860: Fulcrum shaft for cap frame (option)
- FRA43872: Guide shaft for cap frame (option)
If you’re embroidering caps, these optional components are essential for stability and accuracy.
Moving Head Assembly:
- HCD12150: Front panel (15-needle type)
- HCD12160: Thread guide plate A (15-needle)
- HSA12200: Lower front panel (15-needle)
These assemblies keep the needle and thread in perfect harmony. Regular inspection can prevent costly downtime.
Maintenance Procedures:
- Backlash Adjustment: Loosen the screws on rod pins and recalibrate the moving head rails to eliminate slack.
- Thread Holder Maintenance: Replace magic tape and adjust thread tension as needed.
Reference Diagrams: happy japan embroidery machine manual detail step-by-step procedures for adjusting needle height, exchanging take-up levers, and maintaining the thread holder.
3. Authorized Parts Suppliers & Replacement Strategies
When your Happy machine needs a new lease on life, sourcing genuine parts from trusted suppliers is non-negotiable. Here’s how to navigate the world of OEM and alternative components for maximum value and performance.
3.1 Top 5 OEM Suppliers for Critical Components
1. TEXMAC Direct
- Role: Nationwide distributor for HappyJapan machines in the U.S.
- Offerings: Thumbscrews (e.g., EFP007079, $8), full product line access, and technical support.
- Financing: 84-month options for machine purchases—ideal for upgrading or expanding your workshop.
2. Axiom America
- Specialty: High-value electrical components like CPU boards ($5,510) and inverters ($1,500).
- Use Case: Go-to for complex repairs requiring motorized or electronic parts.
3. SewManyParts
- Scope: General embroidery supplies, compatible with Happy, Tajima, Barudan, and more.
- Advantage: One-stop shop for both OEM and select generic parts.
4. ETCSupplies
- Focus: Thread-related components, including Towa bobbin cases and Mighty Hoops.
5. Sunway Embroidery Supplies
- Niche: Needles and bobbin cases for Happy machines.
Key Considerations:
- Always use the correct part number (e.g., EPM00480 for pulse motors) to avoid compatibility headaches.
- Happy embroidery machine cost ranges widely—from $8 screws to $5,510 CPU boards—so prioritize critical components for OEM sourcing.
3.2 Cost-Effective Alternatives for Non-Critical Parts
Not every part needs to break the bank. For non-critical items like O-rings and screws, generic alternatives can yield substantial savings—sometimes up to 40%.
Case Study:
- Generic O-rings: $0.42 each
- Screws: Widely available at a fraction of OEM prices
By strategically using generics for low-impact components, you can stretch your maintenance budget without sacrificing performance.
Modern Hooping Solutions:
For garment embroidery hooping, consider upgrading from traditional screw-based hoops to magnetic options. Sewtalent magnetic embroidery hoops are a modern alternative, offering faster setup, even tension, and reduced fabric distortion. Their powerful magnetic system eliminates the need for tedious screw adjustments, saving up to 90% of hooping time and minimizing operator fatigue. Plus, Sewtalent hoops are compatible with most industrial embroidery machines, including Happy Japan models, making them a smart investment for efficiency-focused workshops.
Action Step:
Keep a detailed maintenance log and stock up on both OEM and select generic parts to minimize downtime. And if you’re still wrangling with old-school hoops, now’s the time to explore magnetic solutions like Sewtalent for a serious productivity boost.
4. Cross-Model Compatibility Guide
Navigating the world of Happy embroidery machines can feel a bit like stepping into a maze of model numbers, optional features, and ever-evolving technology. But when it comes to keeping your workshop humming, understanding which parts play nicely across different Happy series is crucial—especially if you manage a mixed fleet or source replacement components. Let’s break down the essential compatibility factors and highlight how to avoid costly mistakes.
4.1 Electrical Systems: HCD vs HCU2 Series Comparison
Happy’s HCD and HCU2 series may look similar at a glance, but under the hood, their electrical systems and thread tension mechanisms set them apart. Here’s how:
Digital vs Mechanical Thread Tension
- HCD Series: These heavy-duty industrial models (think HCD3, HCD3E, HCD3E-X1501) rely on a mechanical thread tension system. Adjustments are made manually—great for those who like tactile control, but it requires a practiced hand to maintain consistent tension across projects.
- HCU2 Series: Stepping into the HCU2-1501-40, you’ll find a digital thread tension control system. This upgrade allows for precise, repeatable tension settings at the push of a button, making it ideal for high-speed, high-volume production where consistency is king.
Warranty Implications for Mixed-Series Repairs
- Main Motor Coverage: Both HCD and HCU2 boast a 10-year warranty on the main motor, underscoring their industrial pedigree.
- Cross-Series Cautions: While it might be tempting to swap parts between models, critical components—especially in the electrical and control panel systems—are rarely interchangeable. For example, the HCR3’s servo-driven interfaces differ from the touchscreen panels on HCD and HCU2, and thread tension units are not cross-compatible between mechanical and digital systems.
Key Takeaways:
- Always verify your model and serial number before ordering parts.
- Note optional features (like cap frames or laser markers) up front—these can impact compatibility.
- When in doubt, consult official parts lists or manuals for your specific model to avoid warranty headaches.
4.2 Cap Frame Options Across Generations
Caps remain one of the most popular embroidery items, but not all Happy machines handle them the same way. Here’s what you need to know about cap frame compatibility:
Fulcrum Shaft Compatibility Matrix
- FRA43860 Fulcrum Shaft: This component is central to many Happy cap frame systems, but its compatibility varies by generation and model. For instance, while the HCD-1501-40 and certain HCR series use the FRA43860, always confirm with your parts manual—some older or specialty models may require different shafts or guide assemblies.

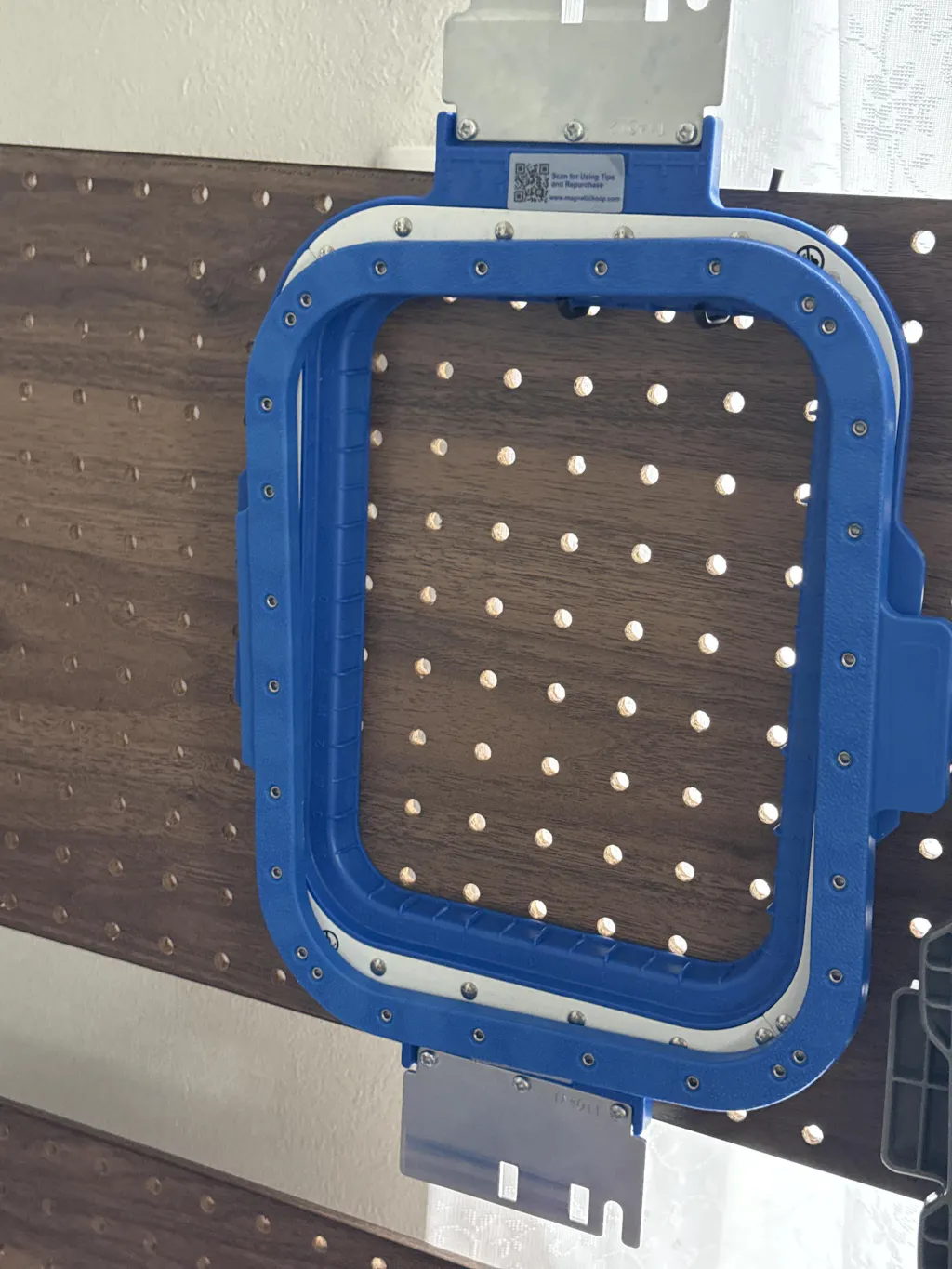

Modern Hooping Solutions: Sewtalent Magnetic Hoop Integration
If you’re still wrangling with traditional screw-based hoops for garment embroidery, it’s time to consider a leap forward. Sewtalent magnetic embroidery hoops offer a powerful, user-friendly alternative for garment hooping (note: not for caps/hats). Their high-strength magnets and precision-engineered design provide even tension, reduce fabric distortion, and dramatically cut setup time—making them a perfect match for Happy Japan machines used in garment production.
- Why Sewtalent?
- Compatible with most Happy garment embroidery machines.
- Over 17 sizes available, covering everything from small monograms to oversized jacket backs.
- Engineered for durability, with a lifespan far exceeding traditional hoops.
Action Step: Before investing in new hoops or cap frames, check Happy Japan embroidery machine price and options list. For garment embroidery, upgrading to Sewtalent magnetic hoops can revolutionize your workflow—saving time, reducing errors, and giving your team a break from tedious adjustments.
5. Troubleshooting Common Mechanical Issues
Even the most robust Happy machines occasionally throw a curveball—be it a cryptic error code or a stubbornly misaligned needle bar. Here’s how to tackle the most frequent mechanical headaches like a pro, using proven solutions from official documentation and real-world experience.
5.1 Solving Thread Tension Errors (Code 210-217)
Thread tension errors can unravel your productivity faster than a runaway bobbin. Here’s a step-by-step guide to getting things back on track:
1. Fine-Tune Tension Settings
- Upper Thread Tension: Adjust to maintain a pull force of 100–150 cN (centiNewtons) for smooth operation.
- Bobbin Thread Tension: Set between 25–35 cN, ensuring the bobbin rotates in the marked direction when pulled.
2. Inspect the Thread Path
- Make sure the thread glides freely through all guides—snags or improper routing can trigger error codes.
3. Use Quality Materials
- Opt for 40-wt polyester or rayon embroidery thread, which resists breakage at high speeds.
- Replace old or frayed thread to avoid weak spots.
4. Visual and Practical Testing
- Examine the underside of your stitches: too much bobbin thread showing means upper tension is too tight; loose loops on top mean it’s too loose.
- Sew test patterns ("I" or "FOX") to check balance across stitch directions.
5. Front Panel Adjustments
- Use the HCD12150 front panel to make fine tension tweaks.
- For tension pulleys, follow torque specs in your manual for consistent results.
Pro Tip: Enable thread break detection sensors during trial runs—catching issues early saves time and thread.
5.2 Needle Bar Alignment Corrections
A misaligned needle bar can turn beautiful designs into a tangled mess. Here’s how to restore order:
1. Depth Correction
- Remove the lower faceplate (two Phillips screws).
- Loosen the upper needle bar boss (leave the lower boss untouched).
- Align the needle so it just grazes the gauge, then retighten the upper boss with the needle facing forward.
2. Check for Wear and Tear
- Inspect the needle hole for burrs or cracks—these can snag thread or throw off alignment.
- Swap out worn or damaged needles promptly.
3. Laser Calibration
- For models like the HCS10073, use laser calibration techniques as detailed in the manual for pinpoint accuracy.
4. Preventing Rail Wear
- Regularly check the HCD12021 rail and apply preventive maintenance to avoid long-term misalignment.
| Issue | Common Causes | Solutions |
|---|---|---|
| Thread Breaks | Incorrect tension, poor thread, design flaws | Adjust tension, use 40-wt thread, review design |
| Needle Misalignment | Improper depth, worn needle hole | Adjust upper boss, replace damaged parts |
| Hook Timing Errors | Misaligned hook, lint buildup | Check timing gap, clean hook assembly |
Action Step: Keep a maintenance log of adjustments and happy embroidery machine parts list replacements—patterns in failures often reveal the root cause before disaster strikes.
6. Essential Maintenance Resources
Staying ahead of breakdowns means having the right resources at your fingertips. From detailed manuals to step-by-step video guides, here's where to find everything you need for DIY repairs, upgrades, and troubleshooting.
6.1 Downloadable Manuals & Exploded Diagrams
Official Documentation Sources
- Happy Japan USA: Your go-to for operator's manuals, parts lists, and maintenance guides for models like HCS-1201-30, HCD-1501-40, HCR3-1512, and more.
- Third-Party Suppliers: Sites such as Supsew and PinPoint International offer downloadable parts lists and model-specific documentation.
What's Inside?
- Parts Lists: Detailed breakdowns of mechanical and electrical components—transmission units, needle bar change units, thread tension assemblies, and more.
- Exploded Diagrams: While not always explicitly labeled, many manuals include assembly details that help you visualize how everything fits together.
- Maintenance Manuals: Step-by-step instructions for replacing sensors, calibrating servo amplifiers, and troubleshooting power or thread issues.
- Instruction Books: Cover everything from cap frame settings to laser pointer calibration.
How to Decode Part Numbers
- Always specify your machine model (e.g., HCD-1501-40) and serial number when ordering.
- Note any optional features (cap frame, bobbin winder) for precise identification.
Pro Tip: Cross-reference your serial number and model with official documentation before attempting repairs—small differences between models can mean big compatibility issues.
6.2 Video Tutorial Libraries
Sometimes, a picture—or in this case, a video—is worth a thousand words. Top YouTube channels and supplier sites offer a wealth of visual guides:
What You'll Find:
- Rotary Hook Replacement Demos: Step-by-step walkthroughs showing how to remove, clean, and reinstall rotary hooks, including timing checks.
- Needle Bar and Presser Foot Adjustments: Visual guides for aligning needle bars and setting presser foot height.
- Safety Protocols: Essential tips for powering down machines, using insulated tools, and avoiding electrical mishaps during DIY repairs.
Where to Look:
- Happy Japan USA's Official Channel: Features Happy embroidery machine software tutorials tailored to models.
- Sewing Parts Online: Beginner-friendly guides on machine setup, needle selection, and troubleshooting.
Action Step: Bookmark your favorite video resources and review them before tackling new repairs—visual learning can save you from costly mistakes.
---
Ready to keep your Happy machine running like new? Dive into the official manuals, embrace the power of video tutorials, and don't hesitate to reach out to authorized suppliers for expert guidance. Your embroidery success story is just a few clicks (and a couple of well-oiled parts) away!
7. Conclusion & Pro Maintenance Tips
Maintaining your Happy embroidery machine isn’t just about keeping things running—it’s about protecting your investment, maximizing uptime, and ensuring every design comes out flawless. As we’ve explored, understanding your machine’s parts, sourcing the right replacements, and following official maintenance protocols are the keys to long-term reliability. Don’t forget: Happy’s industry-leading 10-year warranty on main motors is contingent on proper care and using approved components.
For true peace of mind, assemble an 83-part essential maintenance kit tailored to your model. Stock up on critical items like needle bars, tension units, screws, bearings, and rotary hook components. Regularly consult your manuals, keep a detailed log of adjustments, and lean on both video tutorials and authorized suppliers for guidance. With these habits, you’ll not only extend your machine’s lifespan—you’ll also stitch with confidence, project after project.
8. FAQ: Happy Machine Parts & Upgrades
8.1 Q: Can I use third-party parts in my happy japan sewing machine without voiding the warranty?
A: For non-critical components such as screws, O-rings, and certain accessories, generic alternatives can be a cost-effective option and are commonly used by many embroidery professionals. However, when it comes to critical parts—like CPU boards, rotary hooks, or tension units—sticking with OEM replacements is strongly recommended to ensure compatibility and maintain your machine’s warranty coverage.
8.2 Q: Where can I find downloadable parts manuals and exploded diagrams for my Happy machine?
A: Official resources such as Happy Japan USA and select third-party suppliers offer downloadable manuals, parts lists, and exploded diagrams for models including HCS-1201-30, HCD-1501-40, and HCR3. Always match your model and serial number for the most accurate documentation.
8.3 Q: Are HCR and HCD series parts interchangeable for upgrades or repairs?
A: While some mechanical parts may appear similar, most electrical and control system components are not cross-compatible between HCR and HCD series. Always verify part numbers and consult your machine’s manual before attempting any upgrades or replacements.
8.4 Q: How do I know if a replacement part is compatible with my Happy machine?
A: Double-check your machine’s model and serial number, then cross-reference with official parts lists or supplier documentation. When in doubt, reach out to authorized suppliers or consult downloadable manuals to avoid costly mistakes.
8.5 Q: What’s the best way to learn DIY maintenance or part replacement for Happy machines?
A: Combine official manuals with step-by-step video tutorials from trusted sources. Visual guides are especially helpful for tasks like rotary hook timing or needle bar alignment. Always follow safety protocols—power down the machine and use insulated tools when working with electrical components.
