1. Introduction to Machine Embroidery Quilting
Quilting and embroidery machines are changing how quilters finish their projects—bringing automation, precision, and gorgeous continuous motifs to everything from placemats to bed quilts. With digitized quilting files (edge-to-edge, block-by-block, and continuous line), you can stitch through the entire quilt sandwich and achieve that soft, puffy texture with consistent spacing and clean alignments. In this guide, you’ll learn where to find the right designs, how to prepare and hoop your quilt, proven alignment workflows, and practical tips drawn from top tutorials and design houses—plus troubleshooting essentials to keep your stitches smooth.
Table of Contents
- 1. Introduction to Machine Embroidery Quilting
- 2. Types of Quilting Designs and File Sources
- 3. Step-by-Step Machine Quilting Process
- 4. Best Practices for Professional Results
- 5. Essential Tools and Accessories
- 6. Video Tutorials and Visual Learning Resources
- 7. Troubleshooting Common Quilting Issues
- 8. Conclusion: Mastering Machine Quilting
- 9. FAQ: Quilting Design Essentials
2. Types of Quilting Designs and File Sources
2.1 Edge-to-Edge Designs: Seamless Continuous Patterns
Edge-to-edge (E2E) designs are digitized to create the illusion of uninterrupted quilting across your entire quilt. Per the research, they’re engineered with a defined start point (typically at the left) and a stop point (typically at the right) so each repeat nests precisely with the next. That left-to-right start/stop logic also matches Embroidery Library’s instructions for aligning the “tails” of adjacent repeats so joins disappear.
Technical notes drawn from current offerings:
- File formats: Most vendors supply multiple machine formats—ART, DST, EXP, HUS, JEF, PES, VIP, VP3, XXX. Some also provide resizable formats such as C2S and BQM.
- Hoop-size compatibility: Comprehensive sets often span 13 hoop sizes—seven square (4x4, 5x5, 6x6, 7x7, 8x8, 9x9, 10x10 inches) and six rectangular (5x7, 6x10, 7x12, 8x12, 9x14, 10x16 inches), with rectangle options commonly available in horizontal and vertical orientations.
- Common design footprints: Many collections group “standard” sizes like 5.1" x 9.5", 6.2" x 11.5", and 7.3" x 13.5" to help you pick the best match for your hoop.
Implementation highlight: The Easy-Connect approach (popularized in widely used tutorials) relies on printed templates and precise alignment of each stop point to the next start point. On the machine, a quick “needle +1” move lets you drop the needle to verify that first stitch lands exactly on the previous stop point before you sew—this is the tiny check that yields invisible joins.
Practical setup insights from top videos and guides:
- Start from the center row of your project and work left-to-right across each row; then move to the row beneath (it keeps bulk manageable and alignment predictable).
- Bigger hoops reduce the number of hoopings.
- If your machine allows, use projector/camera positioning or a photo-based app (e.g., AcuSetter) to nudge designs for perfect registration.
2.2 Block-Specific and Continuous Line Designs
Block-by-block (also called “quilt as you go”) designs are sized to fit individual quilt blocks. They’re great for:
- Pieced quilts where you want motifs centered in each unit.
- Custom looks—trapunto-style textures, appliqué-rich blocks, or redwork-inspired outlines.
Continuous line designs run as a single, unbroken path—ideal for fast coverage with minimal trims. Many E2E sets are single-run (one pass) for a softer, lighter look that mimics hand quilting. Double-run designs trace lines twice, producing bolder definition with fewer jump stitches—but Embroidery Library notes double runs are more sensitive to shifting if hooping isn’t drum-tight.
How to choose:
- For pieced tops and custom detailing, block-by-block shines.
- For overall texture that feels like longarm pantographs, choose continuous line or E2E.
- If your batting is lofty or your sandwich is heavy, lean toward single-run designs to reduce the risk of line separation if any micro-shifts occur.
2.3 Top Commercial and Free Design Sources
Where to shop and download, based on the latest research and tutorials:
- Designs by JuJu: End-to-End Quilting designs engineered with exact start/stop precision and no backtracking—usable in small (4x4) through large (10x16) hoops and oriented either horizontally or vertically. They’re intended for embroidery machines (not longarm systems).
- Embroidery Library (OESD/Embroidery Library ecosystem): Extensive quilting categories, plus detailed instructions for E2E workflows, single-run vs. double-run design behavior, basting and hooping methods, and placement with templates.
- Amelie Scott Designs: Edge-to-Edge collections and expansion packs with the Easy-Connect template method (A/B templates) and step-by-step guidance for seamless joins.
- OESD: Edge-to-edge pantograph-style motifs and coordinated sets.
- Free embroidery patterns for embroidery machine: AnnTheGran.com aggregates a wide variety of quilting files in multiple formats—useful for testing workflows before you invest.
Buying and format tips:
- Look for multi-format downloads (ART, DST, EXP, HUS, JEF, PES, VIP, VP3, XXX); if offered, resizable formats like C2S/BQM add flexibility.
- Most vendors provide instant digital delivery and typically enforce no-refund policies for downloads.
- Print templates for auditioning scale and spacing, and always verify orientation (left-to-right start/stop) so rows connect cleanly.
3. Step-by-Step Machine Quilting Process
3.1 Quilt Sandwich Preparation and Basting Techniques
Build a stable sandwich:
- Layers: quilt top, batting, backing. Embroidery Library advises compressing expanded high-loft batting under a flat, heavy surface for about 30 minutes to improve stitch accuracy and reduce shifting.
- Size planning: Make the backing larger than the top; Embroidery Library recommends leaving extra around all sides so you can hoop securely. Clear tutorial examples also show the backing extended specifically to ensure the hoop grabs enough fabric.
- Basting: Use temporary spray adhesive (e.g., 505 or KK 2000, as shown in videos) to bond layers. Some guides add curved quilting safety pins across the quilt; others prefer no pins to avoid hitting metal under the foot. Choose based on your design path and comfort level.
- Edge control: Tape along exposed edges of the top/batting (within about 1/4") to keep the foot from catching when stitching near borders—this trick is repeatedly recommended in video walkthroughs.
- Threading and needles: Use embroidery or quilting thread; match your bobbin to the backing for a clean reverse side (Embroidery Library and video demos show this). A 75/11 sharp sewing needle is commonly recommended for quilting with an embroidery machine.
3.2 Advanced Hooping Methods for Fabric Stability
Traditional screw hoops:
- Work well when you keep the sandwich drum-tight. Loosen the outer hoop generously before hooping all three layers; secure using the hoop grid to align center marks and axis lines. Tighten evenly, then test by lifting the project—if the hoop stays put, you’re ready.
Magnetic hooping systems:
- Tutorials show how magnetic hoops speed re-hooping and make alignment checks easier, especially on thick sandwiches. The “lift, move, stitch” rhythm is simpler when you can remove only part of a magnetic frame, then slide the quilt to the next section while maintaining alignment. Several creators also use a “weightless quilter” support to reduce drag on the hoop for smoother stitching.
Foot clearance and loft:
- If you’re using higher-loft batting, videos advise confirming you can raise the embroidery foot so it glides over seam intersections without catching. Tape edges, mind bulk, and re-check that the sandwich stays taut through each move.
Note on magnetic hoops for garment projects:
- For garment embroidery, magnetic hoops can dramatically reduce hooping time and help keep tension even. MaggieFrame’s magnetic hoops feature strong magnets, helpful alignment lines, and broad machine compatibility; they’re designed to save substantial hooping time and improve stability on multi-layer garments. MaggieFrame hoops are for garment embroidery hooping (not cap/hat hooping).
3.3 Design Alignment and Multi-Section Workflow
Lock in accuracy with a repeatable placement system:
- Template method: Print your design at actual size (or stitch a template on stabilizer), trim to the start/stop “tails,” and mark center plus axis lines. Embroidery Library recommends embroidering from the center row outward and always sewing rows left-to-right to keep joins tight and workflow smooth.
- A/B templates (Easy-Connect): With Amelie Scott’s approach, align the next start point to “kiss” the prior stop point; pin the template; hoop; then use your machine’s “needle +1” step to drop the needle on the exact first stitch. If it lands precisely on the previous stop point, you’re aligned.
- Digital positioning tools:
- Use onboard projector/camera systems to overlay the design on your hooped quilt and nudge rotation by tenths of a degree.
- Janome’s AcuSetter app lets you photograph the hooped quilt and place/angle/scale the file with high precision before sending it back to the machine.
- Print-and-stick templates: Repositionable target paper (as shown in the tutorials) makes it easy to move paper guides and verify screen-to-fabric alignment.
- Center-out sequencing: Start mid-row, stitch across, then mirror to the other side. This reduces bunching and helps with throat-space management on domestic-style machines.
Extra visual system:
- Kimberbell’s Clear Blue Tiles provide tile-sized guides and coordinated quilting files so you can mark an entire quilt at once, then re-hoop from tile to tile without re-measuring every move—handy for custom block areas or efficient all-over patterns.
Quality checks every move:
- Before pressing “go,” nudge one stitch forward, drop the needle, and confirm it lands on the last design’s stop point.
- Keep bulk supported—rolling and clipping the quilt or using a support stand reduces drag and preserves alignment.
- Turn off automatic thread trims if you want to pull bobbin tails to the top and bury them neatly, a practice several instructors demonstrate for professional backs.
Ready to try it? Start with a placemat or table runner, print your templates, and practice that “needle +1” alignment. Once the joins vanish, scale up with confidence.
4. Best Practices for Professional Results
4.1 Batting and Thread Selection Guide
Your batting and thread decisions determine how smooth, puffy, or defined your quilting will look—and how trouble-free the stitch-out feels.
- Cotton, cotton blends, and scrim
- Pure cotton behaves like a thick flannel—breathable, washable, and it shrinks slightly for that soft, vintage “crinkle.” It typically requires closer quilting density.
- An 80/20 cotton blend (e.g., Hobbs Heirloom Premium 80/20) gives a touch more loft and a bit less weight than 100% cotton, with manufacturer guidance that quilting lines can be up to 4 inches apart.
- Scrim (a thin stabilizing layer) dramatically changes spacing allowances: with scrim, quilting can often be 8–12 inches apart; without scrim, plan for roughly 3–4 inches. Scrim also helps resist fiber separation and stretching—useful on embroidery machines.
- Tip from Embroidery Library: If your high-loft batting has expanded, compress it under a flat, heavy surface for about 30 minutes before hooping to reduce shifting and improve stitch accuracy.
- Polyester and wool
- Polyester offers high loft and bold pattern definition—great when you want the quilting to pop. It can feel stiffer and is less breathable, so consider the recipient and use case.
- Wool (e.g., Hobbs Tuscany Wool) is lofty, washable, and resists bearding with proper bonding. The extra loft can increase pucker risk during machine quilting but shines for trapunto-style effects.
- Thread weights and premium options
- 50 wt is the most versatile all-rounder with broad color availability—ideal for general quilting.
- 40 wt gives a slightly bolder line. Pair it with appropriate needles (see below).
- Premium cotton options many quilters love include King Tut (extra-long-staple Egyptian cotton, 40 wt, 3-ply) for low lint and beautiful definition, and Madeira Cotona No. 30 for a matte, natural look with strong, mercerized cotton.
- Needle pairing and bobbin strategy
- Match needle size to thread and density: 75/11–90/14 quilting or sharp needles are common for 40–50 wt threads; Embroidery Library recommends a 75/11 sharp for E2E runs.
- For a polished back, wind your bobbin in the same thread color as your backing so the reverse side looks finished.
Quick picks:
- Want airy, hand-quilted vibes? Use a single-run design with 50 wt thread on cotton or 80/20 batting.
- Want bolder texture? Choose 40 wt thread with cotton blend or polyester.
- Need travel-friendly spacing and stability? Pick a batting with scrim and favor continuous line designs.
4.2 Preventing Shifting and Puckering
Stability is a system—hooping tension, fabric management, alignment habits, and machine settings work together.
- Build stability before you stitch
- Layering: Make the backing larger than the top (Embroidery Library suggests leaving extra all around to hoop securely). Several tutorials also leave approximately 4 inches of extra batting and backing on large quilts.
- Baste thoroughly with temporary spray adhesive; some quilters add curved quilting safety pins (remove them before you stitch in a pinned area).
- Compress puffy batting in advance (about 30 minutes under a flat weight) to tame loft-induced movement.
- Tape the exposed edges of the quilt top/batting (within about 1/4 inch) so the foot doesn’t snag at borders—demonstrated repeatedly in leading video walkthroughs.
- Hooping and handling
- Aim for drum-tight hooping on all three layers. Re-check that the rest of the quilt isn’t dragging on the hoop—roll and clip bulk or use a support system (e.g., a “weightless quilter”) to reduce drag.
- For high-loft batting, confirm your presser foot can clear seam ridges before you press start.
- Alignment routines that work
- Center-outward progression minimizes distortion. Stitch rows left-to-right so start/stop points “kiss” precisely.
- Template methods (including the A/B Easy-Connect approach) place each start point exactly at the previous stop point. Many instructors recommend advancing the design by one stitch on the machine, dropping the needle on that first stitch, and verifying it lands on the previous stop point before you sew.
- Digital positioning helps: photo-based apps (e.g., AcuSetter), onboard projectors/cameras, “trial” tracing keys, and tiny rotation nudges (e.g., 0.1°) all tighten registration.
- Tension, trims, and tidy backs
- Balance top/bobbin tension to avoid loops or “railroad tracks.”
- Turn off automatic trims for continuous quilting so you can pull up the bobbin at the start, stitch a few securing stitches, and bury tails for a clean back—demonstrated in multiple tutorials.
- If you’re quilting to the edge, stabilization techniques that extend marks onto a hooped stabilizer (then stitch “off the edge” onto the stabilizer) can give seamless coverage and cleaner trimming later.
- When something shifts anyway
- Stop and check alignment with the “+1 stitch” needle drop. If the first stitch won’t land on the prior stop point with reasonable nudging, re-hoop using your extended grid lines and printed templates.
- If puckers appear, loosen any unnecessary drag, verify presser foot pressure, and re-test with a smaller test area before continuing.
5. Essential Tools and Accessories

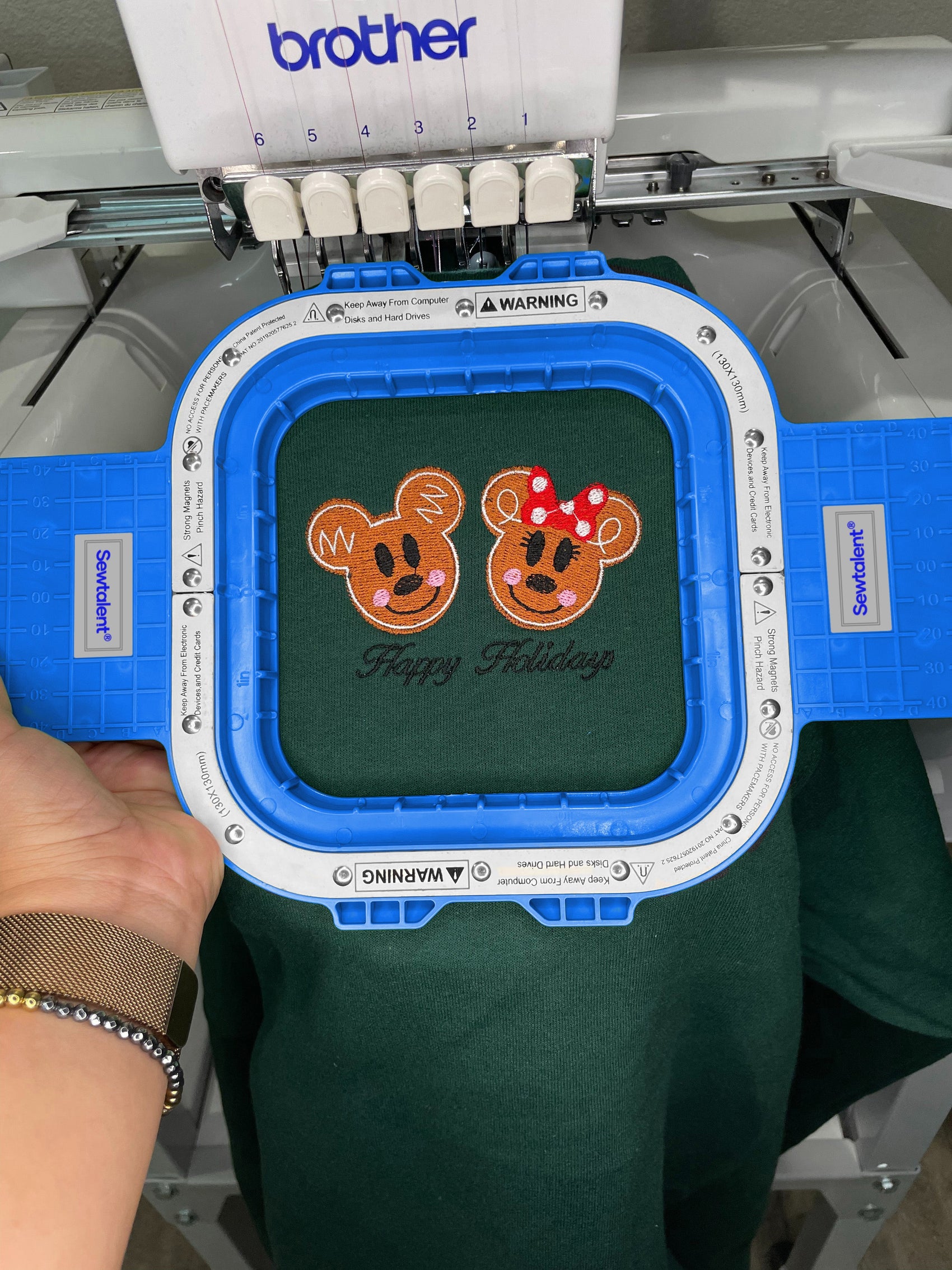

5.1 Magnetic Hooping Systems: Efficiency Redefined
Magnetic hooping changes how quickly and consistently you can secure multilayer materials—especially in garment embroidery workflows where you hoop dozens of items a day.
- Why magnetic hooping helps
- Consistent holding force across layers without constant screw adjustments.
- Faster re-hoop cycles and easier micro-adjustments when aligning start/stop “tails” in continuous designs (as shown across multiple tutorials).
- For garment projects in your studio
MaggieFrame magnetic embroidery hoops are designed for garment embroidery hooping (not for cap/hat hooping). They use strong magnets to adapt to different fabric thicknesses, provide even fabric tension, reduce hoop marks, and greatly speed up hooping compared with screw hoops. Brand testing and user data indicate:- Considerable time savings per hooping operation (e.g., from minutes to well under a minute), translating to substantial labor savings over volume runs.
- High durability from engineered materials and robust magnets, with long service life demonstrated in stress tests.
- Broad compatibility via brackets for major commercial and industrial embroidery machine brands.
- Where magnetic hooping fits in quilting
Many edge-to-edge tutorials demonstrate magnetic frames (e.g., Snap Hoop Monster) to simplify re-hooping and alignment. If your machine supports a manufacturer-approved magnetic system for quilts, it can streamline the “lift, move, stitch” rhythm. If not, traditional screw hoops still deliver excellent results when you hoop drum-tight and use template workflows.
- Traditional screw hoops, contrasted
Require manual tensioning and frequent adjustments, especially on thicker stacks.
More prone to uneven tension and hoop marks; slower to re-hoop across big projects.
Note: MaggieFrame magnetic hoops apply to garment embroidery hooping. For cap/hat hooping, they’re not applicable.
5.2 Digitizing Software and Positioning Aids
Adapt, align, and audit your quilting files with the right software machine embroidery tools.
- Digitizing and design control
- Embird: A long-standing professional solution with precise, node-level control, extensive stitch property editing, quilt fills, design splitting, Sfumato photo-to-stitch capabilities, and broad format support (70+ formats).
- EQStitch: Combines quilt design and auto-digitizing in one environment. Includes a built-in library (310 designs), 19 fill styles with adjustable angles/density, underlay controls, and redwork/bean stitch options—ideal if you want to go from quilt concept to stitch file quickly.
- Art and Stitch PLUS: Vector-based drawing with click-to-draw simplicity, automatic stitch conversion, and strong longarm integration—useful for pantograph-style continuous lines.
- Machine-specific accelerators
- Janome Artistic Digitizer v2.0: Features “Resize to Hoop,” PNG transparency support (stitch only non-transparent areas), a Rearrange tool (manage sequence, trims, start/exit points), gradient fills, and “Convert to Redwork” for classic outlines.
- Positioning aids that make placement painless
- Printed templates: Still the gold standard for planning rows, extending axis lines, and verifying “kissing” start/stop points before you hoop.
- Clear Blue Tiles by Kimberbell: A tile-and-mark system that lets you mark an entire quilt at once, then re-hoop section by section without re-measuring each move—very efficient on domestic-style embroidery machines.
- Onboard helpers: Projectors/cameras (e.g., Luminaire), photo-based placement (e.g., AcuSetter), and trial/tracing keys for corner and side checks—great for micro-corrections right at the machine.
6. Video Tutorials and Visual Learning Resources
Bookmark these visual guides to see real-time stitching, alignment checks, and troubleshooting from pros.
- Amelie Scott Edge-to-Edge Demonstration
- Shows the A/B template method, how to trace a stitched template, align start/stop points so they “kiss,” and use double-sided basting tape on the hoop top for accurate placement. Also covers Baby Lock/Brother start-position adjustment (move the start to the left, since E2E is digitized left-to-right) and pulling up bobbin threads before stitching.
- Luminaire – Edge to Edge Quilting with Amelie Scott Designs
- Demonstrates projector-based alignment: turn off auto scissors, position with on-screen jog buttons, use “+1 stitch” to drop the needle on the first stitch, and bury thread tails for clean backs. Reinforces left-to-right sewing and precise tail-to-tail matching.
- Quilting with Embroidery on the Baby Lock Altair (Sewing Tech Talk with Cathy)
- How to choose continuous single-line designs, test stitch-outs on-screen, turn off scissors, use IQ Positioning to photograph the hooped quilt and nudge rotation by tenths of a degree, run the trial key to check corners/sides, raise the foot for loft, and pull bobbin to the top before stitching.
- Brother PR1055X machine walkthrough (chaptered)
- Per the referenced tutorial: prep at 00:36, block editing at 01:25, photo positioning at 04:54; border alignment at 12:20, corner placement at 14:39, and sashing at 17:50—useful for multi-needle owners wanting sashing/border precision.
- OESD edge-to-edge class (approx. 51 minutes)
- Deep dive on sizing designs to the quilt, template placement, and first-time troubleshooting for continuous rows.
- Between Friends series (large quilt handling)
- Shows how to advance fabric without removing the lower frame, and demonstrates tools like the Weightless Quilter and Snap Hoop Monster to reduce drag and keep tension steady on bigger projects.
- ByAnnie session with Amy Henley (Material Girls Quilt Boutique)
- Focuses on quilting-in-the-hoop and embellishment techniques, with quilting beginning at 19:58 and embroidery techniques at 42:53—good for combining quilting motifs with monograms/accents.
- Stabilizer extension technique
- From the Oklahoma tutorial: extend marks onto hooped stabilizer and stitch off the edge to achieve complete coverage; remove stabilizer after quilting or trim it away during squaring.
Pro tip to practice: Print templates, start from the center row, align left-to-right, use your machine’s “+1 stitch” to verify that first stitch lands on the previous stop point, and turn off auto trims so you can bury tails. These simple habits deliver invisible joins and professional backs.
7. Troubleshooting Common Quilting Issues
When stitches go sideways, don’t rip everything out—slow down and diagnose. Work on a small quilt-sandwich test first, then return to the project once you’ve isolated the cause.
- Thread breaks: a systematic reset
- Rethread the upper path and bobbin completely; clean lint from the tension discs and bobbin case.
- Replace the needle; burrs and dull tips are common culprits.
- Standardize thread weights when possible (e.g., 40–50 wt top and bobbin) and pair with the right needle (75/11–90/14 for 40–50 wt). Test on the same fabric–batting–backing stack used in your quilt.
- Pay attention to thread delivery. Ensure the spool feeds smoothly without kinks forming ahead of the needle, and discard aged or brittle thread (a gentle pull test can expose weak, dry thread).
- Tension imbalances (loops, “railroad tracks”)
- Start from a baseline and make small top-tension changes, testing on an identical sandwich each time. Multi-layer stacks often need settings that differ from everyday embroidery.
- Matching top and bobbin thread weights typically stabilizes stitch formation.
- Variegated thread can function as a diagnostic—color shift makes subtle tension issues easier to see on test swatches.
- Puckering and distortion
- Presser-foot pressure: too much pressure can drag and bunch layers. Reduce pressure as needed for your fabric/batting combo.
- Foot height/clearance: confirm your machine can raise the embroidery foot enough to glide over seams or higher-loft batting (a tip repeated in video tutorials).
- Build in stability up front: spray baste all layers; compress expanded high-loft batting under a flat, heavy surface for about 30 minutes before hooping (Embroidery Library).
- Tape the exposed edges of top/batting (about 1/4") to prevent the foot from catching near borders (as shown in multiple videos).
- Misalignment and registration drift
- Hooping: aim for drum-tight tension on all three layers and remove drag from the bulk (roll, clip, or support the quilt’s weight so the hoop can move freely).
- Alignment workflow: print templates, mark center/axis lines, and extend them past the hoop. Stitch rows left-to-right and work from the center outward (Embroidery Library guidance).
- Needle “+1” check: advance one stitch on the machine and drop the needle to confirm the very first stitch lands exactly on the previous stop point—this tiny move yields invisible joins (featured in Embroidery Library/OESD and Amelie Scott methods).
- Use digital aids when available: projector/camera positioning or photo-based apps (e.g., AcuSetter) to place, rotate by tiny increments, and verify corners/sides before you sew.
- Stabilizer strategy (when designs get complex)
- For single-run E2E quilting on standard cotton sandwiches, tutorials note you generally don’t need stabilizer—your backing acts as the support.
- If you’re quilting intricate motifs or working with stretchy/loose-weave textiles, a lightweight mesh behind problematic zones can reduce distortion.
- Environmental/mechanical factors
- Humidity swings, vibration, and long runs can degrade stitch consistency. Clean, oil, and log what works (thread, needle, tension, batting) to recognize patterns for future projects.
- Clean backs and easy fixes mid-row
- Turn off automatic trims for continuous quilting. Pull up the bobbin at the start, stitch a few securing stitches, and bury tails—this yields neater backs (demonstrated across the cited videos).
- If something shifts, stop. Re-hoop using your extended grid lines and repeat the “+1 stitch” check before resuming.
8. Conclusion: Mastering Machine Quilting
The winning formula is simple: choose the right quilting files (single-run or double-run) for your fabric and batting, stabilize the sandwich well, hoop drum-tight, and align with printed templates plus the “+1 stitch” needle check. Start at the center, stitch left-to-right, and support the quilt to remove drag. Invest in a few workflow helpers—printed templates, printable target paper, and on‑machine positioning tools—and practice on placemats or runners before tackling bed-size quilts. Master the rhythm, and your joins will vanish.
9. FAQ: Quilting Design Essentials
9.1 Q: Can I resize quilting designs?
A: Small adjustments are usually fine, but stay conservative—especially with edge-to-edge (E2E) files engineered with precise start/stop “tails.” Vendors often include multiple sizes per set (from small hoops like 4x4 up to larger formats). If available, use resizable formats provided by the designer, or edit in software that preserves stitch density and start/exit points. Always test on a matching quilt sandwich and re-verify alignment with templates and the “+1 stitch” needle drop.
9.2 Q: How do I prevent batting bearding?
A: Pick batting designed to resist fiber migration. Batting with scrim adds stability and reduces fiber separation; wool battings are known to resist bearding when properly bonded. Pair the batting with a sharp, appropriately sized needle (e.g., 75/11 for many 40–50 wt threads) to minimize oversized needle holes. Good basting, drum-tight hooping, and balanced tension also help keep fibers where they belong.
9.3 Q: What’s the minimum hoop size for edge-to-edge?
A: Many E2E collections are offered for a wide range of hoops—including small sizes like 4x4—so you can complete placemats, runners, and even larger quilts with more hoopings. Bigger hoops simply reduce the number of re-hoops. Regardless of hoop size, follow the core method: center-out sequencing, left-to-right rows, printed templates for placement, and the “+1 stitch” needle check to make adjacent repeats “kiss” perfectly.
