What Holds the Needle in Place: Mastering Embroidery Machine Mechanics

1. Introduction to Needle Fixation Systems

What’s the unsung hero behind every perfect embroidery stitch? It’s not just your creativity or the latest machine—it’s the needle fixation system. This often-overlooked mechanism is the backbone of embroidery quality, ensuring that your needle stays exactly where it should, stitch after stitch. Whether you’re a seasoned studio owner, a passionate hobbyist, or just starting out with one of the best embroidery machines, understanding how your embroidery machine holds its needle in place is essential. This knowledge empowers you to identify key components, grasp the underlying mechanics, maintain your equipment, troubleshoot pesky issues, and even compare systems across brands. Ready to demystify the heart of your embroidery machine? Let’s dive into the core components that keep your needle—and your artistry—on point.

2. Core Components Holding Your Needle

2.1 Needle Clamp Structure and Function

The needle clamp is the immediate, hands-on hero that secures your needle. Imagine it as the firm handshake between your needle and the rest of your machine. The clamp assembly is made up of several crucial parts:

• Clamp Body: This is the main housing that interfaces directly with the needle bar, providing a stable base for the needle.
• Main Screw: Every time you change a needle, you interact with this screw. It’s the primary tightening element, compressing the needle shank securely into place.
• Set Screw with Button End: This isn’t just any screw—it’s designed with a button end that fits into a matching hole in the needle bar. This clever detail ensures the clamp (and thus the needle) stays perfectly aligned, preventing unwanted rotation even during high-speed embroidery.

When you install a needle, you slide the clamp into position so it only touches the threads of the securing screw. Tightening the screw compresses the back side of its head against the clamp body, creating a strong, even grip. A washer-like element helps distribute this force, protecting both the clamp and the needle bar from damage.

But here’s the twist: over-tightening can be just as problematic as a loose clamp. Too much force risks stripping threads or damaging components; too little, and the needle could slip mid-design. The button-end set screw is your insurance policy, locking the clamp’s orientation and maintaining consistent needle position—critical for flawless, repeatable embroidery.

2.2 Needle Bar Mechanism Dynamics

If the clamp is the handshake, the needle bar is the arm that moves it. The needle bar mechanism is responsible for all needle movement and precise positioning throughout your embroidery project.

• Movement Control: Most embroidery machines use a vertical, reciprocating motion—up and down, thousands of times per minute. Some advanced or specialized machines add lateral swing movements for complex stitches, but these always occur at carefully timed intervals: only after the needle leaves the fabric and before it re-enters.
• Stroke Parameters: The “stroke” is the distance between the needle bar’s highest and lowest points. This measurement is crucial: too short, and stitches are incomplete; too long, and you risk hitting the needle plate or fabric at the wrong angle.
• Height Positioning: In machines with multiple needles, the bar’s height is set according to the longest needle, ensuring uniformity across all positions.
• Thread Guide Integration: Many needle clamps feature built-in thread guides—a barrel-shaped component that slots into the clamp body, guiding thread smoothly from the upper threading system to the needle eye.

Assembly is a choreography of precision: the needle clamp (with its thread guide, if present) must be perfectly positioned on the needle bar before tightening. For home machines, needle shanks are typically flat on one side—this side must face away from you during installation for correct alignment. Industrial machines often use round shank needles, which require careful centering.

The result? A system that holds the needle steady, aligned, and ready for action—no matter how intricate or rapid your design.

3. Operational Mechanics of Needle Retention

3.1 Securing Principles and Stitch Formation

At the heart of needle retention is a simple but powerful principle: mechanical compression. When you insert the needle into the clamp, tightening the set screw creates a strong grip on the needle’s shank. This pressure must be just right—firm enough to prevent any movement, but not so tight as to damage the needle or clamp.

This secure grip is essential for one critical reason: timing. As the needle plunges into the fabric and reaches its lowest point, the bobbin hook must slide precisely into the needle’s scarf area to catch the upper thread. If the needle shifts even slightly, this delicate dance is disrupted, leading to missed stitches, thread breaks, or worse.

As the needle rises, the fabric’s resistance pinches the thread behind the needle, forming a loop. The stability of the needle—guaranteed by the clamp and bar—ensures this loop is perfectly positioned for the hook to grab, completing each stitch with precision.

3.2 Preventing Common Operational Failures

What happens when the needle holding mechanism falters? Three villains appear: needle wobble, slippage, and ejection.

• Needle Wobble: If the clamp isn’t tight enough, the needle can wobble during operation. This leads to inconsistent stitch placement, uneven tension, and visible flaws in your design.
• Slippage: Gradual loosening can cause the needle to slip upward or downward, throwing off timing and risking thread breaks.
• Ejection: In rare but dramatic cases, a poorly secured needle can be ejected entirely—halting production and potentially damaging your machine.

The solution lies in optimizing clamping force. Always ensure the set screw is properly tightened (but not overtightened), and regularly check for wear on the clamp, screw, and needle bar. Quick-change clamp systems in industrial machines make this process easier, allowing for rapid needle swaps without sacrificing retention strength.

By mastering these mechanics, you safeguard your machine’s performance and your embroidery’s quality—stitch after stitch, project after project.

4. Maintenance and Safety Protocols

4.1 Routine Inspection Procedures

Think of routine inspection as your embroidery machine’s regular health check-up. The needle clamp assembly, with its clamp body, main screw, and set screw, is the heart of needle retention—so let’s give it the attention it deserves.

Step-by-Step Component Examination:

1. Power Down and Unplug: Always start by turning off and unplugging your machine for safety.
2. Visual Check: Inspect the needle clamp body for any visible wear, cracks, or deformation. Even the smallest nick can throw off your needle’s alignment.
3. Screw Assessment: Examine both the main needle screw and the set screw. Are the threads clean and free of debris? Is there any sign of stripping or rounding on the screw heads?
4. Tightness Test: Gently test the screws for proper tension. They should be snug but not overtightened—remember, too much force can damage threads or the clamp itself.
5. Needle Rod & Reciprocator: Check the needle rod for secure attachment and smooth, straight movement. The reciprocator, which drives the needle’s up-and-down motion, should operate without resistance or wobble.

Lubrication Guidelines:

• The reciprocator requires regular lubrication for smooth operation. Apply five to seven drops of machine oil to the designated valleys or openings—consult your machine’s manual for exact locations.
• Wipe away any excess oil to prevent it from migrating onto fabric or thread.

Orientation Reminder:

• Always double-check that the needle’s flat side faces the correct direction (typically away from you on home machines). Misalignment here can lead to timing issues, thread breaks, and stitch formation problems.

Routine inspections don’t just prevent disasters—they keep your machine humming, your stitches sharp, and your embroidery stress-free.

4.2 Replacement and Adjustment Techniques

Sooner or later, even the best-maintained parts need a refresh. Whether you’re tackling a worn clamp or upgrading to a more durable system, knowing how to replace and adjust your needle fixation components is a must-have skill.

Disassembly Sequence:

1. Remove the Needle: Loosen the main screw and carefully slide out the needle.
2. Detach the Clamp: Unscrew the set screw, then gently slide the clamp body off the needle rod.
3. Inspect Components: Check for wear on the clamp, screws, and rod interface. If any part shows signs of fatigue or damage, it’s time for a replacement.

Angled Installation Methods:

• When installing a new clamp, align it precisely on the needle rod. For home machines, ensure the flat shank faces correctly; for industrial machines using round shanks, carefully center the needle and orient the scarf to the back.
• Insert the needle at a slight angle if needed to fit the clamp’s opening, then tighten the main screw just enough to hold it in place before making final adjustments.

Durability Advantages:

• Brands like Sewtalent have engineered their needle fixation components for enhanced durability, reducing the frequency of maintenance and replacement. Upgrading to such robust assemblies can save time and frustration in high-volume settings.

Final Adjustment:

• Once installed, tighten the main screw until the needle is secure—firm, but not forced. Double-check alignment and perform a test stitch to confirm smooth operation.

Mastering these techniques means less downtime, fewer headaches, and embroidery that flows as smoothly as your imagination.

5. Troubleshooting Needle Fixation Issues

5.1 Solving Slippage and Misalignment

Needle slippage and misalignment are the silent saboteurs of embroidery quality. If you notice uneven stitches, thread breaks, or needles that just won’t stay put, it’s time for a little detective work.

Friction Testing Methods:

• Remove the needle and slowly insert it back into the clamp, feeling for consistent resistance. If the needle slides in too easily, the clamp or screw may be worn and need replacement.
• Check the clamp’s grip by gently tugging the needle after tightening the screw. Any movement is a red flag.

Seal Integrity Checks:

• Examine the interface between the needle and clamp for gaps or looseness. A secure fit is crucial for preventing slippage during operation.
• If your machine uses a needle seal or guide, press gently on the guide to ensure it compresses evenly around the needle shaft. Any sign of fluid leakage (in machines with lubrication systems) indicates a compromised seal.

Reset Procedures:

• If a needle jams or won’t align, remove and reattach it, ensuring the flat side (or scarf, for round shanks) is oriented correctly. Sometimes, simply reseating the needle solves the problem.

By regularly testing friction and seal integrity, you can nip most slippage and misalignment issues in the bud—before they ruin your next masterpiece.

5.2 Needle Damage Prevention Strategies

A damaged needle isn’t just an inconvenience—it can wreak havoc on your machine’s timing, fabric, and even your nerves. Prevention is your best defense.

Material Selection Guidelines:

• Always use needles that match your machine’s specifications for diameter and point style. For industrial machines, DBxK5 needles with a large, elongated eye are optimized for embroidery and minimize thread wear.
• Avoid using beveled, pointed, or undersized needles in systems designed for square-cut or round shanks. The wrong needle can damage the rotor seal and stator face, leading to leaks or mechanical failure.

Single-Use Protocols:

• Reusing needles may seem thrifty, but it’s a shortcut to trouble. Each new project deserves a fresh needle—this simple habit prevents clogging, jamming, and premature wear on your fixation system.

Routine Checks:

• Inspect needles for burrs, bends, or blunted tips before each use. Even a barely visible flaw can escalate into major machine problems.

By following these strategies, you’ll extend the life of your machine—and your sanity—while ensuring every stitch is as crisp as your creative vision.

6. Machine-Specific Needle Systems Compared

6.1 Home vs. Industrial Mechanism Designs

The world of embroidery needles is split into two main camps: flat-shank and round-shank systems.

Home and Semi-Professional Machines: Groz-Beckert (Flat Shank)

• Most home and semi-pro machines—think Brother, Janome, or Bernina—use the Groz-Beckert system (also known as 130/705 or 15x1).
• The needle has a flat side, making installation almost foolproof. The flat surface locks securely into the clamp, preventing unwanted rotation and ensuring consistent stitch quality.
• This design is especially user-friendly, reducing the risk of misalignment for newcomers and seasoned embroiderers alike.

Industrial Machines: DBxK5 (Round Shank)

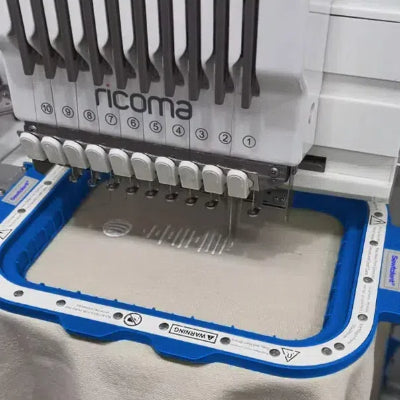

• Step into the industrial arena, and you’ll find the DBxK5 system (also called 287 WH), which uses a round shank needle in multi-needle embroidery machines.
• Round shank needles are inherently stronger and less prone to flexing—ideal for high-speed, heavy-duty embroidery.
• Installation requires more skill: the needle can be inserted in any orientation, so you must manually align the scarf (the notched area) to the back for proper stitch formation.
• This system is prized for its durability and performance, especially in demanding, high-volume environments.

Durability Data:

• Industrial systems like DBxK5 accommodate titanium needles, which can last significantly longer than standard home needles—making them a smart investment for production settings.

6.2 Brand-Specific Compatibility Insights

Brand differences go beyond just shank shape—they can affect everything from ease of use to upgrade options.

Brother’s 15×1 System:

• Brother’s home and semi-pro machines use the 15×1 flat shank system, offering excellent stability and easy installation.
• The design minimizes the chance of incorrect orientation, making it a favorite for beginners and busy studios alike.

Barudan’s Multi-Component Assemblies:

• Barudan industrial machines feature more complex, multi-part needle fixation systems. These assemblies provide robust retention and are engineered for the rigors of commercial production.
• While this complexity can mean more steps during maintenance, it also delivers superior performance and reliability.

Universal Compatibility Solutions:

• If you’re juggling multiple brands or upgrading machines, universal brackets—like those from Sewtalent—offer a practical solution. These brackets bridge the gap between different needle systems, allowing for greater flexibility and fewer headaches when switching or maintaining machines.

Takeaway:

Choosing the right needle holding system isn’t just about fitting a needle—it’s about matching your machine, your workload, and your ambitions. Whether you prioritize ease of use, industrial durability, or cross-brand compatibility, understanding these mechanisms puts you in control of your embroidery destiny.

Ready to take your machine’s performance to the next level? Regular maintenance, smart troubleshooting, and a clear understanding of your needle system are your best allies. Keep your tools sharp, your mind sharper, and let every stitch tell your story.

7. Conclusion: Optimizing Your Needle System

Mastering the mechanics of needle fixation isn’t just a technical detail—it’s the foundation of embroidery excellence. By understanding how the needle clamp and needle bar work together, you can ensure every stitch lands with precision and consistency. Regular inspections and timely maintenance keep your machine running smoothly, while choosing quality components reduces downtime and frustration. Make it a habit to check your needle system before each project, and you’ll enjoy peak performance, fewer interruptions, and embroidery results you can be proud of. A well-maintained needle system isn’t just a minor detail—it’s your secret weapon for creative success.

8. FAQ: Needle Fixation Essentials

8.1 Q: How tight should I make the needle clamp screw?

A: The needle clamp screw should be snug—tight enough to hold the needle firmly in place, but not so tight that you risk stripping the threads or damaging the clamp. Over-tightening can cause wear, while under-tightening may lead to slippage or misalignment. Always aim for a secure, even grip.

8.2 Q: How often should I replace the needle or needle clamp components?

A: Replace your needle at the start of every new project or if you notice any signs of bending, burrs, or dullness. Inspect the needle clamp and screws regularly; if you see visible wear, cracks, or stripped threads, it’s time for a replacement to ensure optimal performance and safety. While the embroidery machine cost for these small components is relatively low, neglecting them can lead to costly repairs.

8.3 Q: Which way should the needle’s flat side face during installation?

A: On most home and semi-professional machines, the flat side of the needle shank should face away from you (toward the back of the machine). For industrial machines using round shank needles, carefully align the scarf (the notched area) to the back for proper stitch formation. Always consult your machine’s manual for specific orientation instructions.

8.4 Q: What can I do if my needle keeps slipping or wobbling?

A: First, check that the clamp screw is properly tightened and that the needle is fully inserted. Inspect the clamp and screw for signs of wear or damage. If slippage continues, consider replacing worn components and ensure correct needle orientation for your machine type.

8.5 Q: Are there universal needle clamps or brackets for different machine brands?

A: Yes, universal brackets are available for many embroidery machines, allowing for greater compatibility across brands and models. Always verify compatibility with your specific machine and needle system before purchasing or installing universal components.
