1. Introduction: Understanding the Foam Debate in 3D Embroidery
3D puff embroidery lives or dies by the foam you choose and the capabilities of your computer embroidery machine. The right foam lifts stitches cleanly, rebounds after compression, tears away neatly, and stands up to washing—so your logo or lettering actually “pops” instead of slumping. In this guide, we compare embroidery foam and craft foam across density, thickness, tear-away behavior, and durability, then match each to real projects like caps and jackets. You’ll also see technique implications and wash-care realities. Choose wisely and you’ll get professional height, crisp edges, and fewer headaches at cleanup.
Table of Contents
- 1. Introduction: Understanding the Foam Debate in 3D Embroidery
- 2. Material Showdown: Density, Thickness and Performance Differences
- 3. Project-Specific Suitability: Matching Foam to Applications
- 4. Cost vs Value Analysis: Pricing, Accessibility and Hidden Expenses
- 5. Step-by-Step Techniques for Flawless Foam Application
- 6. Post-Embroidery Perfection: Cleaning and Maintenance
- 7. Long-Term Performance: Washability and Durability Insights
- 8. Conclusion: Strategic Foam Selection Guidelines
- 9. FAQ: Solving Common 3D Puff Challenges
2. Material Showdown: Density, Thickness and Performance Differences
2.1 Compression and Rebound Properties
- Embroidery foam: Purpose-made foam rebounds immediately after pressure is released, preserving the dimensional “crown” of your satin stitches. Sources note it maintains structural integrity under embroidery and wear—key for designs that get handled or pressed during use. - Craft foam (common EVA): Typically denser and less compressible, with slower recovery. Forum users who pinched both side-by-side saw embroidery foam spring back instantly, while craft foam stayed compressed and only gradually recovered. In practice, this can read as a “pressed down” puff. - Machine impact: Denser craft foam can increase resistance to needle penetration, raising the risk of needle deflection or thread issues at standard settings. EVA’s lower heat tolerance also makes it more susceptible to heat-related deformation during embroidery or post-pressing. - Machine selection: For best results with foam embroidery, use best sewing machine for embroidery and sewing to handle the increased resistance. References: Perplexity research; Digitsmith forum report on pinch-rebound comparisons; manufacturer and tutorial pages noting EVA’s lower melting point and embroidery foam’s stability.2.2 Thickness Standards and Design Impact
- Embroidery foam offers standardized thicknesses optimized for 3D work: - 2–3 mm: Subtle depth for small logos or delicate elements - 3–4 mm: The go-to for hats, jackets, and most apparel - 5–6 mm: Dramatic elevation for bold, larger designs - Craft foam variability: Craft-store sheets often vary in thickness across a single piece and may show visible bubbles/voids. In side-by-side demos, embroidery foam stayed uniform while craft foam was thinner at edges with larger holes—variability that can cause uneven coverage, density mismatches, and inconsistent height. - Practical note: One tester found thin Walmart craft foam often needs to be layered (two or three plies) to reach the typical 2–3 mm range used for 3D puff. References: Perplexity research on thickness standards; Creative Appliqués video demo of uniformity and visible holes; YouTube comparison reporting layering to reach 2–3 mm.2.3 Tear-Away Characteristics and Cleanup
- Embroidery foam: Engineered to perforate and tear cleanly along stitch lines. In demos, 3 mm embroidery foam virtually “self-cleans” around the design with minimal fuzz or fragments—leaving crisp edges and little post-work. - Craft foam: Tends to leave more “fuzzies” and jagged bits that require extra time with tweezers, tucking, or low heat to shrink remnants. Multiple tests compare its cleanup to embroidery foam and consistently find more residue and longer finishing. - Heat tools: Low, indirect heat is commonly used to shrink remaining fibers—but EVA’s lower melting point demands extra care. References: Creative Appliqués tear-away test; brand and tutorial pages explaining clean perforation with embroidery foam vs. fuzzier craft foam; YouTube comparisons confirming easier peel and cleaner edges with quality embroidery foams.3. Project-Specific Suitability: Matching Foam to Applications
3.1 Cap Embroidery: Elevation and Curve Challenges
Curved fronts amplify every foam behavior. Embroidery foam’s fast rebound and consistent density help maintain even height across curves—preventing that “pressed down” look. Forum users who compared both foams noted craft foam stayed compressed longer, which is especially noticeable on caps where elevation sells the effect.
That said, some shops successfully run 3 mm craft foam on hats daily and finish with a lighter to shrink exposed bits; color-matching foam to thread helps hide tiny show-through. If you go this route, expect extra cleanup and watch heat carefully. For consistent, production-grade results on caps, purpose-made embroidery foam remains the safer bet.
References: Perplexity research on rebound; Digitsmith forum pinch test; YouTube shop demo using 3 mm craft foam on hats and cleaning with a lighter; color-matching tips echoed across tutorials.
3.2 Jackets and Heavy Garments: Durability Demands
Outerwear needs foam that resists compression under heavier fabrics and survives laundering. Embroidery foam is engineered for durability, water resistance, and machine washability, maintaining structure under typical use. EVA craft foam, by contrast, may degrade faster, bleed color, or deform under heat—concerns that grow with pressing and industrial-care workflows.
Hooping matters too. Magnetic embroidery hoops help keep tension even on bulky garments, reducing distortion while you stitch over foam with an embroidery machine for sweatshirts. For garment projects, MaggieFrame magnetic embroidery hoops provide strong, even tension and quick, tool-free hooping that helps keep layers flat during foam application and stitching. Note: MaggieFrame hoops are for garment hooping, not for cap/hat hooping.
References: Perplexity durability/washability notes for embroidery foam and cautions for EVA; brand guidance on magnetic hoops delivering even tension and easy hooping for garments.
3.3 Washability Considerations by Project Type
- Frequently laundered items (hoodies, jackets):
- Embroidery foam: Reported as water-resistant and machine-washable; guidance commonly recommends air drying. Several sources advise avoiding dry cleaning due to solvent sensitivity.
- Craft foam: Multiple sources warn of faster degradation and potential color bleeding; not recommended for items that will be washed regularly.
- Infrequently washed or display pieces (caps, promo items):
- Craft foam can be an acceptable budget substitute if you prioritize availability and color range—and accept more cleanup and potentially reduced longevity.
- Universal best practices:
- Match foam to thread color to mask minor show-through.
- Use low, indirect heat sparingly to reduce fuzz without damaging stitches.
- For long-term wear and repeated washing, choose embroidery foam.
References: Perplexity research on water resistance and colorfastness for embroidery foam; tutorial pages recommending machine wash/air dry and avoiding dry cleaning; cautions about craft foam’s color bleed/degradation; usage notes on caps and display items.
4. Cost vs Value Analysis: Pricing, Accessibility and Hidden Expenses
4.1 Price Per Sheet and Bulk Purchase Options
- Craft foam (budget option):
- Perplexity reports bulk packs at roughly $6.00 for 50 sheets of 6" x 6", or about $0.12 per sheet.
- Extremely low unit cost makes it attractive for prototyping and color testing.
- Embroidery foam (purpose-made):
- Specialty 12" x 18" sheets are listed “as low as $3.10” for 3 mm and 4 mm options from embroidery suppliers.
- Perplexity cites several bulk scenarios:
- 30-piece sets of 3 mm (9" x 12") at about $27.12 total (~$0.90/sheet).
- 24-piece sets of 2 mm (6" x 9") around $6.00 total (~$0.25/sheet).
- What this means in practice:
- Craft foam can be 10–20x cheaper per sheet, but you may need to layer thin sheets to reach 2–3 mm (a common 3D puff thickness in demos), which adds handling time.
- Higher-density embroidery foam often tears cleaner and needs less post-work, which can offset higher material cost—especially in production.
Sources: Perplexity pricing analysis; Fabrictex 3D Puff listing showing $3.10; YouTube comparison noting Walmart craft foam’s thinness and layering requirement.
4.2 Retail Availability vs Specialty Suppliers
- Craft foam retail access:
- Widely available at big-box retailers such as Walmart for immediate pickup—valuable when you’re in a bind or testing colorways. No minimums, no shipping wait.
- Embroidery foam distribution:
- Primarily sold by embroidery-focused suppliers and online stores, offering consistent density and standardized thicknesses (2 mm, 3 mm, 4 mm, with additional options at some vendors).
- YouTube comparisons evaluated options from AllStitch, Gunold, Habdash, and marketplace sellers (e.g., AliExpress). Specialty suppliers generally provided cleaner peel and edges than generic alternatives.
- Trade-off:
- Retail craft aisles win on immediacy and variety packs.
- Specialty embroidery suppliers win on uniformity, predictable performance, and pro-finish results.
Sources: Perplexity accessibility analysis; YouTube brand test (Walmart, AllStitch, Gunold, AliExpress, Habdash).
4.3 True Cost Calculation: Labor and Waste Factors
- Cleanup time = hidden cost:
- Perplexity highlights that embroidery foam tears cleaner, while craft foam tends to leave “fuzzies” requiring extra tweezing and heat clean-up.
- The YouTube brand test confirms: professional-grade foams (e.g., Gunold, AllStitch) left cleaner edges; Walmart and AliExpress samples showed more show-through and residue that needed additional finishing.
- Labor rates multiply impact:
- In commercial shops with labor at roughly $15–$25/hour (Perplexity), the extra minutes spent layering thin craft foam and cleaning residue can quickly erase per-sheet savings.
- Waste considerations:
- Uneven craft foam thickness and visible voids (as shown in Creative Appliqués’ demo) can lead to inconsistent coverage and rework.
- Consistent embroidery foam thickness reduces variability, helping prevent do-overs.
Sources: Perplexity on labor impact; Creative Appliqués tear and density demos; YouTube comparison takeaways on cleanup differences.
5. Step-by-Step Techniques for Flawless Foam Application
5.1 Hooping and Stabilization Fundamentals
- Stabilize first:
- Hoop fabric with a suitable stabilizer; demos often use medium-weight cutaway for garments. Urban Threads recommends 2–3 mm puff foam and a medium cutaway.
- For cap embroidery, consider using hat hoops for embroidery machines to secure the curved surface.
- Foam sizing and placement:
- Cut foam slightly larger than the design area. Place it over the pre-stitched flat portions when your file indicates the “foam” step.
- Use temporary adhesive or light tack-down stitches to prevent shifting (Perplexity). If you try pre-glued craft foam, ensure it won’t transfer adhesive into the machine (MIG Digitizing cautions that sticky back can gum up equipment).
- Tension and evenness:
- Ensure even hoop tension so the foam remains uniformly compressed under satin stitches. Even tension helps prevent gaps and reduces show-through on edges.
- Practical note:
- If using very thin retail craft foam, layer to reach ~2–3 mm (as the Walmart demo shows), but plan for extra handling and cleanup time.
Sources: Urban Threads setup; Perplexity on placement and adhesives; YouTube Walmart foam layering; MIG Digitizing warning about adhesive-backed foam.
5.2 Stitch Density and Machine Settings
- Density and digitizing:
- Mr X Stitch recommends roughly doubling standard flat-embroidery coverage density for 3D foam; for 40 wt threads, he cites a typical range of about 0.17–0.25 mm, adjusted by color contrast and how cleanly your foam perforates.
- Use foam-specific underlay: caps at open ends of columns to perforate and trap foam; “planks” and corner covers help manage junctions and sharp corners so foam doesn’t poke through.
- Needles, speed, and tension:
- Perplexity suggests selecting a needle and thread suited for foam; Mr X Stitch notes a medium ball-point (75/11, 80/12) can help cut clean perforations.
- Moderate speeds reduce friction and thread breaks—especially on denser foams.

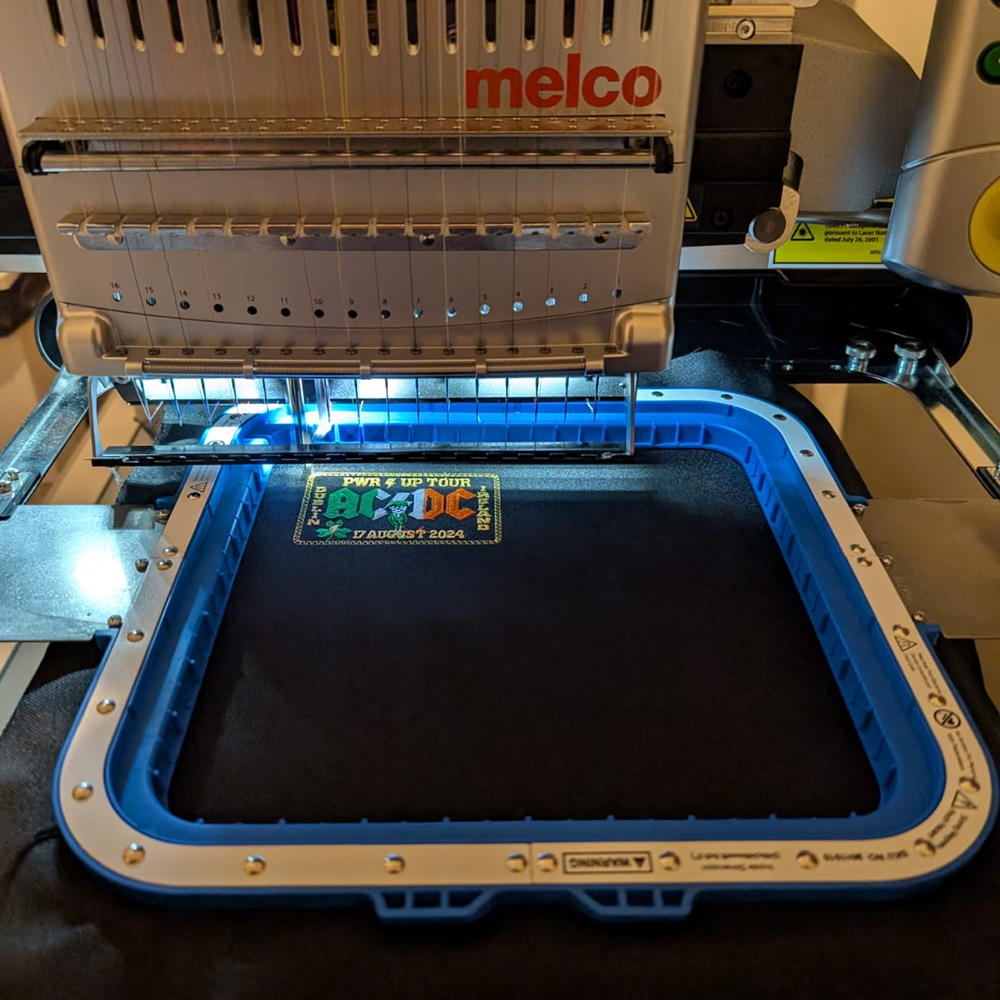

- If your machine supports dynamic tension (as demonstrated on Melco’s active feed in the video), set an appropriate range for the thicker stack.
- Foam-dependent tweaks:
- Embroidery foam: usually cleaner perforation; you can often run the target density with less risk of fuzzies.
- Craft foam: slower rebound and lower melting point (Perplexity), so keep speeds moderate, watch heat during finishing, and be ready to add a touch more coverage or caps to manage show-through.
Sources: Mr X Stitch technique and density specifics; Perplexity on stitch optimization; YouTube active-feed demonstration.
5.3 Color Matching Strategies
- Match foam to thread:
- Tutorials consistently stress matching foam and top thread colors to hide tiny remnants. Both the YouTube tests and Urban Threads emphasize this for a seamless finish.
- Plan by contrast:
- High contrast between foam and thread makes any residue more visible—plan to increase coverage and improve edge capping if you must run contrasting pairs.
- Trade density for match:
- Mr X Stitch notes that close color matches sometimes let you slightly reduce coverage without revealing the foam.
Sources: YouTube comparison (color-matching noted across brands); Urban Threads guidance; Mr X Stitch density note tied to color contrast.
6. Post-Embroidery Perfection: Cleaning and Maintenance
6.1 Removing Excess Foam Efficiently
- Tear along perforations:
- Properly digitized satin coverage will perforate the foam so most excess tears away by hand. Urban Threads shows how 2–3 mm embroidery foam “self-cleans” around satin edges.
- Tuck before you pull:
- Use tweezers for small bits. Perplexity describes a “tucking technique” with closed tweezers to push stubborn fragments under the satin rather than yanking them out.
- Tooling up:
- Nippers trim stray threads; tweezers handle tight corners and inside letter counters (as shown in the foam-cleanup video). Specialized foam cleanup tools also exist (Perplexity notes dedicated dual-ended tools).
- Expect more cleanup with craft foam:
- Multiple demos (Creative Appliqués, YouTube brand test) show craft foam leaves more fuzzies and jagged bits than purpose-made embroidery foam.
Sources: Urban Threads tear-away; Perplexity tucking technique and tooling; Creative Appliqués and YouTube comparisons on residue.
6.2 Heat Tool Protocols for Professional Finishes
- Low, indirect heat:
- Mr X Stitch recommends low, indirect heat from a heat gun/embossing tool to shrink micro-fibers—keep the tool moving and start several inches away to avoid scorching polyester threads or fabric.
- Practical shop methods:
- One YouTube shop finishes with a Bic lighter, targeting the blue (hottest) part of the flame quickly over edges to shrink fuzz and singe loose threads. Use a light, controlled pass to avoid scorch marks.
- Safety and foam type:
- EVA craft foam has a lower melting point (Perplexity), so use extra caution—shorter exposure, more distance, and constant motion.
- Perplexity’s guidance for heat guns: maintain distance (about 10–12 inches), keep the tool moving, and monitor garment temperature from the inside.
- Care after finishing:
- Urban Threads notes you can machine wash and air dry properly executed puff embroidery; avoid dry cleaning due to chemical sensitivity of foam.
Sources: Mr X Stitch on heat finishing; YouTube lighter technique; Perplexity heat-distance and EVA caution; Urban Threads wash/air-dry guidance.
7. Long-Term Performance: Washability and Durability Insights
3D puff only pays off if it survives wear and wash. Across sources, purpose-made embroidery foam consistently holds shape and color better through laundering than general EVA craft foam. Washing frequency, stitch coverage, foam density, and garment type all tilt the outcome—so plan your materials and care to match real-life use, not just the stitch-out table.
7.1 Wash Cycle Survival Rates
-
Embroidery foam
- Engineered for machine embroidery; sources describe it as color-safe and durable across multiple washes when properly stitched. Urban Threads states you can wash and air dry; avoid dry cleaning because chemicals can dissolve the foam.
- Clean tear-away reduces exposed fragments, which helps preserve a crisp edge after laundering.
- Superior rebound means the 3D “crown” resists flattening over time.
-
Craft foam (typical EVA)
- Several guides warn of faster degradation and potential color bleed in the wash; one source flatly notes craft foam is not machine-washable and can disintegrate under stitches.
- Lower heat tolerance raises risk of deformation during finishing or pressing.
- Acceptable for items washed infrequently (e.g., many caps), but not ideal for garments that see regular laundry.
-
Universal truths
- Frequent washing shortens lifespan for any foam-enhanced embroidery; avoid daily wash cycles.
- Do not dry clean foam embroidery. Wash normally, then air dry.
Sources: Perplexity durability/washability summary; Urban Threads wash/air-dry and no dry cleaning; MIG Digitizing caution on craft foam; The Embroider guidance noting water resistance for embroidery foam and color-bleed risk with craft foam.
7.2 Factors Affecting Foam Longevity
-
Stitch coverage and digitizing
- Foam-specific digitizing (denser satin coverage, caps at open ends, strategic underlay/planks) keeps foam compressed and hidden. Insufficient coverage invites foam show-through, fraying, and weak points that fail faster with washing (Mr X Stitch; Perplexity).
-
Foam density and thickness
- Quality embroidery foam (2–4 mm for most apparel, up to 5–6 mm for bold designs) maintains elevation and tears cleaner than thin, variable craft foam. Denser, purpose-made foams in brand tests produced cleaner edges and fewer residues than thin craft sheets.
-
Garment type and care
- Hats and promo pieces last longer largely because they’re seldom washed (Perplexity). Jackets and hoodies demand embroidery foam plus a suitable cutaway stabilizer for structural support (Urban Threads; Perplexity).
- Heat exposure matters: use low, indirect heat to shrink fuzzies; EVA’s lower melting point needs extra caution.
-
Color strategy
- Matching foam to thread color camouflages micro-remnants and lets you avoid over-dense coverage that can crush the crown (YouTube demos; Mr X Stitch).
-
Hooping and support
- Even tension and a stable foundation (e.g., medium-weight cutaway for wearables) reduce stress concentrations that accelerate wear (Urban Threads; Perplexity).
8. Conclusion: Strategic Foam Selection Guidelines
Choose embroidery foam for professional or frequently laundered garments; it holds color and shape better, tears cleaner, and cuts post-work. Craft foam suits prototyping, quick tests, or display-grade items—especially caps—if you accept more cleanup and potentially reduced longevity. Match foam to thread, digitize for foam (dense satin, caps), wash normally, air dry, and skip dry cleaning. Test on scrap, then run one wash test before production to confirm coverage, cleanup, and the finish your client expects. In summary, selecting the best embroidery machines along with the right foam ensures professional results.
