Mastering Embroidery Tension: Your Ultimate Visual Guide and Troubleshooting Handbook

1. Introduction: The Critical Role of Thread Tension in Embroidery

Thread tension decides whether your stitches lock cleanly inside the fabric—or fight each other on the surface. Get it right and you’ll see crisp edges, smooth fills, and stable outlines; get it wrong and you’ll battle looping, puckering, thread breaks, and bobbin show-through. In this guide you’ll learn to diagnose tension visually (with clear “what you see = what to tweak” cues), adjust upper and bobbin tensions step by step, set material-specific ranges, use a tension gauge precisely, troubleshoot the most common problems, maintain your machine to prevent drift, and access quick-reference resources that keep your workflow fast and consistent.

Table of Contents

• 1. Introduction: The Critical Role of Thread Tension in Embroidery
• 2. Decoding Visual Tension Charts: Diagnosing Common Issues
• 3. Step-by-Step Tension Adjustment Guide
• 4. Optimal Tension Settings for Threads and Fabrics
• 5. Precision Tuning with Tension Gauges
• 6. Troubleshooting Common Tension Problems
• 7. Preventive Maintenance for Flawless Tension
• 8. Quick-Reference Tension Guide and Printable Resources
• 9. Conclusion: Achieving Perfect Tension Consistency
• 10. FAQ: Embroidery Tension Essentials

2. Decoding Visual Tension Charts: Diagnoding Common Issues

2.1 Optimal Tension Balance: The 1/3 Rule Explained

The fastest, most reliable way to “read” tension is on the back of a satin stitch test.

• How to test (Madeira method): Stitch a simple satin bar, flip the fabric, and examine the reverse. Ideal balance shows three fairly even lanes: about one-third bobbin thread running down the center, and one-third of the top thread color on each side.
• Why it works: This 1/3 pattern confirms the upper and bobbin forces are locking inside the fabric rather than pulling to one side. Per professional visual diagnosis standards, this back-of-fabric check is the baseline for any tension chart or troubleshooting sequence.

What it means:

• More than one-third bobbin in the center = upper thread tension is too tight.
• Little to no bobbin showing = upper thread tension is too loose.

Use this satin stitch snapshot as your visual “chart”—then adjust in small steps and retest until you see the 1/3–1/3–1/3 balance.

2.2 Symptom-Based Diagnosis: Tight vs. Loose Tension

Think of tension as a tug-of-war between top and bobbin threads. Your job is to keep the contest a draw.

• Looping on the underside
• Diagnosis: Top tension too loose.
• Fixes: Increase upper tension incrementally; rethread to ensure the thread seats in the discs; verify the presser foot was up during threading so the discs opened.
• Bobbin thread showing on top
• Diagnosis: Upper tension too tight—or bobbin too loose.
• Fixes: First set bobbin tension correctly, then reduce upper tension slightly. Inspect bobbin winding and case condition; clean under the bobbin tension spring to remove lint (a common cause of drift).
• Puckering or fabric “gathering”
• Diagnosis: Overall tension too tight or fabric not hooped firmly.
• Fixes: Loosen upper tension slightly; hoop fabric and stabilizer taut and evenly; verify stabilizer type matches the fabric.
• Frequent thread breaks
• Diagnosis: Overly tight tensions, burrs, damaged needles, or debris in the tension path.
• Fixes: Reduce overly tight settings; replace needle; clean tension discs and thread path; rethread fully. Ensure thread feeds smoothly from cone/spool (a thread stand may help).

When in doubt, rethread the entire path and retest. Many “tension” issues are threading problems in disguise.

2.3 Beyond Threads: Fabric and Machine Factors

Tension doesn’t live in a vacuum—fabric and setup matter.

• Fabric density and thickness

Densely woven or heavy materials (e.g., denim, canvas) create more friction on the top thread and often need slightly higher upper tension to form a clean lock.

Delicate, light, or loosely woven fabrics (e.g., silk, chiffon) need gentler tension to avoid distortion.

• Needle condition and size

A worn or burred needle frays threads and mimics “mystery” tension issues. Replace regularly and match needle size to thread weight and fabric.

• Hooping and stabilizer choice

Poor hooping lets fabric shift, creating loops and puckers that look like tension faults. Hoop fabric and stabilizer tightly and evenly; select stabilizer appropriate to fabric stretch and weight.

• Thread behavior and environment

Mixing thread types/weights changes how the tug-of-war balances. Some fibers (e.g., metallics) need looser top tension. Storage and humidity can affect thread elasticity; test before production runs.

3. Step-by-Step Tension Adjustment Guide

3.1 Upper Thread Tension: Dial Adjustments Made Simple

Start smart: set the bobbin correctly first, then fine-tune the top.

• Baseline and direction
• Most machines use a dial/knob for upper tension. Clockwise increases tension; counterclockwise decreases it. Make small, incremental changes and test after each move.
• Satin stitch test + 1/3 rule
• Stitch a satin bar, inspect the reverse, and aim for the 1/3 bobbin center with 1/3 top thread on each side.
• Recommended top-thread ranges (gauge method)
• Rayon: approximately 100–120 grams
• Polyester: approximately 120–150 grams
• Always confirm with your machine, thread brand, and fabric; treat these as practical targets, then fine-tune visually.
• When to adjust up/down
• Increase upper tension if you see loops underneath or the top thread floods the back.
• Decrease upper tension if you see excess bobbin showing on top or you’re puckering the fabric.
• Pro tips
• Rethread before adjusting if the path may be incorrect.
• Keep changes small and test on the same fabric/stabilizer/thread combo as your project.

3.2 Bobbin Tension Mastery: From Drop Test to Gauge

Two proven methods—use one or both for accuracy and repeatability.

• Manual drop test (front-loading cases)
• Insert a well-wound bobbin into a clean case. Hold the case by the thread tail; a gentle jerk should make it drop about an inch or two.
• If it doesn’t budge, tension is too tight—loosen the large screw slightly (left/counterclockwise).
• If it freefalls, it’s too loose—tighten slightly (right/clockwise).
• Adjust in very small increments and retest. Avoid removing the screw completely.
• Tension gauge method (e.g., Towa)
• Common targets by source:
• 18–22 grams for most embroidery; caps up to 25 grams, with some machines preferring up to 30 grams.
• 22 grams often cited as an ideal; commercial operators may run 25–35 grams.
• Read smoothly while pulling thread steadily; if the needle on an analog gauge jumps, the bobbin may be damaged or poorly wound.
• Brother protocol essentials
• Clean under the bobbin tension spring to remove lint.
• Adjust only a little at a time; verify clockwise/counterclockwise changes as above.
• Check the anti-spin (no-backlash) spring and condition at installation and every bobbin change.
• Cap-specific note
• Cap embroidery often benefits from a slightly higher bobbin setting (around 25 grams), depending on machine and materials.

Always reseat the case correctly and sew a short test after adjustments.

3.3 The FOX Test: Validating Your Adjustments

This quick, controlled test exposes tension inconsistencies across stitch angles.

• Set up
• Hoop one or two layers of medium-weight cutaway stabilizer tightly (no fabric needed). Use an easily visible top thread.
• In your machine or software, select a block typeface and stitch “FOX” at 1-inch tall.
• Why “FOX” works
• It combines even-width columns with changing stitch angles, revealing how your tensions behave when the pantograph moves in different directions.
• Sew and read the back
• After stitching, remove the hoop and examine the underside.
• Aim for the 1/3 bobbin stripe centered with top thread flanking each side. Note any deviations at angle changes (tightness or looping).
• Iterate and document
• Adjust upper tension slightly (or revisit bobbin if needed), move to a fresh area in the hoop, and stitch “FOX” again.
• Annotate what you changed next to each test on the stabilizer. Repeat until you consistently see the 1/3 pattern.
• Next-level verification
• If you use prewound vs. machine-wound bobbins, run a comparative FOX test to see which yields steadier readings.
• Once dialed in, repeat on swatches of your actual fabric/stabilizer to confirm “real world” performance.

Master these three steps—visual read, precise adjustment, and validation—and you’ll tame tension quickly, reliably, and with fewer surprises.

4. Optimal Tension Settings for Threads and Fabrics

4.1 Thread-Specific Guidelines: Rayon, Polyester & Metallics

Use these as targets, not absolutes—always validate with a satin stitch test and the 1/3 rule on the back.

• Rayon (40 wt)
• Practical top-thread range: 100–130 g (many guides recommend 100–120 g for reliability).
• Why: Rayon’s soft, lustrous hand is more sensitive to excessive tension. Start lower and increase in small steps if you see loops underneath.
• Visual check: Aim for the centered bobbin “stripe” with balanced top-thread lanes on both sides.

• Polyester (40 wt)
• Practical top-thread range: 120–150 g.
• Why: Polyester’s tougher synthetic filaments tolerate slightly higher tension and remain colorfast. Watch fabric behavior—if puckering appears, back off in small increments.
• Visual check: If bobbin shows too much on top, reduce upper tension after confirming bobbin is in range.

• Metallics (specialty)
• Guidance: Reduce top tension and slow machine speed.
• Why: Composite construction (metallic wrap over a core) is friction- and heat-sensitive; overly tight settings fracture the foil or cause kinks.
• Setup tips: Ensure a smooth thread path and gentle delivery; retest frequently on the intended stabilizer/fabric.

• Bobbin baselines (to stabilize everything above)
• Most embroidery: 18–22 g is a common working range (some shops run 25–35 g; caps often around 25 g, with some machines preferring up to 30 g).
• Calibrate with a gauge when possible; otherwise, use the drop test and retest after each small adjustment.

Think of top and bobbin as a tug-of-war. You’re aiming for a draw—balanced forces that lock inside the fabric (not on the surface).

4.2 Fabric Weight Adjustments: From Chiffon to Denim

• Lightweight, delicate, or loose weaves (e.g., chiffon, silk)
• Lower the top tension to avoid puckering and tunneling.
• Hoop fabric and stabilizer taut and evenly; select stabilizer that supports without over-restricting drape.
• Needle choice matters: Replace worn needles and match size/type to the fabric and thread; rethread carefully so the upper thread seats in the tension discs.

• Dense or heavyweight fabrics (e.g., denim, canvas)
• Slightly higher top tension often helps form a clean lock inside thicker structures.
• Use appropriate stabilizer support and confirm bobbin is within range before increasing upper tension.

• Stretch or knit substrates
• Keep top tension on the gentler side; use stabilizers that control stretch.
• Re-evaluate after your first stitch-out—adjust small, retest, repeat.

• Environment and storage
• Heat, sunlight, and humidity can change thread behavior (diameter/elasticity), shifting the sweet spot for tension.
• Store threads properly and spot-check tension whenever you change thread brands, types, or lots.

Document your best settings by thread/fabric combo and attach swatches to your notes—you’ll set up faster next time.

5. Precision Tuning with Tension Gauges

5.1 Towa Gauge Deep Dive: Bobbin Tension Setup

Foundation first: accurate bobbin tension stabilizes every needle.

• Prepare
• Clean the bobbin case (including under the tension spring).
• Insert a correctly wound bobbin, then seat the case into the gauge until it clicks.

• Threading the gauge and pulling
• Route the thread through the gauge path as indicated, then apply a steady, horizontal pull for about 1–2 inches until the reading stabilizes.
• Targets (gf): 18–22 g for most embroidery; up to ~25 g for caps (some machines prefer up to 30 g).
• Commercial/mN reference: Approximately 190–220 mN is often cited for bobbin case setups in professional use.

• Adjusting the bobbin case
• Direction: Righty tighty (clockwise increases), lefty loosey (counterclockwise decreases).
• Increments: Keep adjustments small—think “clock-face” moves in 1/8–1/4 turns, then remeasure.
• Smoothness check: If an analog gauge needle jumps while you pull, the bobbin may be damaged or unevenly wound—replace and retest.

• No gauge? Use the drop test (front-loading cases)
• Dangle the case by the thread tail; a gentle jerk should drop it ~1–2 inches. Falling too freely = too loose; not budging = too tight.

Reinsert the case correctly and sew a short test after each change.

5.2 Top Thread Measurement: Avoiding Common Pitfalls

Measure near real sewing conditions to get reliable numbers.

• Setup and measurement
• Place the gauge as close to the needle as possible.
• Pull ~6 inches of top thread and wrap around the gauge hook multiple times so it won’t slip.
• Pull steadily and horizontally; avoid yanking or very slow pulls. Limit extension to ~18–24 inches during measuring to prevent skewed readings.

• Practical targets (use as starting points, then validate visually)
• Rayon: 100–120 g (common working range).
• Polyester: 120–150 g (common working range).
• Specialty references: Some operators run certain polyester lines (e.g., Polyneon) around ~170 g, and some metallic setups higher. Always confirm with test stitches and the 1/3 rule on your actual fabric and stabilizer.

• Pitfalls to avoid
  • Measuring far from the needle (tension path friction changes).
  • Pulling inconsistently (too fast/too slow).
  • Thread not properly seated in discs because the presser foot wasn’t up during threading.
  • Dirty tension discs—clean before fine-tuning.

Log each needle’s readings by thread type/color and fabric. That quick-reference saves hours over time.

6. Troubleshooting Common Tension Problems

6.1 Thread Breaks and Birdnesting Solutions

- Fast diagnosis - Frequent breaks: Often too-tight top tension, a burred/old needle, or dirty guides/discs. - Birdnesting under the fabric: Typically too-loose upper tension or mis-threading causing the top thread to float. - Proven fix sequence - Stop and clear: Cut threads, remove the hoop, and carefully remove any thread wads under the plate/hook area. - Rethread completely with presser foot up so the tension discs open. Verify the entire path. - Clean and set the bobbin case: Remove lint under the tension spring; confirm anti-spin (no-backlash) spring condition. Set bobbin with gauge or drop test. - Replace the needle: Burrs shred threads; install a fresh, appropriate needle. - Test on scrap: Use a simple satin bar and read the back (aim for the 1/3 pattern). Adjust upper tension in small steps. - Extra stability tips - Avoid ultra-tiny stitch lengths in dense details—overly short stitches stress threads. - Slow down for difficult threads or dense designs. - Use quality thread and proper storage to avoid brittleness.

6.2 Fabric Distortion: Puckering and Hoop Marks

- Why it happens - Overall tension too tight, insufficient or mismatched stabilizer, or uneven hooping pressure—any of these can pucker fabric or leave marks. - Immediate remedies - Loosen the upper tension slightly and retest. - Hoop fabric and stabilizer evenly and firmly; match stabilizer to fabric stretch and weight. - Check needle condition and size relative to fabric/thread. - Magnetic machine embroidery hoops for garment embroidery - Even pressure distribution helps keep layers flat and reduces hoop burn compared with screw-tightened plastic hoops, which can create localized pressure, slippage, and misalignment. - Sewtalent magnetic hoops are designed to hold garments evenly to minimize puckering across the sew field. - Prefer a widely compatible option? MaggieFrame magnetic hoops offer even pressure and quicker garment hooping. They are intended for garment embroidery (not caps), helping reduce fabric distortion and visible hoop marks while speeding setup. Always test on a scrap or seam allowance before you commit to production.

6.3 Inconsistent Stitches and Skipped Threads

- Start with the thread path (Brother methodology) - Remove the thread and rethread completely, keeping gentle tension as you pass each guide to feel for rough spots. - Verify thread wraps and pretensioners are set correctly per your machine’s guidance. - Clean main tension discs and guides; lint and tarnish increase drag and cause erratic tension. - Inspect and clean the bobbin case; recheck tension after cleaning. - Balance tensions, then validate - Set bobbin to a known-good range (gauge or drop test). - Adjust upper tension in small increments, sew a satin bar, and check the underside for the 1/3 pattern. Repeat until consistent. - Specialty thread considerations - Metallics and other sensitive threads need reduced top tension and slower speeds for stable stitch formation. - If stitch balance looks correct but needle holes seem enlarged, ease both upper and bobbin slightly and retest. Keep a tension log for each thread brand/type and fabric. When issues pop up mid-run, a quick glance at your history often surfaces the fix in seconds.

7. Preventive Maintenance for Flawless Tension

7.1 Daily Cleaning Protocols: Bobbin Cases and Thread Paths

Consistent tension starts with a clean machine. Make these quick checks every time you change a bobbin.

• Bobbin case: Remove, brush out lint, and use short bursts of compressed air to clear debris—especially under the tension spring where buildup makes tension run loose regardless of screw position. If needed, lift the spring slightly and slide a piece of backing under it to dislodge packed lint (Brother method).
• Anti‑spin (no‑backlash) spring: Inspect at installation and at every bobbin change. Ensure it contacts evenly so the bobbin doesn’t free‑spin when the take‑up lever tightens the stitch (Brother guidance).
• Bobbin tension: Verify with a gauge. Targets commonly used in pro guides:
  • General embroidery: 18–22 g
  • Caps: up to ~25 g (some machines prefer up to 30 g)
• If you don’t have a gauge, use the drop test and adjust in tiny turns: clockwise to tighten, counterclockwise to loosen.
• Bobbin usage habits:
  • Expect variation between bobbins—and even within one bobbin as it empties. Consider the last ~10% unreliable and replace early for steady tension (industry guidance).
  • Prewound bobbins often run tighter; slightly loosen upper tension to rebalance if you switch from self‑wound to prewound (Perplexity).
• Thread path check (top thread):
  • Rethread completely with presser foot up so tension discs open.
  • Follow the numbered guides; ensure correct take‑up lever threading and spring bar engagement.
  • Verify thread break sensor/tensioner wraps per your machine’s instructions and confirm smooth thread flow.
• Quick top‑thread validation: If using a gauge, many operators aim around 100–120 g (rayon) and 120–150 g (polyester). Always confirm visually with a satin test and the 1/3 rule on the back.

Document tensions and cleaning in a simple log—those notes shortcut future troubleshooting.

7.2 Long-Term Care: Oiling and Component Checks

• Oiling and mechanisms
  • Follow your machine’s oiling chart and align frequency with usage volume (more often for high‑production). Keep hook race and other specified points lubricated so tension parts move smoothly. Clean sensors so false breaks don’t upset automatic controls (Perplexity).
• Needles and stitch quality
  • Replace at the first sign of burrs, snagging, or unexplained breaks. Match size/type to thread and fabric—this alone prevents many “mystery” tension swings.
• Hoop system maintenance
  • Inspect hoops for grooves, warped rails, or rough edges that can drag threads or distort fabric—replace worn pieces.

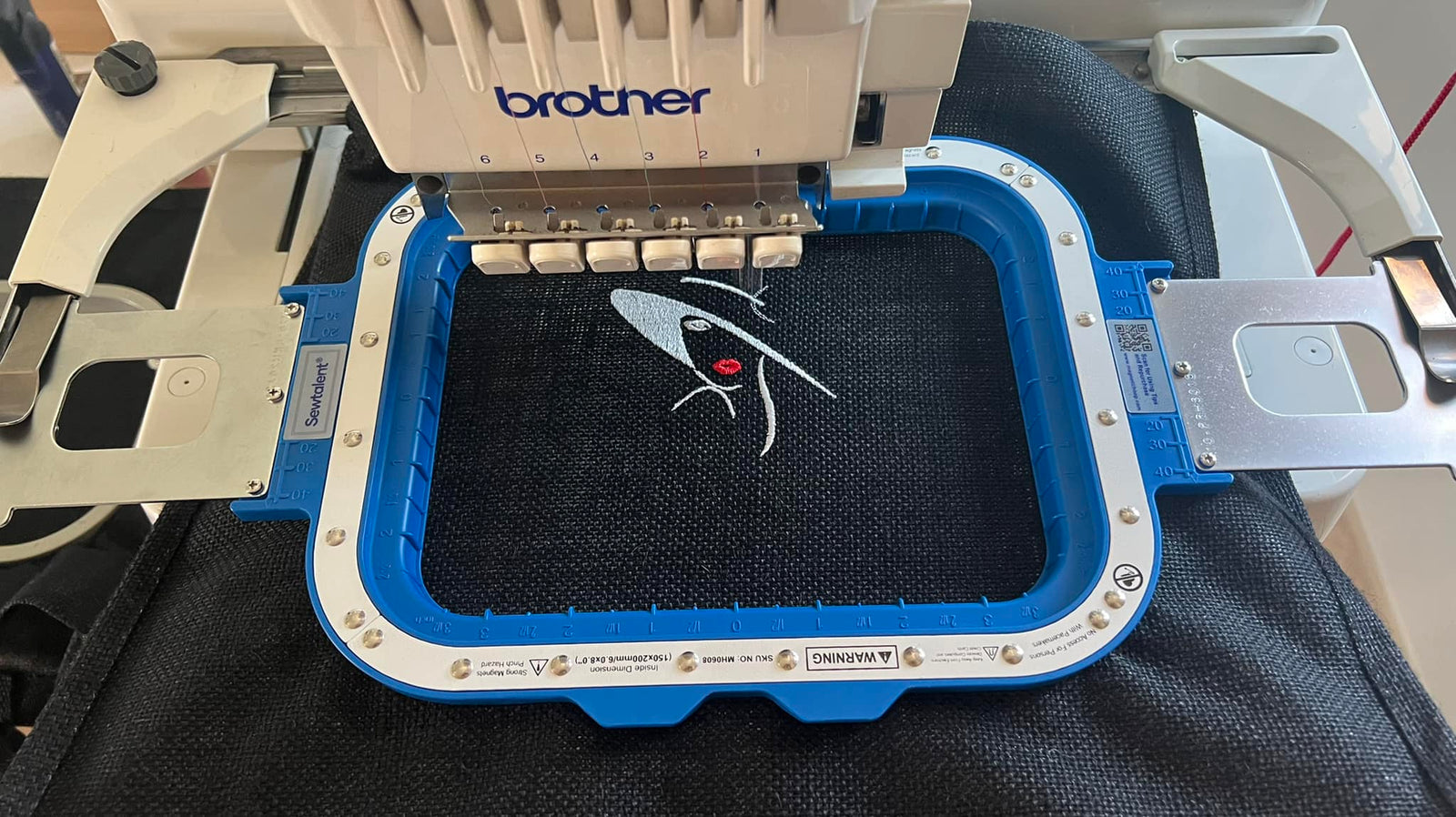

  • For garment embroidery, even pressure over the sew field helps stabilize tension. Sewtalent magnetic hoops distribute force more uniformly than screw‑tightened plastic hoops, which are prone to localized pressure and visible hoop marks. Over time, that even hold reduces fabric shift and the tension drift that follows uneven hooping.
• Thread path hardware
  • Periodically polish or clean guides and the take‑up lever eyelet if tarnish or lint increases drag (Brother). Keep pretensioners and main tensioners clean so adjustments behave predictably.
• Scheduling and records
  • Pair routine oiling with a quick bobbin case clean/tension check. Log what you oil, what you clean, and the tension readings that produce the 1/3 pattern on your common fabric/thread combos. Consistency lives in your notes.

8. Quick-Reference Tension Guide and Printable Resources

8.1 Visual Symptom Cheat Sheet

What you see → What it means → Do this now

• Loops on the underside
• Upper tension too loose or thread not seated in discs
• Rethread with presser foot up; increase upper tension slightly; verify the thread path
• Bobbin thread showing on top
• Upper tension too tight—or bobbin too loose
• First set bobbin to a known‑good range (18–22 g; caps ~25 g). Then ease upper tension
• Puckering/tunneling
• Overall tension too tight and/or hooping/stabilizer mismatch
• Loosen upper tension a little; re‑hoop fabric and stabilizer evenly; match stabilizer to fabric
• Birdnesting under fabric
• Upper tension too loose or mis‑threading
• Stop, clear the wad, rethread completely; set bobbin correctly, then retest
• Frequent thread breaks
• Too‑tight tensions, burrs, dirty discs/guides
• Reduce top tension slightly; replace needle; clean thread path and tension discs; confirm smooth spool feed
• Inconsistent balance at angle changes
• Tension varies with movement
• Run the 1‑inch “FOX” test on cutaway; adjust in small steps and retest
• Back‑of‑stitch check (fast verdict)
• Aim for the 1/3 bobbin stripe centered with 1/3 top thread on each side (satin test)

Quick dials and gauges

• Clockwise = tighter, counterclockwise = looser (most machines)
• Many machines land between dial 2–6 for typical embroidery (consult your manual)
• Gauge targets: bobbin 18–22 g (caps ~25 g, some up to 30 g); top—rayon 100–120 g, polyester 120–150 g
• Rule of thumb: about a 5:1 upper-to-bobbin relationship often yields balance; always confirm visually

8.2 Downloadable Tension Settings Chart

Copy/paste the tables below into a doc and print as a near‑machine reference.

Tension targets (use as starting points; validate with a satin test and the 1/3 rule)

Maintenance mini‑schedule

• Every bobbin change: Clean bobbin case (brush/air), clear under the tension spring, check anti‑spin spring, verify bobbin tension
• At thread changes or setup shifts: Rethread with presser foot up; confirm correct thread path
• Oiling: Follow machine’s chart; increase frequency with higher production
• Documentation: Record gauge readings and satin‑test outcomes by thread/fabric combo

Fast adjustment map

• Loops underneath → tighten upper slightly
<
QUIZ
According to the quick-reference guide, what immediate action addresses bobbin thread visible on top?
• A: Increase upper tension until the bobbin thread disappears
• B: First set bobbin to 18-22g range, then slightly ease upper tension

9. Conclusion: Achieving Perfect Tension Consistency

Balanced tension is a habit, not a guess. Set bobbin first, fine‑tune the top in small steps, and verify with the satin‑stitch 1/3 rule. Adjust for thread type and fabric weight, then validate with quick tests like “FOX.” Keep the machine clean, oil on schedule, and log your winning settings. Do this, and your stitches will stay smooth, stable, and production‑ready.

10. FAQ: Embroidery Tension Essentials

10.1 Q: Why does tension change between thread colors?

- A: Dark colors often carry heavier dye loads, making the thread slightly “heavier” and stiffer than light colors. That extra drag changes how the top thread pulls against the bobbin, so you may need a small tension tweak when switching colors. Many pros keep light tones on the same needles and dark tones on others to minimize re-adjustment.

10.2 Q: How often should I check bobbin tension?

- A: At installation and at every bobbin change. Lint under the bobbin-case spring and bobbin-to-bobbin variation cause drift. Use a gauge when possible, or the drop test, and sew a quick satin bar to verify balance.

10.3 Q: Can automatic tension replace manual adjustment?

- A: No. Auto tension is helpful, but different threads, fabrics, stabilizers, and stitch densities still require fine-tuning. Even manufacturers note you should verify balance with test stitches and adjust as needed. Keep a simple log; many home machines also reset defaults when powered off.

10.4 Q: Which should I adjust first—bobbin or upper thread?

- A: Set bobbin first, then fine-tune the upper. This sequence is a consistent recommendation across pro guides and reduces guesswork.

10.5 Q: What tension numbers are good starting points?

- A: Use these as targets, then validate with a satin stitch test: - Bobbin: 18–22 g for most embroidery; caps up to ~25 g (some machines up to 30 g). - Top thread: Rayon about 100–120 g; Polyester about 120–150 g. Always confirm visually on your actual fabric/stabilizer.

10.6 Q: What’s the quickest way to confirm balanced tension?

- A: Stitch a simple satin bar and flip the fabric. Aim to see about one-third bobbin thread centered and the top thread evenly on both sides. More than one-third bobbin = upper too tight; little/no bobbin = upper too loose.

10.7 Q: Why do my tensions drift during a run?

- A: Common reasons include lint under the bobbin-case spring, a worn or burred needle, thread path debris, switching thread types/brands, and environmental factors (heat/humidity affecting thread behavior). Clean, rethread with the presser foot up so discs open, replace the needle, and recheck bobbin tension.

10.8 Q: Can I mix different thread types or weights between top and bobbin?

- A: Yes. It’s perfectly fine to run different fibers/weights; just rebalance tensions. For sensitive threads like metallics, reduce top tension and test on your exact fabric/stabilizer before production.
