1. Introduction to Bernina Embroidery Module S

The Bernina Embroidery Module S is your passport to a world of creative bernina embroidery possibilities—transforming compatible Bernina sewing machines into powerful embroidery workstations. With this module, you can personalize garments, add intricate motifs to home décor, and explore a vast array of embroidery techniques, all with professional precision. In this guide, we’ll walk you through everything you need to know: technical specifications, machine compatibility, setup instructions, essential accessories, troubleshooting tips, and inspiring project ideas. Whether you’re a seasoned embroiderer or just starting out, the Module S unlocks new levels of efficiency and creativity, making embroidery more accessible and enjoyable than ever before.

Table of Contents

• 1. Introduction to Bernina Embroidery Module S
• 2. Technical Specifications and Machine Compatibility
• 3. Setup and Operation Instructions
• 4. Compatible Accessories for Specialized Projects
• 5. Troubleshooting Common Issues
• 6. Creative Project Ideas for Garments and Accessories
• 7. Maintenance for Long-Term Performance
• 8. Conclusion: Maximizing Your Module S Experience
• 9. Frequently Asked Questions (FAQ)

2. Technical Specifications and Machine Compatibility

2.1 Supported Bernina Machine Models

The Bernina Embroidery Module S is designed for seamless integration with a range of Bernina sewing machines, instantly transforming them into embroidery powerhouses. Compatible models include:

• B-series: B580, B570 QE, B560, B555
• Artista series: 200, 630, 640
• Aurora series: 430, 440 QE, 450

This module works with all embroidery-capable Bernina machines in these families, offering true plug-and-play ease. Simply attach the module to your machine, and you’re ready to embroider—no complex setup or technical hurdles. Whether you’re working on a B-series classic or an Aurora favorite, Module S integrates smoothly, letting you focus on creativity instead of compatibility headaches.

2.2 Performance Features

When it comes to performance, the Bernina Embroidery Module S stands out for its blend of speed, precision, and versatility:

• Embroidery Width: Up to 15 cm—ideal for medium-sized designs, monograms, and motifs.
• Stitching Speed: Reaches up to 1,000 stitches per minute, powered by the advanced BERNINA Hook system. This means you can tackle both quick customizations and larger, more intricate projects without sacrificing quality or efficiency.
• Hoop Compatibility: Supports a range of bernina freearm hoop, so you can select the best fit for your project—be it a delicate cuff or a bold home décor piece.
• Free-Arm Embroidery: Optional adapters enable embroidery on tubular or closed items like sleeves, pant legs, and pockets, expanding your creative reach.

These features make Module S a versatile tool for everything from personalizing towels and T-shirts to embellishing curtains and crafting detailed quilt blocks. The plug-and-play design ensures that even beginners can achieve professional results with minimal learning curve.

2.3 Essential Accessories

To get the most out of your Bernina Embroidery Module S, consider these key accessories:

• Golden Yellow Bobbin Case: Offers up to 70% more thread capacity compared to standard bobbin cases, reducing interruptions during high-speed or large-scale projects.
• Embroidery Module Bag: Sold separately, this bag is perfect for safe storage and easy transport of your module and accessories.
• Presser Foot #15: A standard accessory that ensures stable fabric feeding during embroidery, helping you achieve crisp, even stitches.
• Optional Adapters: For free-arm embroidery on tubular items, specialized adapters are available—making it possible to embroider on sleeves, pant legs, or pockets without opening seams.

With the right accessories, your Module S setup becomes even more flexible and efficient, ready to tackle a wide range of creative challenges.

---

3. Setup and Operation Instructions

3.1 Module Attachment and Calibration

Setting up your Bernina Embroidery Module S is refreshingly straightforward—no need to wrestle with complicated instructions or guesswork. Here’s how to get started:

1. Preparation:
   • Turn off your sewing machine for safety.
   • Remove the accessory box from your machine to expose the free arm.
2. Attaching the Module:
   • Position the module behind the free arm.
   • Slide it from left to right until the connecting lugs click securely into the base plate.
3. Cable Connection:
   • Plug the module’s cable into the right-side socket on your machine, ensuring the flat side faces forward.
   • To disconnect later, open the connection cover and gently pull out the plug.
4. Free-Arm Embroidery Setup (for tubular items):
   • Attach the appropriate adapter to the machine, aligning the L-shaped guide.
   • Place the module on the adapter, making sure the front edge lines up with the guide.
   • Use the small oval hoop (72 x 50 mm) for items like sleeves or pant legs.

Pro Tips:

• Always set up on a flat, sturdy surface to prevent misalignment or connection issues.
• Remove the slide-on table during module attachment or removal to avoid interference.
• For safe transport, detach the module before moving your machine.

These steps ensure your Module S is calibrated and ready for smooth, professional embroidery—every single time.

3.2 Hoop Selection and Positioning

Choosing the right Bernina embroidery hoop and positioning your fabric are crucial for embroidery success. Bernina offers a variety of hoops to suit different project needs:

• Small Hoop (72 x 50 mm): Perfect for cuffs, collars, and small motifs—especially on tubular items.
• Large Hoop (145 x 255 mm): Ideal for larger designs, quilt blocks, or home décor projects.

Using Bernina Templates:

Each hoop comes with a placement template, marked with alignment lines and center points. These templates help you position your fabric and design accurately—no more guesswork or off-center motifs.

Hooping Tips:

• Loosen the hoop screw slightly to fit fabric and stabilizer layers, then tighten for a snug fit.
• For challenging fabrics or high-volume production, consider magnetic hoops (like those from Sewtalent) for quicker and more secure fabric placement. Magnetic hoops reduce the risk of slippage and speed up the hooping process, especially when working with thick or delicate materials.

By selecting the right hoop and using alignment tools, you can ensure flawless results—whether you’re monogramming a shirt cuff or creating a statement piece for your home.

---

Ready to bring your embroidery visions to life? With the Bernina Embroidery Module S, setup is a breeze and creative possibilities are endless.

4. Compatible Accessories for Specialized Projects

When it comes to unlocking the full creative potential of your Bernina Embroidery Module S, the right accessories, especially Bernina embroidery hoops, make all the difference. Whether you’re working on tubular garments, intricate quilt blocks, or hard-to-hoop items, Bernina’s specialized hoops and adapters are engineered to expand your project possibilities and streamline your workflow. Let’s dive into the essential hoops, adapters, and optimization strategies for free-arm embroidery.

4.1 Essential Hoops and Adapters

Choosing the correct hoop and adapter is like picking the perfect paintbrush for your masterpiece—each tool serves a unique purpose and opens up new creative avenues.

Bernina’s Lineup of Hoops:

• Small Clamp Hoop: Ideal for quilters, this square-shaped hoop accommodates the geometric designs common in quilting projects. Its secure grip ensures even tension for crisp, professional results.
• Large Freearm Embroidery Hoop: This is the go-to accessory for embroidering large tubular items—think pre-made bags, T-shirts, or even pant legs with a circumference over 80 cm. The large freearm hoop lets you embroider these items without the hassle of opening seams, saving time and preserving garment integrity.
• Small Embroidery Hoop: Perfect for sleeves, cuffs, or pant legs, this hoop’s compact size makes it a whiz at handling small tubular items.
• Medium and Large Oval Hoops: The medium hoop is a versatile choice for mid-sized projects, while the large oval hoop excels at design combinations and more extensive embroidery tasks. Both come with placement templates to help you align your designs with pinpoint accuracy.

Adapters for Tubular and Closed Items:

• Freearm Embroidery Adapter for Small Hoop: Essential for sleeves, pockets, or pant legs, this adapter allows you to embroider closed or tubular items without undoing seams. Simply attach the adapter, select the appropriate hoop, and you’re ready to tackle those hard-to-reach spots.
• Freearm Embroidery Adapter for Medium and Oval Hoops: This adapter expands your options for medium and large projects, enabling embroidery on a wide range of tubular garments and accessories.

Dimensions at a Glance:

Pro Tip: The ergonomic twist-lock mechanism on some hoops, like the Midi, makes hooping faster and easier—saving your wrists and your patience.

By matching your project to the ideal hoop and adapter, you’ll achieve better results, reduce fabric distortion, and open up a world of new embroidery possibilities.

4.2 Optimizing Free-Arm Embroidery

Free-arm embroidery is the secret sauce for tackling tricky, three-dimensional, or pre-constructed items—think pockets, sleeves, or pant legs. With the right setup, you can embroider closed or tubular pieces without ever picking up a seam ripper.

How to Embroider Closed Items:

• Adapter Usage: Attach the freearm adapter to your machine, select the correct hoop (small, medium, or oval), and slide your garment over the free arm. This setup keeps the non-embroidered portion out of the way, preventing accidental stitching through layers.
• Calibration Steps: Before your first stitch, calibrate the hoop in your machine’s setup program. Use the included template holders and placement templates to ensure your design lands exactly where you want it. Double-check needle positioning by verifying that it’s centered in the template—manual adjustments may be needed for perfect alignment.
• Stabilizer Requirements: Reinforce the back of your fabric with the appropriate stabilizer before hooping. For knits, use cutaway stabilizer; for sheers, opt for wash-away. The right stabilizer ensures crisp, puckering-free results.

Magnetic Hoop Solutions:

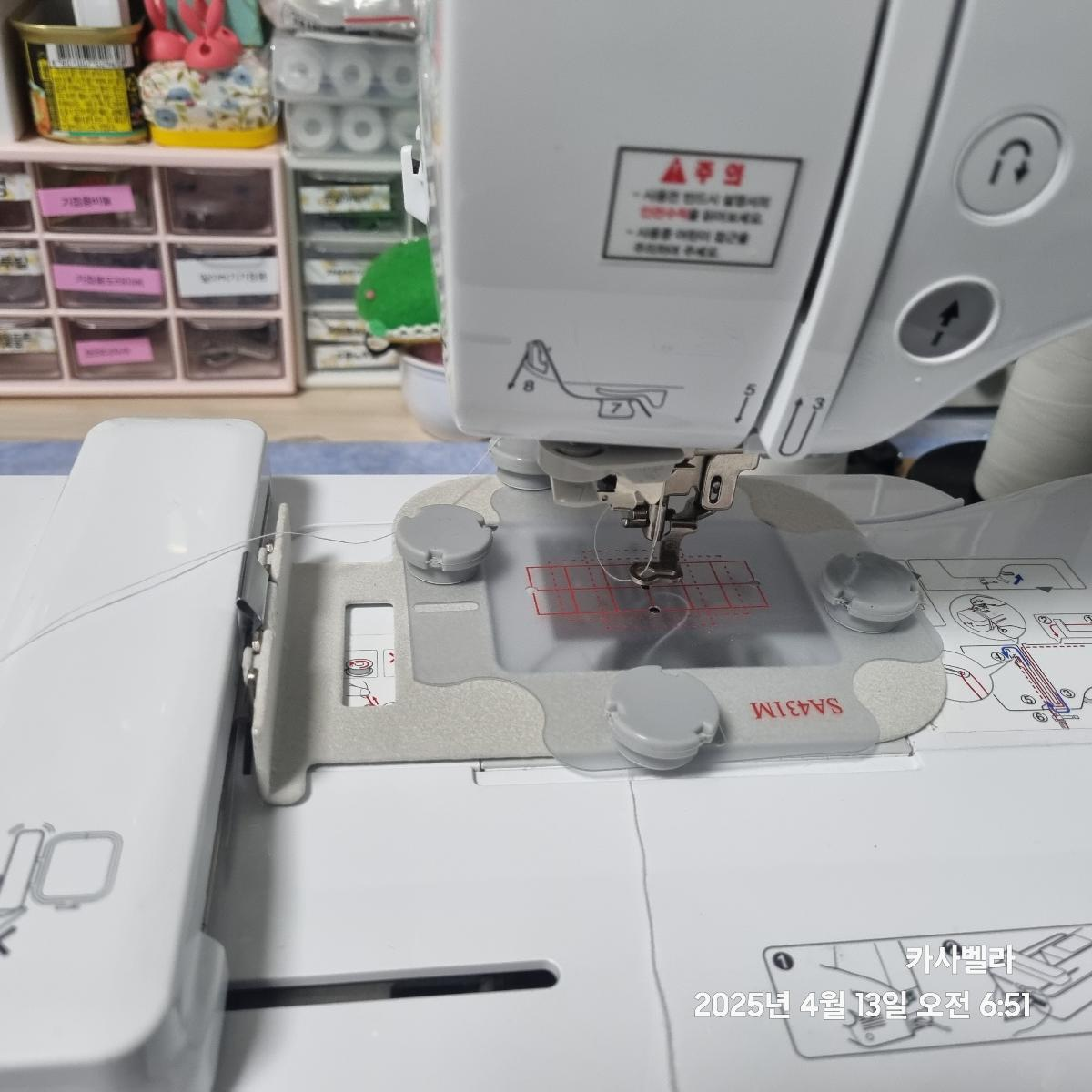

For those who crave speed and efficiency, magnetic hoops—like those from Sewtalent—offer a game-changing alternative. These hoops use strong magnets to secure fabric quickly and evenly, dramatically reducing the risk of slippage, especially on thick or delicate materials. Magnetic hoops are particularly handy when working with garments, as they minimize hoop burn and make repositioning a breeze.

Contrast: Traditional vs. Magnetic Hoops

Takeaway: Whether you’re customizing a sleeve or personalizing a tote, optimizing your free-arm setup—and considering magnetic hoop solutions—can elevate your embroidery game from good to gallery-worthy.

5. Troubleshooting Common Issues

Even the most advanced embroidery setups can run into occasional hiccups. The good news? Most common problems with the Bernina Embroidery Module S are easily solvable with a bit of know-how and regular maintenance. Let’s walk through the top troubleshooting tips to keep your stitches smooth and your creativity flowing.

5.1 Connection and Calibration Fixes

Is your embroidery module throwing a “put the embroidery unit back on” error, or acting like it’s lost its mind mid-project? You’re not alone—connection and calibration issues can crop up, but they’re usually straightforward to fix.

Checklist for a Stable Connection:

• Work Surface: Make sure your sewing table is flat and sturdy. Even a slight bow or vibration can disrupt the module’s connection to your machine.
• Rubber Feet: Check the rubber feet on the bottom of your module and machine. Worn or wobbly feet can cause instability—replace them if needed.
• Sensor Interference: Inspect for any lint, thread bits, or fabric scraps near the bobbin area and sensors. Even a tiny fluff can trigger false error messages.
• Physical Alignment: Ensure the module is fully seated—connection tabs should click securely into place.
• Electrical Considerations: Power fluctuations can wreak havoc. Plug your machine into a surge protector (with a surge limiting voltage of 330 volts, if possible) to safeguard against electrical blips.

Calibration Steps:

• Calibrate your hoop in the machine’s setup menu before first use or after changing hoops.
• Verify the needle is centered in the template, adjusting manually as needed.
• Make sure there’s enough space behind the machine so the embroidery arm doesn’t bump into walls or objects during operation.

If Problems Persist: If you’ve checked all the above and still get connection errors or calibration issues, it might be time for a professional tune-up. Bernina technicians are trained to diagnose and resolve stubborn mechanical or sensor problems.

5.2 Thread and Tension Management

Thread breaks, bobbin errors, and registration issues can turn a fun embroidery session into a headache. Here’s how to keep your stitches on track:

Solving Bobbin Errors:

• Clean lint and stray threads from the bobbin case and surrounding sensors with a long, natural bristle brush.
• Make sure the bobbin door is fully closed and the bobbin is correctly seated.

Preventing Thread Breakage:

• Use high-quality embroidery thread designed for high-speed stitching.
• Check for burrs or rough spots on the stitch plate or bobbin case—these can shred thread and require professional attention.
• Replace needles regularly, and use embroidery-specific needles for best results.

Registration and Outline Issues:

• If stitched outlines are slightly off, you can touch up small areas with fine-tipped markers.
• For major misalignments, check for power fluctuations or accidental bumps to the embroidery arm.
• Slow down the machine speed for outlines or intricate triple straight stitches to improve accuracy.

Maintenance Reminder: Clean and oil your machine every 3–4 hours of embroidery to prevent lint buildup and keep everything running smoothly.

5.3 Fabric Stabilization Solutions

The right stabilizer is the unsung hero of flawless embroidery. Here’s how to choose and use them like a pro:

Stabilizer Recommendations:

• Cutaway Stabilizer: Best for knits and stretchy fabrics—provides lasting support and prevents puckering.
• Wash-Away Stabilizer: Ideal for sheers and delicate fabrics—removes cleanly after stitching.
• Adhesive Stabilizers: Perfect for hard-to-hoop items or “floating” techniques. Hoop the stabilizer, then stick your fabric on top for precise placement.

Magnetic Hoop Advantage: Sewtalent magnetic hoops shine when working with tricky fabrics. Their strong, even grip reduces slippage and hoop burn, making them a smart choice for challenging projects.

Pro Tip: Don’t be afraid to layer stabilizers for dense or complex designs. Testing on a fabric scrap can save you from surprises down the line.

---

6. Creative Project Ideas for Garments and Accessories

Ready to let your imagination run wild? The Bernina Embroidery Module S is more than just a tool—it’s your passport to personalizing garments and accessories with flair and precision. Whether you’re customizing a baby onesie, jazzing up a tote bag, or adding Bernina embroidery designs or monograms to scarves, the possibilities are as limitless as your creativity.

6.1 Garment Customization Techniques

Free-Arm Applications:

The free-arm capability of the Module S, paired with the right adapters, lets you embroider on tubular or hard-to-reach areas with ease. Here are some inspiring ideas:

• Onesies: Hoop the front panel and slip the onesie over the free arm, keeping the rest of the garment out of the way. This technique is perfect for baby gifts or boutique creations.
• Cuffs and Collars: Add delicate motifs or monograms to shirt cuffs and collars for a bespoke, professional look.
• Pant Legs: Personalize jeans or sweatpants by embroidering along the leg—no seam ripping required.

Floating Technique:

For pre-made or delicate garments, use the floating method: hoop only the stabilizer, then place your garment on top and secure it with adhesive or pins. This prevents distortion and makes it easy to embroider on items that are tricky to hoop directly.

Monogramming Precision:

Take advantage of Bernina’s Pinpoint Placement feature to ensure your monograms and motifs land exactly where you want them. Select two points on the screen, match them to your fabric, and let the machine do the rest.

6.2 Accessory Embellishment Strategies

Why stop at garments? The Module S opens up a world of accessory customization:

• Bag Personalization: Embroider names, logos, or decorative designs on tote bags, purses, or backpacks. The large freearm hoop makes it possible to work on structured bags without disassembly.
• Hat Embroidery: With the right adapters, you can add flair to hats and caps—perfect for gifts, team gear, or small business products.
• Scarf and Shawl Designs: Embroider intricate patterns or initials on the corners of scarves and shawls for a touch of elegance.

YouTube Inspiration:

Studio vlogs and market prep videos show makers creating everything from cup cozies to scrunchies, using embroidery to add value and personality to their products. Watching these workflows can spark ideas for your own accessory projects—think reversible cup cozies, personalized keychains, or themed market sets.

Workflow Tips:

• Use the free-arm setup for tubular items like sleeves and bags.
• Try out reversible or multi-fabric projects to maximize creativity.
• Embrace the floating technique for items that can’t be hooped directly.

Final Thought:

With the Bernina Embroidery Module S, your only limit is your imagination. Dive into garment and accessory projects, experiment with new techniques, and watch your embroidery skills—and your creative confidence—soar.

7. Maintenance for Long-Term Performance

Keeping your Bernina Embroidery Module S in peak condition isn’t just a good habit—it’s the secret sauce for flawless stitches and a long, trouble-free machine life. Just like any precision tool, a little regular TLC goes a long way. Let’s break down the essential cleaning, lubrication, and preventative care routines that will keep your embroidery adventures running smoothly.

7.1 Cleaning and Lubrication Protocol

A clean module is a happy module! Here’s your step-by-step guide to maintaining the Bernina Embroidery Module S for optimal performance:

1. Pre-Cleaning Safety Measures

• Power Down: Always turn off and unplug your machine. Wait about 30 seconds to ensure all internal power is discharged.
• Remove Accessories: Detach the embroidery module, foot control, presser foot, needle, and bobbin.
• Safe Environment: Avoid cleaning near aerosols, moisture, or oxygen sources.

2. Disassembly and Access

• Remove the needle and bobbin.
• Detach the presser foot and needle plate to access the hook assembly and internal mechanisms.
• Inspect the module and embroidery card for visible lint or debris.

3. Cleaning Procedures

• Mechanical Cleaning: Use a soft-bristled brush or compressed air to gently remove lint from the bobbin area, needle bar, and hook assembly. Pay special attention to moving parts like the take-up lever and tension discs.
• Surface Cleaning: Wipe down the exterior of the module and machine with a lint-free cloth to keep dust at bay.

4. Lubrication

• Apply BERNINA-approved oil sparingly to moving parts such as the hook race and take-up mechanism. Avoid over-oiling, as excess oil can attract lint and cause residue buildup.
• Always consult your machine’s manual for specific oiling points and intervals.

5. Reassembly and Calibration

• Reinstall the needle plate, presser foot, and needle securely.
• Ensure the embroidery module is properly seated and the embroidery card is reinserted if removed.
• Run the hoop calibration program to align the embroidery area accurately.
• Test stitch quality and adjust tension if needed.

6. Software and Settings

• Update your machine’s firmware and embroidery software regularly.
• Periodically reset machine settings to factory defaults to resolve minor glitches.

7. Critical Safety and Best Practices

• Always use genuine Bernina parts and accessories to avoid damage.
• Never pull fabric manually during embroidery—let the machine do the work.
• Routinely check for bent needles, misaligned plates, or loose connections.

A monthly deep clean, combined with these best practices, will keep your Module S humming happily for years to come. For advanced repairs or persistent issues, don’t hesitate to consult an authorized Bernina service center.

7.2 Preventative Care Schedule

Consistency is the name of the game when it comes to embroidery machine maintenance. Here’s a handy schedule to keep your Module S in top shape:

• Basic Cleaning: After each embroidery session, brush out lint and dust from the bobbin area and hook assembly.
• Deep Cleaning: Once a month, perform a thorough clean and oil all recommended points.
• Calibration: Run hoop calibration after changing hoops or if you notice misalignment.
• Firmware Updates: Check Bernina’s website or your dealer for software updates to keep your machine running at its best.
• Use Genuine Parts: Always stick with Bernina-approved accessories and parts to ensure compatibility and avoid unnecessary wear.

By sticking to this schedule, you’ll not only extend the life of your Bernina Embroidery Module S but also enjoy consistently beautiful results with every project.

8. Conclusion: Maximizing Your Module S Experience

The Bernina Embroidery Module S is your ticket to a world of creative possibilities—whether you’re working with B-series, Artista, or Aurora machines. Its free-arm versatility empowers you to tackle garments and accessories with ease, while a suite of specialized hoops and adapters lets you customize every project. Experiment with different stabilizers, try out new techniques, and let your imagination lead the way. With the right care and a spirit of curiosity, your Module S will be a trusted creative partner for years to come.

9. Frequently Asked Questions (FAQ)

9.1 Q: Which embroidery hoops are compatible with the Bernina Embroidery Module S?

A: The Module S supports a range of Bernina hoops, including small (72 x 50 mm), medium, and large oval hoops (145 x 255 mm). It’s also compatible with specialized hoops like the Small Clamp Hoop and Large Freearm Hoop, as well as adapters for tubular items. Always check your machine and module compatibility before purchasing new hoops.

9.2 Q: How do I resolve the “put embroidery unit back on” error?

A: This error often results from unstable connections. Ensure your module is firmly attached, your sewing table is flat and sturdy, and the rubber feet are intact. Check for lint or debris near sensors and recalibrate the hoop if needed. Power surges can also cause issues, so consider using a surge protector.

9.3 Q: How can I adjust tension for specialty threads?

A: For specialty threads, use high-quality embroidery needles and thread designed for your project. Adjust tension settings as needed—test on a scrap before starting your main piece. If outlines are misaligned, slow down the machine speed and ensure the bobbin and upper thread are correctly threaded.

9.4 Q: What’s the best way to maintain stitch quality?

A: Regular cleaning, proper lubrication, and using genuine Bernina parts are key. Clean lint from the bobbin area after each project, oil moving parts as recommended, and replace needles regularly. Calibration and firmware updates also help maintain optimal performance.

9.5 Q: Can I use magnetic hoops with the Module S?

A: Yes, magnetic hoops such as those from Sewtalent can be used for faster and more secure fabric placement, especially on challenging materials. Always confirm compatibility with your specific Bernina model and embroidery module.

---
