Essential Thread Gauges Guide: Types, Usage Tips, and Applications

1. Introduction to Thread Gauges and Their Industrial Significance

Thread gauges might look unassuming, but in the world of manufacturing, they’re the unsung heroes ensuring every bolt, screw, and nut fits perfectly—no guesswork, no surprises. Whether you’re assembling aerospace components, fine-tuning automotive parts, or creating intricate embroidery machines, thread gauges are the critical tools that verify thread dimensions and tolerances. This guide unpacks the essentials: from the different types of thread gauges and their technical specifications, to best practices in measurement, purchasing advice, brand comparisons, and even specialized applications in embroidery. If you’ve ever wondered how to select the right gauge, avoid costly errors, or keep your tools in peak condition, you’re in the right place. Let’s dive into the world where precision isn’t just a goal—it’s a necessity.

Table of Contents

• 1. Introduction to Thread Gauges and Their Industrial Significance
• 2. Thread Gauge Types and Technical Specifications
• 3. Step-by-Step Measurement Techniques and Best Practices
• 4. Top Suppliers and Purchasing Considerations
• 5. Brand Performance: Durability, Accuracy, and Value
• 6. Maintenance, Calibration, and Longevity
• 7. Tutorial Resources and Embroidery Applications
• 8. Conclusion: Key Takeaways and Implementation Advice
• 9. FAQ on Thread Gauges

2. Thread Gauge Types and Technical Specifications

Thread gauges are the backbone of quality control in threaded part manufacturing. Their primary job? To confirm that threads—internal or external—meet exacting standards for fit and function. Let’s break down the main types and the technical details that matter most.

2.1 Plug Gauges: Inspecting Internal Threads

Plug gauges are the go-to instruments for inspecting internal threads, such as those found in nuts or tapped holes. They come in several variants:

• Standard Plug Gauges: These conform to widely recognized standards like ANSI and ISO, making them suitable for most general applications.
• Tapered Plug Gauges: Designed for pipe threads that require leak-proof seals, these gauges ensure the right fit for specialized applications.
• Custom and Adjustable Plug Gauges: When you’re dealing with non-standard thread profiles or need flexibility during prototyping, these options have you covered.

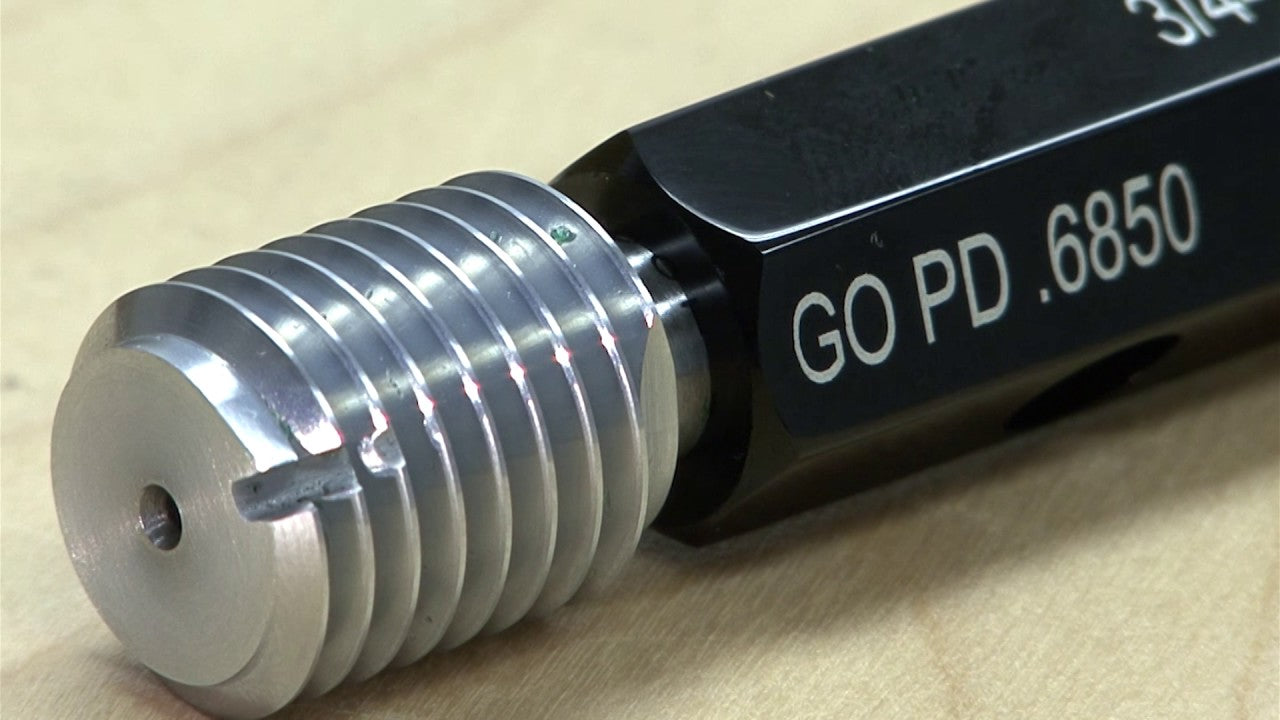

GO/NOGO Design: Plug gauges are typically double-ended, featuring a “GO” and a “NOGO” side:

• The GO plug checks the minimum major diameter and should fit smoothly into the thread—if it doesn’t, the thread is too small.
• The NOGO plug verifies the maximum pitch diameter and should not enter more than a specified number of turns (usually up to three). If it does, the thread is oversized.

Technical Standards: Plug gauges adhere to strict standards such as ASME B1.1 (Unified Inch Screw Threads), ASME B1.2 (gaging specifications), and ASME B1.13M (Metric Screw Threads). For example, a #0-80 UNF thread might have a GO pitch diameter of 0.0519 inches and a NOGO pitch diameter of 0.0542 inches, with tight tolerances of ±0.0002 inches.

Applications: Plug gauges are indispensable for ensuring that nuts, tapped holes, and internal threads in precision assemblies meet the required specifications—think aerospace, medical devices, and high-performance machinery.

2.2 Ring Gauges and Specialized Tools

While plug gauges handle the inside, ring gauges are designed for external threads—bolts, studs, and screws.

• GO/NOGO Ring Gauges:
  • The GO ring must thread fully onto the part, confirming the minimum minor diameter.
  • The NOGO ring should not thread onto the part, validating the maximum pitch diameter.
• Calibration: Ring gauges require periodic calibration using certified thread plugs to maintain accuracy, in line with standards like ANSI/ASME B1.2.

Specialized Tools: For more complex or high-precision needs, several advanced tools come into play:

Pitch Diameter Tolerances Example: For a #0-80 UNF thread:

Selection Guidelines: When choosing a thread gauge, consider:

• Internal (plug) vs. external (ring) thread type
• Tolerance class (e.g., Class 2B for standard, Class 3B for looser fits)
• Material (hardened steel is standard for durability)
• Calibration requirements (always use setting plugs per ANSI/ASME B1.2)

Advanced Tools: Combination thread checkers and thread caliper gauges offer integrated pitch identification and GO/NOGO testing, streamlining workflow for those who need both speed and precision.

In Summary: Selecting the right thread gauge means understanding your thread type, tolerance class, and the relevant standards. Plug and ring gauges are foundational, while specialized tools tackle the trickiest geometries and tightest tolerances.

3. Step-by-Step Measurement Techniques and Best Practices

Getting accurate thread measurements isn’t just about having the right tool—it’s about using it the right way. Here’s how to ensure your inspections are spot-on, every time.

3.1 Preparing and Measuring Thread Pitch/Diameter

Preparation:

1. Clean the Threads: Always start by removing debris, oil, or contaminants from the threads. A clean surface is essential for accurate readings and prolongs the life of your gauges.

2. Identify Thread Type:

• Use plug gauges for internal threads (holes, nuts).
• Use thread checkers or ring gauges for external threads (bolts, screws).
• Visually estimate thread size to narrow down your gauge selection.

Measuring Thread Diameter:

• External Threads: Use calipers to measure crest-to-crest diameter on the first or last full thread (for tapered threads) or any thread (for parallel threads).
• Internal Threads: Place caliper jaws on the groove-to-groove diameter.

YouTube Insights: Videos like "How to Measure Threads - Mitutoyo Thread Gauges" and "NEW Daytona Multifunction Gauge" illustrate how multifunction gauges can streamline the process, combining metric and imperial sizing, pitch measurement, and even drill point angle checks—all in one compact tool.

3.2 GO/NOGO Testing and Error Avoidance

GO/NOGO Gauge Testing:

• GO Gauge: Should thread completely into internal threads or onto external threads if the thread is within tolerance.
• NOGO Gauge: Should stop after 2–3 turns (or ≤1.5 turns for precision applications). This is a critical pass/fail test—if the NOGO gauge enters too far, the thread is out of spec.

Acceptance Criteria:

• Pass: GO gauge fits, NOGO gauge does not.
• Fail: GO gauge does not fit (thread is too small), or NOGO gauge fits (thread is too large).

Common Mistakes and How to Avoid Them:

• Never force gauges: Apply only normal hand pressure. Forcing can damage both the thread and the gauge.
• Check calibration: Always verify that your gauges are within tolerance before use, especially after frequent use or if dropped.
• Use correct pitch first: For combination thread checkers, always match the pitch before testing diameters to prevent thread damage.
• Gentle Handling: Rotate gauges gently and avoid cross-threading, especially with fine threads.

Pro Tips from High-Ranking Webpages and Videos:

• Clean threads before gauging for more sensitive and accurate fits.
• Store gauges in protective tubes or cases and coat with rust preventative when not in use.
• If a gauge is dropped, inspect it immediately for damage before reuse.
• Limit NOGO gauge turns to 1.5–2 for fine threads, and always consult thread specifications for variations.

Key Data Points:

• Three-Wire Formula: \( E = M - \text{Const} \) (e.g., for ½"–13 threads, Const = 0.06838").
• NOGO Gauge Turns: ≤2–3 for standard, ≤1.5 for precision.
• TPI Measurement: Count complete threads within a 1-inch span.

By following these step-by-step techniques and best practices, you’ll ensure accurate thread inspection and extend the life of your gauges—making precision your everyday standard, not just a lucky break.

4. Top Suppliers and Purchasing Considerations

When it comes to sourcing thread gauges for industrial or specialized applications, the supplier you choose can make all the difference. From compliance with international standards to calibration services and inventory access, let’s break down the leading options—and explore a game-changing solution for embroidery efficiency.

4.1 Leading Industrial Suppliers Compared

Navigating the world of thread gauge suppliers can feel like searching for a needle in a haystack—unless you know exactly where to look. Here’s a side-by-side comparison of the top players, highlighting what sets each apart.

Thread Check Inc. (Ronkonkoma, NY) stands out for its extensive range—think chrome, tin coat, carbide, and ceramic plug/ring gauges, plus tri-roll comparators and API pipe gauges. They’re a go-to for custom solutions (Acme, buttress, trapezoidal threads) and offer ISO 17025 calibration, NIST-traceable certification, and free technical support.

WESTport Corp is all about American Gage Design (AGD) thread gauges and functional inspection tools. Their commitment to compliance (ANSI B1.2, ASME B47.1) is matched by services like free NIST certificates and a 100% satisfaction guarantee. If you need custom precision, they’ve got you covered.

Gage Crib Worldwide, Inc. (Grand Rapids, MI) excels at rapid access to standard work plug, ring, and setting plug gauges—ideal for industries like automotive, aerospace, and oil/gas. Their distributor model means shorter lead times for off-the-shelf needs.

Universal-Gauges Pvt. Ltd. brings export-focused solutions, emphasizing durability and accuracy for general industrial applications.

Critical Factors for Supplier Selection

- Product Customization: Thread Check Inc. and WESTport Corp offer tailored solutions for non-standard threads, while Gage Crib shines with rapid inventory for standard sizes.

- Compliance & Certification: NIST-traceable calibration and adherence to ANSI/ASME standards are the gold standard—Thread Check and WESTport lead here.

- Lead Times: Distributors like Gage Crib and Universal-Gauges can deliver standard gauges fast; custom orders from manufacturers may take longer.

- Support & Services: Calibration, technical support, and even emergency repair (from select suppliers) can tip the scales for critical applications.

Pricing Considerations

While hard numbers depend on material (carbide and ceramic cost more), customization, and calibration needs, suppliers like WESTport Corp offset costs with free NIST certificates and satisfaction guarantees. For the best value, compare quotes directly—lead times and after-sales support can be just as important as the sticker price.

4.2 Embroidery Efficiency Solutions

Let’s pivot from heavy industry to the artful world of embroidery. Here, efficiency isn’t just about speed—it’s about precision, fabric care, and reducing waste. Enter the Sewtalent magnetic embroidery hoop, a breakthrough for garment embroidery workflows.

Why Sewtalent? Imagine slashing your hooping time by 90%. With Sewtalent’s magnetic hoops, what once took three minutes now takes just 30 seconds. The secret? A powerful magnetic clamping system that adapts instantly to various fabric thicknesses—no more fiddling with screws or worrying about fabric slippage.

Durability That Lasts Sewtalent hoops are crafted from industrial-grade PPSU engineering plastic, the same material found in aircraft interiors. This isn’t just marketing fluff—real-world tests show Sewtalent hoops last up to 40 times longer than standard plastic hoops. That means fewer replacements, less downtime, and long-term savings.

Cost Savings Without Compromise While the upfront investment might be higher than basic plastic hoops, the return is clear: faster workflow, reduced labor, and a dramatic drop in hoop-related defects. For high-volume garment embroidery, Sewtalent pays for itself in record time.

For garment embroidery studios and professionals, Sewtalent’s magnetic hoops are more than a tool—they’re a workflow revolution. If you’re ready to boost productivity and quality, it’s time to make the switch.

5. Brand Performance: Durability, Accuracy, and Value

Choosing the right thread gauge brand isn’t just about the name—it’s about how the tool performs under pressure, in real-world conditions. Let’s break down the best options for industrial users.

5.1 Industrial Brand Comparison (Mitutoyo, AltitudeCraft)

When it comes to durability, accuracy, and cost-effectiveness, not all thread gauge brands are created equal. Here’s how the leaders stack up:

Durability

• AltitudeCraft: Built with corrosion-resistant materials and precision-machined templates, these gauges are designed for longevity—even in harsh environments. The ergonomic design also helps reduce user fatigue during extended use.
• CalibraTools: Engineered for heavy-duty, repeated industrial use. Compliance with ISO 9001 and ANSI/ASME standards means you can count on them for the long haul.
• Sisco: Utilizes GCr15 bearing steel, a material known for its exceptional wear resistance. Their double-end metric plug gauges offer flexibility for various thread types.

Accuracy

• AltitudeCraft: High-contrast markings and precisely machined templates make for easy, reliable readings. These tools outperform many mass-market alternatives in both legibility and reliability.
• CalibraTools: Thread plug and ring gauges strictly adhere to ANSI/ASME specs, ensuring tight tolerances—critical for aerospace and other demanding sectors.
• Sisco: Offers selectable accuracy (0.2–24mm) and robust construction, making them a favorite in automotive and aerospace applications where precision is non-negotiable.

Cost-Effectiveness

Key Takeaways:

• AltitudeCraft and CalibraTools dominate the high-precision, industrial market.
• Sisco and Cross Company are go-tos for cost-sensitive users needing reliable, standard verification.
• Thread Check is your choice for niche, custom applications—at a premium.

Industry-Specific Recommendations

• Aerospace/Automotive: CalibraTools (for standards compliance) or Sisco (for bearing steel durability).
• General Manufacturing: Cross Company (budget) or AltitudeCraft (accuracy).
• Custom Applications: Thread Check (tailored solutions).

Critical Considerations

• Calibration: Regular calibration is vital, especially in temperature-sensitive environments.
• Material Selection: Corrosion-resistant materials (like those in AltitudeCraft) are a must for harsh conditions.
• Standards Compliance: Brands like CalibraTools and Sisco are top picks for ISO 9001 or ANSI/ASME adherence.

In summary, your best brand depends on your specific needs—whether it’s uncompromising accuracy, rugged durability, or a balance of value and performance.

6. Maintenance, Calibration, and Longevity

A thread gauge is only as good as its last calibration—and nothing shortens a tool’s life like neglect. Proper care and regular calibration ensure your gauges deliver precise results, year after year.

6.1 Cleaning, Storage, and Wear Prevention

Post-Use Cleaning

After every use, clean your thread gauges to remove debris and grit—these tiny intruders can cause scratches, nicks, or even throw off your measurements. For stubborn grime, use a soft-bristle brush and a light solvent, but steer clear of oils or greases, as they can trap contaminants. Dry cleaning methods (compressed air, lint-free cloths) are best.

Material-Specific Tips

Gauges used on abrasive materials like aluminum or castings, or on fine-pitch threads, wear out faster. If this sounds like your workflow, up your cleaning frequency and inspect for signs of wear or corrosion. Even 50 microinches of wear per thread flank can affect pitch diameter—so don’t ignore the small stuff.

Storage and Environmental Control

Store your gauges at 20°C (68°F), the industry reference temperature, to minimize the effects of thermal expansion or contraction. For high-precision applications, keep them in a climate-controlled environment. Always use individual cases to prevent accidental contact damage, and label each case with calibration dates and standards for easy traceability.

6.2 Calibration Techniques and Compliance

Calibration Methods

• Three-Wire Method: This classic technique uses certified thread wires and a micrometer to measure pitch diameter. For best results, use tools with at least 10 microinch resolution and anvils with ≤4.0 microinch parallelism.
• Thread Setting Plug Method: Adjusts ring gauges using reference plugs to ensure tightness compliance.
• Two-Ball Method: An alternative for gauges without setting plugs, using calibrated balls to measure pitch diameter.

Standards and Documentation

• ASME B1.3 governs calibration of threaded plug gauges (major/pitch diameters).
• ISO/IEC 17025 is mandatory for accredited calibration services, guaranteeing NIST traceability and management of measurement uncertainty.
• Tolerance Classes: For high-precision (X-class) gauges, use lab-grade equipment and controlled environments.

Scheduling and Wear Monitoring

• Obtain calibration certificates after each service, detailing measured parameters and uncertainties.
• Schedule recalibrations every 6–12 months (or more frequently for gauges used on abrasive materials).
• Replace gauges when pitch diameter wear exceeds 0.0002”—especially for fine threads.

Advanced Strategies

Consider functional/pitch diameter measurement systems (like Johnson Gage) to reduce wear and calibration cycles. If you have the expertise, in-house calibration with ISO 17025-accredited labs can offer greater control and cost savings.

By following these best practices, you’ll not only extend the life of your thread gauges but also ensure every measurement meets the highest standards of accuracy and reliability.

7. Tutorial Resources and Embroidery Applications

Mastering thread measurement and embroidery tension isn’t just about reading manuals—it’s about seeing, doing, and learning from real-world demonstrations. This section curates the best tutorial resources and explores how precise measurement and innovative tools like Sewtalent magnetic hoops can transform your embroidery workflow.

7.1 Industrial Tutorials: Three-Wire Method and Tools

If the words “three-wire method” make your head spin, you’re not alone. But with the right guidance, this gold-standard technique for measuring pitch diameter becomes surprisingly approachable—even for beginners.

Three-Wire Method: The Precision Standard

The three-wire method stands out as the most accurate way to measure the pitch diameter of external threads. Here’s how it works:

1. Wire Selection:

- Choose wires based on your thread pitch. The “best size” wire is calculated as 0.57735 × pitch, minimizing error sensitivity. For a 0.1" pitch, for example, the ideal wire is 0.0577".

2. Placement:

- Place two wires in adjacent thread grooves to form a stable baseline, then add the third wire parallel to the thread axis.

3. Micrometer Alignment:

- Use a micrometer to measure over the wires. It’s essential to keep the mic perpendicular to the thread axis to avoid skewed results.

4. Calculation:

- Subtract a constant (found in wire charts or machinist handbooks) from your micrometer reading to determine the pitch diameter: \( E = M - \text{Const} \) Where \( E \) is the pitch diameter, \( M \) is the micrometer reading, and \( \text{Const} \) is the pitch-specific constant.

Hands-On Video Insights

YouTube tutorials—like “Pitch Diameter, Wires and Numbers Galore” and “How to Measure Threads - Mitutoyo Thread Gauges”—offer invaluable walkthroughs. In these videos, experts demonstrate:

- Wire Handling: Keeping three wires in place can feel like a juggling act, but with practice, you’ll get the hang of it. Pro tip: Use “best size” wires for stability and accuracy.

- Micrometer Use: Align carefully, and don’t rush—precision is the name of the game.

- Class and Fit: Understanding thread classes (1A, 2A, 3A, etc.) helps you interpret results and choose the right gauge for your application.

Common Pitfalls & Best Practices

- Avoid wires smaller than 0.505 × pitch to prevent thread deformation.

- Always calibrate your gauges against certified standards. Even a 0.001" error in wire diameter can lead to a 0.003" error in pitch diameter.

- For fine threads, a Vernier caliper can help measure threads per inch (TPI) by spanning 1" and counting the peaks.

Emerging Trends

- Video-Based Learning: Visual demonstrations clarify complex steps and demystify the process.

- Interactive Simulations: Advanced tools like CMMs and optical scanners are gaining ground, but the foundational three-wire method remains a staple in tutorials.

Embrace these resources, and you’ll move from thread measurement novice to confident pro—no contortionist skills required.

7.2 Thread Tension in Machine Embroidery

Thread tension is the unsung hero of flawless embroidery. Get it right, and your designs pop with crisp detail. Get it wrong, and you’ll battle puckering, thread breaks, and a world of frustration.

Understanding Tension Settings

- Rayon Thread: Optimal tension generally falls between 100–150g.

- Metallic Thread: Slightly higher, around 170g, to compensate for the thread’s stiffness.

Measuring and Adjusting Tension

- Top Thread: Use a tension gauge to measure the pull. Adjust the tension dial until you hit the sweet spot—firm, but not tight enough to snap the thread.

- Bobbin Thread: Remove the bobbin case, insert the bobbin, and use a bobbin tension gauge or the “drop test” (the bobbin case should descend slowly when held by the thread).

Troubleshooting Common Issues

- Puckering: Usually caused by too much top tension or insufficient stabilizer. Loosen the top thread or add a firmer backing.

- Thread Breakage: May result from excessive tension, old needles, or poor-quality thread. Adjust tension, replace the needle, or try a different thread brand.

- Uneven Stitches: Check for lint buildup, rethread the machine, and ensure both top and bobbin tensions are balanced.

Pro Tips

- Always test on a fabric scrap before launching into your main project.

- Recheck tension after switching thread types or weights.

- For metallic threads, use a larger needle and slow down the machine speed to prevent breakage.

Dialing in your thread tension is part science, part art—but with these guidelines, you’ll be well on your way to professional results.

7.3 Optimizing Embroidery Workflow with Sewtalent

What if you could cut your embroidery hooping time in half, eliminate hoop burn, and extend your tools’ lifespan—all with one upgrade? Enter Sewtalent magnetic embroidery hoops, the secret weapon for garment embroidery professionals.

How Sewtalent Hoops Complement Thread Tension Control

- Even Fabric Tension: The powerful magnetic clamping system ensures your fabric stays flat and taut throughout the embroidery process. This consistent tension helps prevent puckering and skipped stitches, making it easier to achieve perfect results even with challenging fabrics.

- No Hoop Burn: Unlike traditional screw-based hoops, Sewtalent’s magnetic force distributes pressure evenly, protecting delicate fabrics from unsightly marks.

- PPSU Durability: Crafted from high-grade PPSU engineering plastic, Sewtalent hoops withstand daily industrial use—lasting up to 40× longer than standard plastic hoops.

- Lightning-Fast Hooping: With Sewtalent, you can hoop garments up to 50% faster. The intuitive design and strong magnets mean less fiddling, more productivity, and less operator fatigue.

Why Choose Sewtalent for Garment Embroidery?

- Versatility: Compatible with over 200 embroidery machine brands and available in more than 17 sizes, there’s a Sewtalent hoop for nearly every garment project.

- User-Friendly Design: Guiding lines and ergonomic features make fabric alignment a breeze, even for beginners.

- Long-Term Savings: The extended lifespan and reduced defect rates translate to real cost savings over time.

Real-World Impact

Embroidery studios and professionals worldwide have embraced Sewtalent hoops for their reliability and efficiency. Whether you’re running a high-volume shop or perfecting your craft at home, Sewtalent transforms hooping from a chore into a streamlined, satisfying step in your creative process.

Ready to experience the difference? Discover how Sewtalent can supercharge your embroidery workflow—because precision and speed shouldn’t be mutually exclusive.

8. Conclusion: Key Takeaways and Implementation Advice

Thread gauges are the backbone of precision in manufacturing and embroidery. Choosing the right gauge, mastering measurement techniques, and maintaining your tools ensures consistent, high-quality results. For garment embroidery, integrating Sewtalent magnetic hoops delivers a leap in efficiency—cutting hooping time, boosting durability, and protecting your fabrics. Whether you’re inspecting threads or optimizing your embroidery workflow, investing in the right tools and best practices pays dividends in quality and productivity.

9. FAQ on Thread Gauges

9.1 Q: How many turns should a NOGO gauge make before stopping?

A: A NOGO gauge should not engage more than three turns into a properly threaded part. If it goes beyond this, the thread is oversized and out of tolerance.

9.2 Q: How do you clean thread gauges?

A: Use a soft-bristle brush to remove debris, followed by a dry air blow. For stubborn grime, a light solvent can be applied, but avoid harsh chemicals to prevent corrosion.

9.3 Q: What is the three-wire method?

A: The three-wire method is a precise technique for measuring the pitch diameter of external threads. It involves placing three calibrated wires in the thread grooves and measuring over them with a micrometer, then subtracting a constant to calculate the pitch diameter.
