HOLIAUMA Embroidery Machine Manual Mastery: Technical Guide & Operational Insights

1. Introduction to HOLIAUMA Machine Documentation

Navigating the world of holiauma starts with the documentation that supports every stitch, adjustment, and creative leap. Whether you run a busy studio or you are just getting started, the manuals are your compass for technical specifications, controller operations, safety protocols, and troubleshooting. This guide distills essentials from official manuals, video walkthroughs, and expert resources across eight key operational dimensions.

2. Accessing Official HOLIAUMA Manuals & Technical Specifications

Official HOLIAUMA documentation is the backbone of efficient operation, providing clear paths to mastery and safe, productive workflows. Here is how to find and use the right resources.

2.1 Authorized Sources for Manual Downloads

• Manufacturer & Distributor Websites: caralbo.com (PDF manuals for models such as HO-1501 XXL) and overlock.com.ua (Dahao A15 controller resources and related models).
• Retailer Portals: SewTech Store and other authorized suppliers host manuals for multi-head systems like HCR-X1504/X1506/X1508 and the HO-1501 XXL, plus setup videos and accessory guides.
• Software Integration: EmCAD for HAO A18 includes setup guidance for wireless design management and controller connectivity.

Model highlights from official documentation:

• HO-1501 XXL: Extended table tops, standing wheels, USB driver setup.
• HCR-X1504/X1506: Cap frame installation and removal steps.
• Dahao A15/C88: Color-change workflows, memory management, and advanced parameters.

Pro tip: If a manual is not publicly listed, contact HOLIAUMA support or an authorized distributor and verify file authenticity before use.

2.2 Critical Technical Parameters Across Models

Controller operations:

• EmCAD: Install on a computer, connect via Wi‑Fi, and upload .DST, .PES, .EXP design files for review on the HAO A18 panel.

Advanced features:

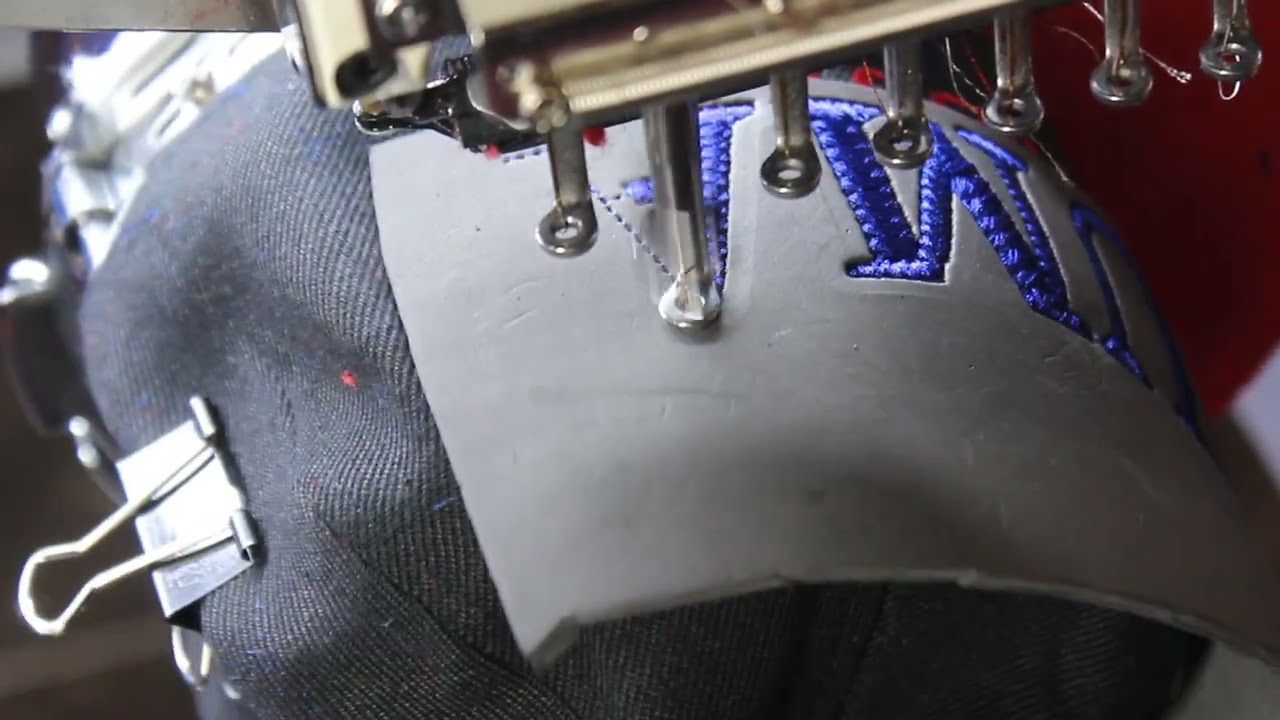

• Cap Embroidery: Y‑axis reach up to 100mm; recommended speeds at 800 SPM or higher.
• Laser Alignment: Adjustable pointers for precise fabric positioning.

Safety & troubleshooting essentials:

• Manuals emphasize power safety, thread handling, and emergency restart protocols.
• Position recovery uses "Origin" or "Top" functions; common fixes include addressing connectivity issues and thread breaks.

For workflow stability, using magnetic embroidery frames can help maintain fabric alignment during larger designs.

3. Advanced Troubleshooting Protocols & Maintenance

Even advanced machines encounter hiccups. With robust manuals and proven maintenance strategies, you can attack errors, limit downtime, and keep production moving.

3.1 Decoding Error Codes & Predictive Maintenance

Root cause analysis:

• 5 Whys Methodology: Start with the symptom (e.g., thread break), probe “why” until you reach an actionable fix such as tension inconsistency from worn springs or outdated firmware.

Predictive alerts:

• IoT monitoring flags anomalies like needle bar vibration or encoder drift. If drift exceeds 0.3mm, schedule professional servicing.

Firmware & software checks:

• Keep EmCAD and machine firmware current to prevent compatibility issues and random errors.

Common issues & solutions:

Thread tension adjustments:

• H‑Test Method: Stitch an "H" on cutaway stabilizer; target a 1:2 top‑to‑bobbin ratio.
• Metallic threads: Lower top tension to 180–220 cN and use heavier stabilizers on curves.
• Symptom‑specific tweaks: If bobbin thread surfaces, adjust top tension dial in ⅛ turns; aim for 35–40% top thread visibility.

Preventive measures:

• Daily: Clean tension discs and bobbin cases.
• Weekly: Verify needle bar alignment—over 0.5mm misalignment adds thread breaks.

Scheduled maintenance:

Advanced maintenance:

• Encoder validation at 1,200 SPM; service if drift > 0.3mm.
• Replace entire needle sets together for uniform performance.

Software & connectivity:

• EmCAD via Wi‑Fi; ensure file compatibility and restart devices for connection issues.
• IoT integration with H‑Sync Pro to track stitches, thread usage, and machine health.

3.2 Optimizing Fabric Stability with Modern Hooping Solutions

If fabric slippage or uneven tension slows you down, magnetic embroidery hoops can be a game‑changer.

Case study:

• Users reported slippage defects dropping from 9% to 1.2% when adopting magnetic stabilization systems such as Sewtalent.

Why it works:

• A magnetic hoop for embroidery machine setups provides even, reliable tension across fabrics from delicate silks to heavy denim, and the tool‑free workflow speeds production.

Sewtalent integration:

• Powerful magnetic clamping, durable PPSU construction, and a user‑friendly design in more than 17 sizes for garment embroidery (not caps/hats).

Bottom line: Switching to modern magnetic hooping is like trading in a flip phone for a smartphone—speed, stability, and precision will make you wonder how you managed without it.

4. Mastering BECS-A15 Controller Operations

The BECS‑A15 is a digital command center that turns embroidery into a highly controllable workflow—from intricate logos to seamless color changes.

4.1 Touchscreen Workflows & Parameter Customization

Step‑by‑step workflow:

1. Pattern selection: Load via USB; preview, select, and manage up to 800 stored patterns with 100 million stitches of memory. - Pro tip: Verify .DST, .PES, .EXP formats before uploading.
2. Parameter adjustment: - X/Y scaling: 20%–200%. - Rotation: 0°–360°. - Repetition modes: Set X/Y intervals and counts for automated duplication. - Stitch precision: 0.1mm minimum intervals; 0.1mm–12.7mm stitch length.
3. Embroidery initiation: Start/pause/trim with tactile buttons for control during complex jobs.

Customization highlights:

• Save pattern settings and color orders for quick recall.
• Use a gentle touch to preserve the high‑luminance LCD.

4.2 Automated Color-Changing Sequences Demystified

• Automatic mode: Assign colors to needle bars; the controller executes the sequence.
• Manual mode: Trigger changes from the panel for custom work or on‑the‑fly fixes.
• Color sequence editor: Reorder, reassign, and preview before stitching.

Needle bar assignments & thread break detection:

• Assign each design color to a specific needle bar for accuracy.
• Thread break detection halts the job and alerts instantly for quick recovery.

5. Comparative Analysis: Single vs Multi-Head Configurations

Choosing between single‑head and multi‑head models is about aligning capability with output goals.

5.1 HO-1501 XXL vs HCR-X1504 Performance Metrics

Key takeaways:

• HO-1501 XXL: Expansive area and robust memory for large, intricate pieces.
• HO-1502/HO-1504: Parallel processing excels in bulk production of smaller items.

5.2 Material Compatibility Across Models

Stabilizer requirements & handling:

• Delicate fabrics (organza, silk): Dynamic counterbalance reduces needle deflection to 0.03mm; up to 400,000 stitches on fragile materials with lightweight cutaway stabilizers.
• Sturdy materials (denim, leather): Use specialized hoops/cap frames and medium/heavy stabilizers to prevent puckering.
• Complex surfaces (caps, towels): Multi‑head machines with magnetic hooping stabilize irregular or multi‑layered items; for garment embroidery (not caps/hats), Sewtalent magnetic hoops minimize slippage.

When paired with magnetic hoops for embroidery machines, both single‑ and multi‑head setups maintain even tension for consistent results.

6. Preventive Maintenance Best Practices

A disciplined maintenance rhythm keeps performance high and unexpected stoppages low.

6.1 Lubrication Schedules & Tool Kits

Daily maintenance:

• Main shaft oiling: One drop of ISO VG 10 embroidery oil with a needle oiler.
• Bobbin area hygiene: Compressed air for lint; a business card for tension discs.

Weekly / every 50 hours:

• Color change cam lubrication: Mystic #2 grease on cam tracks; cycle needles 1–15; wipe excess.
• Y‑rail maintenance: Remove covers (T15 Torx), apply 2mg grease per 10" of rail, manually cycle carriage.

Monthly / long‑term:

• Encoder validation: Run empty at 1,200 SPM; if touchscreen position drift exceeds 0.3mm, arrange professional service.

Pro tips:

• Log maintenance for warranty support.
• Wipe needles with alcohol every 50,000 stitches to extend life.

6.2 Rotary Hook Maintenance & Debris Management

Daily debris management:

• Compressed air clears lint from the bobbin housing.
• Use a business card to clean tension discs—avoid metal tools.

Tension calibration:

• H‑Test: Stitch an "H" on cutaway stabilizer; aim for a 1:2 top‑to‑bobbin ratio, adjusting in ⅛‑turn increments.

Advanced tools & trends:

• Sewtalent‑compatible maintenance tools streamline cleaning and alignment for garment embroidery.
• IoT systems like H‑Sync Pro track stitch completion, thread usage, and overall health.
• Magnetic hooping can reduce fabric slippage by up to 89% and defects by 92%.

Warranty & support:

• Select models such as HO1502H‑AI feature extended motor coverage.
• Access 24/7 technical assistance via WeChat/WhatsApp and onsite repairs in over 180 countries.

Considering long‑term value, even an embroidery machine for beginners benefits from routine oiling, smart cleaning, and correct tools.

7. Optimizing Garment Embroidery Workflows

Success hinges on two foundations: accurate alignment and disciplined tension control.

Fabric Alignment: The Foundation of Flawless Stitching

• Preparation: Smooth fabric and match stabilizer to material—lightweight cutaway for delicate fabrics; medium/heavy for denim or sweatshirts.
• Hooping technique: For garment embroidery, magnetic hoop systems like Sewtalent deliver even tension and minimize slippage; reference lines support pinpoint alignment on plackets or zippered garments.
• Batch consistency: Use the same hoop size and references to maintain placement across runs.

Tension Calibration: The Unsung Hero

• H‑Test: Stitch an "H" on production fabric; target a 1:2 top‑to‑bobbin ratio.
• Fine‑tuning: Adjust in ⅛ turns; reduce top tension and add stabilizer for metallic/specialty threads.
• Routine checks: Confirm tension spring elasticity and needle alignment before each run.

Workflow Pro Tips

• Keep it clean: Clear lint from bobbin and tension discs daily.
• Document settings: Record proven tension and alignment per garment type.

8. Conclusion: Maximizing Machine Longevity

Daily oiling, routine cleaning, and precise tension calibration prevent downtime and protect your investment. Pair solid maintenance with modern hooping and clear documentation to deliver flawless stitches, job after job.

9. HOLIAUMA Manual FAQ

9.1 Q: How do I recover the embroidery position after a power loss?

A: Use the controller’s "Origin" or "Top" functions as outlined in the manual. After restarting, select "Origin" to return the frame to the design’s starting point, or use "Top" to resume from the beginning. Verify frame alignment before stitching.

9.2 Q: What should I check if I experience frequent thread breaks?

A: Inspect the tension spring for elasticity, confirm the needle is straight and aligned, clean tension discs and bobbin case, and run an "H" test to verify a 1:2 top‑to‑bobbin ratio.
