Husqvarna Viking Designer 1 Hoops: Expert Guide to Compatibility, Usage & Optimization

1. Introduction: Mastering Embroidery with Husqvarna Viking Designer 1

The husqvarna viking designer 1 stands as a legend in the embroidery world—a machine that helped define a generation of creative possibility. Yet, even the most iconic tools come with their own set of challenges. For Designer 1 owners, the journey often begins with navigating hoop compatibility, mastering calibration, and handling a spectrum of materials without frustration. The good news? Solutions abound, from understanding OEM hoop specs to embracing modern innovations like magnetic hoops. In this guide, you’ll discover how to tackle these hurdles head-on—unlocking smoother hooping, precise calibration, and the confidence to embroider on anything from delicate silks to heavy denim. Ready to elevate your Designer 1 experience? Let’s dive in.

Table of Contents

• 1. Introduction: Mastering Embroidery with Husqvarna Viking Designer 1
• 2. Hoop Compatibility: Which Models Work with Designer 1?
• 3. Hoop Installation & Calibration: Step-by-Step Mastery
• 4. Maximizing Embroidery Area: Beyond Standard Hoops
• 5. Specialized Material Techniques: Delicates to Heavy Fabrics
• 6. Long-Term Maintenance: Preserving Your Investment
• 7. Conclusion: Future-Proofing Your Embroidery Workflow
• 8. FAQ: Husqvarna Designer 1 Hoop Essentials

2. Hoop Compatibility: Which Models Work with Designer 1?

Selecting the right husqvarna viking embroidery hoops for your Husqvarna Viking Designer 1 is both an art and a science. With a machine rooted in early 2000s engineering, compatibility isn’t always crystal clear—especially as new hoop technologies emerge. Let’s demystify your options.

2.1 Original Hoop Specifications & Limitations

When it comes to OEM (Original Equipment Manufacturer) hoops, the Designer 1 draws from the classic Viking system. While explicit compatibility charts for this model are rare, several key insights emerge from user forums, documentation, and hands-on experience:

- Standard Spring Hoop (100x100mm): This is the foundational hoop for many Viking machines, and is widely regarded as compatible with the Designer 1. Its compact size makes it ideal for smaller motifs and test runs.

- Large Hoop (240x150mm): Frequently cited in both manuals and user reviews, this hoop offers a generous stitching field for larger designs.

- Other Viking Hoops: There are mentions of mini spring hoops (40x40mm), midsize hoops (170x100mm), and specialty hoops like the Endless Embroidery Hoop (180x100mm) and Mega Hoop (240x150mm). However, these often require newer attachment mechanisms or updated firmware, which may not be supported by the Designer 1’s legacy hardware.

Note: Always verify physical fit and attachment before starting a project. The Designer 1’s embroidery unit is robust, but its “brain” (software) is locked to certain hoop sizes and formats (SHV, VP3, VIP, HUS).

User Tips:

- Physical Fit: Before buying any hoop, check that it physically attaches to your embroidery unit and is recognized by the machine.

- Software Limitations: The Designer 1 relies on floppy disks and older software, so hoops requiring firmware updates or digital transfers may not be fully compatible.

- Consult the Pros: When in doubt, reach out to Husqvarna Viking support or an authorized dealer for model-specific advice.

2.2 Third-Party Alternatives: Balancing Cost & Performance

As the embroidery world evolves, so do your hooping options. Third-party solutions—especially magnetic hoops—are making waves for their ease of use and advanced engineering. Among these, Sewtalent stands out for garment embroidery hooping.

Why Consider Magnetic Hoops?

Traditional hoops rely on manual screw adjustments, which can be tedious and inconsistent—especially with thick or slippery fabrics. Magnetic hoops, like those from Sewtalent, use powerful magnets to clamp fabrics quickly and evenly, reducing hoop burn and slippage.

Sewtalent Magnetic Hoops:

- Durability: Crafted from BASF Ultrason P3010 PPSU engineering plastic, Sewtalent hoops are tested to be up to 40 times more durable than standard plastic hoops. This means fewer replacements and less frustration over time.

- Magnetic Clamping: The N50-grade magnets provide robust, even tension across a wide range of fabric thicknesses, from delicate silks to multi-layer denim.

- Efficiency: Installation and removal are quick and effortless, slashing hooping time by up to 90% compared to screw-based hoops.

- Compatibility: Sewtalent hoops are designed for garment embroidery and are compatible with a broad range of machines, including Husqvarna Viking models (always confirm bracket compatibility for your specific unit).

Bottom Line: If you’re looking to streamline your workflow, reduce fabric waste, and enjoy a smoother hooping experience, exploring magnetic hoops like Sewtalent is a smart move. Their industrial-grade durability and user-friendly design make them a favorite for both professionals and hobbyists.

3. Hoop Installation & Calibration: Step-by-Step Mastery

Getting the most out of your Designer 1 isn’t just about picking the right hoop—it’s about installing and calibrating it with precision. Let’s break down the process so you can stitch with confidence, not guesswork.

3.1 Sensor Alignment & Tension Best Practices

Installation and Preparation:

- Stabilizer First: Always place a tear-away stabilizer under your fabric before hooping. This prevents distortion and ensures your design stays crisp.

- Hoop Positioning: Remove the accessory tray and locate the embroidery arm’s socket at the back of the machine for proper hoop attachment.

- Fabric Prep: Press your fabric to remove folds—wrinkles can lead to misalignment.

- Tension Management: Magnetic hoops with alignment grids help maintain even tension and prevent shifting during embroidery. Learn how to use husqvarna viking endless embroidery hoop for continuous designs via multi-position techniques.

Accessory Guides:

- Metal Fabric Guides: Use magnets to secure rolled fabrics or garments, keeping them from falling into the stitching area—especially helpful for quilts or bulky pieces.

Positioning and Alignment:

- Design Centering: Align the center of your hoop with the starting point of your design. Use the machine’s built-in calibration to match center marks.

- Weight Distribution: Regularly check the magnetic hoop’s grip and fabric weight to avoid slippage.

Calibration Process:

- Hoop Recognition: Ensure the machine recognizes the hoop size. For new hoops, a firmware update may be necessary.

- Needle Alignment: Attach the hoop and verify the needle drops into the template’s center hole. If not, recalibrate by removing previous data and adjusting the hoop position.

- Technical Adjustment: For advanced users, set the bobbin case gap to 0.5 ± 0.05 mm using the screw (A) and stud (C) as outlined in service manuals. Make sure the cogwheel (B) is positioned correctly during mounting.

Troubleshooting Common Issues:

Pro Tip: Each time you power up your Designer 1, the machine prompts you to calibrate the embroidery unit. Always remove the hoop before calibration and listen for the “click” when attaching the hoop—if it’s not fully engaged, the machine won’t recognize it, and you’ll get a “wrong hoop” warning.

3.2 Solving 'Wrong Hoop' Errors

Few things disrupt your creative flow like a “wrong hoop” error. Here’s how to troubleshoot and get back on track:

- Check Attachment: Ensure the hoop is fully clicked into place. Partial engagement is the most common cause of recognition errors.

- Sensor Alignment: If the machine still doesn’t recognize the hoop, inspect the sensor area for debris or misalignment.

- Firmware & Settings: For new or third-party hoops, verify that your machine’s firmware supports the hoop size. Sometimes, updating or resetting the firmware resolves recognition issues.

- Gear Inspection: If mechanical alignment is off, inspect the cogwheel and mounting screws for proper orientation.

- Recalibration: Remove previous calibration data and repeat the alignment process, ensuring the needle aligns with the center hole.

Quick Troubleshooting Flowchart:

1. Hoop not recognized? → Reattach and listen for the click.

2. Still not recognized? → Clean sensor area, check for debris.

3. Error persists? → Verify firmware compatibility and reset if needed.

4. Mechanical issue? → Inspect gear and mounting orientation.

5. Last resort: → Consult the service manual or reach out to Husqvarna Viking support.

Remember: Patience and methodical checks are your best friends. With a little practice, you’ll master hoop installation and calibration—turning every project into a showcase of precision and artistry.

4. Maximizing Embroidery Area: Beyond Standard Hoops

Dreaming bigger with your Husqvarna Viking Designer 1? Expanding your embroidery area isn’t just about owning larger hoops—it’s about smart planning, precision handling, and leveraging every inch of your machine’s potential. Let’s break down advanced techniques and practical strategies to help you stitch bolder, broader, and more complex designs—without the headache.

4.1 Multi-Hoop Project Planning Strategies

When your creativity outgrows a single hoop, it’s time to master multi-hoop project planning. The Designer 1 supports a range of hoop sizes, each optimized for different projects:

Note: The Majestic Hoop is not compatible with the Designer 1, but you can still achieve large-scale results using multi-hoop techniques with the Mega or Large hoops.

Registration Marks & Alignment

For seamless multi-hoop projects, start by marking your fabric with registration points—tiny stitched marks or water-soluble pen lines. These act as your North Star when repositioning the hoop for the next section. Many modern Viking models (and software) offer built-in registration mark placement, but you can adapt this method manually for the Designer 1.

SPI (Stitches Per Inch) Adjustments

When working on large designs, adjust your SPI (stitches per inch) thoughtfully—8 SPI for bold, visible lines, or 10 SPI for finer, more intricate detail. This tweak helps maintain design consistency across multiple hoopings, especially when joining sections.

Multi-Position Hooping

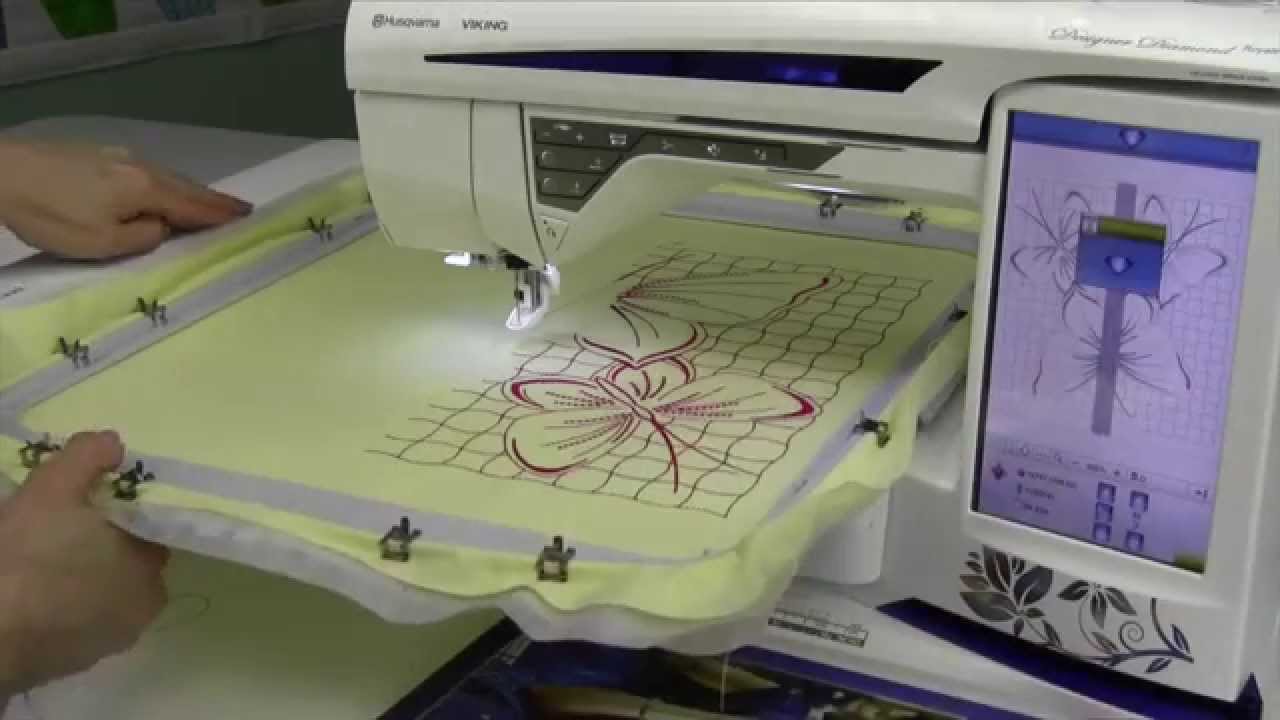

If your design exceeds the hoop’s limits, use the “multi-position” technique:

• Mega Hoop: Stitch the first section, then slide the hoop along the fabric (without removing it) to continue the design. This avoids re-hooping and keeps alignment tight.
• Large Hoop: For projects like quilt blocks or home décor, manually reposition the fabric and use alignment marks to match up the next section.

Software Integration

Embroidery software (like Embird) can help you split and merge designs, plan overlaps, and print templates for precise placement. For truly gigantic projects, this digital planning is your secret weapon.

Real-World Example

Imagine embroidering a quilt border: stitch one half, then reposition the hoop using your registration marks and alignment notches. With careful planning, your stitches will meet perfectly, creating the illusion of a single, uninterrupted design.

4.2 Fabric Handling for Oversized Designs

Managing fabric bulk is the unsung hero of successful large-area embroidery. Oversized projects—think quilts, drapes, or jacket backs—demand more than just a big hoop; they require strategic fabric control.

Stabilizer Selection

Always choose a stabilizer wide enough for your hoop—20-inch tear-away stabilizer is a safe bet for Mega or Majestic-sized projects. For extra support, fuse interfacing (like fusible fleece or Shapeflex) to the fabric’s back, especially when working with dense or heavy designs.

Magnetic Guides & Fabric Management

Borrowing from YouTube demonstrations and advanced Viking techniques, use magnetic guides or hoop holders to keep rolled fabric securely out of the embroidery area. Place magnets or guides along the hoop’s edge to prevent the bulk from slipping into the stitching zone—a lifesaver for quilts or garments.

Rolling & Pinning

Roll excess fabric tightly and secure it with fabric clips or pins, keeping the working area clear. For garments, roll sleeves or pant legs away from the hoop and use magnetic guides to hold them in place.

Pro Tips from the Pros

• Always clear the area around your machine before starting a large project—fabric can easily catch or drag.
• If your machine stitches a tiny reference mark at the start, use this as a checkpoint when repositioning for the next section.
• For designs split across multiple hoopings, use the design positioning feature to nudge your needle exactly onto the registration mark before resuming stitching.

By combining smart hoop selection, precise planning, and thoughtful fabric management, you’ll unlock the full creative potential of your Designer 1—no matter how ambitious your project.

5. Specialized Material Techniques: Delicates to Heavy Fabrics

Every fabric tells a different story—and your hooping technique should adapt accordingly. From whisper-thin silks to rugged denim, here’s how to conquer any material with confidence.

5.1 Silk & Knits: Water-Soluble Stabilizer Methods

Delicate fabrics like silk, satin, and lightweight knits can be a nightmare if not handled with care. The secret? The right stabilizer and gentle hooping.

#### Step-by-Step Guide

1. Choose the Right Hoop: Use a large hoop (such as 360x200mm) to minimize fabric stretching and distribute tension evenly.

2. Layer Your Stabilizer: Place a water-soluble stabilizer between the fabric and the hoop. This prevents direct contact with the needle and reduces puckering or distortion.

3. Gentle Hooping: Tighten the hoop just enough to hold the fabric taut—avoid over-tensioning, which can warp delicate materials.

4. Alignment Stitches: At the start and end of your design, add alignment stitches as reference points. This is especially useful for multi-part or endless embroidery projects, as seen in Designer SE endless hoop techniques.

5. Machine Adjustments: Lower the presser foot pressure (setting 2 on some Viking models) to avoid crushing the fabric. For knits, use a cut-away or adhesive-backed stabilizer for extra grip.

6. Repositioning: For large or continuous designs, use the “clip & flip” method: loosen the hoop, slide the fabric, and realign using your reference marks.

#### Troubleshooting

- Puckering: Try a softer stabilizer or reduce hoop tension.

- Slippage: Use adhesive-backed stabilizer or magnetic guides to hold edges in place.

5.2 Denim & Towels: High-Tension Solutions

Thick, heavy fabrics like denim and towels demand serious holding power. Enter high-tension hooping solutions—and for garment embroidery, magnetic hoops for viking embroidery machines like Sewtalent bring a game-changing advantage.

#### Why Magnetic Hoops Shine

Traditional screw-based hoops often struggle with multi-layer or dense materials, leading to uneven tension or fabric slippage. Sewtalent’s N50-grade magnets, by contrast, provide robust, even clamping—capable of securely holding up to eight layers of fabric. This means less hoop burn, fewer misalignments, and a smoother embroidery experience.

#### Step-by-Step for Heavy Fabrics

1. Hoop Selection: Choose a magnetic hoop (such as Sewtalent) sized appropriately for your project.

2. Stabilizer: Use a tear-away stabilizer for towels or denim. For extra thickness, double up the stabilizer layers.

3. Hooping Process: Lay the fabric and stabilizer in the magnetic hoop, allowing the magnets to automatically adjust to the fabric’s thickness—no manual screw tightening required.

4. Tension Consistency: The magnetic force ensures even pressure across the entire hoop, minimizing the risk of shifting or puckering, even on bulky seams.

5. Edge Security: For extra-large or heavy items, use magnetic guides to keep rolled fabric away from the embroidery area.

#### Comparison: Magnetic vs. Screw-Based Hoops

Bottom Line: For anyone embroidering on heavy fabrics, especially in garment applications, magnetic hoops for viking embroidery machines like Sewtalent deliver superior holding power, save time, and protect your materials—making them a must-have for both professionals and hobbyists.

6. Long-Term Maintenance: Preserving Your Investment

Your embroidery hoops are the unsung workhorses of your studio. Treat them well, and they’ll reward you with years of flawless performance. Here’s how to keep your Husqvarna Viking Designer 1 hoops in peak condition.

6.1 Cleaning & Lubrication Schedule

A little regular TLC goes a long way. Follow this monthly maintenance checklist to keep your hoops—and your machine—running smoothly:

• Sensor Area Debris Removal: Wipe down the metal rims and internal components with a soft cloth to remove fabric fibers, stabilizer residue, or lint that can interfere with hoop recognition.
• PPSU Hoop Hinge Lubrication: If you’re using hoops with PPSU engineering plastic hinges (such as those found in advanced magnetic hoops), apply a machine-specific lubricant to the hinge and screw areas. This reduces friction, prevents squeaking, and prolongs the life of moving parts.
• Check for Wear: Inspect hoop clips, arms, and springs for signs of wear or damage. Proactive replacement prevents downtime and keeps your projects on track.
• Storage: Store hoops in a dry, dust-free environment. Avoid stacking hoops to prevent warping or bending.

6.2 Clip Replacement & Parts Care

Even the toughest hoops need occasional part replacement. Here’s a quick disassembly and care guide:

1. Disassemble the Hoop: Loosen and remove the retaining screw, then take off the outer hoop. Extract internal components like the long screw, drum, and spring.
2. Replace Worn Parts: Align new clips or springs with the drum, ensuring proper seating.
3. Reassemble Carefully: Reattach the outer hoop and tighten the screw gradually, checking for smooth operation and alignment.
4. Sourcing Parts: Find husqvarna viking hoops for sale through authorized dealers. For best results, use OEM (Original Equipment Manufacturer) parts when possible. If compatible alternatives are available, ensure they meet the same quality standards.

Pro Tip: Routine cleaning, timely lubrication, and proactive part replacement will extend the life of your hoops and ensure your embroidery stays precise and trouble-free.

7. Conclusion: Future-Proofing Your Embroidery Workflow

As you reflect on the journey with your Husqvarna Viking Designer 1, one truth stands out: the right hooping strategy can make or break your embroidery experience. From decoding OEM hoop compatibility to mastering calibration and material handling, every step shapes the quality and ease of your creative process. Regular maintenance—like cleaning, lubrication, and timely clip replacement—preserves your investment and ensures years of smooth operation.

Looking ahead, the embroidery world is abuzz with innovation. magnetic embroidery hoops for husqvarna viking are becoming the gold standard, offering efficiency and fabric protection that traditional frames can’t match. For vintage machines like the Designer 1, these new accessories promise to unlock even greater creative freedom and workflow optimization. Stay curious, keep experimenting, and embrace the tools that help your artistry—and your machine—stand the test of time.

8. FAQ: Husqvarna Designer 1 Hoop Essentials

8.1 Q: What hoop sizes are compatible with the Husqvarna Viking Designer 1?

A: The Designer 1 supports standard spring hoops (100x100mm), large hoops (240x150mm), and several other Viking hoops such as mini spring (40x40mm), midsize (170x100mm), and specialty hoops. Always check physical fit and software recognition before starting a project.

8.2 Q: How do I update the firmware to support new hoops or features?

A: Firmware updates for the Designer 1 are typically distributed via authorized Husqvarna Viking dealers or official channels. Updates may expand hoop compatibility or add new features. Always follow manufacturer instructions and back up your designs before updating.

8.3 Q: Where can I find vintage or discontinued accessories for my Designer 1?

A: Vintage hoops and accessories can often be sourced through authorized dealers, online marketplaces, or sewing forums. When purchasing, verify compatibility with your specific machine model and embroidery unit.

8.4 Q: What stabilizer should I use for different fabrics?

A: For woven fabrics, tear-away stabilizer is recommended; for knits, use cut-away or adhesive-backed stabilizer. Delicate materials benefit from water-soluble stabilizers, while heavy fabrics like denim or towels may require multiple layers or specialty products.

8.5 Q: My machine displays a "wrong hoop" error—how can I fix it?

A: First, ensure the hoop is fully clicked into place. If the error persists, check for debris in the sensor area, verify firmware compatibility, and recalibrate the hoop position. Consult your manual or dealer for persistent issues.
