Master Thread Tension: Ultimate Guide to Flawless Stitches

1. Introduction to Thread Tension Mastery

Thread tension is the hidden driver of clean, professional embroidery. When its off, youll see loops, puckers, or snapped threads; when its right, stitches lock neatly and designs look crisp.

In this guide, youll learn how tension systems work, how to diagnose and fix common issues, how to calibrate by machine type, and how materials and threads affect balance. Youll also see the role of tools, maintenance, and fabric-holding methods as you choose an embroidery sewing machine that fits your goals and projects.

Well also touch on stabilizing methods that reduce distortion on tricky fabrics, including how magnetic hoops for embroidery can keep layers flat so stitches land accurately.

2. Thread Tension Fundamentals: How It Really Works

Understanding tension is like tuning an instrument: each part must work in harmony for stitches to "sing."

2.1 Mechanics of Tension Discs and Regulators

At the core of sewing and embroidery machines are tension discs, a regulator (dial/knob), and thread guides.

• Tension discs act like "brakes" on the thread; the regulator controls how firmly the discs press together. Clockwise tightens (higher numbers), counterclockwise loosens (lower numbers).
• Older machines typically use two discs with a screw or knob.
• Modern computerized embroidery sewing machines often add a third disc and digital control for precise adjustments.
• Thread guides add subtle resistance and stabilize the path; skipping one throws balance off.
• Bobbin tension is set by a spring in the bobbin case and adjusted with a small screwiny turns make a big difference.

Thread each guide with the presser foot up so the discs are open and the thread seats correctly.

2.2 The TopBobbin Tension Relationship

The needle (top) thread and bobbin thread pull against each other. Balanced tension locks the stitch in the fabrics center; an imbalance drags one thread to the opposite side.

• Top tension too tight: bobbin thread shows on the top.
• Top tension too loose: loops appear on the underside.

Test on scrap fabric with contrasting top/bobbin colors so imbalances are obvious.

2.3 Key Factors Affecting Balance

Tension is not set-and-forget. It shifts with:

• Thread type: Cotton grips more than smooth polyester; metallic is delicate and prefers very loose top tension.
• Fabric weight: Denim or neoprene may need higher upper tension (dial ~8); silk chiffon often needs a lighter touch (around 3).
• Stitch type: Zig-zag can pull bobbin thread to the top more easily than straight; minor tweaks help.
• Batting/interfacing: Added drag on the top thread usually calls for loosening upper tension.

Best practices:

• Thread with the presser foot up.
• Match needle size to thread/fabric.
• Clean tension discs; lint throws off settings.

3. Step-by-Step Troubleshooting for Common Tension Issues

Even pros face looping, puckering, and thread breaks. Use this plan to diagnose fast and stitch clean.

3.1 Fixing Looping Stitches and Thread Breaks

Looping under fabric?

• Symptoms: Loops on the underside, sagging top thread, incomplete zig-zag.
• Fixes: 1. Verify the full thread path; missed guides are a top cause. 2. Re-thread both top and bobbin, ensuring the take-up lever is seated. 3. Increase top tension gradually (e.g., 4 5 6) and test on scraps. 4. Check spool orientation: cross-wound feeds from the end; stacked feeds from the side.

Thread breakage?

• Symptoms: Snapping, fraying at the needle, sudden breaks.
• Fixes: 1. Replace old/fragile thread. 2. Swap a worn or burred needle. 3. Start looser, then tighten until breaks stop. 4. Use thread nets for metallics; confirm spool caps and check for burrs at discs or needle plate.

3.2 Eliminating Puckering and Fabric Distortion

Puckering or tight stitches?

• Loosen top tension (e.g., 4 3).
• Check bobbin tension; it should offer slight, smooth resistance.
• Re-thread and test on scrap matching your material.

Pro tip: A well-fitted magnetic embroidery hoop with an even clamping system (as with Sewtalent magnetic hoops) spreads pressure uniformly, helping minimize distortion and puckering on stretchy or tricky fabrics.

3.3 Quick-Reference Troubleshooting Checklist

1. Re-thread top and bobbin.
2. Clean lint from tension discs and bobbin area.
3. Test on scrap fabric first.
4. Check needle/thread compatibility.
5. Adjust in small increments.
6. Consult your manual for typical embroidery ranges (often 35).
7. Use thread nets for specialty threads.
8. Verify every guide from spool to needle.

4. Machine-Specific Tension Calibration Guide

Different machines demand different calibration. Dialing in by type delivers crisp, balanced stitches.

4.1 Domestic Machine Adjustments: Front vs. Top-Loading Bobbins

Front-loading bobbin cases:

• Adjustment screw: Use the larger screw on the case (not the tiny holding screw).
• Mark the factory position before turning.
• Increase tension by turning clockwise in 1/4 turns; decrease counterclockwise.
• Test on scraps until top and bottom threads meet in the middle.

PatternReviews "Yoyo Test": hold the bobbin case by the thread and give a gentle bounce. A fast drop = too loose; barely moving = too tight; aim for a slow, controlled descent.

Top-loading bobbin cases:

• Often fixed; adjust upper tension instead.
• Start near factory (around 5.0 for lightweight threads).
• For heavier threads, reduce top tension to 2.03.5.
• Thread with presser foot up.

4.2 Industrial Machine Optimization

Industrial systems are precise and built for heavier work.

• Tension discs/regulator: clockwise = tighter; counterclockwise = looser.
• Thread take-up spring: set to 46 mm for smooth flow.

Steps:

1. Measure with a spring dynamometer (typical 1.04.5 N depending on thread).
2. Balance tensions: - Start top tension around 4.5 on the dial; adjust in 0.5 steps. - If needed, tweak bobbin tension.
3. Confirm every guide is threaded.

Document settings for repeatable results.

4.3 Embroidery Machine Special Settings

• Bobbin tension gauges (e.g., TOWA): 182 g for general embroidery; up to 253 g for caps.
• Satin stitch test (MadeiraUSA): The back should show ~1/3 centered bobbin thread flanked by ~1/3 top thread on each side. Too much bobbin thread = top too tight; too little = top too loose.
• Typical top tension targets: rayon ~100120 g; polyester ~120150 g.
• Always test on scraps with contrasting threads.

Keep a log of best settings for fabrics and thread types. Digitizing adjustments can also influence tension behavior on fine details.

5. Material and Thread Compatibility Strategies

Perfect stitches come from pairing fabric, thread, and tension with intent.

5.1 Thread Selection Science: Weights, Fibers, and Tension

• Continuous filament (Tex 35100): ultralight to heavy-duty.
• Core spun (Tex 3060): tarps, backpacks, tough jobs.
• All-purpose (Tex 5060): general sewing.
• Embroidery (Tex 3050): rayon, polyester, silk.
• Metallic: delicate; very loose top tension (around 1.0) and a thread net.

Fiber interactions:

• Cotton on top with polyester in the bobbin often needs looser top tension.
• Metallic threads demand extra-loose settings and a metallic needle to avoid breakage.

5.2 Fabric-Specific Tension Rules

• Looser weaves (e.g., quilting cotton) generally prefer lower tension.
• Tight weaves (batik, canvas) start higher, then step down to find the sweet spot.

Troubleshooting cues:

• Puckering = top too tight loosen it.
• Loopy stitches = top too loose tighten it.
• Broken threads = needle/thread mismatch correct needle or tension.

5.3 Advanced Technique: Multi-Layer and Thick Composite Mastery

For thick stacks (e.g., leather with stabilizer), use incremental, closed-loop tweaks: start higher and step down gradually. Clear thread helps you see balance while dialing in. Even pressure from magnetic embroidery frames helps keep layers from shifting.

Securing thick fabrics for garment embroidery is where Sewtalent magnetic hoops excel. Their powerful magnetic clamping adapts to varying thicknesses, keeping denim, towels, or leather composites flat and preventing shifting, distortion, and hoop burnaving time and fabric.

6. Precision Tools and Maintenance for Consistent Tension

Consistency requires measuring tools and simple, regular care.

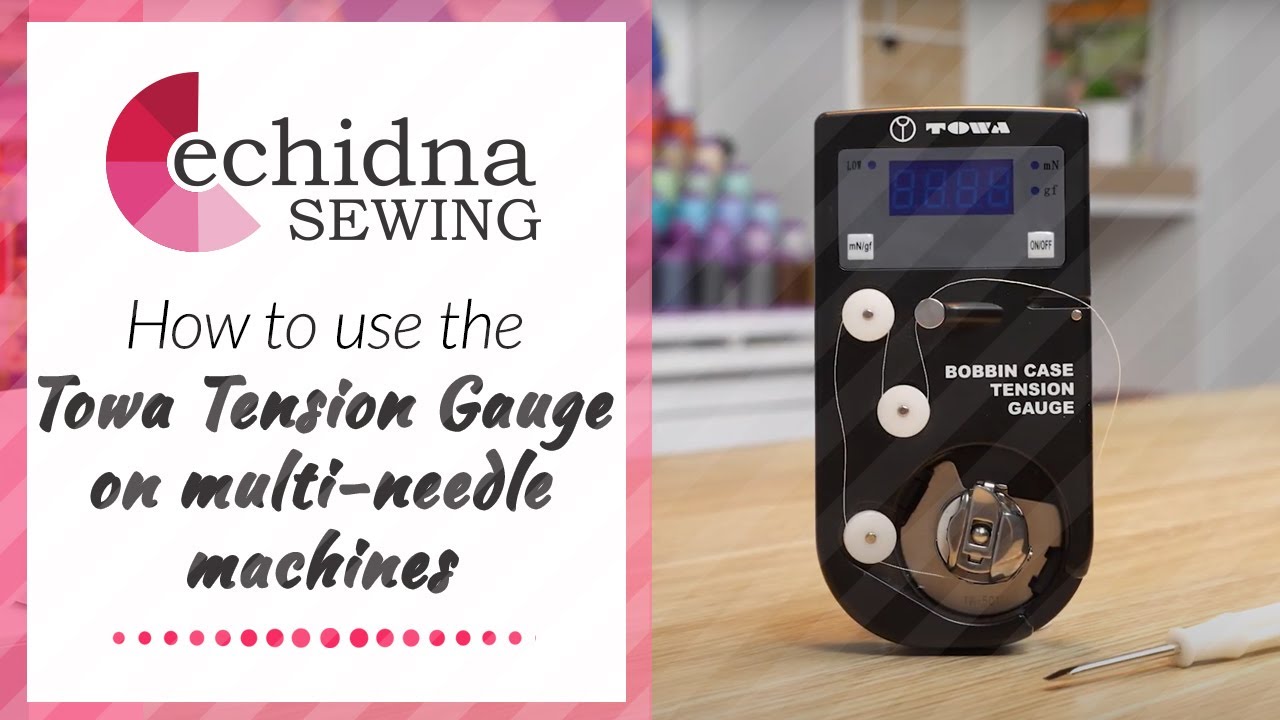

6.1 Mastering Tension Gauges (TOWA and Beyond)

How TOWA gauges work:

• Measures in gram-force (gf) or millinewtons (mN).
• Seat the bobbin case, thread the gauge path, pull smoothly, and read the value.

Steps:

1. Insert the bobbin case until it clicks.
2. Thread around pulleys and hook.
3. Pull smoothly; note the reading.
4. Adjust: tighten right, loosen left on the bobbin screw; use the machine dial for needle tension.

Calibration benchmarks:

Pro tips:

• Needle tension should be at least twice bobbin tension.
• Calibrate with every bobbin change.
• Adjust in small steps and confirm units.

6.2 Essential Preventive Maintenance

Cleaning and threading:

• Floss lint from tension discs (fleece strips/compressed air) and clean the bobbin area.
• Thread with presser foot up and double-check every guide.

Even, stable clamping reduces thread drag and fabric creep. A well-matched magnetic frame for embroidery machine can lower distortion and help your tension settings stay consistent.

Sewtalents even pressure helps minimize shifting and thread drag, which can mean less lint and smoother runs. Consider quality magnetic embroidery hoops to support stability and reduce troubleshooting time.

Routine checklist:

• Clean discs every 810 hours of sewing.
• Inspect and replace worn/burred needles.
• Oil moving parts per your manual.

7. Conclusion: Your Path to Perfect Stitches

Thread tension is both science and art. With fundamentals, targeted troubleshooting, machine-specific calibration, and smart fabric/thread pairing, even small tweaks can transform results. Test on scraps, take notes, and refine with tools and maintenance. With care and practice, balanced stitches become second nature.

8. Thread Tension FAQs

8.1 Q: Why does my bobbin thread keep showing on top?

A: Top tension is likely too tight or bobbin tension too loose. Loosen the upper dial incrementally or slightly tighten the bobbin case screw, then test on scrap.

8.2 Q: How often should I clean tension discs?

A: Every 810 hours of sewing. Floss between discs and clear lint in the bobbin area to maintain smooth thread flow and consistent tension.

8.3 Q: Can I mix thread types in top and bobbin?

A: Yes. For cotton-on-top with polyester in the bobbin, loosen the top tension for balance. Always test combinations on scrap fabric first.
