Mastering Your Inbro Embroidery Machine: Step-by-Step Manual Guide & Pro Maintenance Tips

1. Introduction to Inbro Machine Mastery

Navigating the world of Inbro embroidery machine is like unlocking a treasure chest of creative potential—if you have the right map. This guide is your compass, drawing directly from official Inbro manuals and expert insights to demystify every step, from initial setup to advanced maintenance. Whether you’re a studio owner, a seasoned embroiderer, or just starting out, you’ll gain eight core competencies: safe installation, precise origin calibration, threading mastery, needle and color management, troubleshooting, technical adjustments, preventive maintenance, and error code resolution. Ready to transform your embroidery workflow? Let’s dive in and master your Inbro machine, one expertly guided step at a time.

Table of Contents

• 1. Introduction to Inbro Machine Mastery
• 2. Essential Setup Procedures from Official Manuals
• 3. Technical Specifications Decoded: IB-RSC1201 vs IB-C1201
• 4. Safety Protocols & Error Code Resolution
• 5. Advanced Maintenance Visual Guides
• 6. Preventive Maintenance Schedule Optimization
• 7. FAQ: Expert Answers to Common Inbro Queries
• 8. Conclusion: Maximizing Machine Longevity

2. Essential Setup Procedures from Official Manuals

Setting up your Inbro embroidery machine isn’t just about plugging it in and hitting "start." Proper installation and calibration, as outlined in the Inbro embroidery machine manual (IB-C1201), lay the foundation for flawless stitching and long-term reliability. Let's break down the essential steps you need to follow, ensuring your machine is leveled, assembled, and ready for creative action.

2.1 Machine Leveling & Frame Assembly Fundamentals

A stable foundation is the secret ingredient to consistent embroidery results. According to the IB-C1201 manual, begin by carefully positioning your machine on a flat, sturdy surface. Adjust the machine's base until it's perfectly level—this critical step prevents mechanical strain and uneven stitching. Use the recommended torque values and alignment checks specified in the manual to secure the frame to the X-Y axis system. Think of this as tuning a musical instrument: precise alignment ensures each note—every stitch—lands exactly where it should.

Frame assembly is next. Attach the frames following the manual's guidelines, double-checking that all fasteners are secure and the frame glides smoothly along its tracks. If you're working with specialty attachments, such as cap systems, make sure all components are installed in their designated positions, as demonstrated in related YouTube videos. Proper assembly isn't just about mechanics; it's about setting the stage for embroidery magic.

2.2 Embroidery Origin Calibration Techniques

Once your machine is solidly in place, it's time to teach it where to begin. The embroidery origin calibration process, guided by the LCD panel, ensures your designs are perfectly centered every time.

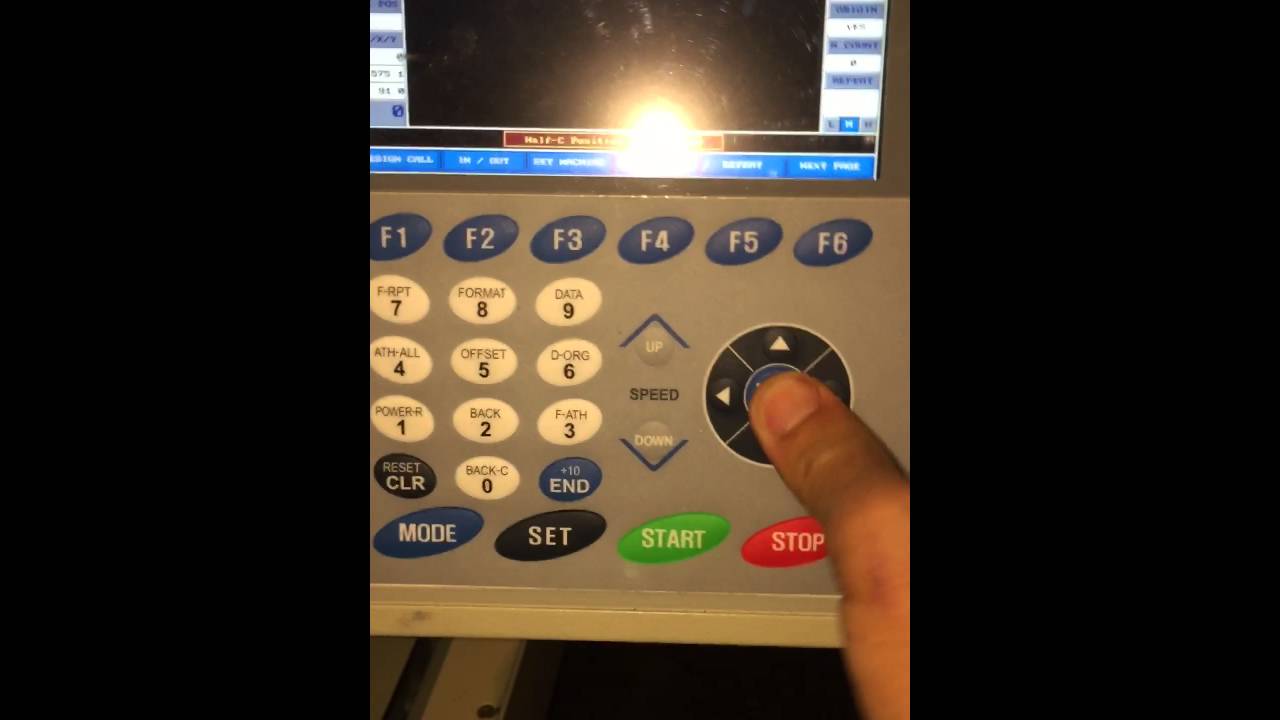

Start by hooping your fabric and mounting it on the machine, making sure it's taut and well-aligned. Navigate to the "Embroidery Origin Setting" in the main menu—this is your control tower. Use the directional arrow keys (↑, ↓, ←, →) to nudge the needle precisely to the design's center, watching real-time feedback on the LCD screen. When everything lines up, lock in your settings to prevent any mid-embroidery surprises.

This process, though simple, is the difference between a design that dazzles and one that disappoints. By following these official procedures, you're not just calibrating a machine—you're setting yourself up for embroidery success, project after project.

3. Technical Specifications Decoded: IB-RSC1201 vs IB-C1201

Understanding your machine's technical DNA is key to unlocking its full potential. The Inbro IB-RSC 1201 embroidery machine format and IB-C1201 models are workhorses built for high-volume, precision embroidery, but their internal mechanics and maintenance needs have unique twists. Let's decode what sets them apart—and how you can keep them running at their peak.

3.1 Needle Positioning & Timing Synchronization

Precision starts at the needle. Both the IB-RSC1201 and IB-C1201 feature a 12-needle configuration, but their needle drive systems reflect generational advances. Earlier models often use pneumatic (air-driven) needle systems, while newer versions incorporate servo motors for smoother, more responsive control.

Positioning your needles correctly is crucial—after any move or adjustment, verify alignment to avoid skipped stitches or thread breaks. The presser foot should always be engaged when the needle moves, anchoring your fabric in place. When replacing needles, follow the manual's step-by-step protocol: remove the old needle carefully, align the new one with the needle bar groove, and secure it tightly. Don't forget to update the machine's memory to remove outdated needle settings, and synchronize the bobbin using the Section 9-6 procedure for seamless thread pickup.

Timing synchronization is another pillar of embroidery accuracy. Adjust the main driving belt by pressing its center—aim for a firm yet flexible deflection. Fine-tune tension by moving the motor bracket vertically. For the X-belt, access the tension bolt under the X-cover to prevent embroidery width errors. Regularly replace belts showing cracks or fraying, and keep pulleys clean for smooth operation.

3.2 Maintenance Requirements Comparison

Maintenance isn't just a chore—it's your insurance policy for long machine life and consistent results. Both models require daily cleaning of the hook and bobbin case, using compressed air or soft brushes to banish lint and debris. Apply oil to the hook mechanism every day, and lubricate the lower needle bar every 40–50 hours. For gears, a quarterly application of grease keeps things humming.

But there are subtle differences: the IB-RSC1201 emphasizes structured lubrication and frame motor alignment, while models like the IB-TUN1206 (closely related to the IB-TU1204) highlight the importance of pneumatic threading system upkeep. Memory capacity, embroidery area, and motor systems are also points of distinction—refer to the official tables and manuals for exact figures and compatibility notes.

Here's a quick comparison:

In both cases, daily attention and adherence to manual schedules are your best defense against downtime. Clean, lubricate, and inspect—your embroidery will thank you with every flawless stitch.

4. Safety Protocols & Error Code Resolution

When it comes to running an Inbro embroidery machine, safety isn’t just a checklist—it’s your insurance against downtime, injuries, and costly repairs. The official IB-C1201 manual and industry best practices lay out a robust framework for both operator safety and inbro embroidery machine error codes troubleshooting. Let’s break down what you need to know to keep your embroidery workflow safe, smooth, and resilient.

4.1 Thermal Management & Electrical Safety

Imagine your embroidery machine as a high-performance engine: it hums, it heats, and when neglected, it can bite back. The IB-C1201 manual highlights several non-negotiable safety protocols:

Explosion and Thermal Hazards

- No Explosive Environments: Never operate your Inbro machine in areas with explosive atmospheres unless it’s specifically certified for such use.

- Thermal Risks: The main motor can reach surface temperatures up to 70°C (that’s hot enough to sizzle). Always let the motor cool before attempting any service or maintenance.

- Hearing Protection: With airborne noise levels exceeding 85dB(A), ear protection is a must during operation—think of it as armor for your ears.

Electrical and Environmental Safety

- Unplug After Use: Disconnect power immediately after finishing, during cleaning, or whenever the machine is left unattended.

- Lockout/Tagout: Before changing needles or threading, ensure the machine is stopped and unplugged to prevent accidental starts.

- No Foreign Objects: Never insert tools or objects into machine openings.

- Avoid Heat Sources: Keep your embroidery setup far from stoves, irons, or oxygen administration areas—heat and electronics are a dangerous mix.

Puncture and Lighting Hazards

- Always stop the machine before handling needles or threads.

- Operate in well-lit areas to prevent accidents and ensure precision.

By respecting these protocols, you’re not just ticking boxes—you’re protecting your team, your investment, and your creative flow.

4.2 Troubleshooting Matrix: 58-68 Error Codes

Error codes can feel cryptic, but with the right approach, they become your roadmap to rapid recovery. The Inbro IB-C1201 manual dedicates 11 sections to troubleshooting, including detailed guidance for error codes 58-68—most commonly linked to thread breaks, sensor faults, and operational hiccups.

Common Error Types & Solutions

- Frame Limit Exceeded: Triggered when stitching moves beyond set boundaries. Solution: Adjust your design or frame settings in the menu.

- Start/Operation Errors: Often due to belt misalignment or power issues. Inspect belts and check fuses before restarting.

- Upper Thread Sensor Errors: Usually caused by debris or misalignment. Clean sensors thoroughly and ensure proper alignment.

- Thread Breaks (Codes 58-68): Can result from worn needles, poor thread quality, or tension imbalance. Inspect and replace needles, adjust tension, and use compatible threads.

- Lower Thread Breaks: Linked to bobbin issues. Verify bobbin type and winding consistency.

- Jumping Errors: Caused by sensor malfunctions or thread tangles. Clean sensors and carefully rethread.

- Twisted Embroidery: Results from improper thread routing or excessive stabilizer. Reduce stabilizer layers and check the thread path.

Real-World Repair Insights

A quick scan of YouTube user experiences reveals that issues like needle case misplacement or thread jams often stem from skipped maintenance or hurried setup. When in doubt, stop the machine, unplug, and inspect the affected area—don’t force a fix.

Emergency Protocols:

- For thread breaks, stop the machine, raise the needle, and gently remove tangled threads from the bobbin case and fabric.

- For complex repairs (like take-up lever replacement), consult authorized technicians to avoid voiding your warranty.

By systematically addressing errors and following these safety and troubleshooting protocols, you’ll minimize downtime and keep your embroidery business running like a well-oiled machine.

5. Advanced Maintenance Visual Guides

Embroidery machines are precision beasts—one loose belt or misaligned hook, and your masterpiece can unravel in seconds. The good news? With the right tools and visual cues, you can tackle advanced maintenance tasks confidently. Here’s your hands-on guide, distilled from official manuals and real-world demonstrations.

5.1 Hook Adjustment & Belt Tension Calibration

Let’s get under the hood. The IB-RSC1201 and IB-C1201 manuals outline step-by-step procedures for keeping your machine’s core mechanics in perfect sync:

Hook Adjustment:

- Lower Dead Point:

- Rotate the main shaft handle to 180°.

- Use a needle plate setting-zig to secure the needle tip precisely at the hook’s center shaft.

- Firmly fix the lower dead point stopper after adjustment.

- Upper Dead Point:

- Position the main shaft pulley at 0°.

- Raise the needle bar and secure the upper dead point stopper to the rubber cushion.

Belt Tension Calibration:

- Monthly Inspections:

- Check for cracks, wear, or slack in the main motor belt.

- Adjust tension according to manual guidelines to prevent thread misalignment.

- N°6 Head Lock Error:

- Inspect belt integrity and tension.

- Test fuses (F1: 250V/3A, F2: 250V/4A) and the noise filter fuse (250V/6.3A) as needed.

Replacement Criteria:

- Replace belts at the first sign of breaks or tension loss, always using OEM-compatible parts.

Tools You’ll Need:

- Needle plate setting-zig (two types available for different adjustments)

- Soft brush or compressed air for debris removal

Pro Tip: For Inbro embroidery machine repairs, consult your machine’s 70-page operating manual for illustrations and schematics—these visuals are invaluable for correct zig placement and X-Y frame alignment.

5.2 Optimizing Garment Embroidery with Modern Accessories

Let’s talk about a game-changer: magnetic embroidery hoops. Specifically, Sewtalent magnetic hoops, which are revolutionizing garment hooping.

Why Sewtalent?

- Effortless Fabric Stability: The powerful magnetic system automatically adapts to different fabric thicknesses, holding everything from delicate silks to heavy denim securely in place. No more wrestling with screws or worrying about fabric slippage.

- Uniform Tension, Less Distortion: Sewtalent’s textured surface and broad contact area ensure even tension across your fabric, dramatically reducing puckering and hoop marks.

- Time-Saving Efficiency: Hooping a garment now takes seconds, not minutes—perfect for high-volume operations or anyone tired of repetitive strain.

- Durability and Compatibility: Crafted from high-grade PPSU engineering plastic and N50-grade magnets, these hoops are built to last. With over 17 sizes and compatibility across hundreds of machine brands, Sewtalent fits seamlessly into almost any embroidery workflow.

Real-World Impact: Users report a 90% reduction in hooping time and a significant drop in embroidery defects. For busy studios, that’s not just convenience—it’s a competitive edge.

Bottom Line: Integrating Sewtalent magnetic hoops into your garment embroidery setup isn’t just an upgrade; it’s a transformation. You’ll spend less time prepping and more time creating, with results that speak for themselves.

6. Preventive Maintenance Schedule Optimization

Think of preventive maintenance as the secret sauce for embroidery machine longevity. It’s not glamorous, but it’s the difference between smooth, uninterrupted production and frustrating, costly breakdowns. Here’s how to make your schedule work smarter, not harder.

6.1 Daily/Weekly Checklist Implementation

A disciplined routine is your best defense against unexpected failures. According to Inbro’s technical manuals and maintenance data, here’s how to prioritize your tasks:

Inbro embroidery machine spare parts replacement intervals:

- Needles: Replace every 8–10 hours of stitching to avoid burrs and misalignment.

- Tension Discs/Needle Plates: Inspect regularly; replace if warped or damaged.

By sticking to this checklist, you’ll not only reduce the risk of breakdowns but also extend the life of every moving part.

6.2 Lubrication Best Practices Across Models

Lubrication is a balancing act: too little, and you risk friction and wear; too much, and you’ll end up with thread contamination and messy repairs.

Viscosity Specifications & Application Techniques:

- Use high-viscosity, machine-specific oil for the lower needle bar (every 40–50 hours).

- Apply minimal oil to the hook—just enough to keep things moving smoothly, but never so much that it seeps onto your threads.

- Grease gears every three months with the recommended lubricant to keep the hook shaft and low shaft running quietly.

Pro Tips:

- Always use OEM-approved lubricants for your specific Inbro model.

- Avoid over-oiling—excess oil attracts lint and can cause thread breaks.

- After lubrication, run a few test stitches on scrap fabric to ensure everything is running clean.

By mastering these best practices, you’ll keep your embroidery machine humming along, project after project, with fewer interruptions and cleaner results.

Ready to take your Inbro machine maintenance to the next level? Stick to these protocols, embrace modern accessories like Sewtalent magnetic hoops for garment embroidery, and watch your productivity—and peace of mind—soar.

7. FAQ: Expert Answers to Common Inbro Queries

When you’re knee-deep in a project and your Inbro embroidery machine flashes an error—or simply refuses to cooperate—panic can set in fast. But before you reach for the manual (or the nearest stress ball), check out these expert answers to the most common Inbro machine questions, curated from official documentation and real-world user experiences.

7.1 Q: Why won’t my Inbro machine recognize my USB drive or load designs?

A: Inbro embroidery machine software USB loading failures are often linked to file format issues or incompatible USB drives. Make sure your design files are in a supported format (typically .dst or .dsb for Inbro machines) and that your USB drive is formatted to FAT16 or FAT32. Avoid using high-capacity drives or those loaded with unnecessary files—keep things simple and organized. If the problem persists, try another USB stick or check for bent pins in the USB port.

7.2 Q: What causes color change errors, and how can I fix them?

A: Color change errors usually occur when the machine can’t properly index the needle position or when the color change motor is out of sync. According to the IB-C1201 manual, first ensure the needle case is correctly positioned and not obstructed. If you hear unusual noises or see the needle case stuck between positions, power down the machine, manually reset the needle case to its home position, and restart. Persistent errors may require checking the color change sensor or consulting a technician.

7.3 Q: My machine displays a “frame limit exceeded” warning—what should I do?

A: This warning means your design is too large for the selected hoop or frame limits aren’t properly set. Enter the frame settings menu and verify that your design fits within the allowable embroidery area. Adjust the design size or reposition it as needed. If you’re using specialty hoops or attachments, double-check that the frame settings match the physical hoop’s dimensions to avoid accidental collisions.

7.4 Q: How do I resolve frequent thread breakage or “thread sensor” errors?

A: Thread breakage and sensor errors (codes 58–68) are often caused by worn needles, incorrect tension, or lint buildup. Replace needles regularly (every 8–10 hours of stitching is recommended), clean the thread path and sensors, and ensure you’re using quality thread compatible with your fabric. For persistent issues, inspect the thread sensor’s alignment and refer to the troubleshooting matrix in your manual for step-by-step diagnostics.

7.5 Q: The machine won’t start or stops mid-operation—what’s wrong?

A: If your Inbro machine won’t start, first check for any error codes on the display. Common culprits include open covers, tripped safety switches, or electrical issues. Make sure all covers are securely closed, the emergency stop is disengaged, and the power supply is stable. If the machine stops mid-operation, inspect the belts, fuses, and motor connections as outlined in the maintenance section of your manual.

8. Conclusion: Maximizing Machine Longevity

Mastering your Inbro embroidery machine is about more than just following the manual—it’s about building habits that protect your investment and fuel your creativity. Stick to a disciplined maintenance schedule, use high-quality threads and needles, and always hoop your garments with care. For garment embroidery, integrating modern magnetic systems like Sewtalent hoops can dramatically improve fabric stability, reduce hooping time, and minimize wear on your machine. By combining official best practices with innovative accessories, you’ll keep your Inbro running smoothly—stitch after flawless stitch. Ready to elevate your embroidery game? Start with smart maintenance and the right tools, and let your creativity soar.
