SWF 12 Needle Embroidery Machine: Ultimate Guide to Features, Setup & Optimization

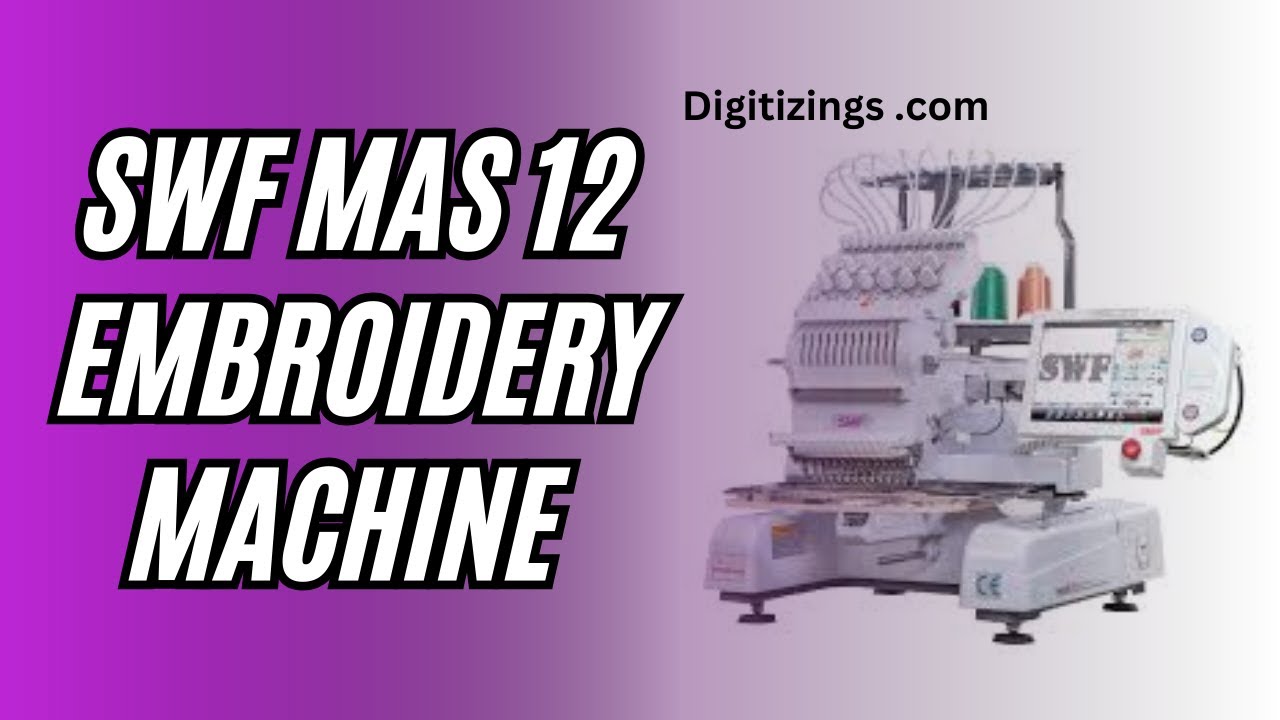

1. Introduction to the SWF MAS-12 Embroidery System

The SWF MAS-12 embroidery machine isn’t just another embroidery machine—it’s a leap forward for home studios and small businesses aiming for commercial-grade results. Compact yet powerful, this 12-needle, single-head system is engineered to bridge the gap between professional capability and user-friendly design. Whether you’re seeking technical specs, hands-on setup guidance, or want to know how it stacks up against the competition, this guide unpacks everything you need to know. We’ll explore the MAS-12’s standout features, walk through assembly and operation, compare it to leading rivals, and share advanced optimization tips for getting the most out of your investment. Ready to discover what makes the MAS-12 a game-changer in modern embroidery?

Table of Contents

• 1. Introduction to the SWF MAS-12 Embroidery System
• 2. Core Specifications and Performance Features
• 3. Purchasing Considerations and Value Analysis
• 4. Step-by-Step Setup and Operational Guide
• 5. Competitor Comparison: SWF vs Ricoma vs Happy Japan
• 6. Troubleshooting Common Errors and Maintenance
• 7. Advanced Optimization Techniques
• 8. Conclusion and Next Steps
• 9. FAQ: SWF MAS-12 Essentials

2. Core Specifications and Performance Features

The SWF MAS-12 is packed with features that place it firmly in the top tier of embroidery machines for both professionals and ambitious hobbyists. Let's break down what sets this model apart, from its 12-needle system to its innovative Smart Embroidery System (SES).

2.1 12-Needle System and Embroidery Field Capabilities

At the heart of the MAS-12 is its robust 12-needle system, utilizing DBxK5 needles. This configuration enables seamless multi-color embroidery, minimizing downtime for thread changes and supporting intricate, vibrant designs with ease. Compared to the industry standard of 10 needles, the MAS-12's extra capacity translates directly into higher efficiency—especially valuable for commercial workflows or bulk orders.

Embroidery Field

- Flat Field: 14" x 9"

- Cap Field: 14" x 3"

These generous embroidery fields surpass the typical 12" x 8" flat and 12" x 3" cap fields found on many competitors, giving you more room to bring larger or more complex designs to life. The MAS-12's expansive area is especially advantageous for jackets, sweatshirts, or wide-format projects that would challenge smaller machines.

Speed and Memory

- Stitch Speed: Up to 1,000 SPM (stitches per minute)

- Design Memory: 40 million stitches, 400 design slots

Operating at 1,000 SPM, the MAS-12 outpaces the industry's 800 SPM average, making it ideal for high-volume production without sacrificing stitch quality. Its memory capacity is equally impressive, easily accommodating extensive design libraries and reducing the need for frequent file transfers.

Key Takeaways:

- The MAS-12's 12-needle system and large embroidery fields enable greater design complexity and faster turnaround.

- Its high stitch speed and ample memory make it a productivity powerhouse for both single orders and mass production.

2.2 Smart Embroidery System (SES) Breakdown

One of the MAS-12's most innovative features is the Smart Embroidery System (SES), designed to simplify and accelerate the creative process for users at any skill level.

Photo-to-Stitch Conversion

SES allows you to instantly convert digital images into embroidery-ready designs—no manual digitizing required. Just upload a photo via USB or Wi-Fi (optional), and the machine does the rest. This feature is a game-changer for beginners, rapid prototyping, or on-the-fly personalization.

Free-Hand Stitch Function

Feeling inspired? Use the included stylus to draw directly onto the MAS-12's expansive 10.4" full-color touchscreen. Your sketches are automatically converted into stitch patterns, opening up a world of creative possibilities without the need for external software.

User Interface and Controls

- 10.4" Full-Color Touchscreen: The largest in its class, offering intuitive navigation and real-time design adjustments.

- Optional Wi-Fi and Barcode Scanner: Streamline design transfers and bulk order processing (third-party integration required).

Automation and Efficiency

The MAS-12 is loaded with features that keep production running smoothly:

- Automatic Thread Trimming: Cuts excess thread after stitching, saving time and ensuring a clean finish.

- Thread Break Sensing: Detects both upper and lower thread breaks, reducing errors and downtime.

- Adjustable Stitch Speed: Fine-tune speed for delicate or heavy-duty materials.

- Quick Change Cap System: Effortlessly switch between cap frames and hoops without tools.

Design Compatibility

- Supports the widely-used .dst file format, ensuring compatibility with most embroidery software.

- Stores up to 40 million stitches and 400 designs onboard.

Sewtalent Magnetic Hoops Compatibility

During SES operations, maintaining fabric stability is crucial—especially for photo-to-stitch or freehand designs. The MAS-12 is compatible with swf embroidery machine hoops which provide superior fabric hold and minimize slippage or distortion. This ensures your creative vision is realized with precision, whether you're working with delicate silks or thick denim.

Why It Matters:

- SES dramatically shortens the path from idea to finished embroidery, empowering users to experiment and iterate.

- The MAS-12's user interface and automation features make it approachable for newcomers and efficient for seasoned pros.

3. Purchasing Considerations and Value Analysis

Investing in an embroidery machine is a major decision—especially for small businesses and home-based studios. The SWF MAS-12 is designed to deliver maximum value, combining affordability, robust features, and comprehensive support.

3.1 Cost-Benefit Analysis for Small Businesses

Pricing

The SWF machine price ranges from $8,500 to $15,850 (with some deals as low as $8,999). This undercuts many rivals—Ricoma models often start around $12,000, while Tajima’s premium offerings cost even more.

Included Accessories

Every MAS-12 comes with a generous accessory package:

• Cap Frames: 2-piece set with driver and holder for fast project transitions.
• Tubular Round Frames (TRF): Sizes 4.24", 5.4", and 6.6" for versatile garment hooping.
• Flat Hoops: 14” x 9” for large designs.
• Embroidery Stand, Tool Kit, and Manuals: Everything you need to get started.

Warranty

The MAS-12 boasts a 7-year manufacturer’s warranty—an industry leader. This covers parts and labor, reducing long-term maintenance costs and providing peace of mind for years to come.

Advantages Over Competitors:

• Lower entry cost, ideal for startups and small businesses.
• Bundled accessories eliminate the need for costly add-ons.
• SES and free-hand stitch features streamline design workflows.

3.2 Optional Upgrades and ROI Boosters

While the MAS-12 is ready to go out of the box, several optional upgrades can further enhance your workflow and return on investment:

• Wi-Fi Module: Enables wireless design transfers and remote machine management.
• Barcode Scanner: Simplifies loading designs for bulk orders (requires third-party integration).
• Additional Hoops: For specialized projects, such as banners or small patches.
• Software Upgrades: Advanced design editing or networking capabilities.
• Maintenance Packages: Extended service plans for added peace of mind.

Sewtalent Magnetic Hoops: Productivity Enhancer

For garment embroidery, Sewtalent magnetic hoops are a smart, cost-effective upgrade. By providing a powerful and even fabric hold, they reduce thread breaks by up to 40%—especially on challenging materials like denim or towels. This translates into fewer interruptions, less material waste, and higher overall productivity for your business.

Limitations to Consider:

• The MAS-12 weighs 85 lbs and requires a stable workspace.
• Primarily supports .dst design files.

Bottom Line:

The SWF MAS-12 offers outstanding value for home-based and small businesses, thanks to its competitive pricing, comprehensive warranty, and robust accessory bundle. Optional upgrades—especially Sewtalent magnetic hoops—can further boost efficiency and profitability, making this machine a wise investment for those who demand reliability and performance.

---

Ready to take your embroidery business to the next level? Explore the MAS-12’s features, consider your upgrade options, and see how Sewtalent magnetic hoops can help you maximize your results.

4. Step-by-Step Setup and Operational Guide

Setting up your SWF MAS-12 embroidery machine is a process that rewards patience and attention to detail. Whether you’re unboxing your first commercial machine or upgrading your studio, this section will walk you through assembly, threading, and essential configuration—so you can get stitching with confidence from day one.

4.1 Machine Assembly and Threading Best Practices

Let’s start at the very beginning: assembling your MAS-12 and prepping it for its first run. The process is straightforward but benefits from a methodical approach—think of it as laying the foundation for flawless embroidery.

Assembly Steps

1. Unboxing and Stand Setup:

- The MAS-12 arrives in two boxes: one for the machine, one for the stand.

- Assemble the stand by attaching the legs, bottom bracket, back bracket, and tabletop using the provided screws.

- Place the machine on the stand, ensuring the four rubber feet are securely aligned in the table’s holes. This prevents vibration and keeps your stitches crisp.

2. Thread Rack and Thread Tree Installation:

- Attach the thread rack to the top of the machine using Phillips head screws.

- The thread tree’s legs and top piece are secured with bolts, providing a sturdy base for your thread cones.

- Place the foam base around the cone holders to cushion your threads and minimize tangling.

3. Mounting the Control Panel and Keypad:

- Secure the 10.4" touchscreen panel to its mounting plate, then connect the emergency stop switch and keypad.

- Double-check all cable connections—each connector is unique, so you can’t go wrong if you follow the swf embroidery machine manual.

- Attach the ground wires as instructed, and ensure all screws are snug before powering up.

4. Powering Up:

- Plug in the standard PC-style power cable.

- Flip the rear power switch to ON; the machine will boot, run a self-check, and display the SWF splash screen.

- If the emergency stop is engaged, simply twist to release.

Threading the MAS-12

Threading can seem daunting with 12 needles, but the MAS-12’s design makes it systematic:

- Thread Numbering:

- Threads are numbered right to left—needle 1 is far right, needle 12 is far left.

- Thread Path:

- Guide each thread from its cone, through the corresponding eyelet on the thread tree, and down through the tube.

- Use a needle to help guide the thread through the tube—gravity is your friend here.

- Tension Discs & Guides:

- Pass the thread through the tension discs, making sure you hear the subtle “click” as it seats.

- Wrap around the tension wheels, through the spring, and down to the needle bar.

- Needle Threading:

- Thread from front to back, ensuring the groove faces forward and the scarf (indentation) is at the back.

- Use tweezers for precision, and leave about an inch of thread below the presser foot.

Bobbin Installation

- Open the rotary hook cover and remove the felt packing.

- Insert your bobbin into the bobbin case, ensuring it spins clockwise.

- Guide the thread under the tension spring, around the pigtail, and leave about three inches of tail.

- Snap the bobbin case into place until you hear a click—this ensures proper seating.

Pro Tips for Error Prevention

- Always lock the stand’s casters before operation.

- Double-check thread paths to prevent tangles.

- Use the touchscreen to align the needle with the hoop’s center before starting a project.

- If you encounter Error 100 or 300 during startup, use the “Fix” button on the control panel, or manually align the degree wheel as shown in the YouTube tutorials.

Loading Designs via USB

- Insert your USB drive into the operation panel.

- Navigate to the design library on the touchscreen, select your file, and load it into memory.

- The MAS-12 supports .dst and other common embroidery file formats, ensuring broad compatibility.

With these steps, you’ll move from box to beautiful stitches—no guesswork required. Take your time, follow each sequence, and you’ll soon be ready to unleash the MAS-12’s full creative potential.

4.2 Hat Embroidery Configuration Tips

Hats present unique challenges: curved surfaces, tight spaces, and the need for perfect alignment. The MAS-12, with its patented quick change cap system, makes the transition from flats to hats refreshingly simple.

Key Configuration Steps for Cap Embroidery

1. Install the Cap Driver and Cap Frame:

- Remove the flat hoop arms and attach the quick change cap driver to the machine bed.

- Mount the cap frame onto the cap gauge, secure your backing inside the sweatband, and align the hat with the red reference line.

2. Hooping the Hat:

- Place the hat and backing onto the cap frame, ensuring the band crosses the seam for stability.

- Secure with the provided clips and lock the frame into position.

3. Design Orientation and Alignment:

- On the touchscreen, rotate your design 180° to ensure it stitches right-side up on the hat.

- Use the “Frame Tracing” feature to outline the design area and confirm it fits within the cap’s field.

4. Adjusting Settings for Curved Surfaces:

- Stitch Speed: Set to medium (default) for hats, balancing quality and efficiency.

- Frame Speed: Lower the frame movement speed for intricate designs.

- Thread Tension: Slightly tighten the upper thread to prevent puckering, especially on stretchy fabrics.

5. Test Stitch:

- Always run a small test stitch to verify alignment and tension before starting the full design.

Pro Tip: Remember to swap in the cap-specific needle plate before starting—a detail highlighted by experienced users and YouTube creators. This simple step can make the difference between a flawless logo and a frustrating do-over.

By following these configuration tips, you’ll achieve crisp, professional embroidery on hats—no sweat, no guesswork, just results that pop.

5. Competitor Comparison: SWF vs Ricoma vs Happy Japan

Choosing the right embroidery machine isn’t just about specs—it’s about matching your workflow, budget, and long-term ambitions. Here’s how the SWF MAS-12 stacks up against its closest rivals.

5.1 Speed and Field Size Showdown

Let’s break down the numbers and see where each machine shines:

Key Takeaways:

- Speed: Ricoma edges out with a higher top speed (1,200 SPM), but the MAS-12’s 1,000 SPM is more than sufficient for most commercial projects—and helps maintain stitch quality.

- Embroidery Field: The MAS-12’s 14" x 9" field is the largest in its class, giving you more space for bulk orders, jacket backs, or oversized logos.

- Warranty: SWF’s 7-year coverage leads the pack, offering peace of mind and cost savings over time.

If you’re running high-volume jobs or need maximum versatility, the MAS-12’s larger field and robust warranty can be game-changers.

5.2 Long-Term Maintenance Costs

Reliability isn’t just about what happens on day one—it’s about how your machine holds up after thousands of stitches and dozens of projects.

Warranty & Build Quality

- SWF MAS-12:

- Industry-leading 7-year warranty covers both parts and labor.

- Routine oil changes (every 6–12 months) and dust removal from the BLDC motor keep things running smoothly.

- Ricoma:

- 5-year warranty—solid, but with less long-term coverage.

- Happy Japan:

- Shorter 1–3 year warranty, better suited for hobbyists or light commercial use.

User Experiences from T-Shirt Forums:

- Some users praise Happy Japan for its “dream-like” stitching and reliable tension, especially in industrial environments.

- Others note that SWF’s single-head models are ideal for custom and side-hustle orders, but for large-scale production, adding a second head can dramatically boost efficiency.

- Ricoma wins points for speed, but its higher entry price and shorter warranty may not fit every budget.

Bottom Line: The MAS-12’s generous warranty and straightforward maintenance schedule translate into fewer surprises and lower total cost of ownership. For small businesses and growing studios, that’s a big deal.

6. Troubleshooting Common Errors and Maintenance

Even the best machines need a little TLC. The MAS-12 is built for reliability, but knowing how to handle common hiccups like swf embroidery machine troubleshooting and keep things running smooth will save you time—and headaches.

6.1 Resolving Error Codes 100-300

Common Error Codes and Fixes

Routine Maintenance Schedule

- Cleaning: - Remove the needle plate every eight hours of embroidery and use compressed air to clear lint and debris. - Wipe down the needle bar and hook assembly weekly.

- Lubrication: - Apply a few drops of oil to the rotary hook track and moving parts as per the manual—typically every time you replace the bobbin.

- Trimmer Care: - Check blade tension and trim lengths, especially when working with heavier fabrics.

Needle Replacement & Timing

- Use a slotted screwdriver to loosen the needle clamp, remove the old needle, and insert the new one with the groove facing forward.

- Ensure the needle is fully seated and the scarf (groove) is at the back.

- For timing adjustments, align the timing wheel to 200°, as shown in the official tutorials.

Advanced Troubleshooting

- Inspect the thread path for obstructions—lint in tension discs or thread caught under spools can cause breaks.

- Adjust hoop gaps to prevent thread from pulling from the cone rather than the bobbin.

- For persistent issues, consult the official manual or reach out for professional service.

Pro Tip: Magnetic hoops, such as MaggieFrame, can reduce thread breaks by up to 40% by stabilizing fabric tension—especially useful for thick or slippery materials.

By following these setup, comparison, and maintenance strategies, you'll unlock the full power of your SWF MAS-12—delivering professional results, project after project. Ready to put your skills (and your machine) to the test?

7. Advanced Optimization Techniques

When it comes to embroidery, the difference between "good enough" and "outstanding" often lies in the details—especially when tackling challenging materials or maximizing the full power of your SWF MAS-12. Let's dive into the advanced settings and strategies that can help you unlock the true potential of your 12-needle machine, with a special focus on thick fabrics and real-world workflow efficiency.

7.1 Material-Specific Settings for Thick Fabrics

Embroidery on thick materials like denim, towels, or canvas isn't for the faint of heart. Dense fibers, layered textures, and stubborn surfaces can turn a simple logo into a test of patience. But with the right approach—and the right tools—you can transform these challenges into showpieces.

Needle Selection and Stitch Adjustments

First things first: your needle choice matters. For thick or heavy-duty textiles, opt for DBxK5 needles with reinforced shafts. These are designed to penetrate dense fabric without bending or breaking, ensuring clean, consistent stitches even on the toughest surfaces.

But don't stop there. Adjust your stitch density to avoid puckering or fabric distortion—less is often more when working with bulkier materials. Reducing stitch density helps the fabric breathe and flex, while increasing thread tension can keep everything stable and prevent the dreaded "thread nest."

Frame and Hoop Optimization

The right hooping solution is your secret weapon. The SWF MAS-12 includes Tubular Round Frames (TRF), which distribute tension evenly across the fabric, minimizing slippage and keeping your design perfectly aligned from start to finish.

For those who crave even greater efficiency and fabric stability, Sewtalent magnetic embroidery hoops are a game-changer for garment projects. Their powerful magnetic clamping system automatically adapts to varying fabric thicknesses—whether you're working with a single-layer tee or a multi-layer towel. The result? Even tension, fewer hoop marks, and a dramatic reduction in fabric shifting or misalignment. Many users find that Sewtalent hoops make hooping thick materials not only faster but also far less stressful, letting you sail through denim and towels with the same confidence as you would a lightweight cotton shirt.

Practical Optimization Steps

• Choose the right needle: Use DBxK5 reinforced needles for thick fabrics.
• Adjust stitch density: Lower the density to prevent distortion.
• Increase thread tension: This helps stabilize heavy textiles.
• Select the optimal hoop: Use SWF embroidery hoops like the TRF 18 (6.6") frame for large, thick items, or Sewtalent magnetic hoops for even greater hold and ease of use.
• Test before you commit: Always run a test stitch on a fabric scrap to fine-tune your settings.

Real-World Workflow Example

Imagine you're prepping a batch of custom towels for a hotel order. You load your design into one of the MAS-12's 400 memory slots, select your reinforced needle, and hoop the towel with a Sewtalent magnetic hoop. With the machine's automatic thread break sensing and adjustable stitch speed, you can run at full 1,000 SPM for flat items—confident that your fabric will stay put and your design will look flawless.

Why Optimization Matters

When you combine smart material settings with the right accessories, you don't just save time—you elevate your entire embroidery operation. Less rework, fewer wasted materials, and a smoother workflow mean you can take on more ambitious projects (and bigger clients) with confidence.

8. Conclusion and Next Steps

The SWF MAS-12 isn’t just a machine—it’s a launchpad for creativity and productivity. With its 12-needle system, expansive 14" x 9" embroidery field, and innovative Smart Embroidery System, you have the tools to tackle everything from delicate silks to rugged denim. Add in a 7-year warranty and a suite of compatible accessories, and you’re set up for long-term success.

Ready to level up? Explore advanced settings, experiment with SES, and consider time-saving tools like Sewtalent magnetic hoops to maximize your results.

9. FAQ: SWF MAS-12 Essentials

9.1 Q: What embroidery file formats does the SWF MAS-12 support?

A: The SWF MAS-12 is compatible with the widely-used .dst file format, making it easy to import designs from most embroidery software platforms.

9.2 Q: What is the maximum embroidery area for hats and flat garments?

A: For flat garments, the MAS-12 offers a generous 14" x 9" embroidery field. For hats, the maximum embroidery area is 14" x 3", providing ample space for logos and custom designs.

9.3 Q: How often should I perform routine maintenance on the MAS-12?

A: It’s recommended to clean under the needle plate every eight hours of embroidery and to oil the rotary hook track each time you replace the bobbin. Regular maintenance will keep your machine running smoothly and extend its lifespan.

9.4 Q: Can I use the MAS-12 for both home and commercial embroidery projects?

A: Absolutely! The MAS-12 is designed for both ambitious hobbyists and small businesses, offering professional-grade features in a compact, user-friendly package.

9.5 Q: How do I load designs onto the MAS-12?

A: You can load designs via USB drive, Wi-Fi (optional), or barcode scanner (optional). Simply insert your USB, navigate to the design library on the touchscreen, and select your file to get started.

Have more questions? Dive into the MAS-12’s official manual or explore online tutorials for in-depth guidance. Happy stitching!
