Toyota AD860 Embroidery Machine: Technical Guide & Commercial Insights

1. Introduction to Toyota AD860 Embroidery Capabilities

The Toyota AD860 embroidery machine stands as a testament to robust engineering and commercial embroidery innovation. Renowned for its 12-needle configuration and expansive 460 x 300 mm work area, this single-head powerhouse has cemented its legacy in professional embroidery circles. Whether you're personalizing jackets, crafting intricate tote bags, or running a small custom shop, the AD860's blend of speed, versatility, and reliability has made it a favorite among seasoned embroiderers and newcomers alike.

In this guide, we'll unravel the technical specifications that set the AD860 apart, explore key purchase considerations, and offer operational best practices drawn from real-world experience. We'll also look ahead to modernization strategies that keep this classic machine competitive in today's fast-evolving embroidery landscape. Ready to discover how the AD860 can boost your business or creative pursuits? Let's dive in.

Table of Contents

• 1. Introduction to Toyota AD860 Embroidery Capabilities
• 2. Technical Specifications & Operational Features
• 3. Purchase Considerations & Commercial Viability
• 4. Operational Mastery: Setup & Maintenance Protocols
• 5. Troubleshooting Common Errors
• 6. Software & Modernization Strategies
• 7. Conclusion: Maximizing AD860 Longevity
• 8. FAQ: Toyota AD860 Performance Solutions

2. Technical Specifications & Operational Features

2.1 Core Performance Metrics: Speed, Memory, and Precision

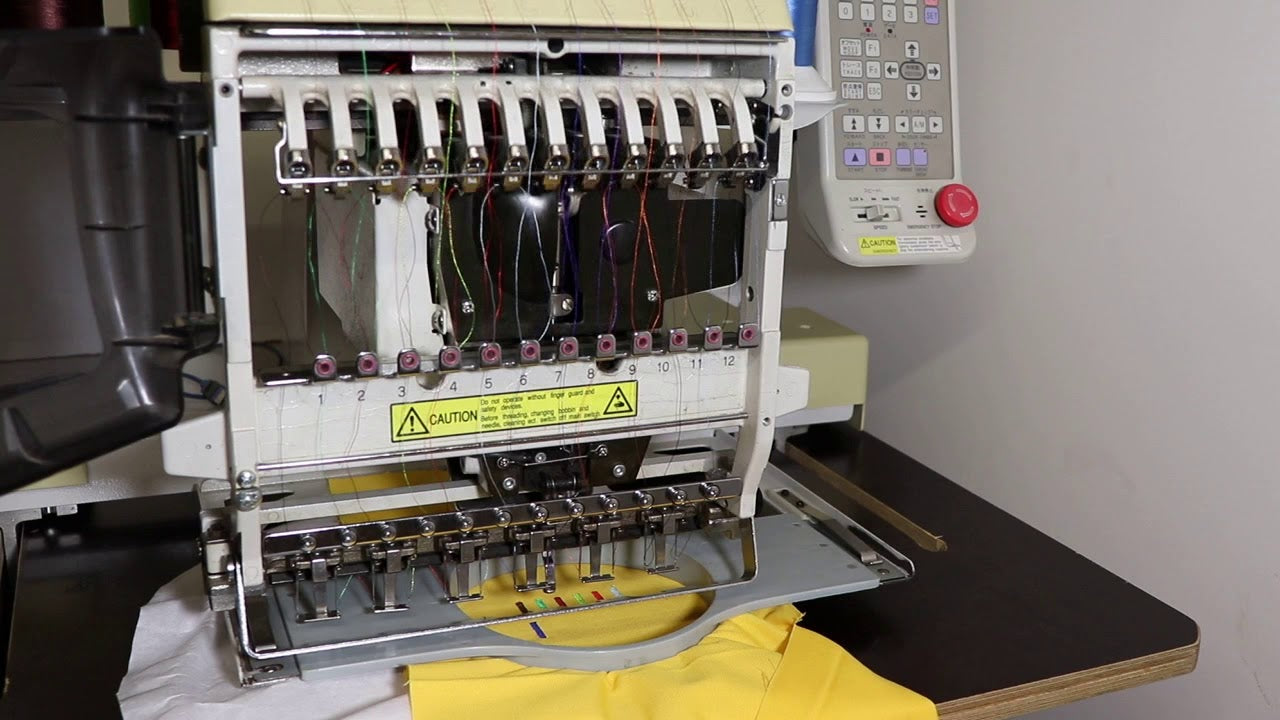

The Toyota AD860 is engineered for efficiency and precision, making it a formidable choice for commercial embroidery applications. Let’s break down the core specs that drive its performance:

Stitching Speed: The AD860 delivers up to 1,200 stitches per minute (SPM) for standard flat embroidery, ensuring rapid turnaround on large orders. When using cap frames, the speed adjusts to 1,000 SPM, balancing agility with the precision needed for curved surfaces. While newer models like the Tajima TMBP SC may edge ahead in raw speed, the AD860 remains competitive for most commercial needs.

Embroidery Field Size: Boasting a generous 460 mm (Y) x 300 mm (X) stitching area, the AD860 accommodates everything from oversized jackets to promotional gear. This expansive field empowers users to tackle ambitious projects without compromise.

Needle Configuration: With its 12-needle system, the AD860 enables seamless color changes and supports intricate, multi-color designs. This setup streamlines workflows, especially for jobs requiring frequent thread switches.

Memory and File Handling:

• Memory Capacity: Stores up to 100,000 stitches or 99 designs, giving you flexibility for complex, multi-stage projects.
• File Compatibility: Reads industry-standard .DST files, ensuring smooth integration with popular digitizing software.
• Upgrade Potential: The optional Black Box add-on allows for direct file input, further enhancing workflow efficiency.

Precision Controls and Editing:

• Stitch Correction: Offers five-stage stitch width adjustments in 0.1 mm increments, allowing for meticulous design refinement.
• Pattern Editing: Features rotate, mirror, repeat, and trace functions, letting you customize designs directly from the control panel.

Motor and Sensor Systems:

• AC Servo Motors: Both the main machine and embroidery frame utilize AC servo motors, delivering smooth, consistent stitch quality.
• Thread Management: Automatic thread trimmers and thread break sensors (with audible/visual alerts) minimize downtime and interruptions.

Additional Technical Parameters:

Operational Stability: The AD860 is designed for longevity, with memory backup and Toyota embroidery machine parts availability preserve designs during power interruptions and diagnostic tools to monitor stitch counts and thread usage. Even as a discontinued model, many pre-owned units remain fully operational, supported by third-party providers for parts and maintenance.

In summary, the Toyota AD860’s combination of speed, memory, and precision makes it a reliable workhorse for embroidery professionals seeking proven performance without the price tag of newer, multi-head systems.

2.2 Advanced Frame Systems: Garment vs. Cap Embroidery

Frame versatility is at the heart of the AD860’s appeal, allowing users to switch seamlessly between garment and cap embroidery.

270-Degree Cap Frame Mechanics: The AD860’s 270-degree cap system is engineered for embroidery on curved surfaces—think hats, collars, and cuffs. This specialized frame ensures designs remain crisp and aligned even on challenging contours, expanding your product offerings beyond flat textiles.

Flat and Tubular Hoop Compatibility: With a removable table system, the AD860 supports both flat and tubular hoops, letting you tackle everything from T-shirts to bulky jackets. The transition between frame types is quick and user-friendly: simply loosen two thumb screws, remove the table, and install the desired frame with the provided tools. This flexibility makes the AD860 a true all-rounder in commercial settings.

Sewtalent Magnetic Hoops for Garment Workflows: For garment embroidery, the integration of Sewtalent magnetic hoops is a game-changer. Unlike traditional screw-based hoops that demand time-consuming manual adjustments, Sewtalent’s powerful magnetic system automatically adapts to fabric thickness, ensuring even tension and preventing hoop burn. Operators can expect up to 40% faster setup times compared to conventional hoops, dramatically boosting productivity—especially in high-volume environments.

Why Choose Sewtalent Magnetic Hoops?

• Effortless Fabric Placement: The magnetic system secures everything from delicate silks to heavy denim with a single motion.
• Reduced Operator Fatigue: No more repetitive screw-twisting—just quick, ergonomic hooping.
• Consistent Results: Even tension across the fabric means fewer defects and higher-quality embroidery.

Note: Sewtalent magnetic hoops are designed specifically for garment embroidery and are not intended for use with cap frames.

By leveraging the AD860’s flexible frame system and the efficiency of Sewtalent magnetic hoops, embroidery businesses can handle a wider variety of orders with less setup time and greater consistency.

3. Purchase Considerations & Commercial Viability

3.1 Pricing Analysis: Refurbished vs. Full Production Kits

The Toyota AD860’s value proposition hinges on its commercial-grade features and accessible pricing—especially in the pre-owned market.

Pricing Overview:

• Entry-Level: Refurbished or basic configurations can be found for $1,299 (occasionally discounted from $1,999).
• Full Production Kits: Comprehensive setups—including a serviced pre-owned machine, 270-degree cap kit, assorted hoops, and a 90-day warranty—typically range from $4,995 to $8,000.
• Complete Business Packages: Top-tier packages may include a laptop with digitizing software, hat frames, and magnetic frames, pushing the price toward the higher end.

Included Accessories:

Optional upgrades—such as the Black Box for direct file transfers or retrofit cap frame brackets—can further enhance functionality.

Market Dynamics:

Since Toyota no longer manufactures new AD860 units, buyers must rely on refurbished or used machines. Toyota embroidery machine for sale prices reflect the model’s enduring reliability, large work area, and commercial-grade speed.

---

3.2 ROI Calculation for Small Businesses

For small embroidery businesses, the AD860 offers a compelling balance of performance and affordability.

Production Output:

Reports indicate that well-maintained AD860 units can handle up to 3.7 million stitches per week under heavy use. While single-head machines can’t match the throughput of multi-head systems, the AD860’s modular approach allows businesses to scale by adding more units as demand grows.

Cost Efficiency:

• Lower Upfront Investment: The AD860’s price point is significantly below that of high-end, multi-head competitors.
• Reduced Setup Time: Integrating Sewtalent magnetic hoops into garment production can cut hooping time by up to 40%, translating into substantial labor savings over time.
• Versatile Project Range: The machine’s compatibility with .DST files and third-party digitizing software means you’re not locked into proprietary ecosystems—further reducing long-term costs.

Commercial Viability Table:

Limitations to Consider:

• Single-Head Design: Less efficient for ultra-high-volume production.
• Support: Reliance on third-party providers for parts and service due to discontinued status.
• Memory Constraints: 100,000-stitch memory may limit complex or large-scale projects.

Bottom Line:

The Toyota AD860 remains a smart investment for small to medium businesses prioritizing cost-effectiveness, versatility, and proven reliability. Pairing the machine with modern accessories like Sewtalent magnetic hoops and up-to-date digitizing software can maximize ROI and keep your embroidery operation running smoothly.

4. Operational Mastery: Setup & Maintenance Protocols

Mastering the Toyota AD860’s setup and maintenance is the difference between smooth, high-output production and frustrating downtime. Let’s break down the essential protocols for frame alignment, cylinder arm mechanics, and thread management—so you can keep your AD860 humming along like a well-oiled symphony.

4.1 Frame Alignment & Cylinder Arm Mechanics

Proper frame alignment is the foundation of flawless embroidery. The AD860’s modular design allows quick transitions between flat and cap embroidery, but precision is key.

Cap Gauge Installation & Alignment

- Cap Gauge Alignment: Start by centering the cap frame with the cap gauge. Rotate the cap frame 90° and slide it onto the cap frame base until it clicks—think of it as docking a spaceship, where misalignment means mission failure.

- Cap Attachment: Flip the cap’s sweatband inside out and align its center with the cap frame’s center line. Secure the cap using the lid frame’s teeth, right where the bill meets the body. This ensures the design lands exactly where you want it, even on tricky curved surfaces.

- Rotation Capability: The AD860’s cap frame supports a full 270° rotation, letting you embroider on virtually any part of a cap, collar, or cuff.

Flat Frame Setup

- Work Table & Needle Plate: For flat embroidery, remove the needle plate and replace the work table as needed. This opens up the expansive 460 x 300 mm work area—perfect for jackets, totes, and more.

- Clearance Adjustments: Precision matters: maintain a 0.6–1.0 mm gap between the hook retainer and rotary hook. Center alignment between the needle and hook retainer protrusion should be ≤0.3 mm. These micro-adjustments prevent thread snags and ensure stitch consistency.

Cylinder Arm Maintenance

- Hook Retainer & Rotary Hook Alignment:

- Inspection: Check for proper clearance (0.6–1.0 mm) and center alignment (≤0.3 mm).

- Adjustment: Loosen the retaining screws, shift the hook retainer horizontally or vertically as needed, then retighten. It’s a bit like tuning a guitar—small tweaks, big impact.

- Needle Plate & Work Table: Remove these components for deeper access, always using Toyota-approved parts for replacements.

- Torque Specifications: While specific torque values may not be listed, always secure retaining screws firmly—tight enough to hold, but never over-tightened to avoid stripping threads.

Power & Safety Protocols

- Always disconnect power before servicing.

- The AD860 operates on 100–240 VAC (single-phase, 50/60 Hz) at 320W. Safety first—electricity and embroidery don’t mix!

Key Maintenance Components

- Needle Holder Guide Spring: Ensures needle alignment; replace as needed.

- Cap Frame Bracket (Part #666452-46020A): Keeps the cap frame locked in for both AD850 and AD860 models.

For advanced troubleshooting, always consult Toyota embroidery machine repair specialists via the official service manual—systematic diagnostics beat guesswork every time.

4.2 Thread Management & Sensor Calibration

Thread management on the AD860 is a blend of art and science. While the machine’s sensors do much of the heavy lifting, a few best practices will keep your stitches crisp and your downtime minimal.

Thread Breakage Sensors & Tension Control

- Sensor Functionality: The AD860 is equipped with thread breakage sensors that trigger audible and visual alerts if a thread snaps. This feature is your early warning system, saving you from ruined designs and wasted materials.

- Sensor Calibration:

- Set the thread sensor switch to a 1.5 mm clearance (ON-OFF position) as specified in the service manual.

- Test with a properly threaded needle to confirm responsiveness.

- If the sensor doesn’t trigger, inspect the wiring or replace the sensor as needed.

- Tension Checks: While the AD860 doesn’t provide automated tension settings like some modern machines, maintaining even thread tension is crucial. Adjust tensioners manually and replace worn or bent needles to prevent thread slippage or breakage.

AC Servo Motor Maintenance

- Both the main machine and embroidery frame use AC servo motors, prized for their smooth, reliable performance.

- Lubricate moving parts every 100–200 hours of operation to reduce friction and extend motor life.

- Clear any obstructions in the thread path to prevent jams—a simple step that can save hours of frustration.

Comparing Modern Machines

Unlike newer models that offer fully automated thread management and tension adjustment, the AD860 relies on operator skill. But with regular sensor calibration and attentive maintenance, you can achieve results that rival the latest tech—sometimes, old-school craftsmanship wins the day.

5. Troubleshooting Common Errors

Even the best machines hit a snag now and then. The Toyota AD860, with its robust engineering, is no exception. Here’s how to tackle the most common headaches—so you spend less time troubleshooting and more time stitching masterpieces.

5.1 Resolving 'Disk Read Error fd:10h' & Floppy Drive Failures

If your AD860 flashes a dreaded ‘Disk Read Error fd:10h,’ you’re not alone. This is a classic symptom of legacy floppy disk woes.

Diagnostic Flowchart for Floppy Issues

1. Verify Disk Integrity:

- Use only 3.5" DD (Double Density) floppy disks, as the AD860 may not reliably read modern HD (High Density) disks.

- Check for physical damage or dust—sometimes, a gentle cleaning works wonders.

2. Check Floppy Drive:

- Inspect for debris or misalignment.

- Test with a known working disk to isolate whether the problem is with the disk or the drive.

3. Software Compatibility:

- Ensure files are in .DST format. Other formats may cause read errors or crashes.

4. Firmware & Support:

- If problems persist, consult the Toyota 9100 embroidery machine manual (compatible with AD860) or seek advice from experienced technicians. Manufacturer support is limited due to the machine’s discontinued status.

Permanent Solutions: USB Conversion Kits

Tired of hunting for ancient floppy disks? Consider upgrading to a USB conversion kit or a Black Box add-on. These solutions let you transfer designs via USB flash drives, bypassing the floppy drive entirely and bringing your AD860 into the 21st century.

5.2 Sewing Motor Lock & Needle Alignment Fixes

A sewing motor lock error can bring production to a screeching halt. Here’s how to get things moving again:

Critical Maintenance

- Lubrication: Follow the service manual’s schedule—typically every 100–200 hours—to keep moving parts friction-free.

- Thread Path Inspection: Clear any obstructions to prevent jams.

- ISO 527 Tensile Strength: When replacing parts like rotary hooks or needle holders, use components that meet or exceed ISO 527 standards for durability.

Pro Tip: If the machine turns freely after removing the rotary hook, but binds when the hook is reinstalled, the hook itself is likely the culprit—swap it out for a new one.

Preventative Strategies

- Regular Maintenance: Lubricate, clean, and replace wear-prone components on schedule.

- Modernization: Upgrading to USB or Black Box systems not only solves floppy issues but can also reduce error rates and streamline your workflow.

For persistent or complex issues, don’t hesitate to consult the Toyota AD860 Service Manual or a certified technician—sometimes, an expert eye is worth its weight in gold.

6. Software & Modernization Strategies

The AD860 may have been born in the floppy disk era, but with the right upgrades, it’s ready to play in today’s digital embroidery landscape. Let’s explore how to keep your workflows efficient and your machine compatible with modern design tools.

6.1 .DST Workflows & Third-Party Digitizing Tools

File Formats and Compatibility

• The Toyota AD860 natively supports .DST (Data Stitch Tajima) files—the gold standard in commercial embroidery. This format is widely recognized by brands like Tajima, Brother, and Janome.
• While .PES files (used by Brother/Baby Lock) are sometimes mentioned, .DST is your go-to for the AD860.

Design Constraints

• The AD860’s memory supports up to 100,000 stitches or 99 patterns. For larger designs, third-party memory expansions like Data Stitch can push this to ~160,000 stitches.
• To avoid mid-project headaches, always check your design’s stitch count before exporting.

Digitizing Software Integration

• Modern tools like Hatch Embroidery, Embroidery Fonts Plus, and Stitch Pro STI (often bundled with AD860 kits) allow you to create, edit, and export designs in .DST format.
• For best results, use .DST for stitch data and maintain separate color charts—Toyota machines prioritize stitch accuracy over embedded color data.

Workflow Best Practices

• Export designs in .DST format from your digitizing software.
• Use external color libraries to manage thread colors, as .DST files don’t carry color data.
• Regularly back up your designs to avoid data loss during power interruptions.

Industry Trends

• .DST remains the dominant format for commercial embroidery, prized for its lightweight, machine-agnostic design.
• Hybrid workflows—combining .DST files for stitch data with external color references—yield optimal results.

6.2 Upgrading Legacy Systems: USB & Network Connectivity

Still relying on floppy disks? It’s time for an upgrade.

USB Conversion Kits & Black Box Retrofits

• Black Box Add-On: This device enables direct design input via USB, bypassing the floppy drive. It’s plug-and-play—no more hunting for vintage disks.
• USB reader for Toyota embroidery machines conversion kits: Replace the AD860’s floppy drive with a USB reader, letting you use modern flash drives for design transfers.

Step-by-Step Upgrade Guide

1. Install the USB Kit or Black Box:
   • Remove the old floppy drive.
   • Mount the USB device in its place, following the manufacturer’s instructions.
2. Configure File Structure:
   • Format your USB drive as FAT (not FAT32 or NTFS).
   • Save your .DST files in the root directory or as specified by the kit’s manual.
3. Test Transfers:
   • Load a design onto the USB, insert into the AD860, and verify it appears correctly on the machine’s display.

Network Connectivity

• Some advanced kits support LAN connections (e.g., 192.168.11.x subnet), enabling direct file transfers from your computer to the AD860.
• Always check for OT (Operational Technology) security risks—unpatched firmware can expose your machine to vulnerabilities.

Benefits of Modernization

• Simplified Transfers: No more floppy disk headaches.
• Expanded Memory: Some kits allow for larger stitch counts and more designs.
• Future-Proofing: Stay compatible with the latest digitizing software and workflows.

Security Note: When connecting legacy machines to a network, ensure your firmware is up to date and restrict access to trusted devices only.

With these operational, troubleshooting, and modernization strategies, your Toyota AD860 can deliver reliable, high-quality embroidery for years to come—proving that even classic machines can thrive in a digital world.

7. Conclusion: Maximizing AD860 Longevity

To keep your Toyota AD860 running strong for years, a proactive approach to maintenance and upgrades is essential. Regularly lubricate moving parts, clean thread paths, and calibrate sensors—these small rituals are the heartbeat of machine longevity. Don’t let memory limits or floppy disk woes slow you down; modernizing with USB conversion kits or Black Box add-ons can breathe digital life into this classic workhorse, streamlining file management and reducing operational hiccups.

For garment embroidery workflows, integrating Sewtalent magnetic hoops is a game-changer. Their powerful magnetic system not only slashes hooping time by up to 40% but also ensures even fabric tension, reducing daily wear on the AD860’s cylinder arm and minimizing hoop burn. The result? Less operator fatigue, fewer misaligned designs, and a machine that stays in peak condition through countless production cycles.

In the end, the secret to Toyota embroidery machines longevity is a blend of attentive care and smart upgrades. Pairing proven maintenance routines with efficiency-boosting tools like Sewtalent magnetic hoops empowers your AD860 to deliver reliable, high-quality embroidery—project after project, year after year.

8. FAQ: Toyota AD860 Performance Solutions

8.1 Q: How do I correct stitch width or alignment issues on the AD860?

A: The AD860 offers five-stage stitch width correction in 0.1mm increments, accessible directly from the control panel. Use the pattern correction or editing functions to fine-tune stitch placement, and always confirm alignment by tracing the design before starting embroidery.

8.2 Q: What’s the best way to calibrate the bobbin counter?

A: The AD860’s bobbin counter tracks thread usage and alerts you when it’s time for a change. To calibrate, reset the counter after each bobbin replacement via the machine’s settings menu. If the counter becomes inaccurate, consult the service manual for step-by-step recalibration procedures.

8.3 Q: Where can I source discontinued parts for the AD860?

A: Since Toyota no longer manufactures the AD860, parts are typically sourced through third-party suppliers, specialized embroidery equipment dealers, or online forums. Always verify compatibility and quality before purchasing, and consider stocking up on high-wear items like needles, rotary hooks, and sensors to minimize downtime.

8.4 Q: How can I avoid common setup mistakes that affect performance?

A: Double-check frame alignment, maintain a 0.6–1.0mm clearance for the hook retainer, and ensure thread sensors are positioned at 1.5mm as recommended. Regularly inspect for debris or worn parts, and use the trace function to verify design placement before each run.

8.5 Q: Is there a way to bypass floppy disks for design transfers?

A: Yes, USB conversion kits and Black Box add-ons allow you to transfer designs via USB flash drives, eliminating reliance on legacy floppy disks and simplifying your workflow.

---

By mastering these essentials, you’ll keep your Toyota AD860 performing at its best—no matter how many stitches or years you put it through.
