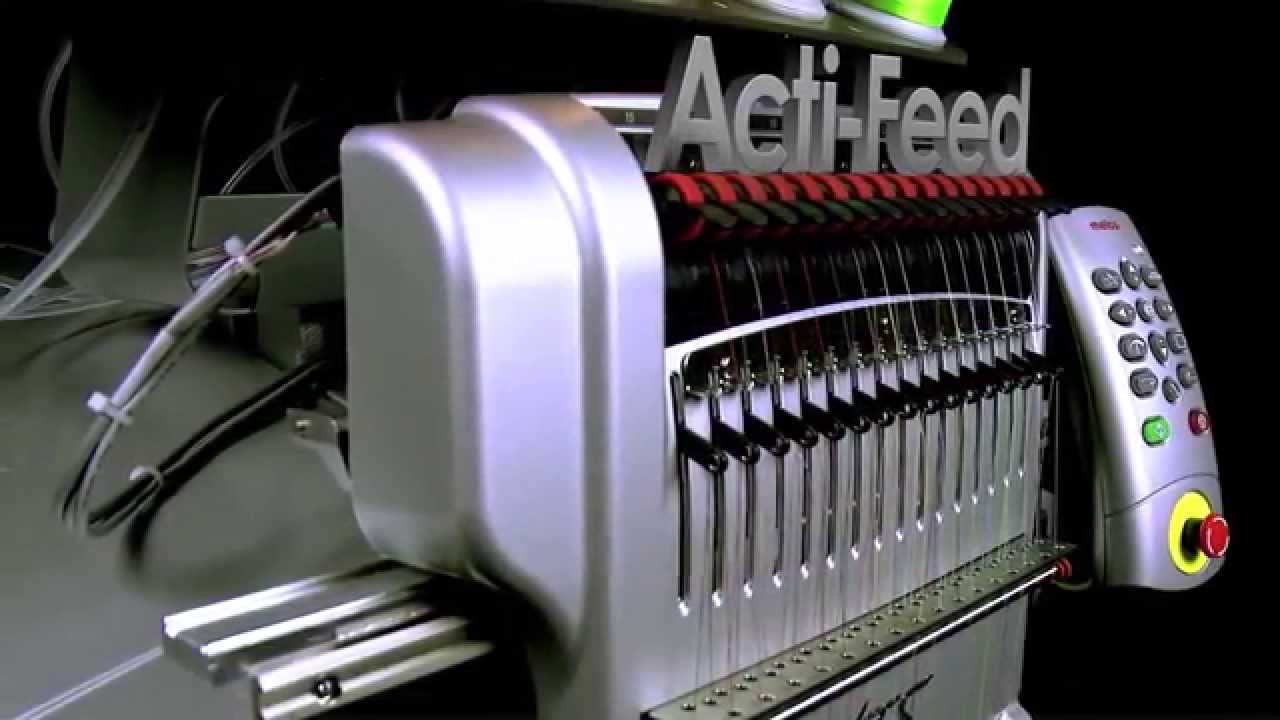

1. Introduction to Amaya Melco XTS Capabilities
The Melco Amaya embroidery machine (XTS) stands at the forefront of commercial embroidery technology, blending raw power with refined innovation. This guide is your gateway to understanding why the XTS is celebrated across the industry for its blazing stitch speeds, modular design, and feature-rich workflow tools. Whether you’re a seasoned studio owner or an embroidery enthusiast, you’ll discover how the XTS’s 16-needle configuration, advanced Acti-Feed™ tensioning, and laser registration system redefine precision and efficiency. In the chapters ahead, we’ll break down technical specs, compare models, and explore workflow optimization strategies—equipping you to make informed decisions and unlock the full potential of your embroidery business.
Table of Contents
2. Technical Specifications Breakdown
The Amaya Melco XTS isn’t just another embroidery machine—it’s a powerhouse engineered for versatility, speed, and reliability. Let’s peel back the layers and see what sets this machine apart.
2.1 Core Performance Metrics
At the heart of the XTS is a robust 16-needle system, allowing for seamless color changes and complex designs without constant thread swaps. This machine sprints at up to 1,500 stitches per minute (SPM) on flat surfaces, making it one of the fastest in its class. For cap embroidery, it maintains an impressive 1,200 SPM, ensuring both speed and stitch quality.
The Melco hoop sizes range includes a tubular frame supporting 360 mm x 300 mm (14.17" x 11.81") embroidery area, while the cap frame offers a wide-angle field of 300 mm x 360 mm (11.81" x 14.17")—ideal for intricate or large-scale cap designs. The XTS’s modular construction means you can start with a single head and scale up as your business grows, with networking capabilities that support multi-machine configurations.
| Parameter | Specification |
|---|---|
| Max Stitch Speed (Flat) | 1,500 SPM |
| Max Stitch Speed (Caps) | 1,200 SPM |
| Needle Count | 16 |
| Tubular Frame Size | 360 mm x 300 mm (14.17" x 11.81") |
| Cap Frame Size | 300 mm x 360 mm (11.81" x 14.17") (wide-angle) |
| Max Tubular Sew Field | 410 mm x 400 mm (16.1" x 15.7") |
Innovative Features:
- Laser Registration System: Automatically aligns designs, reducing setup errors and boosting placement accuracy.
- Acti-Feed™ Tensioning: Delivers automatic thread tension adjustments at high speeds, minimizing thread breaks and ensuring consistent results.
- Color Backup System: If a thread breaks, the machine automatically switches to a backup needle, slashing downtime.
- Height-Adjustable Presser Foot: Easily adapts to fabric thickness (0.5 mm to 3.5 mm), supporting everything from delicate silks to heavy denim.
- High-Speed Pantograph: Optimized for precise, high-speed movement, reducing material interference.
- Ultra-Reliable Trimmer: Efficiently handles thick threads, including metallic and specialty fibers.
2.2 Power & Operational Requirements
The XTS is designed for flexibility in installation and operation. It runs on a 90–260V single-phase power supply (50/60 Hz), making it suitable for a global user base. Typical power consumption is 200W, peaking at 650W during intensive operation.
Physical Specs:
- Width: 724 mm (28.5")
- Height: 1,584 mm (62.4") with cart; 952 mm (37.48") without
- Depth: 944 mm (37.2") with cart; 741 mm (29.2") without
- Weight: 95.4–96 kg (210.3–210.5 lbs)
Operational Highlights:
- Acti-Feed™ Integration: The system’s patented thread feed technology is software-controlled, automatically delivering the right tension for each needle and material type. This reduces manual guesswork and boosts production consistency.
- Modular Networking: While not as extensive as the XT’s 30-machine network, the XTS supports scalable setups via AMAYA OS, allowing you to expand as your business demands grow.
- Included Accessories: The XTS ships with a comprehensive toolkit—power cord, cart/stand, eight hoops (12 cm, 15 cm, 18 cm, 30 cm x 36 cm), cap driver, frames, and more—so you’re ready to tackle a wide range of projects from day one.
The XTS’s design is all about adaptability—whether you’re running a single-head operation or scaling up to a multi-head production floor, this machine is engineered to keep pace.
3. Model Comparison: XTS vs XT vs Bravo
Choosing the right embroidery machine isn’t just about specs—it’s about matching the tool to your business’s unique needs. Here’s how the Amaya XTS stacks up against its siblings, the XT and Bravo.
3.1 Production Capacity Analysis
Sewing Fields and Frame Sizes
| Feature | Amaya XTS | Amaya XT | Melco Bravo |
|---|---|---|---|
| Max Tubular Frame | 360 mm x 300 mm | 500 mm x 430 mm | 322 mm x 267 mm |
| Cap Sewing Field | Wide-angle, largest in industry | 362 mm x 82 mm (wide-angle) | Standard cap frames |
| Max Stitch Field | 390 mm x 390 mm | 410 mm x 400 mm | 322 mm x 267 mm |
The XT dominates with the largest sewing field—perfect for banners, bulk garments, or oversized designs. The XTS and Melco Bravo embroidery machine are tailored for standard applications, with the XTS’s specialized wide-angle cap frame offering stable, high-quality stitching for headwear.
Max Speeds and Performance
| Feature | Amaya XTS | Amaya XT | Melco Bravo |
|---|---|---|---|
| Flat Speed | 1,500 SPM | 1,500 SPM | 1,000 SPM |
| Cap Speed | 1,200 SPM | 1,200 SPM | 1,000 SPM |
| Thread Trimmer | New cutting action for thick threads | Standard trimmer | Standard trimmer |
The XT and XTS lead in speed, while the Bravo’s 1,000 SPM is ideal for smaller studios or those just starting out.
Software and Automation Features
| Feature | Amaya XTS | Amaya XT | Melco Bravo |
|---|---|---|---|
| OS Version | AMAYA OS (Real Hoop Limit Detection) | AMAYA OS V10 (3D preview, design scaling) | AMAYA OS Lite |
| Networking | Wireless sharing via WiFi | Up to 30 machines | Up to 4 machines |
| Laser Registration | Not specified | Yes (pre-sew trace) | Not specified |
| Design Tools | Built-in lettering/editing | Stitch regeneration, photo embroidery | Basic editing |
The XT stands out for advanced tools like 3D previews and laser alignment, while the XTS supports wireless file sharing for streamlined multi-machine workflows. The Bravo’s OS Lite is more basic, best suited for standalone use.
Production Capabilities
| Feature | Amaya XTS | Amaya XT | Melco Bravo |
|---|---|---|---|
| Modular Design | Yes | Yes | No |
| Self-Diagnostics | No | Yes | No |
| Cap Driver | No | Yes | Optional |
| Thread Tension | Acti-Feed™ | Acti-Feed™ | Acti-Feed™ |
The XT is built for high-volume, multi-head operations, while the XTS excels in cap embroidery and wireless workflow integration. Melco Bravo embroidery machine is the budget-friendly choice for basic needs.
3.2 Specialized Applications Showdown
When it comes to cap embroidery, the XTS’s wide-angle frame delivers the largest and most stable sewing field in the industry—making it the go-to for complex or large-scale headwear designs. The XT offers a slightly larger overall field for flatwork, which is ideal for oversized or bulk projects.
Scenario Recommendations:
- High-volume production: Opt for the XT—its speed and scalability are unmatched.
- Cap embroidery: The XTS shines with its wide-angle frame and precision thread cutting.
- Startups or small studios: The Melco Bravo embroidery machine offers affordability and essential features for those just beginning their embroidery journey.
In a nutshell: If your business is built on speed, scale, and versatility, the XT is your powerhouse. For specialized cap work and modular flexibility, the XTS is a top contender. And if you’re seeking a reliable, cost-effective entry point, the Melco Bravo embroidery machine is ready to get you started.
4. Operational Mastery Guide
Mastering the Amaya Melco XTS isn’t just about knowing the specs—it’s about perfecting your workflow, from hooping to tension management. Let’s dive into the hands-on techniques and troubleshooting know-how that separate the pros from the pack.
4.1 Advanced Hooping Techniques
Selecting the right hoop and achieving flawless tension is the foundation of every great embroidery project. The XTS offers flexibility with both wooden and plastic hoops, but each has its own quirks:
- Wooden Hoops: These often feature registration marks to help maintain shape and grip, especially useful for slick or bulky goods. Their double-high sides provide a larger surface area, making them ideal for gripping challenging fabrics.
- Plastic Hoops: Durable and less prone to warping, but be cautious—lower-quality plastics can crack under pressure. High-quality composite options offer both flexibility and resilience, as highlighted in recent industry videos.
Hooping Sequence for Precision:
- Tension Calibration: Always tighten the inner hoop before placing your garment. Over-tightening after the fabric is in place can lead to puckering or "hoop burn."
- Material Placement: Lay your fabric flat, then gently lower the outer hoop. Avoid stretching or dragging the material—this is your best defense against wrinkles and misalignment.
- Final Check: The fabric should be taut, but not stretched. Think of it like tuning a drum—firm, even tension is the sweet spot.
Magnetic Hoop Integration (SewTalent Compatibility):
For those seeking to turbocharge their workflow, magnetic hoops for Melco Amaya like SewTalent turbocharge workflows—no more tedious screw adjustments. Whether you’re working with delicate lace or thick denim, SewTalent’s high-strength magnets adapt instantly, holding your fabric securely and evenly. This not only slashes hooping time by up to 90%, but also minimizes the risk of fabric damage and misalignment. The built-in alignment marks make precise placement a breeze, even for complex or repeat jobs.
Pro Tip: If you’re tired of fighting with screw-tightened hoops, or you’re running high-volume jobs, SewTalent can transform your hooping process—saving time, reducing strain, and boosting consistency.
4.2 Tension Management Workflows
Thread tension can make or break your embroidery—literally. The Amaya XTS’s Acti-Feed™ system takes much of the guesswork out, but a little know-how goes a long way.
Optimizing the Acti-Feed System:
- Thread Routing: Double-check that all thread tubes are securely in place. A loose tube can cause unexpected thread breaks mid-design.
- Tension Checks: While Acti-Feed automates tension adjustments, it’s wise to monitor both upper and lower thread tension—either through the machine’s software or with manual spot checks.
- Bobbin Tension Calibration: Use continuous filament spun polyester for bobbins, and test tension regularly. Adjust as needed for different fabrics.
Troubleshooting Common Issues:
| Issue | Solution |
|---|---|
| Thread Breakage | Inspect thread routing and tension. Replace worn or damaged thread tubes. |
| Needle Depth Errors | Adjust needle depth for non-Organ brands. Always use Melco-recommended industrial needles. |
| Fabric Ripples | Re-hoop with tighter inner hoop tension; avoid adjusting after fabric placement. |
| Machine Connectivity | Check USB connections; perform manual software updates if needed. |
Presser Foot Adjustments:
- Access the Maintenance menu in AMAYA OS, head to the Head Timing tab, and set the needle to its lowest depth (Bottom Center).
- Locate the presser foot eccentric gear behind the needlecase and adjust the height as needed—aim for a gap just thick enough for your thread.
- For specialized tasks, such as darning, swap in the appropriate foot and ensure proper alignment.
Key Maintenance Practices:
- Change needles every 4–8 sewing hours (or more often for titanium needles).
- Always orient the needle correctly: thread guide facing forward, scarf at the back.
- Keep your machine’s software up to date—manual USB updates are available for offline machines.
- Refer to Melco’s official manuals for part numbers and replacement procedures.
Bottom Line: A well-tuned machine is a happy machine. Take the time to calibrate, check, and maintain—your embroidery (and your sanity) will thank you.
5. Accessory Compatibility Guide
The Amaya Melco XTS isn’t just a machine—it’s a platform. The right accessories can unlock new levels of creativity and efficiency. Let’s break down the best options for garment embroidery and cap work.
5.1 Magnetic Hoop Solutions for Garment Embroidery
If you’re embroidering garments, thick materials, or tricky finished goods, magnetic hoops are your secret weapon. SewTalent magnetic hoops are purpose-built for the Amaya XTS, Bravo, EMT16, and Bernina E16 models, offering a leap in both speed and versatility.
Why Choose SewTalent?
- Thick Material Handling: Whether you’re working with denim, leather, or even multi-layered knits, SewTalent’s powerful magnets keep everything flat and secure—no slipping, no distortion.
- Delicate Fabric Protection: Embroider organza, lace, or finished garments without worrying about hoop marks or fabric damage.
- Efficiency Gains: Compared to traditional hoops, SewTalent can reduce hooping time by up to 90%. That’s not just a time-saver—it’s a game-changer for high-volume shops.
- Alignment Mark System: Built-in reference lines make it easy to position your designs accurately, batch after batch.
User Experience:
From pockets and collars to full-size shirts and bags, SewTalent’s broad size range and robust construction deliver consistent results. The hoops’ industrial-grade PPSU plastic and N50-grade magnets mean they’re built to last—even under the demands of commercial production.
Pro Tip: Pairing SewTalent hoops with a hooping station can further boost productivity, especially for batch runs and repeat designs.
5.2 Specialized Cap Frame Options
Cap embroidery brings its own set of challenges—curved surfaces, thick seams, and the need for precise alignment. Melco hat hoop solutions for XTS support specialized cap designs to meet these demands.
HoopTech Dream Frame Compatibility:
- The HoopTech Dream Frame Gen 2 is compatible with Amaya XTS, XT, Bravo, EMT16, and EMT16Plus models. It works seamlessly with the Red Wide Angle Cap Driver, expanding your options for cap sizes and styles.
- For bulkier or specialty caps, large and compact back-of-cap clamps are available. Just be sure to select the correct frame in your software’s Hoop Manager (Red Gen2 or Graphite Gen2), and update your Hoop Database as needed.
Important Cautions:
- Avoid using the 270 Bucket Hat Clamp with the XTS—it can cause machine damage.
- Always confirm software compatibility and select the right frame to ensure smooth operation.
Workflow Integration:
HoopTech frames, when paired with the right software updates, allow for rapid setup and reliable stitching—even on challenging cap designs. The result? Faster turnarounds and fewer headaches.
6. Software Integration Strategies
The Amaya XTS’s power is amplified by its advanced software suite. With AMAYA OS Flex+ and SE, you can automate, scale, and perfect your embroidery workflow—no matter the size of your operation.
6.1 AMAYA OS Flex+ Automation Features
Real Hoop Limit Detection: Forget the guesswork—AMAYA OS Flex+ automatically identifies the sewable area in any hoop, protecting your machine and your designs. No more ruined projects from accidental oversizing.
Drag-and-Drop Color Sequencing: Map design colors to specific needles with a simple drag-and-drop interface. This streamlines setup, especially for multi-head configurations, and reduces the risk of color errors.
Networked Multi-Machine Configurations:
- Flex+ Mode: Run up to 30 machines in multiple, independently managed groups. Switch between synchronous (all heads in unison) and asynchronous (each head operates independently) modes to maximize uptime—even if one head stops for a bobbin change or thread break.
- SE Mode: Perfect for single-head setups, offering the same precision with a simplified interface.
Workflow Example: Imagine running a 4-head group on one design, a 6-head group on another, and a 2-head group for samples—all from a single control point. That’s the power of Flex+.
6.2 Design Scaling Best Practices
Column Width Auto-Compensation: AMAYA OS Flex+/SE can automatically adjust column widths for both horizontal and vertical stitch directions, maintaining design proportions and stitch density—even when resizing for different hoop types (cap vs. flat).
Stitch Regeneration Protocols: When you scale a design, the software recalculates stitches to preserve quality. Manual overrides are available for fine-tuning, but for most jobs, the auto-compensate feature ensures crisp, clean results.
DesignShop V9 Lite Integration: Edit, resize, and reshape designs directly within AMAYA OS V10, leveraging advanced tools for maximum control.
Speed Considerations: The Lite version of AMAYA OS caps speeds at 1,000 SPM, while SE and Flex+ allow higher speeds via machine keypad adjustments—keeping your production running at full throttle.
Key Advantages:
- Real Hoop Detection: Prevents costly mistakes and machine damage.
- Asynchronous Multi-Machine Control: Keeps your shop running, even if one head needs attention.
- Integrated Editing: All your design and production tools, in one place.
Bottom Line: Whether you’re scaling up for mass production or fine-tuning a boutique order, AMAYA OS Flex+/SE gives you the flexibility and automation to get it right—every time.
Ready to take your Amaya XTS workflow to the next level? Explore SewTalent magnetic hoops for garment embroidery, update your cap frame arsenal, and harness the full potential of AMAYA OS Flex+. Your embroidery business—and your sanity—will thank you.
7. Conclusion: Maximizing ROI with XTS
When it comes to embroidery, every second counts—and every stitch tells a story of efficiency, precision, and smart investment. The Amaya Melco XTS is engineered to deliver on all fronts, blending high-speed performance with a robust feature set that meets the demands of modern embroidery businesses.
Let’s recap the key decision factors. First, speed versus field size: the XTS’s 1,500 SPM maximum stitch rate and industry-leading wide-angle cap frame ensure you can take on both high-volume garment runs and complex headwear projects without sacrificing quality or flexibility. Its modular design means you can start small and scale up, adapting to your business’s growth with seamless networking and workflow automation through AMAYA OS Flex+.
Accessory investments play a pivotal role in ROI. For garment embroidery, integrating SewTalent magnetic hoops can slash hooping time by up to 90%, dramatically boosting throughput and reducing operator fatigue. These hoops excel at handling everything from delicate lace to thick denim, thanks to their powerful magnetic clamping system and robust, industrial-grade materials. The built-in alignment marks further minimize errors, so you spend less time reworking and more time producing.
Workflow automation is the final piece of the puzzle. Features like Real Hoop Limit Detection, drag-and-drop color sequencing, and asynchronous multi-head control keep your shop humming—even when the unexpected strikes. The result? Fewer bottlenecks, higher productivity, and a smoother path to profit.
In short, the Melco embroidery machine for sale (XTS model)—especially when paired with next-generation accessories like SewTalent magnetic hoops—delivers a compelling return on investment. It’s not just about faster stitches; it’s about building a smarter, more resilient embroidery business ready for whatever comes next.
8. FAQ: Amaya XTS Essentials
8.1 Q: What is the recommended maintenance interval for the Amaya XTS?
A: Routine maintenance is crucial for optimal performance. Change standard needles every 4–8 sewing hours, and consider replacing titanium needles less frequently, as they last longer. Regularly oil the rotary hook and keep the bobbin area clean to prevent thread buildup. Always refer to Melco’s official manuals for detailed maintenance schedules and part numbers.
8.2 Q: How do I update the software on my Amaya XTS?
A: Software updates for AMAYA OS and RSA/CSA files are available online. Connect your computer to the internet (preferably through a separate network card from the AMAYA), then use the “Check for Updates…” option in the Tools menu. For offline machines, manual USB updates are also supported.
8.3 Q: What should I do if I experience frequent thread breaks?
A: Frequent thread breaks can stem from several causes. Check that all thread tubes are securely in place, inspect the needle for burrs or incorrect orientation, and verify both upper and lower thread tension. The Acti-Feed™ system automates much of the tensioning, but manual spot checks are always helpful. Also, ensure you’re using Melco-recommended industrial needles and the correct bobbin thread.
8.4 Q: How do I adjust the presser foot height for different materials?
A: Open AMAYA OS, select the Maintenance menu, and navigate to the Head Timing tab. Set the needle to its lowest depth (Bottom Center), then adjust the presser foot eccentric gear behind the needlecase. Aim for a gap just thick enough for your thread—this ensures smooth operation across various fabric thicknesses.
8.5 Q: Can I network multiple Amaya XTS machines for higher production?
A: Absolutely. With AMAYA OS Flex+, you can network up to 30 machines, grouping them as needed for synchronous or asynchronous operation. This allows you to run different jobs simultaneously, maximizing uptime and production flexibility.
8.6 Q: What types of needles and backings are recommended for different fabrics?
A: Use ball point needles for knits (like t-shirts), sharp point needles for tightly woven fabrics (like denim or canvas), and titanium-coated needles for coated or abrasive materials. Select cut-away backing for unstable goods (knits), tear-away for stable wovens, and specialty backings as needed for visibility or softness.
8.7 Q: How do I troubleshoot registration loss or fabric puckering?
A: Registration loss can often be resolved by checking hooping tension and slowing down the machine. To prevent fabric puckering, avoid stretching the fabric during hooping and use the correct backing. Always adjust hoop tension before placing the garment to minimize distortion.
If you have more questions, consult your Melco user manual or reach out to certified technicians for personalized support. Happy stitching!
