Avance Embroidery Machine Manual: Master Operations, Troubleshooting & Advanced Techniques

1. Introduction to Avance Machine Mastery

Embroidery is more than just stitches—it's a dance of precision, creativity, and technology. If you’re looking to unlock the full potential of your Avance embroidery machine, this guide is your backstage pass. We’ll break down everything from technical specs and safety must-knows to troubleshooting and advanced operational tricks. Whether you’re a seasoned pro or just threading your first needle, you’ll discover how mastering the avance embroidery machine manual and leveraging the right techniques can boost your efficiency, minimize downtime, and help you create flawless designs with confidence. Ready to take your embroidery game to the next level? Let’s dive in.

Table of Contents

• 1. Introduction to Avance Machine Mastery
• 2. Technical Specifications & Safety Protocols
• 3. Troubleshooting Common Errors
• 4. Advanced Functionality Deep Dive
• 5. Software & Accessory Integration
• 6. Version Differences & Documentation Gaps
• 7. Conclusion: Maximizing Machine Potential
• 8. Frequently Asked Questions

2. Technical Specifications & Safety Protocols

Understanding your Avance embroidery machine’s core features and safety requirements is the first step toward consistent, professional results. Let’s demystify the specs and protocols that keep your creativity flowing—and your workspace safe.

2.1 Core Machine Capabilities

The Avancé 1501C single head embroidery machine is purpose-built for commercial embroidery, blending robust engineering with user-friendly controls. Here’s a breakdown of what you can expect:

Note: There are discrepancies in reported embroidery field sizes. The 22" x 14" measurement likely reflects the maximum capacity with optional magnetic hoops, while 14" x 7.8" is a standard single-hoop size. Always verify with your official manual or distributor for your specific setup.

Accessory Compatibility: The Avance 1501C supports a wide variety of hoops, including third-party magnetic systems such as MaggieFrame’s magnetic hoops (up to 17" x 15.5"). This flexibility means you can tackle everything from delicate silks to thick jackets with confidence.

Cap Embroidery Enhancements: Recent upgrades to the 1501C focus on cap embroidery, offering decreased needle deflection, improved sewing quality across seams, and the ability to embroider larger designs—up to 68mm tall—closer to the bill than ever before. These enhancements minimize skipped stitches and needle breaks, making cap customization faster and more reliable.

Workflow at a Glance:

• Pattern Selection: Insert a USB drive with your designs, select and preview them on the touchscreen.
• Hooping & Alignment: Secure your fabric in the appropriate hoop and use manual controls to center your design.
• Execution: Launch auto mode for automated color changes and thread trimming, with real-time progress tracking on the display.

2.2 Critical Safety Measures

Safety isn’t just a checklist—it’s the foundation for smooth, uninterrupted embroidery. The Avance user manual (aligned with OSHA standards) highlights several key protocols:

Electrical Safety:

• Never operate the machine in humid or wet environments.
• Ensure the machine is properly grounded using a green (with or without yellow stripes) conductor of at least 2mm² cross-sectional area.
• Avoid overloading electrical outlets or connecting unapproved devices.

Mechanical Safety:

• Keep loose clothing and long hair secured to prevent entanglement.
• Only use approved hooping techniques to avoid fabric slippage or needle breakage.
• Never touch moving parts during operation.

Maintenance & Inspection:

• Always power off and unplug the machine before opening any covers.
• Wait at least one minute after shutdown before accessing internal components, as residual voltage may remain.
• Only trained technicians should handle circuit boards or perform repairs, due to static sensitivity.

Lockout/Tagout Procedures:

• Follow OSHA 1910.147 by de-energizing equipment before maintenance.
• Use the emergency stop button during servicing to prevent accidental startup.

General Best Practices:

• Regularly inspect cables for wear and ensure all connections are secure and insulated.
• Store and operate the machine away from corrosive gases, water, and excessive dust or vibration.

By following these protocols, you’re not just protecting your investment—you’re ensuring a safe, productive environment for every embroidery project.

3. Troubleshooting Common Errors

Even the best machines need a little TLC from time to time. Let’s walk through the most common avance embroidery machine troubleshooting issues users face—and how to fix them without breaking a sweat.

3.1 Resolving Thread & Needle Issues

Thread Breaks:

- Causes: Can stem from an improper thread path, poor thread quality, design glitches, or sensor malfunctions.

- Solutions:

- Double-check the thread path for smooth feeding.

- Re-thread, ensuring the needle’s scarf faces the back.

- Use high-quality 40-wt polyester or rayon thread.

- If breaks persist, reload your design with Stitch Sweeper or consult your digitizer.

Needle Errors ("No Needle" or "Color Change Overtime"):

- Causes: Usually due to a misaligned needle plate or color change motor.

- Solutions:

- Adjust the color change motor by turning the knob until a needle number appears on the display.

- Realign the needle plate with the embroidery head.

Thread Looping/Shredding:

- Causes: Incorrect tension or thread path issues.

- Solutions:

- Adjust tension using the cap gauge for both upper and bobbin threads.

- Clean the thread path with compressed air to remove debris.

USB Design Loading Failures:

- Causes: Corrupted files or incorrect USB formatting.

- Solutions:

- Ensure your design files are in supported formats (like .DST).

- Reformat your USB drive to FAT32.

3.2 Maintenance Best Practices

Keeping your Avance running smoothly is all about routine care:

Daily:

- Apply 1–2 drops of oil to the rotary hook every 4 hours.

- Run manual trims to distribute oil.

Weekly:

- Grease components like the wiper bracket, LM guide, and color change gear.

- Use compressed air to remove dust from the thread tree and embroidery head.

Monthly:

- Inspect and replace the take-up spring or needle bars as needed.

Safety Cautions:

- Always de-energize the machine before maintenance (OSHA 1910.147 compliance).

- Only perform thread trimming when the machine is stopped.

- Move the frame using directional keys with care to avoid misalignment.

Warning Indicators:

- "No Needle" errors signal misalignment or sensor issues.

- "Color Change Overtime" means the machine is struggling to switch needles—check alignment and motor function.

Efficiency Tip: High-quality thread can reduce thread breaks by 30–50% compared to lower-quality alternatives. Poorly digitized designs are responsible for 20–30% of thread breaks—so investing in good digitizing pays off.

By sticking to these troubleshooting and maintenance routines, you’ll keep your Avance humming along—and your embroidery business thriving.

4. Advanced Functionality Deep Dive

Unlocking the advanced features of your Avance commercial embroidery machine is like discovering the hidden gears inside a Swiss watch—each mechanism, when mastered, brings a new level of precision and efficiency to your craft. Let’s dive into the expert-level tools that set Avance apart from the crowd.

4.1 Optimizing Color Sequencing

Ever felt like you’re spending more time swapping threads than actually embroidering? The Avance’s color sequencing tools are designed to turn that frustration into a streamlined, nearly hands-off experience.

Auto-Color Grouping for Thread Change Efficiency

The Avance system allows you to predefine and store color-changing sequences for each pattern. By grouping identical thread colors together, the machine minimizes unnecessary thread changes—think of it as batch-processing all the blue segments in a design before moving to the reds. This isn’t just a convenience; it’s a game-changer for production speed, especially when using the 15-color thread capacity. The control panel interface lets you assign thread colors to specific needle bars, and these settings are saved with each pattern for consistent results on repeat jobs.

Customizable Sequences and Real-Time Adjustments

You’re not locked into a single order—parameters can be set or adjusted even while the previous pattern is running. This means you can prep your next design’s color sequence while the current one is still stitching, keeping your workflow in perpetual motion.

Integration with Memory Storage

Color orders are stored alongside each design in memory, so you never have to reconfigure for recurring projects. This reduces manual errors and ensures every run is as efficient as the last.

On-Screen Color Mapping

The Avance’s touchscreen makes color selection visual and intuitive. You can preview your design with mapped thread colors, ensuring what you see on the screen matches what’s loaded on your machine. No more guesswork—just tap, assign, and go.

Pro Tip:

Before starting large, multi-color projects, use the thread color sorting feature to group and optimize your color changes. Your future self (and your production schedule) will thank you.

4.2 Professional Lettering Techniques

Personalization is the heartbeat of embroidery, and Avance’s lettering tools are designed to make your monograms and text-based designs look sharp, professional, and perfectly aligned—every single time.

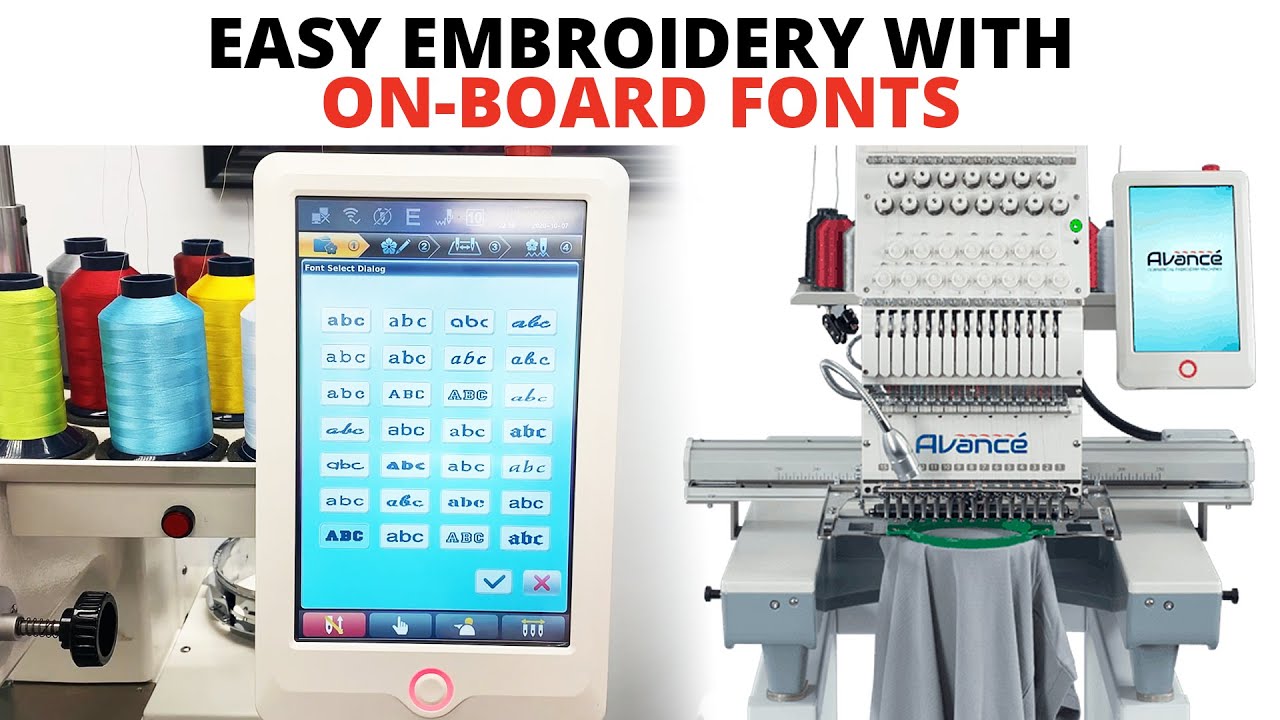

28 Built-In Fonts and Easy Text Input

With 28 onboard fonts, you can create everything from elegant script monograms to bold block letters without ever leaving the machine’s control panel. The process is as simple as texting: select your font, type in your text, and preview it instantly on the touchscreen. Whether you’re adding a name to a dog sweater or a slogan to a team jersey, it’s all at your fingertips.

Multi-Line Layouts and Line Feed Functionality

Need to embroider addresses, quotes, or multi-line labels? The line feed feature lets you insert breaks and arrange text vertically or horizontally, with real-time previews. Adjust spacing, orientation, and alignment on the fly—no external software required.

Laser-Guided Alignment for Precision

A built-in laser pointer ensures your lettering lands exactly where you want it, even on curved or irregular surfaces. This is especially useful for tricky placements like the back of caps or the edge of sleeves. The laser acts like your embroidery GPS, guiding you to perfect placement and reducing costly misalignment errors.

Color and Thread Management

For multi-color lettering, you can pre-select up to four thread spools for rapid color changes. The color selection screen mirrors your thread rack, making it easy to match digital designs with physical threads.

Sensory Experience:

Picture the smooth glide of the needle spelling out a name in crisp, even stitches, perfectly centered thanks to the laser guide—the kind of finish that makes customers say “wow” before they even touch the fabric.

Workflow Example:

• Select “Letters” on the control panel.
• Choose your font and input your text.
• Adjust layout and preview on-screen.
• Assign thread colors and confirm.
• Use the laser to align your hoop.
• Press start—and watch your design come to life.

With these professional lettering tools, Avance turns what used to be a painstaking process into a quick, intuitive, and repeatable workflow. Your personalized projects will not only look better—they’ll get done faster, too.

5. Software & Accessory Integration

In the digital age, embroidery is as much about file management and hardware compatibility as it is about artistry. Avance machines bridge the gap between creativity and technology, making sure your designs flow seamlessly from screen to stitch.

5.1 USB Pattern Management Strategies

Maximizing Memory and File Organization

Avance embroidery machines support robust USB-based pattern management. You can store up to 2 million stitches or 200 designs directly in machine memory, while USB drives can organize up to 400 patterns or subfolders per directory—no limit to directory depth. This means you can keep your entire design library at your fingertips, ready to load at a moment’s notice.

FAT32 Formatting for Bulk Transfers

To ensure smooth transfers, format your USB drives to FAT32. This is the industry standard for embroidery machines and prevents file corruption or loading errors. The “Design Management” interface on the Avance touchscreen allows you to browse, preview, and assign designs to memory slots directly—no need for a computer intermediary.

Parameter Preservation and Batch Processing

Each pattern loaded via USB retains its associated parameters, including repetition, scaling, rotation, and color-changing orders. This guarantees that your designs stitch out exactly as intended, every time. For high-volume operations, batch processing through organized USB directories streamlines multi-pattern projects and reduces downtime.

Software Compatibility and Integration

Avance machines read a wide range of file formats—.dst, .pes, .exp, .hus, .vp3, and more—making them compatible with major embroidery software like Hatch Embroidery. Edit, resize, or combine designs in your preferred software, export in a supported format, and transfer via USB or network (with registration for wireless transfers).

Best Practices:

- Pre-load frequently used designs to machine memory for instant access.

- Organize designs into logical USB directories for efficient project management.

- Adjust stitch densities and color sequences in your software before exporting to minimize on-machine editing.

Comparative Glimpse:

While some machines restrict you to proprietary formats or limited memory, Avance’s open approach and generous storage capacity put you in control of your workflow.

5.2 Third-Party Hoop Compatibility

Supercharging Efficiency with Magnetic Hoops

Accessory integration isn’t just about compatibility—it’s about unlocking new levels of productivity. The Avance system ships with 5 standard Avance embroidery machine hoops included, while third-party options like Sewtalent magnetic embroidery hoops take garment hooping to new heights.

Why Choose Sewtalent Magnetic Hoops?

- 90% Faster Hooping: Traditional screw-based hoops can turn a simple task into a time sink. Sewtalent’s powerful magnetic system reduces garment hooping time from 3 minutes to just 30 seconds—ideal for high-volume shops or anyone tired of sore wrists.

- Industrial-Grade Durability: Made from BASF Ultrason P3010 PPSU, Sewtalent hoops are engineered to withstand the rigors of commercial embroidery. They last up to 40 times longer than standard plastic hoops, maintaining strong clamping force even after extensive use.

- Versatility and Compatibility: With over 17 sizes and universal bracket options, Sewtalent hoops fit Avance and most other commercial embroidery machines. Whether you’re working with delicate silks or bulky sweatshirts, these hoops adapt seamlessly.

- Even Tension and Fabric Protection: The magnetic system ensures even tension across all fabric types, preventing hoop burn and slippage—so your designs stay sharp and your garments pristine.

User Experience:

Imagine prepping a stack of shirts for embroidery. With Sewtalent, you breeze through the hooping process, fabrics stay perfectly aligned, and you finish jobs in record time—all while reducing operator fatigue and costly mistakes.

ROI That Speaks for Itself:

For businesses juggling large orders, the efficiency gains and reduced defect rates mean Sewtalent hoops pay for themselves in months, not years.

Note:

Sewtalent magnetic hoops are designed for garment hooping and are not suitable for cap or hat embroidery.

6. Version Differences & Documentation Gaps

Navigating the world of Avance embroidery machines can feel like decoding a family tree—especially when it comes to model variations and their respective manuals. Here’s what you need to know to avoid confusion and get the right support for your machine.

Avancé 1501C vs. 2020 Model: What’s New?

The Avancé 1501C-2020 is more than just a facelift—it’s a leap forward in both hardware and workflow:

- Hardware Upgrades: The 2020 model introduces a smaller sewing arm for tight spaces, quieter operation, and a massive boost in design memory.

- Workflow Enhancements: With WiFi connectivity and Liberty Digitizing software included, you can send designs wirelessly and manage patterns more efficiently.

- Accessory Support: The 2020 supports advanced accessories like magnetic hoops (e.g., MaggieFrame, Sewtalent) for even faster hooping.

Documentation Gaps and Where to Find Help

Despite these upgrades, official manuals don’t always keep pace with hardware changes. There’s no one-size-fits-all guide—features like the touchscreen interface or WiFi setup may differ between models. For the most accurate, model-specific instructions, consult ColDesi’s resources or reach out to their support team directly.

A Word to the Wise:

If you’re unsure whether your machine is a Classic or 2020 model, check the control panel and connectivity options. When in doubt, always reference your serial number and contact ColDesi for the correct documentation. It’s the quickest way to ensure you’re working with the right playbook.

Ready to take your Avance machine to its full potential? Master these advanced features, integrate the right accessories, and always keep your documentation up to date—you’ll be stitching circles around the competition in no time.

7. Conclusion: Maximizing Machine Potential

Mastering your Avance embroidery machine isn’t just about following instructions—it’s about weaving together knowledge, technique, and the right tools to create something extraordinary. Throughout this guide, we’ve unpacked the essential steps: from understanding technical specifications and safety protocols, to troubleshooting common hiccups, and diving into advanced features like color sequencing and professional lettering. Each chapter is a thread in the tapestry of efficient, high-quality embroidery.

But here’s the real secret: pairing the official Avance manual with top-tier accessories takes your productivity and results to the next level. For garment hooping, Sewtalent magnetic hoops stand out as a transformative upgrade—offering rapid, secure, and fabric-friendly hooping that slashes setup time and reduces errors. When you combine the precision of Avance’s engineering with the efficiency of Sewtalent, you unlock a workflow that’s not just smooth, but truly inspiring.

So keep your manual close, invest in quality accessories, and let your creativity—and your business—flourish.

8. Frequently Asked Questions

8.1 Q: How do I update the firmware on my Avance embroidery machine?

A: Firmware updates for Avance machines are typically managed through official channels. Refer to your specific model's manual or contact ColDesi support for step-by-step instructions tailored to your machine version. Always back up your designs and parameters before performing any update.

8.2 Q: Which embroidery design file formats are compatible with Avance machines?

A: Avance embroidery machines support a wide range of design file formats, including .dst, .pes, .exp, .hus, and .vp3. This broad compatibility ensures you can use most major embroidery software for your projects. Always double-check your manual for model-specific format support.

8.3 Q: How do I convert designs for use with my Avance machine?

A: To convert designs, use embroidery software compatible with Avance-supported file formats. Export your designs as .dst or another approved format, then transfer them to your machine via USB or WiFi (depending on your model). For best results, adjust stitch density and color sequences before exporting.

8.4 Q: What is covered under the Avance machine warranty?

A: Warranty coverage varies by model. The Avancé 1501C-2020, for example, offers a 5-year full warranty. Coverage typically includes defects in materials and workmanship, but always review your specific warranty documentation or consult ColDesi for details and exclusions.

8.5 Q: Where can I find the most up-to-date manual for my Avance model?

A: For the latest, model-specific manuals, visit ColDesi's official website or contact their support team. Be sure to reference your machine's serial number to ensure you receive the correct documentation for your particular model.

8.6 Q: Can I use WiFi to transfer designs to my Avance machine?

A: WiFi design transfer is available on newer models like the Avancé 1501C-2020. Legacy models may only support USB transfers. Check your control panel and manual for connectivity options and setup instructions.

Have a question not covered here? Reach out to your distributor or ColDesi support for expert guidance—they're just a call or click away, ready to help you keep your creativity flowing.
