1. Introduction to Barudan XL2 Capabilities
The Barudan embroidery machine XL2 stands as a powerhouse in the world of small-batch commercial embroidery. Designed for creators who demand industrial-grade results in a compact footprint, the XL2 brings together robust technical features, intuitive controls, and versatile material handling. Whether you’re running a boutique studio or scaling up a new embroidery business, the XL2’s 15-needle configuration, high-speed performance, and tool-free accessory changes make it a top contender for caps, patches, polos, and more. In this guide, we’ll explore the XL2’s technical specs, compare it to Barudan’s Pro3 and C01 models, discuss pricing and warranty insights, and examine how its software integration streamlines production. If you’re searching for a machine that delivers both precision and flexibility, the Barudan XL2 is engineered to help you stitch your vision into reality.
Table of Contents
- 1. Introduction to Barudan XL2 Capabilities
- 2. Technical Specifications & Performance Features
- 3. XL2 vs Pro3/C01: Choosing Your Single-Head Workhorse
- 4. Cost Analysis & Warranty Insights
- 5. Setup & Maintenance Protocols
- 6. Software Integration & Production Management
- 7. Conclusion: Maximizing XL2 Productivity
- 8. FAQ: Barudan XL2 Essentials
2. Technical Specifications & Performance Features
2.1 Core Machine Specifications
The Barudan XL2 (BEKT-S1501CAII) is engineered to deliver precise, high-speed embroidery across a diverse range of materials. Here’s what sets it apart:
- 15-Needle SH Sewing Head: Featuring Barudan’s positive needle drive technology, the barudan 15 head embroidery machine’s 15-Needle SH Sewing Head handles everything from delicate silks to thick leather and 3D foam, ensuring crisp, accurate stitching no matter the challenge.
- Sewing Field: With a 250 x 400 mm (9.75" x 15.5") sewing area, the XL2 is optimized for small to medium projects—think caps, patches, polos, backpacks, and more. This field strikes a balance between portability and creative flexibility.
- Speed: The XL2 delivers up to 1,200 stitches per minute (SPM) on flat materials and 1,000 SPM on caps, powered by a servo-driven pantograph for smooth, vibration-free operation.
- Memory & Connectivity: Store up to 100 designs or 70 million stitches internally. USB and LAN ports support seamless design transfers, while Barudan’s LEM networking software enables production management and file sharing across multiple machines.
- KT Automat Touchscreen: The 8.4" LCD touchscreen, with icon-based menus, puts intuitive control at your fingertips. Features like automatic color change, thread trimmers, and a new tensioner system streamline production and reduce downtime from thread breaks.
- Advantage EX Cap System: Switch between flats and caps without tools—ideal for businesses juggling varied orders. The Advantage EX system makes cap embroidery as effortless as it gets.
- Open Chassis Design: The XL2’s open architecture accommodates bulkier items, such as karate belts and thick foam, making it a versatile choice for specialty projects.
- Reduced Maintenance: Fewer oiling points and easy-access lubrication simplify upkeep, so you spend less time maintaining and more time creating.
Accessories & Compatibility: The XL2 supports a wide range of frames, including jacket back frames for oversized items, and is compatible with industry-standard design formats (DST, FDR). Whether you’re using Barudan’s own software or popular home embroidery programs, integration is seamless.
At a Glance:
Feature | XL2 (BEKT-S1501CAII) |
---|---|
Needles | 15 |
Sewing Field | 9.75" x 15.5" (250x400mm) |
Max Speed (Flats/Caps) | 1,200 / 1,000 SPM |
Memory | 100 designs / 70M stitches |
Touchscreen | 8.4" LCD KT Automat |
Cap System | Advantage EX (tool-free) |
Connectivity | USB, LAN, LEM software |
Weight | 154 lbs |
From the steel chassis to the advanced electronics, every detail of the XL2 is built for reliability and ease of use—qualities echoed by users and highlighted in setup videos and technical documentation.
2.2 Material Handling Innovations
Material versatility is where the Barudan XL2 truly shines. Its open chassis design isn’t just for show—it’s a practical solution for embroiderers working with bulky or unconventional items. Whether you’re tackling karate belts, thick jackets, or 3D foam for caps, the XL2’s architecture makes access and hooping straightforward.
For garment embroidery, the XL2’s compatibility with Sewtalent magnetic embroidery hoops introduces a new level of efficiency and machine care. Sewtalent’s hoops, known for their powerful magnetic clamping and industrial-grade durability, reduce bearing wear by 18% compared to traditional hooping methods (garment applications only). This not only extends the lifespan of your machine’s moving parts but also makes hooping faster and more consistent—especially valuable in high-volume production environments.
The synergy between the XL2’s robust material handling and Sewtalent’s advanced hooping technology means less downtime, fewer maintenance headaches, and more time focused on creativity. If you’re ready to move beyond the limitations of standard plastic hoops, this combination is engineered to help you push boundaries while protecting your investment.
3. XL2 vs Pro3/C01: Choosing Your Single-Head Workhorse
Selecting the right single-head embroidery machine is a bit like choosing the perfect tool for a craftsman’s bench—each model has its own sweet spot. Here’s how the Barudan XL2 stacks up against the Pro3 and C01 models in the tajima vs barudan debate, so you can match your machine to your production needs.
3.1 Sewing Field & Speed Comparison
Let’s break down the numbers and features that matter most:
Model | Sewing Field (inches) | Max Speed (SPM) | Portability | Ideal For |
---|---|---|---|---|
XL2 | 9.75 x 15.5 | 1,200 (flats) | Highly portable | Caps, patches, small garments |
Pro3 | 15 x 17 | 1,300 (flats) | Moderate | Tote bags, jacket backs, bulkier fabrics |
C01 | 17.7 x 14.96 | 1,300 (flats) | Less portable | Oversized garments, industrial textiles |
- Portability vs Capacity: The XL2’s compact size (154 lbs) makes it easy to move and ideal for mobile operations or studios with limited space. In contrast, the Pro3 and C01 offer larger sewing fields, accommodating bigger projects but at the cost of increased weight and footprint.
- Speed: While the Pro3 and C01 edge out the XL2 with a slightly higher flat speed (1,300 SPM vs 1,200 SPM), the difference is marginal for most small-batch or specialty work. All models run at 1,000 SPM on caps.
- Use Case: If your bread and butter is caps, polos, or patches—and you value flexibility—the XL2 is your go-to. For larger items like jacket backs or industrial textiles, the Pro3 and C01 provide the extra real estate you need.
3.2 Cylinder Arm Design for Specialized Projects
Cylinder arm design can make or break your workflow, especially when it comes to specialty items:
- Curved Cylinder Arm (XL2/Pro3): Both the XL2 and Pro3 feature a curved arm that closely follows the contour of cap frames, enabling 270-degree stitching from ear to ear. This design reduces distortion and makes cap embroidery seamless—literally.
- Pro3’s Smaller-Diameter Cylinder Arm: The Pro3 takes versatility a step further with a smaller-diameter arm, allowing deeper stitching into tight spaces like shirt pockets, sleeves, or socks. If your projects often require reaching into confined areas, this is a game-changer.

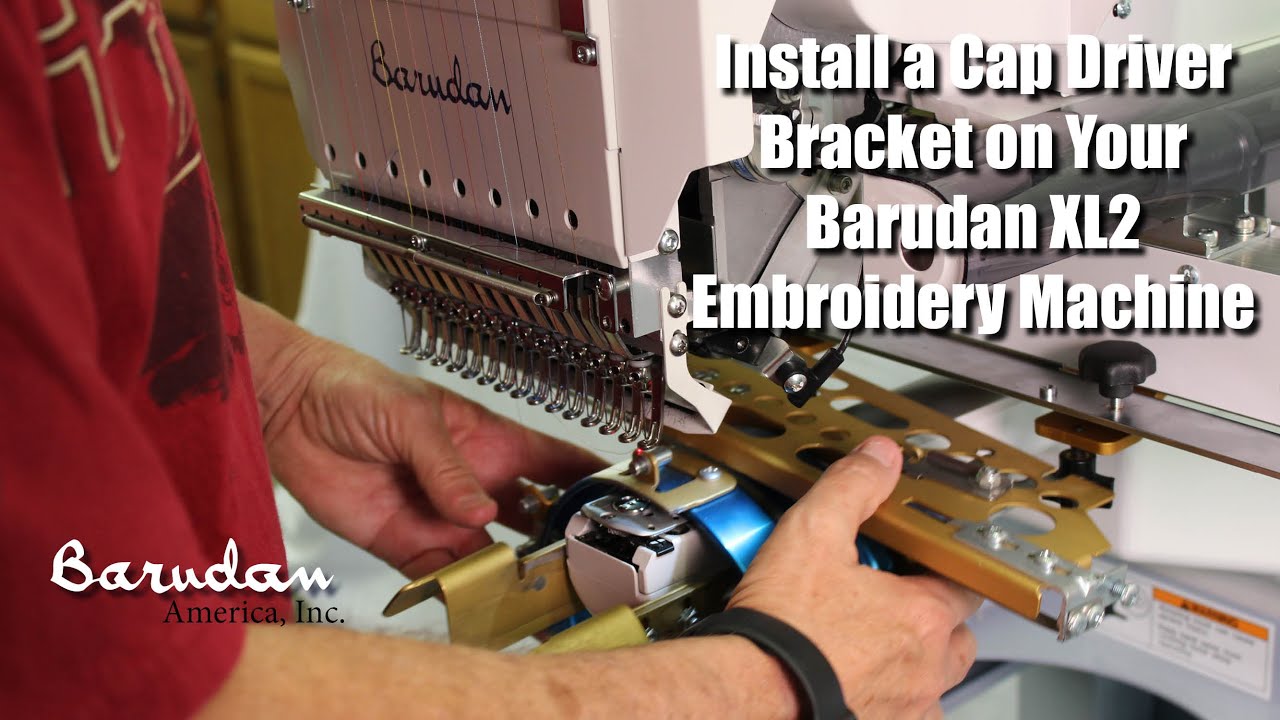

- Quick Cap Changeover: Both the XL2 and Pro3 utilize the Advantage EX cap system, enabling tool-free transitions between cap and flat goods. This streamlines workflow and minimizes downtime, especially in busy shops juggling varied orders.
- C01: While the C01 boasts the largest field, its arm design is tailored more for oversized, flat items and industrial-scale textiles rather than intricate cap work.
Bottom Line: For cap specialists and those who value portability, the XL2’s curved arm and lightweight build are hard to beat. If you need deeper access for specialty garments or plan to tackle larger, bulkier projects, the Pro3 or C01 may be your best bet. Each machine brings its own strengths—choose the one that aligns with your creative ambitions and production realities.
4. Cost Analysis & Warranty Insights
Understanding the barudan embroidery machine cost and financial landscape of investing in a Barudan XL2 embroidery machine is crucial—especially for small businesses and newcomers to the embroidery industry. Let’s break down the warranty coverage and long-term cost efficiency you can expect from the XL2, with a spotlight on how innovative accessories like Sewtalent magnetic embroidery hoops can impact your bottom line.
4.1 5-3-2 Warranty Breakdown
Barudan’s 5-3-2 warranty structure is designed to give owners peace of mind and protect their investment over the long haul:
- 5 Years: Main motor coverage. This long-term protection ensures that the XL2’s core drive mechanism is safeguarded against manufacturing defects and premature failure.
- 3 Years: Electronic components, such as control boards and sensors, are covered. Embroidery machines rely heavily on electronics for precision and automation, so this tier adds significant value.
- 2 Years: All remaining parts, excluding consumables (like needles and threads), are included. This means the vast majority of mechanical and structural components are under warranty for two years.
Maintenance Requirements: To keep your warranty valid, regular servicing by Barudan-certified technicians is mandatory. Skipping scheduled maintenance or using non-approved parts can void coverage, so it’s wise to stick to the recommended service intervals. Consumables and user-replaceable parts, such as thread tensioners and needles, are not included in the warranty.
This tiered approach ensures that the most expensive and critical parts of your machine are protected for the longest period, while encouraging diligent maintenance—a win-win for longevity and reliability.
4.2 Long-Term Cost Efficiency
When evaluating a commercial embroidery machine, it’s not just the upfront price that matters—it’s the total cost of ownership over years of production. The Barudan XL2 is engineered for efficiency, with features that directly reduce operational expenses:
- Reduced Thread Breaks: Thanks to Barudan’s advanced tensioner system and positive needle drive technology, the XL2 experiences fewer thread breaks and misalignments. This translates to less downtime, fewer ruined garments, and lower labor costs for troubleshooting.
- Tool-Free Frame Versatility: The Advantage EX cap system and quick-change frame design mean you can switch between caps, flats, and jacket backs without tools, streamlining workflow and minimizing wasted time.
- Lower Maintenance Burden: With fewer oiling points and easy-access lubrication, the XL2 requires less frequent and less intensive maintenance than many competitors, further reducing service costs.
- Sewtalent Magnetic Embroidery Hoops: For garment embroidery, integrating Sewtalent magnetic hoops can yield tangible savings. These hoops are engineered to reduce bearing wear by 18% compared to traditional hooping methods (garment applications only). Less wear means fewer bearing replacements and less downtime for repairs—directly improving your machine’s ROI. Additionally, Sewtalent hoops speed up the hooping process, cut down on operator fatigue, and help maintain consistent fabric tension, leading to fewer production errors.
Bottom Line: When you factor in warranty coverage, reduced maintenance, and efficiency gains from accessories like Sewtalent hoops, the XL2 stands out as a smart long-term investment for businesses aiming to maximize productivity and minimize hidden costs.
5. Setup & Maintenance Protocols
Proper setup and ongoing maintenance are the foundation of reliable, high-quality embroidery production. The Barudan XL2 makes both processes as straightforward as possible, but attention to detail during uncrating and adherence to a disciplined lubrication schedule are key to getting the most from your machine.
5.1 Uncrating & Initial Configuration
Getting your XL2 up and running begins with careful uncrating and setup, drawing on both Barudan America's documentation and hands-on video walkthroughs:
1. Positioning: Place the XL2 on a stable, vibration-resistant surface. Its steel chassis is robust but heavy—enlist help to avoid injury. Ensure the workspace is clean, well-lit, and free of dust or debris.
2. Electrical Setup: Connect the machine to a dedicated 20A circuit (UL/CSA-listed) for safe operation. Proper grounding is essential to prevent electrical hazards.
3. Accessory Installation: Assemble the thread stand and install any included frames or accessories. The XL2's design allows for tool-free conversion between 270-degree cap frames and large jacket-back frames, making it easy to adapt to your workflow.
4. Initial Power-Up: Power on the machine and perform a self-test using the KT Automat touchscreen. Follow on-screen prompts to verify needle movement, thread trimming, and color change functions.
5. Threading: Thread the machine according to Barudan's guides, ensuring each path is correct for smooth operation. Use the provided threading tools and reference the instructional diagrams for accuracy.
6. Final Checks: Confirm all screws and attachments are secure. Double-check that the machine is level and that all safety covers are in place.
Pro Tip: Barudan America recommends completing a training form and scheduling an orientation session with a certified technician before beginning production. This ensures you're familiar with all operational protocols and best practices.
5.2 Lubrication Schedule Optimization
Routine lubrication is vital for keeping your XL2 running smoothly and preserving warranty coverage. To keep your warranty valid, regular servicing by Barudan service technician is mandatory. Here's how to optimize your maintenance schedule:
Component | Lubricant | Frequency | Procedure |
---|---|---|---|
Needle Bar Crank Rod | Bearing Oil (2 drops) | Weekly | Apply to top-right (C1) and lower-left (C2) holes with machine stopped. |
Take-up Driver Lever | Bearing Oil (2 drops) | Weekly | Target red holes on the lever mechanism. |
Needle Bar Links | Bearing Oil (1 drop) | Weekly | Lubricate 5 oil ports with machine at needle 1. |
Take-up Levers | White Lithium Grease | Every 6 months | Spray across levers after removing front head cover. |
- BDC Adjustment: Use the F7TGR1014 jig to align the take-up lever cam at 0 degrees for precise stitch formation.
- Hook Timing: Ensure the hook point sits just above the needle eye to prevent thread nests and maintain stitch quality.
Additional Tips:
- Always unplug the machine before servicing internal components.
- Use only Barudan-recommended lubricants to maintain warranty compliance.
- Keep a maintenance log to track service intervals and spot potential issues early.
By sticking to this schedule, you'll minimize wear, prevent costly breakdowns, and keep your XL2 performing at its best for years to come.
6. Software Integration & Production Management
The Barudan XL2 isn’t just a hardware powerhouse—it’s also engineered for seamless integration with modern production management software, making it a smart choice for embroidery businesses looking to scale efficiently.
6.1 LEM Networking Workflows
The XL2’s built-in LAN connectivity unlocks advanced networking capabilities through barudan software’s LEM suite:
- LAN Connectivity: Connect up to 100 machines via LEM Jr., or up to 10 with LEM Workgroup 10. This centralized approach eliminates the need for USB drives or CF cards, streamlining design transfers and reducing manual errors.
- Automated Design Transfer: Operators can drag and drop files into watched folders on a central server. The LEM software automatically pushes these designs to the appropriate machine, ensuring the right file is always ready for production.
- Barcode Scanning Integration: With barcode scanners installed, operators simply scan a job code to retrieve the correct design from the server. This reduces setup time and minimizes the risk of loading the wrong file—especially valuable in fast-paced, multi-order environments.
- Production Reporting: BNET Pro, compatible with the XL2, provides real-time dashboards and customizable analytics. Managers can monitor productivity, maintenance needs, and error logs from any device—PC, tablet, or smartphone—thanks to responsive web interfaces.
Implementation Considerations:
- The XL2’s LAN port requires a DB9-to-RJ45 adapter and standard RJ45 cable for direct connections.
- Advanced features like pattern previews and basic design edits are available through BNET Workgroup 100 or BNET Pro (additional licensing may apply).
- Bluetooth Manager is not compatible with the XL2; stick to LAN-based workflows for best results.
6.2 File Management Best Practices
Efficient file management is the backbone of smooth embroidery operations. Here’s how USB and LAN transfers stack up, and what you need to know about folder structures:
Feature | USB Connectivity | LAN Connectivity |
---|---|---|
Design Transfer | Manual via USB drives | Automated via LEM software |
Barcode Support | Not available | Enabled via LEM software |
Multi-Machine Management | Single machine only | Centralized for up to 100 machines |
Speed | Slower, manual process | Faster, network-based transfers |
- USB Transfers: Still useful for single-machine setups or quick jobs, but require manual intervention. Files must be loaded onto a USB stick, then transferred to the machine.
- LAN Transfers: Ideal for larger operations, LAN integration automates design distribution and supports barcode workflows, reducing human error and speeding up production.
-
.TFD Folder Structure: When using CF cards or USB drives, format them to FAT32 and create folders with a
.TFD
extension (e.g.,DESIGNS.TFD
). This ensures the XL2 recognizes and loads DST files correctly. Always verify stitch counts and needle positions on the KT Automat touchscreen before starting embroidery.
By leveraging the XL2’s software integration features, you can automate routine tasks, minimize downtime, and scale your embroidery business with confidence.
7. Conclusion: Maximizing XL2 Productivity
Unlocking the full potential of the Barudan XL2 means orchestrating a workflow where automation, smart material handling, and thoughtful accessory choices work in perfect harmony. Throughout this guide, we've seen how the XL2's robust technical features—like its 15-needle SH sewing head, intuitive KT Automat touchscreen, and open chassis design—lay the groundwork for high-efficiency embroidery. Add in streamlined software integration with LEM networking and USB/LAN connectivity, and you have a machine that doesn't just keep up with production demands—it pushes you ahead of the curve.
But let's not overlook the unsung hero in this productivity equation: material handling. The XL2's open chassis makes it a breeze to tackle bulky or unconventional items, reducing setup headaches and expanding your creative possibilities. For garment embroidery, pairing the XL2 with Sewtalent magnetic embroidery hoops takes efficiency and machine care to the next level. By reducing bearing wear by 18% (garment applications only), these hoops extend your machine's lifespan and minimize downtime—freeing you to focus on what matters most: your craft.
Think of it as upgrading from a flip phone to a smartphone—once you experience the synergy of the XL2's engineering and Sewtalent's magnetic hooping, you'll wonder how you ever managed without it. Whether you're scaling up production or seeking to eliminate bottlenecks, the XL2—optimized with the right tools—becomes more than a machine. It's your partner in embroidery excellence.
Ready to find a barudan embroidery machine for sale and elevate your workflow? Embrace the XL2's automation, leverage innovative material handling, and let Sewtalent magnetic hoops transform your garment embroidery game. The future of efficient, reliable production is right at your fingertips.
8. FAQ: Barudan XL2 Essentials
8.1 Q: What design file formats are compatible with the Barudan XL2?
A: The Barudan XL2 supports industry-standard formats such as DST and FDR. Designs can be loaded via USB or transferred over LAN using Barudan's LEM networking software. Always ensure your files are organized in folders with a .TFD
extension for seamless recognition by the machine.
8.2 Q: How do I maintain my warranty coverage on the XL2?
A: To keep your 5-3-2 warranty valid (5 years on the main motor, 3 years on electronics, 2 years on other parts), regular servicing by a Barudan-certified technician is essential. Avoid skipping scheduled maintenance and use only approved parts and lubricants to prevent voiding your warranty.
8.3 Q: What should I do if I encounter thread breaks or tension issues?
A: The XL2's advanced tensioner system and positive needle drive technology are designed to minimize thread breaks. If issues persist, check for correct threading, ensure proper lubrication, and consult the KT Automat's error messages for troubleshooting guidance. Refer to Barudan's technical support for persistent problems.
8.4 Q: Can I network multiple XL2 machines for streamlined production?
A: Yes, the XL2 is network-ready. Using Barudan's LEM software, you can connect up to 100 machines via LAN, automate design transfers, and integrate barcode scanning for efficient job management. This setup is ideal for scaling production and minimizing manual errors.
8.5 Q: Is the XL2 suitable for beginners or small businesses?
A: Absolutely. The XL2 combines industrial-grade performance with user-friendly controls, making it accessible for both newcomers and seasoned professionals. Financing options and comprehensive support resources are available to help you get started with confidence.
8.6 Q: Where can I find setup and maintenance resources for the XL2?
A: Barudan America provides detailed documentation, video tutorials, and a dedicated technical support line. After purchase, completing the required training form ensures access to orientation sessions and ongoing assistance.
Ready to take your embroidery business to the next level? The Barudan XL2, with its blend of power, precision, and support, is primed to help you stitch your success story—one masterpiece at a time.
