Fix Bobbin Thread Bunching Up: Expert Solutions for Perfect Stitches

1. Introduction

Few things kill your sewing groove faster than discovering a messy “bird’s nest” of tangled thread under your fabric. Bobbin thread bunching—those loopy, knotted tangles that appear out of nowhere—can turn even the most promising project into a source of frustration. But here’s the good news: this common headache is almost always fixable, and you don’t need to be a machine tech to solve it. In this guide, we’ll break down why bobbin thread bunches up, how to troubleshoot it step by step, and what you can do to prevent it from coming back. Whether you’re a seasoned pro or just starting out, you’ll find practical, easy-to-follow solutions for perfect, hassle-free stitches. This guide is especially useful if you own one of the best sewing machines for embroidery and sewing.

Table of Contents

• 1. Introduction
• 2. Why Bobbin Thread Bunches: Diagnosing Root Causes
• 3. Step-by-Step Troubleshooting: Immediate Fixes
• 4. Preventing Future Bunching: Maintenance Mastery
• 5. Tension Mechanics Demystified
• 6. Advanced Diagnostics and Specialized Solutions
• 7. Long-Term Performance Optimization
• 8. Conclusion
• 9. FAQ

2. Why Bobbin Thread Bunches: Diagnosing Root Causes

Bobbin thread bunching—often called “bird’s nesting”—is a universal sewing frustration, as noted in many embroidery machine reviews. But before you can fix it, you need to understand what’s really going on beneath the surface. Let’s pull back the fabric and examine the main culprits.

2.1 Tension Imbalances: The Primary Culprit

Imagine a tug-of-war between your upper and bobbin threads. For every perfect stitch, these threads meet in the middle of your fabric, locked in a delicate balance. But when that balance tips—when one side pulls harder or slacks off—you get loops, knots, and bunching.

How does this happen?

• Upper Thread Tension Too Loose: The upper thread fails to pull its weight, letting the bobbin thread pile up underneath.
• Upper Thread Tension Too Tight: The upper thread yanks the bobbin thread up, causing bunching on the fabric’s top side.
• Bobbin Tension Issues: While usually factory-set, bobbin tension can drift over time. A too-loose bobbin tension lets thread flood out, creating a mess below.

Most machines have an upper tension dial (typically numbered 0–9). For medium-weight fabrics, a setting between 3–5 is standard, but heavy materials like denim may need a higher setting (around 8), while delicate silks do best at a lower setting (around 3). Mismatched thread weights between the top and bobbin can also throw off this balance, leading to bunching regardless of your tension settings.

Quick analogy: If your threads are playing tug-of-war and one side is much stronger (or weaker), the rope—your thread—ends up in a tangled heap.

2.2 Threading Errors and Mechanical Failures

Tension isn’t the only troublemaker. Sometimes, the issue is as simple as a missed step in threading or a tiny mechanical hiccup.

Common threading mistakes include:

• Incorrect Bobbin Insertion: If your bobbin isn’t seated properly or is inserted backwards, the thread can’t feed smoothly. Always follow your machine’s manual for orientation and make sure it clicks into place.
• Missed Thread Guides or Take-Up Lever: Skipping a thread guide or forgetting to thread the take-up lever (the part that moves up and down after the tension disks) can create slack and cause loops to pile up underneath.
• Improper Bobbin Winding: A bobbin wound too loosely or with uneven tension can feed thread erratically, leading to bunching.
• Stitch Length Issues: Using an ultra-short stitch length (like for buttonholes) and then sewing normally without resetting can cause thread to accumulate in one spot.
• Needle and Thread Compatibility: A bent, dull, or wrong-size needle can disrupt the smooth flow of thread, causing irregular stitches and, you guessed it, bunching.

Mechanical issues—like worn tension discs or timing problems—are less common but can also be to blame. If you’ve checked everything else and still have issues, it may be time for a professional tune-up.



3. Step-by-Step Troubleshooting: Immediate Fixes

Ready to get your machine humming smoothly again? Here’s how to tackle bobbin thread bunching with confidence—no panic required.

3.1 Rethreading Protocols for Quick Resolution

Step 1: Stop Sewing and Remove the Fabric

First, don’t yank the fabric out—this can bend your needle or damage your machine. Instead, gently cut the threads and remove the project.

Step 2: Rethread the Upper Thread

• Raise the presser foot and the needle to their highest positions. This opens the tension disks, allowing the thread to seat correctly.
• Follow the threading path exactly as shown in your machine’s manual. Make sure the thread passes through every guide and the take-up lever.
• Check the spool orientation and use the right spool cap for your thread type.

Step 3: Rethread the Bobbin

• Remove the bobbin case and check the bobbin’s orientation. The thread should unwind in the direction specified by your manual (usually counterclockwise).
• Ensure the bobbin clicks into place and that the thread passes through the tension spring or hook.
• Leave a 3–4 inch tail of thread for the needle to catch.

Step 4: Verify Thread Path and Presser Foot Position

• Double-check that the presser foot is down before you start sewing again. Sewing with the presser foot up means no tension on the upper thread, which guarantees bunching.
• Make sure the feed dogs are raised and the thread isn’t caught on any part of the machine.

Pro tip: Many issues resolve themselves after a careful rethreading. It’s the sewing world’s version of “turn it off and on again.”

3.2 Tension Calibration and Needle Replacement

Step 1: Adjust Upper Thread Tension

• Start with the tension dial at the standard setting (usually 3–5).
• Sew a few test stitches on scrap fabric similar to your project material.
• If loops appear underneath, gradually increase the upper tension in small increments. If the bobbin thread is pulled to the top, decrease the tension.

Step 2: Check Bobbin Tension (if needed)

• Bobbin tension is usually factory-set, but if you suspect it’s off, refer to your manual for safe adjustment. Turn the bobbin case screw in tiny increments (1/8 to 1/4 turn) and test after each change.

Step 3: Inspect and Replace the Needle

• Remove the needle and check for bends, burrs, or dullness.
• Use the correct needle size and type for your fabric and thread. For example, heavier fabrics need larger needles, while fine fabrics require smaller, sharper ones.
• Insert a new needle if in doubt—needles are inexpensive and can solve a surprising number of problems.

Step 4: Test and Observe

• After making adjustments, sew several lines on scrap fabric. Look for even stitches with the threads interlocking inside the fabric, not on the surface or underside.

Bonus Maintenance Tips:

• Clean lint and debris from the bobbin area and under the needle plate regularly.
• Use high-quality, compatible thread for both the upper and bobbin systems.

With these steps, you’ll be back to smooth, tangle-free sewing in no time. This applies to both dedicated sewing machines and sewing and embroidery machine combos. Remember: patience, a systematic approach, and a little practice are your best allies against the dreaded bird’s nest.



4. Preventing Future Bunching: Maintenance Mastery

Bobbin thread bunching might feel like an unpredictable gremlin, but with the right maintenance habits, you can banish it from your sewing room for good. Let’s turn prevention into second nature—so your stitches stay smooth, your machine purrs, and your projects stay on track.

4.1 Cleaning Schedules for Optimal Performance

Think of your sewing machine as a precision instrument—one that thrives on a clean, lint-free environment. Lint is the silent saboteur, building up in the bobbin case and under the needle plate, disrupting thread flow and causing tension chaos.

How often should you clean?

Experts recommend a quick clean after every 2–3 bobbins of sewing. If you’re working with high-lint fabrics like flannel, minky, or fleece, clean the bobbin area immediately after finishing your project. These fabrics are notorious for leaving behind fluffy debris that can clog up your machine in a single session.

Step-by-step cleaning routine:

• Power down and unplug your machine.
• Remove the needle, presser foot, needle plate, and bobbin.
• Use a micro-brush (never compressed air, which can push lint deeper) to gently sweep out lint from the bobbin case, shuttle hook, and feed dogs.
• Check the bobbin case for burrs or rough spots—these can catch thread and create tension inconsistencies. The surface should feel smooth; if not, consider a replacement.
• Wipe down tension discs and thread guides with a soft cloth or pipe cleaner to remove dust.
• Lubricate as recommended by your manufacturer, using only sewing machine oil.

Pro tip:

Rotate the handwheel through a complete cycle during cleaning to access all moving parts. Gentle, regular cleaning keeps your machine humming and your stitches flawless.

4.2 Thread/Fabric Matching Strategies

Matching your needle, thread, and fabric isn’t just a detail—it’s the backbone of trouble-free sewing. The wrong combo can cause tension headaches, thread shredding, and, yes, bunching.

Needle-thread-fabric compatibility:

• Use the right needle size and type for your fabric and thread. Heavy fabrics need larger, sturdier needles; delicate fabrics require finer, sharper ones.
• Replace needles regularly—a dull or bent needle can wreak havoc on tension and stitch quality.
• Choose high-quality thread to minimize lint and ensure smooth feeding. Cheap thread may save pennies but can cost you hours in troubleshooting.

Thread path matters:

Keep both upper and bobbin threads of similar weight and fiber for balanced tension. If you switch to a specialty thread, adjust your tension settings and test on scrap fabric first.

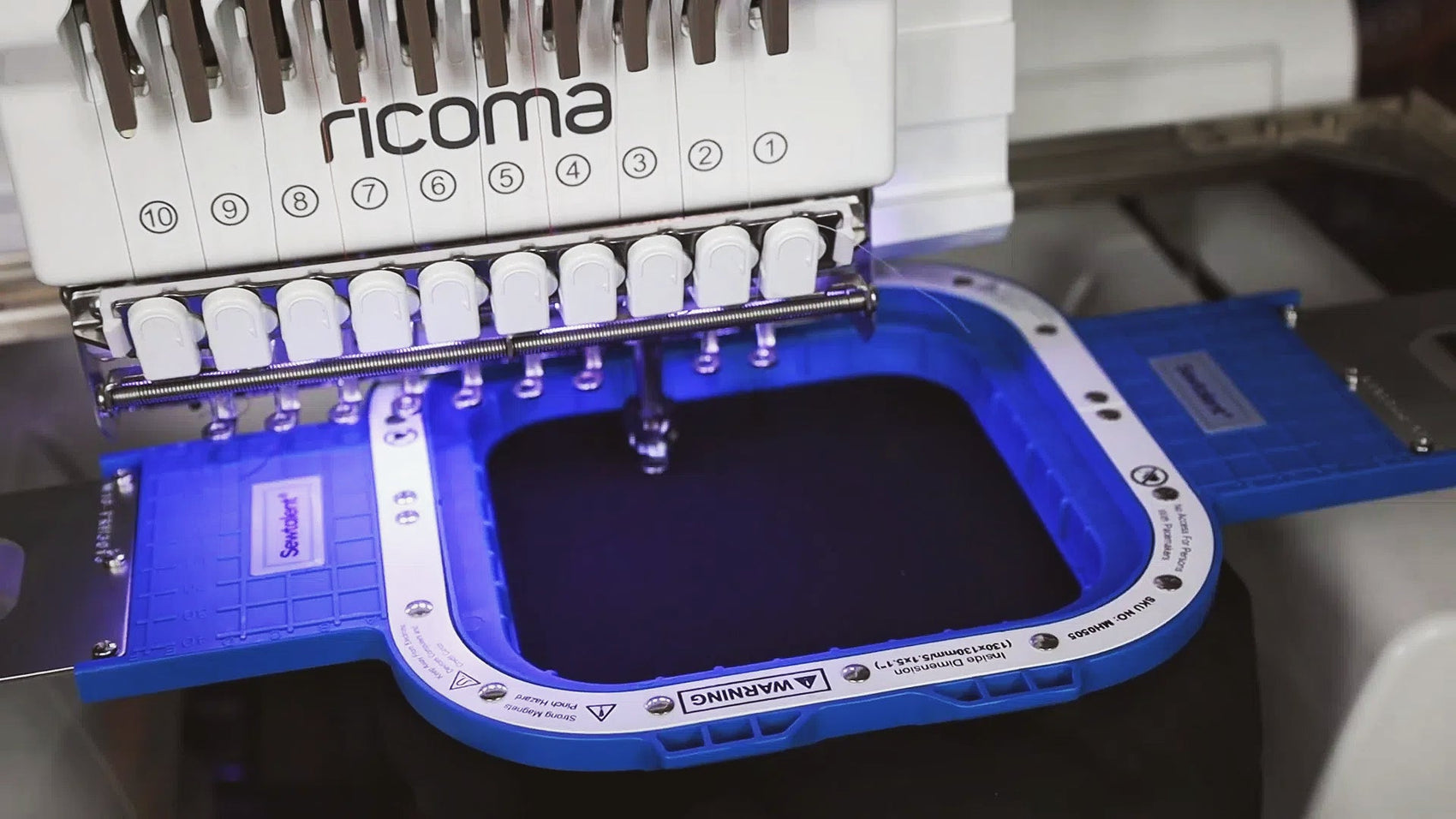

Bonus for garment embroidery:

If you’re hooping garments, consider tension-friendly embroidery hoops and frames like Sewtalent’s. Their garment hoops are designed to maintain even tension across tricky fabrics, helping prevent distortion and thread bunching right from the start.



5. Tension Mechanics Demystified

Ever feel like your machine’s tension dials are a mysterious code? Let’s crack it. Understanding how upper and bobbin tensions interact is the secret to conquering bobbin thread bunching and achieving perfect stitches, no matter your fabric.

5.1 Balancing Upper and Bobbin Thread Systems

Imagine your sewing machine’s tension system as a well-choreographed dance. The upper thread passes through tension discs, regulated by a dial or keypad, while the bobbin thread glides out under the gentle pressure of a spring-loaded bobbin case. When both sides are in harmony, stitches lock neatly in the fabric’s center.

How does it work?

• Upper Tension: Turning the dial clockwise tightens the tension (discs squeeze the thread more), while counterclockwise loosens it.
• Bobbin Tension: Adjusted via a small screw on the bobbin case—clockwise for more tension, counterclockwise for less.

The “2:1” Tension Ratio:

A good rule of thumb is that the upper tension should be about twice as strong as the bobbin tension. This balance ensures the threads meet in the fabric’s middle—not pulled up or down.

Testing your tension:

• Bobbin test: Hold the bobbin case by the thread. It should dangle but not drop freely—there should be gentle resistance.
• Visual stitch analysis: Loose loops on the fabric’s underside? Upper tension is too loose. Tight, puckered stitches or visible bobbin thread on top? Upper tension is too tight.

Tip:

Always start by adjusting bobbin tension first, then fine-tune the upper tension. Make changes in small increments—a quarter turn at a time for the bobbin screw, one dial number at a time for the upper thread.

5.2 Fabric-Specific Tension Adjustments

Not all fabrics are created equal, and neither are their tension needs. This is especially true if you use a quilting and embroidery machine, which may require additional tension adjustments. Here’s how to tailor your settings for flawless results:

How to check:

Sew a line on scrap fabric. If you see loops underneath, increase upper tension. If the bobbin thread is visible on top, decrease upper tension or check bobbin tension.

Bonus troubleshooting:

If you’re still getting bunching after adjusting tension, double-check threading, needle condition, and thread compatibility. Sometimes the smallest detail makes all the difference.



6. Advanced Diagnostics and Specialized Solutions

Sometimes, even after you’ve checked every box, bobbin thread bunching persists. That’s when it’s time to dig deeper—into the machine’s mechanics or the quirks of specialty materials. Let’s explore advanced troubleshooting and expert tips for unconventional challenges.

6.1 Identifying Mechanical Failures

When routine fixes don’t solve the problem, subtle mechanical issues may be at play. Here’s how to spot them:

Timing issues:

• Symptoms: Skipped stitches, inconsistent thread pickup, or bunching that appears only with certain stitch types (like zigzag).
• Test: Set your machine to its widest zigzag and sew slowly. If bunching or skipped stitches occur intermittently, timing could be off.
• DIY check: Remove the needle plate and watch the hook as the needle rises. The hook tip should pass just above the needle eye as it begins to ascend. If it doesn’t, professional adjustment is needed.

Worn tension discs:

• Symptoms: Tension that fluctuates unpredictably, alternating tight and loose stitches in a single seam.
• Test: If standard tension adjustments and thorough cleaning don’t resolve the issue, and you notice inconsistent results across different threads and fabrics, your tension discs may be worn out.

Handwheel rotation test:

• With the machine off, remove the needle and manually turn the handwheel. Any resistance, grinding, or irregular movement signals internal wear or damage.

What to do:

If you suspect timing or tension disc wear, it’s time for a service appointment. Document symptom patterns, fabrics, and settings for your technician—it’ll speed up the diagnosis.

6.2 Handling Metallic Threads and Stretch Fabrics

Specialty materials require special care, especially when using an embroidery machine for hats and shirts. Here’s how to prevent bunching with the trickiest threads and fabrics:

Metallic threads:

• Use a large-eye needle (designed for metallics) to reduce friction and prevent breakage.
• Lower machine speed to 400–600 stitches per minute. This prevents heat buildup and reduces stress on the thread.
• Slightly loosen upper tension so the metallic thread glides smoothly.
• Extend the thread path using an external thread stand, letting kinks work themselves out before reaching the needle.

Stretch fabrics:

• Choose a stretch or ballpoint needle for knits and elastic materials.
• Use high-quality, flexible thread to match the fabric’s movement.
• Maintain even tension—test on scrap fabric and adjust as needed to avoid puckering or skipped stitches.
• Stabilize the fabric: For garment embroidery, Sewtalent’s tension-friendly hoops are a smart choice. They help keep stretchy materials flat and stable, reducing the risk of distortion and thread bunching during embroidery.

Final tip:

Always test your setup on scraps before diving into your main project. Specialty materials reward patience and experimentation with beautiful, frustration-free results.



7. Long-Term Performance Optimization

When you’re ready to move beyond quick fixes and aim for flawless stitches project after project, it’s time to embrace long-term performance optimization. This is where precision tools and methodical habits turn good sewing into great sewing—eliminating thread bunching before it even starts and ensuring your machine delivers consistent, professional results every time.

7.1 Precision Tuning with TOWA Gauges

If you’ve ever wished for a “magic number” to dial in perfect bobbin tension, the TOWA Bobbin Tension Gauge is about as close as it gets. Instead of relying on feel or guesswork, this tool gives you a precise, repeatable measurement—so you can calibrate your bobbin tension for every project, every thread, and every machine.

How does it work?

The TOWA gauge measures bobbin thread tension in millinewtons (mN) or gram-force (gf). To use it, simply insert your loaded bobbin case into the gauge, align the latch, and thread the bobbin thread through the spring mechanism. Pull the thread gently and read the tension value on the display.

Optimal tension range:

For most sewing and quilting machines, the sweet spot is between 190 and 220 mN (or 22–25 gf). Many operators target around 200 mN for consistently smooth stitches. Some machines, like Gammill longarms, may have slightly different recommended ranges, but the principle is the same: stay within these boundaries for best results.

Step-by-step calibration protocol:

1. Document your baseline: Before adjusting, mark the current position of your bobbin case tension screw with a permanent marker. This gives you a reference point in case you need to revert.
2. Make incremental adjustments: Turn the tension screw in 1/4-turn increments—clockwise to increase tension, counterclockwise to decrease. Test after each adjustment.
3. Check your reading: After each tweak, use the TOWA gauge to ensure you’re within the 190–220 mN range.
4. Test on fabric: Always sew a few lines on scrap material to confirm that your stitches are balanced and free from bunching.

Thread-specific tips:

Different threads have unique tension needs. For instance, Rayon #40 may require about 150 gf top tension, while Polyneon threads could need a different setting. The golden rule: keep your needle tension at least twice the bobbin tension for most balanced results, but always check manufacturer guidelines and test for your specific setup.

Why bother with this level of precision?

• Consistency: No more trial and error every time you change threads or start a new project.
• Efficiency: Faster setup, less wasted material, and fewer mid-project tension surprises.
• Quality: Uniform stitches, reduced thread breaks, and virtually no bunching—your seams look as polished as your ambition.

Pro tip:

Repeat the calibration process whenever you switch thread types or begin a new project. Monitor your TOWA gauge readings regularly—if the needle bounces, you may have a bobbin or case issue that needs attention before it becomes a bigger problem.

By making precision tuning part of your routine, you transform tension from a source of frustration into a foundation for flawless sewing. This is particularly important for multi needle embroidery machines, where consistent tension across needles is critical.



8. Conclusion

Mastering bobbin thread bunching isn’t about luck—it’s about understanding your machine and applying the right solutions, step by step. Start with the basics: rethread carefully, calibrate your tension, and keep your machine clean. When problems persist, dig deeper with diagnostics and precision tools like the TOWA gauge. With these strategies, you’re empowered to achieve perfect stitches and enjoy a smoother, more satisfying sewing experience every time.

9. FAQ

9.1 Q: Why does bobbin thread bunching keep recurring?

A: Recurring bunching is often due to inconsistent tension, improper threading, or lint buildup in the bobbin area. Double-check your threading path, clean your machine regularly, and ensure both upper and bobbin tensions are balanced for your fabric and thread choice.

9.2 Q: When should I seek professional help for thread bunching?

A: If you’ve rethreaded, adjusted tension, changed needles, and cleaned your machine but still experience bunching—especially if you notice skipped stitches, erratic tension, or mechanical noises—it’s time to consult a technician. Issues like timing problems or worn tension discs often require expert service.

9.3 Q: How often should I clean my sewing machine to prevent thread bunching?

A: Clean your machine after every 2–3 bobbins or immediately after working with high-lint fabrics. Regular maintenance prevents lint buildup, which can disrupt thread flow and cause bunching.

9.4 Q: How do I know if my bobbin is compatible with my machine?

A: Always refer to your sewing machine’s manual to confirm the correct bobbin type and size. Using the wrong bobbin can lead to tension issues and thread bunching. If in doubt, purchase bobbins recommended by your machine’s manufacturer.

9.5 Q: What’s the best way to test if my tension is correct?

A: Sew a line on scrap fabric that matches your project. The ideal stitch will have threads interlocking in the fabric’s center, with no loops or bunching on either side. Adjust tension in small increments and retest until you achieve balanced, even stitches.
