1. Introduction: Mastering Your Toyota 820A in Modern Embroidery
The toyota 820a embroidery machine stands as a testament to the golden era of industrial embroidery—robust, precise, and built for serious production. Yet, in 2025, its relevance goes far beyond nostalgia. Whether you’re a seasoned studio owner, a passionate hobbyist, or a newcomer eager to unlock professional results, the 820A remains a powerful asset—if you know how to bridge its legacy engineering with today’s digital workflows.
In this ultimate guide, you’ll discover how to access essential technical documentation, navigate software and hardware compatibility challenges, troubleshoot common mechanical issues, and explore modernization options like USB upgrades. We’ll also spotlight the vibrant global community that keeps these machines running and share how innovations like magnetic embroidery hoops are accelerating maintenance and production for 820A users. Ready to transform your Toyota 820A experience? Let’s dive in.
Table of Contents
- 1. Introduction: Mastering Your Toyota 820A in Modern Embroidery
- 2. Essential Technical Documentation for Toyota 820A Owners
- 3. Solving Modern Connectivity: USB Adapters & Software Configuration
- 4. Troubleshooting Common Mechanical Failures
- 5. Modernization Strategies: USB Kits vs Legacy Systems
- 6. Leveraging Community Wisdom & Parts Sourcing
- 7. Conclusion: Optimizing Your 820A for Modern Production
- 8. FAQ: Toyota 820A Operational Insights
2. Essential Technical Documentation for Toyota 820A Owners
Navigating the world of vintage embroidery machines can feel like treasure hunting—especially when it comes to finding the right manuals, parts lists, and service guides. For the Toyota 820A, having the right documentation is your first step toward smooth operation and successful troubleshooting. Let’s break down the best sources and compare what each offers.
2.1 Official Manuals & Parts Lists: DataStitch vs. Community Resources
When it comes to official documentation, DataStitch leads the pack. They offer a comprehensive 36.2MB ZIP archive packed with original service manuals, setup diagrams, and detailed Toyota embroidery machine parts lists—all in easily printable PDF format. This archive is the gold standard for anyone seeking the full technical picture, from installation to advanced repairs.
But what if you’re looking for something quick and free? Scribd hosts the Toyota 820 Stitch Steps PDF, which covers embroidery processes and threading procedures. While not as exhaustive as DataStitch’s bundle, it’s a handy reference for basic operation and setup.
The Toyota community has also stepped up: forums like T-Shirt Forums and Embroidery Machine WIKI are full of manual requests, shared diagrams, and troubleshooting threads. Users often exchange advice on timing adjustments, needle calibration, and tension settings—sometimes even sharing scanned pages or rare guides.
For those modernizing their workflow, PLR Electronics provides USB transfer protocol guides, clarifying how to move designs from your PC to the 820A using a 25-pin serial connection or a dedicated USB reader. These resources are especially valuable if you’re integrating newer software or hardware.
Resource | Content | Format | Source |
---|---|---|---|
DataStitch ZIP Archive | Service manuals, parts lists, setup guides | PDF/ZIP | DataStitch |
Scribd Stitch Steps | Embroidery process diagrams | Scribd | |
PLR Electronics USB Guide | File transfer instructions | PLR Electronics | |
T-Shirt Forums | Community troubleshooting tips | Forum | T-Shirt Forums |
Pro Tip: The DataStitch ZIP is your best bet for a complete technical library. For quick fixes or peer support, community forums are invaluable.
2.2 Maintenance Protocols: Power Supply Replacement & Needle Alignment
Keeping your Toyota 820A running smoothly isn’t just about having the right manual—it’s about following proven maintenance routines and leveraging the best tools for the job.
Power Supply Replacement: If your machine flashes a “Sewing Motor Lock” error or refuses to start, the culprit is often the power supply. The recommended replacement is the Cosel P300E-24 unit, widely available on eBay and compatible with the 820A’s requirements. The swap is straightforward:
1. Unplug the machine and locate the power supply (check your service diagram for guidance).
2. Remove the faulty unit and securely install the new Cosel P300E-24.
3. Check for indicator lights—if they glow, you’re good to go.
Needle Alignment: A misaligned needle bar can halt production and trigger cryptic dash errors on the control panel. The fix? Manually rotate the handwheel until the dash symbol changes to a number or letter, then adjust using knob B and press SET. This resets the needle position and clears the error, getting you back in business.

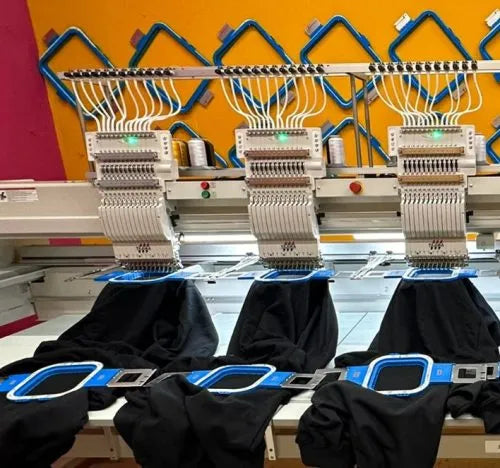

Fabric Stabilization—The Magnetic Hoop Revolution: Traditional screw-based hoops can be a bottleneck during maintenance, especially when you need to repeatedly reposition fabric. Enter magnetic embroidery hoops—specifically, the Sewtalent brand. These hoops offer even tension, prevent fabric distortion, and—here’s the kicker—reduce hooping time by up to 90%. That means less fiddling, more stitching, and a smoother maintenance workflow.
Quick Maintenance Checklist:
- Replace power supply with Cosel P300E-24 as needed.
- Realign needle bar using manual handwheel and knob B.
- Lubricate the rotary hook regularly to prevent friction.
- Upgrade to magnetic hoops (like Sewtalent) for faster, more reliable fabric stabilization.
Why it matters: With the right documentation and maintenance protocols, you’re not just preserving a vintage machine—you’re optimizing it for today’s demanding embroidery projects.
3. Solving Modern Connectivity: USB Adapters & Software Configuration
In a world of plug-and-play devices, connecting a 1990s-era embroidery machine to a modern PC can feel like deciphering ancient runes. But with the right adapters, settings, and a little patience, you can bridge the decades and unlock the full creative potential of your Toyota 820A.
3.1 Hardware Bridge: USB-to-Serial Solutions for Windows 10/11
The Toyota 820A communicates via a 25-pin serial port—a relic rarely found on today’s computers. To connect to a modern PC, you’ll need a USB-to-serial converter (either USB-to-9-pin or USB-to-25-pin), plus a serial null modem cable to ensure the correct pin configuration. If your adapter is 9-pin, a 9-to-25 pin male-to-male adapter may also be necessary.
For a streamlined experience, consider a dedicated usb reader for toyota embroidery machines like PLR Electronics’ Black Box, which plugs directly into the 25-pin port and simplifies file transfers. When using these solutions, set your machine to “CONNECT TO PC” mode and assign the download number to “01.”
COM Port Settings (for EFP and similar software):
- Baud Rate: 9600
- Data Bits: 8
- Parity: Odd
- Stop Bits: 2
- Flow Control: Hardware
Virtual Machine Workarounds: If your software refuses to cooperate with Windows 10 or 11, running a virtual machine (VM) with Windows XP or 7 can provide the legacy environment needed for smooth communication. VMware and VirtualBox are popular choices, though direct serial port mapping may require extra configuration.
Forum Wisdom: Users report success with EFP (Embroidery Fonts Plus) on Windows XP/7, but challenges persist on Windows 10 without compatibility tweaks. Open-source solutions are sometimes explored for unsupported formats.
3.2 Software Optimization: EFP Configuration & Error #2 Fixes
Even with the right hardware, software hiccups can derail your workflow. The most common culprit? Communication Error #2—usually caused by incorrect COM port settings or cable misconfiguration.
Troubleshooting Steps (as recommended on T-Shirt Forums):
- Double-check your COM port settings (9600 baud, 8 data bits, odd parity, 2 stop bits, hardware flow control).
- Ensure the machine is set to receive mode (“CONNECT TO PC”).
- On the machine, enter the command sequence: DATA → SET → 0 → 1 → SET.
- In EFP, open your DST file and initiate the transfer. The data transfer light should flash green if successful.
Windows Compatibility Tips:
- On Windows 7, configure COM ports via Device Manager.
- On Windows 10, try running EFP or other legacy software in Windows 7 compatibility mode or within a VM.
Error Type | Cause | Solution |
---|---|---|
Communication Error #2 | Incorrect COM port/cable setup | Verify settings and cable connections |
No Data Transfer | Machine not in receive mode | Confirm “CONNECT TO PC” and correct command sequence |
Software Incompatibility | Modern OS lacks legacy drivers | Use Windows XP/7 VM or compatibility mode |
Key Takeaway: Connecting your Toyota 820A to a modern PC isn’t just possible—it’s practical, with the right combination of hardware adapters, software settings, and a dash of community wisdom. Once set up, you’ll be able to send designs, optimize workflows, and keep your classic machine humming in the digital age.
Ready to take your Toyota 820A further? In the next sections, we’ll tackle mechanical troubleshooting, explore modernization strategies, and show you how to tap into the global repair community. Stay tuned!
4. Troubleshooting Common Mechanical Failures
Even the sturdiest machines like the Toyota 820A can throw a wrench in your creative flow with cryptic errors and mechanical hiccups. But before you start imagining catastrophic repairs or hunting for replacement parts in obscure corners of the internet, let’s break down the most common issues—and, more importantly, how to fix them with confidence.
4.1 Sewing Motor Lock: Power Supply Diagnostics & Replacement
Picture this: You power up your 820A, only to be greeted by the dreaded "Sewing Motor Lock" error. Your first instinct might be to blame the motor itself, but here’s the twist—this error almost always points to a power supply failure, not a seized motor.
Symptoms & Initial Checks:
- Machine refuses to operate, but the flywheel turns freely.
- Persistent error message, even after restarts.
Step-by-Step Resolution:
-
Diagnose the Power Supply:
- Open the machine and locate the main power box.
- Look for the Cosel P300E-24 power unit (the workhorse behind the scenes).
- If you see indicator lights glowing on both the Cosel P300E-24 and the smaller P15E-5 power supply, those boxes are likely fine. If not, you’ve found your culprit.
-
Replace the Faulty Unit:
- Unplug the machine and safely remove the malfunctioning power supply.
- Install a new or tested Cosel P300E-24 (readily found on eBay and parts suppliers).
- Double-check all cable connections for pinches or damage—intermittent errors can often be traced back to a single frayed wire.
-
Test and Confirm:
- Power up the machine and run a basic embroidery test.
- If the error persists, consider possible software conflicts (especially if you’re using legacy Pantogram software on a modern PC) or inspect the control board for deeper issues.
Pro Tips from the Field:
- If you own multiple machines and see this error across the board, check for environmental factors like power surges.
- Regularly inspect and maintain cables to avoid voltage instability.
- Community repair logs (like those on iFixit and T-Shirt Forums) suggest that, in most cases, simply replacing the power supply resolves the issue—no need to panic about motor failure.
Error | Primary Cause | Resolution | Common Misdiagnosis |
---|---|---|---|
Sewing Motor Lock | Power supply failure | Replace Cosel P300E-24 unit | Motor seizure |
When in doubt, consult your Toyota 820A service manual or reach out to the online repair community—chances are, someone’s already solved your Toyota embroidery machine repair challenge.
4.2 Needle Bar Alignment: Dash Error Resolution Workflow
Few things are more frustrating than a dash symbol ("--") glaring at you from the control panel, refusing to budge. This usually means your needle bar is misaligned—a problem that can halt production and fray your nerves.
Common Symptoms:
- Dash symbol in the control panel’s lower right corner.
- Thread breakage or missed stitches.
- Inconsistent stitch quality.
The Fix—No Magic, Just Method:
-
Stop the Machine:
- Hit the Stop button to silence alarms and freeze the action.
-
Manual Realignment:
- Rotate the handwheel (located behind the machine head) until a valid needle identifier (number or letter) replaces the dash.
- For stubborn errors, use knob B to fine-tune the needle position. Once a number or letter appears, press SET to lock in the alignment.
-
Check Fabric Stability:
- During repairs, unstable fabric can make alignment even trickier. Here’s where Sewtalent’s magnetic embroidery hoops shine. Their textured surface grips fabric securely, keeping everything perfectly in place while you work—no more wrestling with shifting layers or re-hooping after every adjustment.
-
Advanced Troubleshooting:
- If the dash persists, consult the Toyota 820A service manual or seek out instructional videos from DataStitch or Pantograms for visual guidance.
- For persistent thread breakage, inspect the rotary hook for binding and check needle depth. Replace or adjust as needed.
Symptom | Diagnostic Steps | Action |
---|---|---|
Dash in control panel | Rotate handwheel, adjust knob B | Press SET when identifier appears |
Inconsistent stitches | Check rotary hook/needle depth | Replace rotary hook or adjust needle depth |
Thread breakage | Inspect thread path and tension | Test all needles for tension issues |
Why Magnetic Hoops Matter: Traditional hoops can slip or distort fabric during repairs, making a simple fix feel like a wrestling match. Sewtalent’s magnetic hoops—with their even tension and textured grip—let you focus on precision, not positioning. For anyone serious about minimizing downtime and maximizing stitch quality, this is a game-changer.
5. Modernization Strategies: USB Kits vs Legacy Systems
Let's face it—floppy disks and serial cables belong in a museum, not your embroidery studio. If you're ready to bring your Toyota 820A into the 21st century, it's time to explore USB modernization options that actually work.
5.1 Black Box USB Reader: Floppy Emulation for .10O Files
What Is the Black Box USB Reader?
Think of it as a time machine for your 820A—a plug-and-play device that replaces both floppy disk drives and legacy serial connections. Designed specifically for Toyota models 820, 820A, 830, 850, 851, 860, and 9000/9100, the Black Box USB Reader connects directly to your machine's 25-pin serial port.
Key Features:
- Plug-and-Play Simplicity: No software installation required. The device mimics traditional floppy disk behavior, so your 820A thinks it's still living in the '90s.
-
File Support: Handles Toyota's proprietary
.10O
stitch format—no need to convert designs endlessly. - Wireless Option: Pair with WiFi adapters (like USBtoWIFI.com) to transfer designs wirelessly, freeing your workspace from cable clutter.
How Does It Compare?
Feature | Legacy Serial Cables | Black Box USB Reader |
---|---|---|
Compatibility | Needs RS232 ports and older OS (XP, 3.1) | Works with modern computers via USB |
Reliability | Prone to "error #2" and communication hiccups | Stable, error-free transfers |
File Handling | Limited to 1.44MB floppy formats | Supports larger USB drives |
Setup Complexity | Requires adapters, drivers, and legacy software | Plug-and-play; no extra software needed |
Software Considerations:
While some digitizing software (like Wilcom ES or Pantogram's toyota embroidery machine software tools like Design File Manager) can output Toyota-compatible formats, direct PC-to-machine communication isn't always guaranteed. Many users report success with the Black Box for file transfers, while older methods often require virtual machines or workarounds.
Key Takeaways:
- The Black Box USB Reader is the most versatile and future-proof solution for the 820A.
- Avoid relying on floppy disks or serial cables—they're error-prone and increasingly unsupported.
- For wireless transfers, pairing the Black Box with a WiFi adapter streamlines your entire workflow.
Ready to ditch the floppies for good? This upgrade is your ticket to a smoother, more reliable embroidery process.
6. Leveraging Community Wisdom & Parts Sourcing
No one embroiders alone—especially when you’re keeping a classic like the Toyota 820A humming. The global community of owners, repair techs, and parts suppliers is your secret weapon for troubleshooting, upgrades, and keeping your machine in peak condition.
6.1 Global Repair Networks: DataStitch vs Savmik Components
Where Do You Find the Parts?
When something breaks, sourcing the right replacement can feel like a scavenger hunt. Luckily, several suppliers specialize in Toyota 820A components:
Part Type | Description | Price Range | Source |
---|---|---|---|
Bobbin Case (Size L) | Fits Toyota, Tajima, SWF, Melco machines | From $8.75 | DataStitch |
Face Plate (AD850/860) | Newly manufactured for specific models | $98.00 | DataStitch |
Rotary Hook (Standard) | Fits most commercial machines (excludes 9000/9100) | $10.00 | DataStitch |
Cross-Compatibility: Parts like L-size bobbin cases and standard rotary hooks are compatible with other brands (Tajima, Melco, SWF), making it easier to source spares without paying a premium for OEM labels.
Alternative Suppliers: If DataStitch doesn’t have what you need, Savmik offers a range of used and newly manufactured parts—especially for discontinued models. eBay is a goldmine for used Toyota embroidery machines for sale and power units like the Cosel P300E-24, often at a fraction of the cost of new components.
Community Collaboration:
- Manual Sharing: Forums like T-Shirt Forums and iFixit host a wealth of user-uploaded manuals, repair guides, and troubleshooting tips—especially for rare or out-of-print documentation.
- Repair Advice: If you’re stuck, don’t hesitate to post your problem. The global network of Toyota 820A owners is famously generous with advice, diagrams, and even scanned pages from their personal manuals.
Key Trends:
- Standardized parts mean you’re rarely locked into a single supplier.
- Community-driven support fills the gaps left by discontinued official channels.
- Keeping your original crate and tool kit is essential for warranty repairs and safe shipping.
Final Thought: Whether you’re chasing down a bobbin case or crowdsourcing a fix for a stubborn error, the Toyota 820A community is your lifeline. Tap into their collective wisdom and keep your machine running strong for years to come.
7. Conclusion: Optimizing Your 820A for Modern Production
Bringing your Toyota 820A into the fast lane of 2025 embroidery is all about blending legacy reliability with today’s workflow accelerators. With robust technical documentation at your fingertips, USB modernization options like the Black Box reader, and a clear preventive maintenance routine, you’re set to keep your Toyota embroidery machines humming for years to come.
But here’s where the magic happens: integrating Sewtalent magnetic embroidery hoops into your garment hooping process. These hoops slash hooping time by up to 90%, deliver even tension, and eliminate the headaches of fabric slippage or distortion—making them a true game-changer for both maintenance and production. Whether you’re running a bustling studio or fine-tuning your home setup, the right combination of documentation, thoughtful upgrades, and workflow tools like Sewtalent can transform your 820A experience from vintage to visionary.
Ready to make your next stitch smarter, faster, and more reliable? The future of embroidery is in your hands.
8. FAQ: Toyota 820A Operational Insights
8.1 Q: Is the Toyota 820A compatible with Windows 10 or newer operating systems?
A: Direct communication with Windows 10 can be challenging due to legacy drivers and serial port requirements. Many users report success by running embroidery software (like EFP or Pantograms Design File Manager) within a Windows XP or Windows 7 virtual machine on modern PCs. USB-to-serial adapters and proper COM port configuration are essential for smooth transfers.
8.2 Q: How common is the needle case error, and what’s the best way to fix it?
A: Needle case errors are a known quirk of the 820A, often triggered by misalignment or after a thread break. The fix is straightforward: press Stop to silence alarms, rotate knob B until a number or letter appears in place of the dash, then press SET. This realigns the needle bar and clears the error, letting you resume embroidery without fuss.
8.3 Q: What are the best practices for preserving vintage software and ensuring ongoing compatibility?
A: To safeguard your embroidery workflow, create a backup image of any legacy PC running your essential software (using tools like Acronis TrueImage). Running this image in a virtual machine (such as VMware) on a modern computer preserves both the software environment and hardware compatibility. Keep original dongles and cables handy, and consider modern upgrades like USB readers to future-proof your setup.
8.4 Q: Can I use modern digitizing software like Wilcom or Embrilliance with the 820A?
A: Modern digitizing programs (Wilcom, Pulse, Embrilliance) can export designs in formats compatible with the Toyota 820A, such as .DST or .10O. However, direct machine communication may still require legacy transfer software or hardware bridges. Always verify export settings and test with your specific setup.
8.5 Q: Where can I find manuals or community support for rare issues?
A: Comprehensive manuals are available from DataStitch as downloadable ZIP archives. Community forums like T-Shirt Forums, Embroidery Machine WIKI, and iFixit offer peer support, troubleshooting tips, and even user-shared scanned manuals for rare or discontinued models. Don’t hesitate to reach out—the 820A community is famously helpful.
