ZSK Germany Embroidery Machines: Technical Mastery & Industrial Applications

1. Introduction to ZSK Germany's Embroidery Ecosystem

With over a century of innovation, ZSK Germany stands as a beacon in the world of industrial embroidery technology. Renowned for precision engineering and a versatile product portfolio, ZSK has shaped the future of embroidery—from fashion runways to technical textiles in automotive and aerospace. This guide unpacks ZSK’s technical mastery, exploring the SPRINT series’ advanced specifications, operational best practices, and the brand’s pioneering role in smart textile applications. Whether you’re a seasoned industry professional or a curious newcomer, you’ll discover how ZSK’s machines, software, and workflow solutions empower creativity and productivity at every scale.

Table of Contents

• 1. Introduction to ZSK Germany's Embroidery Ecosystem
• 2. ZSK Machine Technical Specifications Decoded
• 3. Operational Excellence: Setup & Maintenance Guide
• 4. Industrial Breakthroughs: Carbon Fiber & Smart Textiles
• 5. ZSK's Innovation Recognition & IP Protection
• 6. MY.ZSK: Production Management Revolution
• 7. Conclusion: Future of Industrial Embroidery
• 8. FAQ: ZSK Machine Essentials

2. ZSK Machine Technical Specifications Decoded

ZSK’s embroidery machines are engineered for versatility, speed, and technical excellence—qualities that have made them a staple in both creative studios and high-volume factories. Let’s break down what sets these machines apart, focusing on the flagship SPRINT series and the advanced features that elevate ZSK above the competition.

2.1 SPRINT Series Model Breakdown

The ZSK sprint embroidery machine series is ZSK’s answer to the diverse needs of modern embroidery, offering specialized models that cater to everything from intricate garment work to oversized industrial textiles. Here’s how the main models stack up:

Needle Configurations & Speed:

- SPRINT 6 and 8: 12 needles, ideal for standard multi-color workflows.

- SPRINT 7/7L/7XL: 18 needles, enabling complex, high-color designs with fewer thread changes.

- All SPRINT models reach speeds up to 1,200 stitches per minute (SPM) in flat/tubular mode—among the fastest for single-head machines.

Embroidery Field Dimensions:

ZSK’s modular frame system supports a wide range of applications:

Specialized Applications:

- SPRINT 7XL handles oversized textiles—think banners, luggage, or automotive panels.

- SPRINT 8 is optimized for large-format projects with its extended border frame.

Technical Highlights:

- Stitch Memory: Up to 80 million stitches, supporting even the most complex designs.

- Power Supply: 90V–260V, making it globally compatible.

- Dimensions: SPRINT 6 measures 1,040 mm x 985 mm x 930 mm, while SPRINT 7XL offers a larger footprint for its extended field.

Competitive Edge:

Compared to other leading brands, ZSK’s SPRINT series delivers higher speeds, modularity, and the ability to handle technical threads—like conductive fibers and carbon fiber—for cutting-edge industrial and smart textile applications.

2.2 Advanced Features: Roll2Basket & Beyond

ZSK’s innovation doesn’t stop at speed or size. The brand integrates advanced features that streamline production and open doors to new applications:

- Roll2Basket System: This continuous fabric feeding mechanism transforms roll-to-roll embroidery, making it ideal for industries like automotive and aerospace where uninterrupted production is key. The system feeds textile rolls smoothly into the embroidery area, minimizing manual intervention and boosting throughput.

- Rapid Release Frames: Swapping frames or hoops is a breeze, thanks to ZSK’s quick-release mechanisms. This means less downtime between jobs and more time creating.

- Adjustable Presser Feet: Whether you’re working with delicate silks or rugged technical textiles, ZSK’s adjustable presser feet adapt to varying material thicknesses, ensuring consistent stitch quality across every project.

- Integrated Design Editing Software: On-machine editing lets users tweak designs directly from the control panel, eliminating the need to shuttle files back and forth between computer and machine.

- Thread Management for Technical Embroidery: ZSK machines are engineered to handle specialty threads—conductive, carbon fiber, and more—making them a go-to for smart textiles and composite reinforcement.

Why does this matter?

These features aren’t just bells and whistles—they’re the backbone of a flexible, future-proof embroidery operation. Whether you’re running a high-mix, low-volume shop or a mass-production facility, ZSK’s technical mastery lets you say yes to more jobs, more materials, and more creative possibilities.

3. Operational Excellence: Setup & Maintenance Guide

ZSK’s reputation for reliability is matched by its commitment to user-friendly operation. From unboxing to daily production, every step is engineered for efficiency and clarity—whether you’re a first-time user or a seasoned technician.

3.1 T8 Controller Installation & Networking

Unpacking and Physical Setup:
- Inspect the packaging thoroughly upon delivery, noting any damage before the shipping company leaves.
- Carefully remove all components, including the stand and T8 Controller, using the provided instructions for assembly.

Power and Connectivity:
- Connect the T8 Controller to your router using a crossover Ethernet cable (yellow ports). Blinking lights confirm a successful connection.

Networking the T8 Controller:
- For direct computer connection, use a crossover cable—avoid internet ports and connect to your router’s LAN ports.
- Access the MY.ZSK production monitoring system via your browser at my.zsk.de after registering your company details.

Threading and Design Loading:
- Thread Color Management: Use ZSK Transport Code (TC) designs (.Z0* files) for automatic color input, eliminating manual color changes.
- DST File Loading: Load DST files via USB into the T8 Controller, manually inputting color stops as needed.
- USB Workflow: Insert your USB drive into the T8’s rear port, navigate to your file, and confirm installation.

- Select up to two additional languages during terminal software installation.
- Use a preloaded USB stick containing ZSK software; select files via the T8’s cursor keys.

Routine Maintenance & Troubleshooting:
- Motor Reset: Adjust sequin devices by loosening screws, aligning components, and tightening after calibration.
- Software Updates: Regularly update T8 software via USB to ensure compatibility with new design formats.

Key Resources:
- Video Tutorials: Covering setup, threading, and networking (e.g., T8 Basics, MY.ZSK installation).
- PDF Manuals: Step-by-step T8 software installation protocols.
- MY.ZSK Platform: Enables remote monitoring and production management via web interface.

3.2 Optimizing Garment Embroidery Workflows

Best Practices for Hooping Techniques with Sewtalent Magnetic Frames
Efficiency in garment embroidery hinges on how quickly and accurately you can prepare each piece for stitching. Traditional screw-based hoops often slow down production and can introduce errors through uneven tension or fabric slippage. Enter the Sewtalent magnetic embroidery frame—a game-changer for ZSK machine users focused on garment production.

Why Sewtalent Magnetic Frames?
- Speed: Sewtalent’s powerful magnetic hooping system reduces setup time by up to 90% compared to traditional screw hoops. What used to take three minutes now takes just thirty seconds.
- Consistency: The magnetic frame automatically adapts to a wide range of fabric thicknesses, from delicate silks to heavy sweatshirts, ensuring even tension and reducing the risk of hoop burn or misalignment.
- Ease of Use: With guiding lines for quick positioning and a robust construction that withstands industrial use, Sewtalent frames are designed for both beginners and professionals.
- Durability: Made with high-grade PPSU engineering plastic and N50-grade rare-earth magnets, these frames offer a lifespan up to 40 times longer than standard hoops.

How to Integrate Sewtalent with Your ZSK Workflow:
1. Select the appropriate Sewtalent frame size and bracket for your ZSK machine.
2. Place your garment and stabilizer between the magnetic frames—no manual screw adjustments required.
3. Use the guiding lines to align your design precisely.
4. Secure the frame and load it onto your ZSK machine—ready for embroidery in seconds.

The Bottom Line:
For high-volume or repetitive garment embroidery, Sewtalent magnetic frames not only slash setup time but also improve overall production quality and operator comfort. By minimizing manual labor and maximizing consistency, these frames help ZSK users unlock the full potential of their machines—making every stitch count.

Ready to take your embroidery workflow to the next level?
Explore how ZSK’s technical mastery and Sewtalent’s magnetic hooping solutions can transform your production floor—saving time, reducing waste, and elevating your creative possibilities.

4. Industrial Breakthroughs: Carbon Fiber & Smart Textiles

When embroidery meets engineering, the result isn’t just eye-catching—it’s industry-changing. zsk technical embroidery systems from Germany are redefining what’s possible in carbon fiber composites and smart textiles. Let’s unravel how.

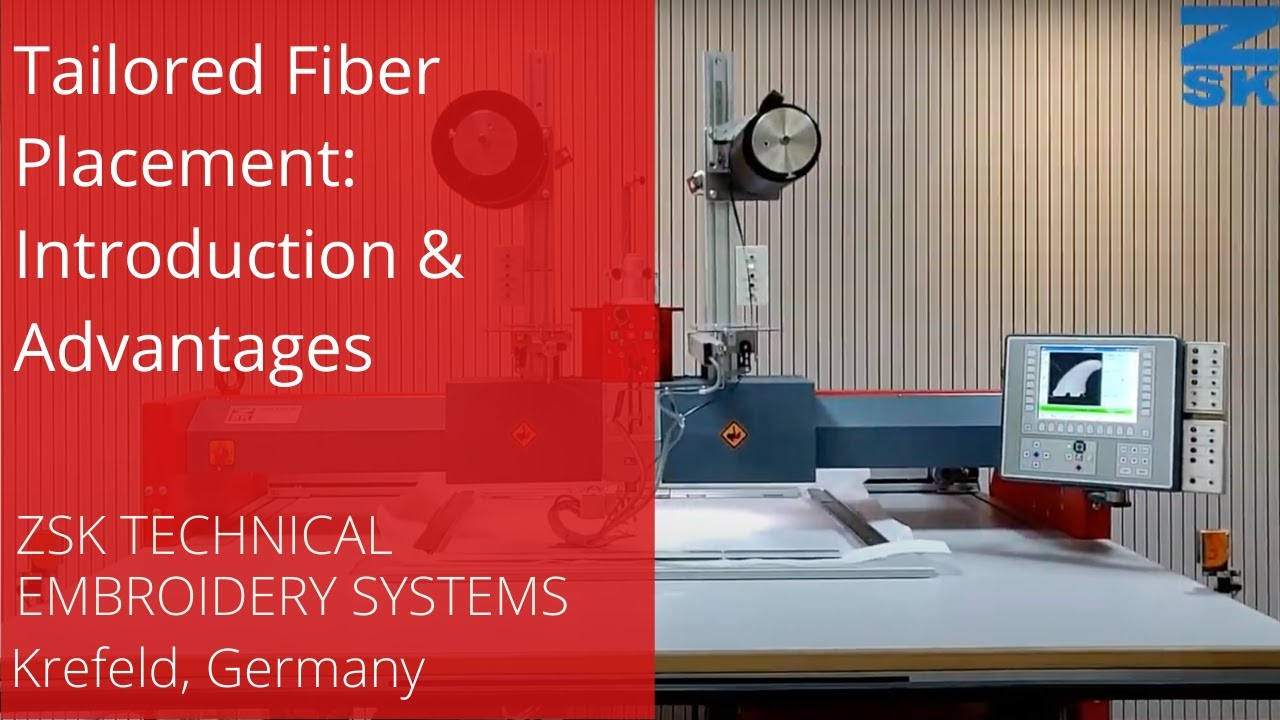

4.1 Tailored Fiber Placement (TFP) Technology

Imagine laying down carbon fiber or conductive wire with the precision of a master artist, but at industrial speed and scale. That’s the magic of ZSK’s Tailored Fiber Placement (TFP) technology. TFP enables automated, programmable placement of fibers—carbon, glass, thermoplastic, or even steel-core yarns—directly onto flexible substrates. The result? Custom, reinforced structures with minimal waste and maximal strength.

Productivity, Redefined: ZSK’s patented High Volume-TFP (HV-TFP) system can lay down multiple strands in parallel, effectively doubling fiber placement volume. This innovation translates to a staggering 200% productivity increase in carbon fiber composite manufacturing. Whether prototyping a single part or mass-producing with up to 11 heads working simultaneously, ZSK’s TFP adapts seamlessly—no retooling required.

Waste Not, Want Not: Traditional composite manufacturing often means cutting, trimming, and tossing expensive material. TFP, by contrast, reduces waste by up to 50%, precisely tailoring fibers to the stress points of each part. Need to switch from automotive to sports equipment? The system pivots in a snap, supporting rapid batch changes and hybrid composites.

Real-World Versatility: From bicycle wheels to aircraft panels, TFP empowers manufacturers to create lightweight, ultra-strong parts. The technology supports commingled fibers for hybrid materials and can even integrate wires for heating or sensor applications—all in one automated workflow.

Automation at Its Core: Reel-to-reel feeding, pneumatic material handling, and automatic bobbin changers keep production humming with minimal manual intervention. ZSK’s multi-head configurations scale up to 56 heads for true 24/7 industrial output.

Curiosity Gap: Ever wondered how a bicycle seat can be feather-light yet strong enough for the Tour de France? TFP’s geometric fiber alignment is the secret sauce, distributing load exactly where it’s needed.

Table: TFP in Carbon Fiber Composites

The bottom line? ZSK’s TFP isn’t just a technical upgrade—it’s a leap forward for industries demanding strength, efficiency, and design freedom.

4.2 IoT-Enabled Embroidery Solutions

What if your car’s seat could sense your presence, or your jacket could monitor your heart rate? Welcome to the world of smart textiles, powered by ZSK’s embroidery innovation.

Stitching Intelligence: ZSK machines can integrate conductive threads, sensors, LEDs, and even RFID tags directly into fabric. Embroidery becomes the backbone for electronic circuits, enabling wearables and automotive interiors with built-in intelligence.

Precision Placement: As electronics shrink, precision matters more than ever. ZSK’s automated systems handle even the tiniest sensors, mounting components with up to three embroidery heads at once. The result: dense sensor networks and robust, flexible circuits—no soldering required.

End-to-End Automation: With 3E Smart Solutions, ZSK supports the entire process—from prototyping to industrial-scale production. Automated workflows ensure high repeatability and quality, whether you’re embedding a handful of sensors or outfitting an entire fleet of vehicles.

Industry Impact: Automotive manufacturers leverage ZSK’s technology to create seats with embedded heating elements and sensor arrays. In wearables, designers use embroidered conductive traces for health monitoring, fitness tracking, and more.

Why It Matters: As the Internet of Things (IoT) expands, the line between textiles and electronics blurs. ZSK’s embroidery solutions are at the forefront, enabling a new generation of smart, connected products.

5. ZSK's Innovation Recognition & IP Protection

Innovation isn’t just about technology—it’s about trust, reputation, and protecting the creative spark. ZSK’s accolades and security partnerships prove it’s not just building machines, but shaping the future of embroidery.

5.1 TOP 100 Award-Winning Engineering

ZSK GmbH's reputation as an innovation powerhouse is cemented by Germany’s prestigious TOP 100 award. In 2017, ZSK was celebrated for its "Outward Orientation/Open Innovation"—a fancy way of saying they don’t just invent in a vacuum. Instead, ZSK collaborates with universities, product designers, and customers to spot new opportunities and push embroidery technology into uncharted territory.

Science-Backed Credibility: The TOP 100 isn’t handed out lightly. ZSK underwent a rigorous, science-monitored evaluation, spotlighting its ability to adapt embroidery systems for advanced materials like carbon fibers and conductive wires. The company’s portfolio now touches everything from fashion runways to wind turbines, medical devices, and the interiors of tomorrow’s cars and planes.

Industry 4.0 Pioneer: ZSK’s embrace of digitalization and workflow automation—think cloud-based production monitoring and real-time analytics—puts it at the heart of the Industry 4.0 movement. The result? Customers unlock new business fields and stay competitive in a rapidly evolving market.

A Legacy of Excellence: With roots dating back to 1875 and a track record of continuous reinvention, ZSK’s innovation culture is more than a buzzword. It’s a promise, proven by awards like the Texprocess Innovation Award (2022) and the enduring trust of global industry leaders.

5.2 CodeMeter Anti-Piracy Systems

In a world where designs and data zip across continents at the speed of light, protecting intellectual property is non-negotiable. Enter ZSK’s partnership with Wibu-Systems and the integration of CodeMeter technology.

How It Works:

- Encryption & Anti-Tampering: CodeMeter encrypts machine software and production data, locking out would-be pirates and reverse engineers.

- Physical Security: CmDongle hardware keys ensure only licensed users can access sensitive designs or run the machines.

- Granular Licensing: Time- or volume-based controls let brands manage production remotely, even in decentralized supply chains.

Impact: The numbers speak volumes: documented cases show up to a 90% reduction in design piracy thanks to CodeMeter. For brands and technical textile producers, that means peace of mind and a safer path to global expansion.

Industry 4.0 Alignment: With secure SSL/TLS data transmission and platform flexibility (Windows, Linux, embedded systems), CodeMeter supports ZSK’s vision for a connected, digital, and secure embroidery ecosystem.

A Trusted Partner: As Julius Sobizack, ZSK’s Managing Director, puts it: "Since we started using [Wibu-Systems'] products, we have not experienced any more piracy of our own software solutions." That’s not just a testimonial—it’s a shield for your business.

6. MY.ZSK: Production Management Revolution

What if you could see every stitch, every thread break, and every operator’s performance—across your entire embroidery fleet, in real time? my zsk makes that vision a reality, transforming production management from guesswork to science.

6.1 Real-Time Analytics Dashboard

MY.ZSK offers a live window into your embroidery operation, tracking:

• Machine Performance: Monitor stitches per minute, thread breaks, and uptime across all units.
• Operator Efficiency: RFID tokens log operator activity, enabling productivity benchmarking and targeted training.
• Environmental Conditions: Integrated sensors measure temperature, humidity, and air pressure—crucial for consistent quality in technical textiles.

Data-Driven Decisions: Historical analytics reveal trends, optimize workflows, and flag recurring issues. Customizable alerts notify you instantly of thread breaks, environmental deviations, or machine stoppages—so you can act before small hiccups become costly downtime.

Integration & Flexibility: MY.ZSK works in the cloud, on-premise, or in hybrid setups, with encrypted data transfer and mobile access. It’s ERP-ready, plugging seamlessly into your broader enterprise systems, and built on the OPC UA protocol for future IoT expansion.

Curiosity Gap: Ever wondered why a particular design keeps causing thread breaks? MY.ZSK’s design-level analytics help you pinpoint and fix the root cause, not just the symptom.

6.2 ERP Integration Strategies

MY.ZSK isn’t just about monitoring—it’s about orchestrating your entire production ecosystem. Barcode-driven material tracking automates job logging, while batch and design data flow directly into your ERP for transparent supply chain management.

Case in Point: In automotive embroidery, MY.ZSK’s sensor-driven quality control ensures every seat or panel meets stringent documentation standards. For large-scale production parks, the centralized dashboard keeps tabs on machines spread across continents, while MY.Academy integration ensures every operator is up to speed.

Workflow Automation: ZSK Terminal works hand-in-hand with MY.ZSK, converting design files, assigning colors, and validating thread inventories for multi-machine coordination. Automated barcode scanning and optimized file loading minimize setup time and human error.

Looking Ahead: With future support for additional industrial sensors and AI-driven insights, MY.ZSK is poised to deliver predictive maintenance, resource optimization, and automated compliance reporting—keeping you ahead of the curve.

Ready to transform your embroidery operation? ZSK’s technical mastery, award-winning innovation, and digital management tools like MY.ZSK are your ticket to the next era of industrial embroidery—where precision, efficiency, and security are stitched into every job.

7. Conclusion: Future of Industrial Embroidery

As we look ahead, the future of industrial embroidery is being shaped by technical mastery, digital integration, and the relentless pursuit of efficiency. ZSK Germany stands at the forefront of this evolution—its machines are not only engineered for precision and versatility but are also equipped to meet the demands of tomorrow’s textile landscape, from smart wearables to carbon fiber composites.

For garment production, the adoption of advanced hooping solutions is a strategic move toward scalability and consistent quality. Magnetic embroidery frames, such as those from Sewtalent, have proven to be transformative for ZSK users. By reducing setup times by up to 90% and ensuring even fabric tension across a wide range of materials, these frames empower embroidery businesses to scale operations without sacrificing quality or operator comfort. The synergy between ZSK’s robust engineering and Sewtalent’s innovative hooping technology offers a compelling pathway for businesses aiming to boost productivity, minimize waste, and stay agile in a competitive market.

The next chapter of industrial embroidery will be defined by those who embrace both technical excellence and workflow innovation. With ZSK’s proven reliability and the efficiency gains unlocked by magnetic hooping systems, the possibilities for creative and industrial advancement are truly limitless.

8. FAQ: ZSK Machine Essentials

8.1 Q: What are the most important routine maintenance tasks for ZSK embroidery machines?

A: Routine maintenance is key to keeping your ZSK machine running smoothly. Regularly oil designated parts as shown in ZSK’s tutorial videos, check thread paths for lint or debris, and inspect needles for wear or damage. Always refer to your machine’s manual for specific oiling points and recommended intervals. Keeping the machine clean and well-lubricated ensures optimal stitch quality and longevity.

8.2 Q: How do I update the T8 Controller software on my ZSK machine?

A: To update the T8 Controller, use a preloaded USB stick containing the latest ZSK software. Insert the USB into the T8’s rear port, navigate to the update files using the controller’s cursor keys, and follow the on-screen prompts. Updates typically include the operating system, terminal software, machine control software, and pantograph files. Always select the correct language options during installation.

8.3 Q: What is the process for threading and changing needles on ZSK embroidery machines?

A: Threading a ZSK machine involves guiding the thread from the top rack through the tension discs and down to the needle, following the path outlined in the manual or video tutorials. For needle changes, use the provided Allen key to remove and replace the needle, ensuring it is inserted with the flat side facing the correct direction. Proper threading and needle maintenance help prevent thread breaks and ensure high-quality embroidery.

8.4 Q: How do I load embroidery designs onto my ZSK machine?

A: Designs can be loaded via USB drive into the T8 Controller. For TC (Transport Code) files, the machine automatically inputs color changes and displays designer notes. For DST files, you’ll need to manually input color stops. After loading, align your hoop and garment, trace the design to confirm placement, and start stitching.

8.5 Q: What are the optimal needle configurations for different embroidery applications?

A: Needle selection depends on your project. ZSK’s SPRINT series offers 12- or 18-needle models, allowing for a wide range of thread colors and design complexity. For standard garments, use standard embroidery needles suited to your fabric type. For technical textiles or specialty threads, consult ZSK’s recommendations or your supplier for the best needle size and type.

8.6 Q: How can I ensure proper hooping for garments on ZSK machines?

A: Proper hooping is essential for quality embroidery. Use compatible frames or magnetic embroidery hoops, such as Sewtalent, to achieve even tension and quick setup. Place the garment and stabilizer between the frames, align using guiding lines, and secure the hoop before loading onto the machine. This minimizes hoop burn, misalignment, and setup time, especially in high-volume production.

Still have questions? Explore ZSK’s official tutorials, manuals, and support resources for in-depth guidance on every aspect of machine setup, operation, and maintenance. Your journey toward embroidery excellence is just getting started!
