Machine Embroidery and Digitizing Mastery: Essential Tools, Techniques, and Workflow Solutions

1. Introduction to Machine Embroidery and Digitizing Fundamentals

Machine embroidery has transformed the way we bring creative visions to life, blending the art of design with the precision of technology. At its core, digitizing is the process that converts artwork into machine-readable stitch files, making it possible for embroidery machines to recreate intricate designs on fabric with remarkable accuracy. This blog will guide you through how embroidery machines work, from understanding stitch types and density, to selecting the right software and tools, and optimizing your workflow for both hobbyist and commercial success. Whether you’re just starting out or seeking to refine your craft, you’ll discover practical insights and actionable tips to master every stage of the embroidery journey.

Table of Contents

2. Core Principles of Embroidery Digitizing Explained

Digitizing is where creativity meets engineering. It’s not just about tracing lines—it’s about translating art into a language your embroidery machine understands, ensuring every stitch is purposeful and every detail is preserved. Let’s unravel the foundational concepts that underpin successful embroidery digitizing.

2.1 Stitch Types and Density Fundamentals

Embroidery digitizing is, at its heart, the mapping of stitch types, directions, and densities to transform digital designs into tangible, textured art. Think of it as painting with thread, where each stitch type serves a unique purpose:

Stitch Type Purpose Common Use
Satin Stitch Smooth, glossy surfaces Outlines, text, small details
Fill Stitch Solid color blocks Large areas, backgrounds
Running Stitch Outline and detail work Fine lines, borders
  • Satin Stitches create a sleek, polished look, perfect for lettering or crisp outlines.
  • Fill Stitches are your workhorse for covering larger spaces, offering durability and a rich texture.
  • Running Stitches are the backbone for delicate outlines and intricate details.

Density—the spacing between stitches—is a critical variable. Too dense, and you risk puckering or thread breakage; too loose, and your design may lack definition. The trick? Adapt density to your fabric:

  • Thicker fabrics (like denim) need looser stitches to avoid distortion.
  • Stretchy or thin materials benefit from tighter, well-supported stitching, often with an underlay.

Underlay stitches act as a foundation, stabilizing the fabric before visible stitches are applied. This step is essential for maintaining shape and preventing shifting during embroidery.

Stitch direction and angle further influence the final look. By varying angles—say, alternating between 45° and 90°—you balance tension, prevent distortion, and add visual interest or texture.

Pro tip: Always test your design on scrap fabric before running a full project. Adjusting density and underlay for each new material is the secret to crisp, professional results.

2.2 Artwork to Stitches: The Digitizing Workflow

Turning a piece of artwork into a flawless embroidered masterpiece is a multi-step journey—one that rewards both patience and creativity. Here’s how the process unfolds:

  1. Artwork Preparation: Start by cleaning up your image—remove background noise, adjust colors, and select legible fonts. Simpler shapes and limited colors make for smoother digitizing, especially for beginners.
  2. Software Input: Import your artwork into machine embroidery digitizing software (such as Hatch, Wilcom, or Ink/Stitch). This is where the magic happens—your design begins its transformation from pixels to stitches.
  3. Stitch Mapping:
    • Manual Digitizing: For complex or highly detailed designs, manually assign stitch types and directions. This allows for precision and creative control.
    • Auto-Digitizing: For simpler patterns, let the software generate stitches automatically. While convenient, auto-digitizing may lack the nuance required for intricate work.
  4. Underlay and Density Adjustments: Set your underlay to stabilize the fabric. Adjust stitch density based on material—remember, thicker or stretchier fabrics need special attention.
  5. Color Matching: Use Pantone or thread color charts to assign accurate thread colors, ensuring brand consistency or artistic intent.
  6. File Export: Save your digitized design in a machine-compatible format (.DST, .PES, etc.).
  7. Test Run: Before embroidering your final piece, run a test on your machine. This is your chance to spot and fix issues—be it density, color, or alignment.
  8. Refinement: Tweak as needed. Sometimes, a small change in stitch angle or density makes all the difference.

Key insight: The best digitizers balance artistic vision with technical know-how, adapting each step to the unique demands of the fabric and design.

QUIZ
What is the primary function of underlay stitches in embroidery digitizing?

3. Essential Digitizing Tools and Software Comparison

Choosing the right tools is like picking the perfect paintbrush—it shapes your creative experience and the quality of your results. From powerhouse software to beginner-friendly gear, let’s break down what you need to digitize with confidence and efficiency.

3.1 Best embroidery digitizing software comparison: Hatch vs. Wilcom vs. Ink/Stitch

Embroidery digitizing software comes in many flavors, each tailored to different needs and budgets. Here’s a side-by-side look at leading options:

Software Key Features Pricing Model Compatibility Best For
Hatch Embroidery Auto/manual digitizing, 128+ fonts, modular upgrades, Color PhotoStitch Subscription or upfront Windows, Mac, 200+ machines Beginners to professionals
Wilcom Studio Advanced editing, CorelDRAW integration, 3D effects, industrial-grade tools One-time purchase (from $3,499) Windows, 200+ machines Commercial/professional use
Embrilliance Cross-platform, modular add-ons, stitch recalculation, budget-friendly One-time purchase ($149) Windows, Mac Intermediate users
Embird Manual precision, cross-stitch, node-by-node editing One-time purchase Windows Budget-conscious users
Ink/Stitch Free, open-source, Inkscape extension, cross-platform Free Windows, Mac, Linux Beginners on limited budgets

Highlights:

- Hatch offers scalable features and a 30-day free trial, making it ideal for growing businesses or those wanting to test the waters.

- Wilcom is the gold standard for commercial embroidery, boasting advanced tools and integration with CorelDRAW—but it comes at a premium price.

- Ink/Stitch is a fantastic, cost-free entry point, especially for hobbyists or those exploring digitizing without a major investment.

- Embrilliance and Embird strike a balance between affordability and functionality, with cross-platform support and modular upgrades.

Pro tip: If you’re just starting out, leverage free trials or open-source options to get a feel for digitizing before committing to a major purchase.

3.2 Starter Equipment Guide for Beginners

Embroidery digitizing isn’t just about software—it’s about building a toolkit that empowers your creativity. Here’s what you’ll need to get started:

- Software:

- Hatch Embroidery (free trial available) or Embrilliance Essentials for cross-platform flexibility.

- Ink/Stitch for a zero-cost, open-source solution.

- Digitizing Tablet:

- A graphics tablet (such as Wacom) or a budget-friendly mouse pen allows for precise, intuitive design work—much like sketching on paper, but with digital control.

- Embroidery Machine:

- Entry-level models from Brother, Janome, or similar brands offer reliability and basic features for newcomers.

- Prioritize machines with larger hoop sizes (5x7" or bigger) for greater design flexibility.

- Threads and Stabilizers:

- 40-weight polyester thread covers most embroidery needs—affordable packs are available for beginners.

- Cutaway stabilizer is recommended for stretchy fabrics; no-show mesh provides lightweight support without visible shadows.

- Tearaway stabilizer is ideal for stable materials like denim or tote bags; washaway toppers prevent thread sinking on towels.

- Needles:

- Size 75/11 or 90/14 embroidery needles suit most projects.

- Ensure you select the correct needle type for your machine (flat-back for single-needle, round for multi-needle).

- Accessories:

- Scissors (regular and curved-tip) for trimming threads and fabric.

- Tweezers for precise thread handling.

- Optional: Pre-wound bobbins for convenience and time savings.

Workspace: Set up a well-lit, comfortable area—you’ll be surprised how much a cozy environment boosts your creativity.

3.3 Cost-Effective Workflow Optimization

Efficiency isn’t just about speed—it’s about making smart choices that save time, reduce waste, and maximize your investment. Here’s how to streamline your embroidery digitizing workflow:

- Integrate Free and Paid Tools: Use open-source software like Ink/Stitch for basic digitizing and combine it with paid solutions (such as Hatch or Wilcom) when advanced features are needed. This hybrid approach keeps costs down while expanding your capabilities.

- Tiered Pricing Models: Many software providers offer modular upgrades or pay-as-you-go options (e.g., Hatch’s FlexPay), letting you scale features as your business grows.

- Optimize Hooping with Magnetic Hoops: For garment embroidery, tools like the Sewtalent magnetic embroidery hoop can revolutionize your workflow. Unlike traditional screw-based hoops, Sewtalent’s powerful magnetic system automatically adapts to fabric thickness, drastically reducing hooping time—by up to 90%.

- Benefits:

- Quick, effortless hooping for high-volume production

- Consistent tension, minimizing fabric distortion and defects

- Durable construction, reducing long-term replacement costs

- Batch Processing: Organize projects by fabric type and thread color to minimize setup changes and maximize efficiency.

- Continuous Learning: Take advantage of free digitizing courses, cheat sheets, and online tutorials to refine your skills and stay ahead of industry trends.

Bottom line: By leveraging a mix of free and paid tools, investing in time-saving equipment like Sewtalent magnetic hoops, and continuously optimizing your workflow, you’ll achieve professional results without breaking the bank.

---

Ready to take your embroidery digitizing to the next level? Start building your toolkit, experiment with different software, and don’t be afraid to test new techniques. The world of machine embroidery is as limitless as your imagination—so go ahead, stitch your story!

QUIZ
What is a key advantage of using magnetic embroidery hoops like Sewtalent?

4. Project Execution: Hooping, Stabilizers, and Troubleshooting

Embroidery success hinges not just on beautiful designs, but on flawless execution—especially when it comes to hooping, stabilizer selection, and troubleshooting those pesky issues that can ruin a project. Let’s dive into the practical, hands-on techniques that separate crisp, professional results from frustrating failures.

4.1 Advanced Hooping Techniques for Garments

Achieving drum-tight fabric tension is the holy grail of machine embroidery. It’s the difference between a design that pops and one that puckers, distorts, or looks amateurish. Here’s how to master the art of garment hooping, step by step:

Step-by-Step Hooping Process:

1. Prepare the Hoop: Place the bottom hoop on a stable surface, ensuring the adjustable knob faces away from you. Loosen the screw just enough to accommodate both your stabilizer and fabric.

2. Layer Materials:

- Cut your stabilizer slightly larger than the hoop for full coverage.

- Position the fabric on top, aligning its grain with the stabilizer’s grid for maximum stability.

3. Secure the Top Hoop: Snap the top hoop into place with a smooth, even motion. Instead of over-tightening, gently pull the fabric edges and press the hoop inward to achieve that coveted drum-tight fit.

4. Check Tension: The fabric should be taut—think of the satisfying “thunk” of a drum when tapped. If you spot ripples or slack, adjust carefully. Avoid stretching the fabric, as this can lead to distortion once the hoop is removed.

5. Final Tightening: If needed, give the knob a gentle finger-tight turn. Over-tightening risks hoop burns or warping your fabric, so less is more.

Stabilizer Selection:

Choosing the right stabilizer is as important as the hoop itself. Here’s a quick guide:

Stabilizer Type Best For Key Characteristics
Cut Away Knits, T-shirts Permanent support, handles heavy stitching
Tear Away Wovens, towels, leather Easily removable, leaves minimal residue
Wash Away Sheer fabrics, lace Dissolves in water, perfect for delicate designs

- Cut Away: Ideal for stretchy garments that need ongoing support.

- Tear Away: Great for stable fabrics—think denim or tote bags.

- Wash Away: The secret weapon for towels or textured surfaces, preventing threads from sinking into the nap.

Common Hooping Mistakes to Avoid:

- Over-Tightening: Causes hoop burns and fabric distortion.

- Inconsistent Tension: Leads to puckered seams or misaligned designs.

- Wrong Stabilizer: Using tear-away on knits? Prepare for shifting and instability.

Pro Tip: Use marking tools or hoop templates to center your design perfectly. If your hoop doesn’t have built-in guides, draw crosshairs on your stabilizer for foolproof placement.

Level Up with Magnetic Embroidery Hoops:

Traditional screw-based hoops can be a pain—literally. Enter the Sewtalent magnetic hoops for embroidery machines, a game-changer for garment hooping. Its powerful magnetic system automatically adapts to fabric thickness, delivering even tension and dramatically reducing hooping time by up to 90%. No more fiddling with screws or worrying about hoop burns—just quick, consistent, and professional results, even on tricky fabrics.

- Why choose Sewtalent?

- Instantly secures everything from delicate silks to thick sweatshirts.

- Minimizes fabric distortion and hoop marks.

- Saves time, reduces operator fatigue, and boosts productivity—especially for high-volume projects.

Whether you’re hooping a single shirt or prepping a batch of uniforms, mastering these techniques—and upgrading your toolkit—will help you achieve flawless embroidery every time.

4.2 Thread Management and Common Issue Resolution

Even the most beautiful design can unravel—literally—if your thread game isn’t on point. Let’s troubleshoot the most common embroidery headaches and keep your stitches running smooth.

Thread Selection & Preparation:

- Thread Types: Standard 40-weight polyester thread covers most projects. For metallic or specialty threads, slow your stitching speed to prevent breakage.

- Color Matching: Always test thread colors on scrap fabric to ensure they stand out (or blend in) as intended.

- Threading: Follow your machine’s threading guide to avoid tangles and breaks. Double-check both top and bobbin threads before starting.

Troubleshooting Common Issues:

- Tension Problems:

- If the top thread is too loose or tight, adjust the bobbin tension and re-hoop the fabric to ensure even support.

- Uneven hooping is a common culprit—double-check your setup before tweaking machine settings.

- Fabric Puckering:

- Use the right stabilizer for your fabric (cut-away for knits, tear-away for stable wovens).

- Avoid over-tightening the hoop, which can distort the fabric and cause puckering once released.

- Thread Breaks:

- Inspect for frayed or low-quality thread, use the correct needle size, and make sure there’s enough thread length in both the bobbin and spool.

- Replace dull or damaged needles regularly—especially after heavy use.

Advanced Tips from the Pros:

- Underlay Stitches: Add a foundation layer (like a zigzag underlay) for dense designs to prevent fabric distortion.

- Color Changes: Program logical color stops in your design to minimize unnecessary thread switches and speed up production.

- Adhesive Stabilizers: For extra-stretchy garments, use adhesive-backed stabilizers with cut-away support to prevent shifting during stitching.

- Design Placement: Use hoop reference lines, templates, or marking pens to ensure perfect alignment every time.

When in Doubt, Test It Out:

Before committing to your final piece, always run a sample on scrap fabric. This lets you catch issues with density, alignment, or thread compatibility before they become costly mistakes.

Bottom Line: Mastering thread management and troubleshooting is like having a secret weapon in your embroidery arsenal. With a bit of patience and the right techniques, you’ll transform frustration into flawless finishes.

QUIZ
Which stabilizer type is essential for stretchy knit fabrics like T-shirts?

5. Commercial Machine Evaluation: Brand Comparisons and Investment Strategies

When it's time to scale up, choosing the best commercial embroidery machine is a make-or-break decision for your business. Let's break down the top contenders, must-have features, and smart investment strategies—so you can stitch with confidence and maximize your ROI.

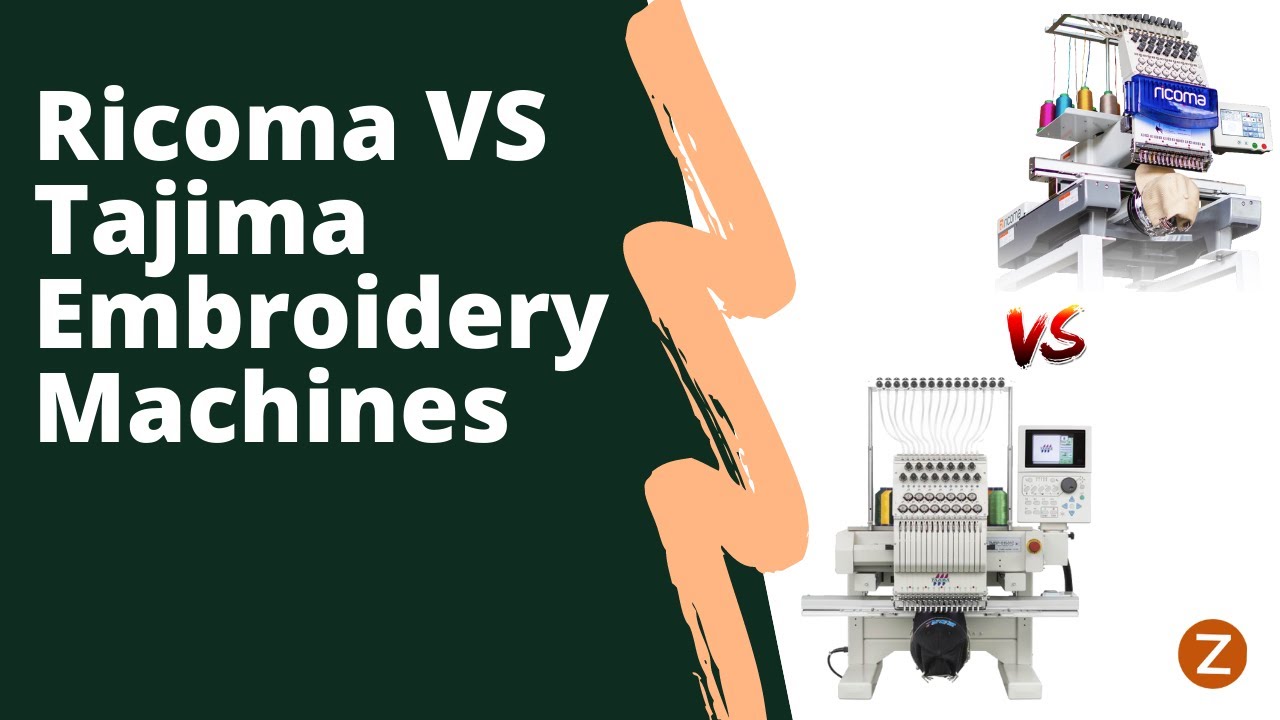

5.1 Tajima vs. Ricoma: Brand Showdown

Performance Metrics:

Brand Max Speed (SPM) Embroidery Field (mm) Ideal Use Cases
Tajima 1,200 450 x 520 Large logos, complex designs
Ricoma 1,200 560 x 350 Versatile layouts, smaller projects

Both Tajima and Ricoma offer 15-needle machines capable of blazing through 1,200 stitches per minute—perfect for high-volume jobs without sacrificing stitch quality.

Stitch Quality & Precision:

- Tajima: Known for crisp, high-resolution stitching and advanced engineering—ideal for precision-critical work like corporate branding.

- Ricoma: Delivers intuitive operation and comparable stitch quality, making it a favorite for businesses seeking user-friendly machines.

Thread Management Systems:

Feature Tajima iTM Ricoma Automatic System
Thread Tension Automatic adjustment Manual/semi-automatic
Fabric Shrinkage Minimized via iTM Not explicitly stated
Thread Break Detection Not specified Yes (with emergency stop button)
Trimming Integrated with iTM External button for stable trimming

- Tajima's iTM (Intelligent Thread Management): Automatically adjusts thread tension, minimizes fabric shrinkage, and handles thread thickness variations—reducing manual intervention and boosting consistency.

- Ricoma's Automatic Thread System: Features thread break detection, external trimming buttons, and stable upper thread clamping for streamlined workflow.

Resale Value & Market Positioning:

- Tajima: Commands a premium price and strong resale value, thanks to its reputation for precision and longevity.

- Ricoma: Offers a cost-effective entry point with robust performance—ideal for mid-tier commercial operations.

Accessories & Support:

- Ricoma: Includes a comprehensive starter kit (stabilizers, bobbins, needles, threads), heavy-duty wheelstand, and Chroma digitizing software. Also offers free online/on-site training and a 5-year limited warranty—making it a solid choice for newcomers.

- Tajima: Backed by global distribution and reliable customer support, with a reputation for machines that run for decades.

Emerging Alternatives:

- Happy Japan: Boasts a 10-year warranty (double the industry standard) and competes with Tajima/Barudan in stitch quality and noise reduction.

- Brother PR1050X: A 10-needle machine with wireless design transfers—great for small businesses.

- Meistergram Pro1508: An 8-head machine designed for mid-level production.

Investment Recommendations:

1. Assess Production Volume & Budget:

- For high-precision, large-scale operations, Tajima's iTM and expansive embroidery field justify the premium.

- For cost-effective, reliable performance, Ricoma's 1501PT is a smart choice for growing businesses.

2. Evaluate Project Complexity:

- Large, intricate designs? Tajima's field size delivers.

- Need flexibility for varied, smaller projects? Ricoma's layout shines.

3. Consider Long-Term Reliability:

- Happy Japan's 10-year warranty reduces maintenance costs.

- Tajima and Ricoma both offer strong resale value, but Tajima often commands higher returns.

4. Prioritize Automation:

- Tajima's iTM reduces downtime, automates tension, and minimizes fabric distortion.

- Ricoma's thread break detection and external trimming streamline workflow.

Pro Tip: Don't just chase the lowest price. Factor in support, training, warranty, and resale value—these can make the difference between a smooth operation and a costly headache.

5.2 Commercial Machine Selection: Final Thoughts

Choosing your commercial embroidery machine is a lot like picking a business partner: reliability, flexibility, and support matter as much as raw power. Tajima excels in high-stakes, precision-driven environments, while Ricoma is a balanced, cost-effective contender with robust support for new and growing businesses. Happy Japan and other emerging brands offer compelling warranties and features for those willing to explore beyond the usual suspects.

Bottom Line: Prioritize precision, automation, and after-sales support. The right machine will empower your business to scale, innovate, and deliver stunning results—project after project.

Ready to upgrade? Do your homework, talk to real users, and invest in a machine that matches your ambition. Your embroidery legacy starts with the right tools—choose wisely, and let your creativity run wild.

QUIZ
Which feature distinguishes Tajima's Intelligent Thread Management (iTM) system?

Hinterlassen Sie einen Kommentar

Bitte beachten Sie, dass Kommentare vor ihrer Veröffentlichung genehmigt werden müssen.
