Master Thread Counters: Essential Guide for Precision Fabric Analysis

1. Introduction to Thread Counters in Textile Quality Control

Thread counters may look simple, yet they underpin premium sheets, resilient workwear, and crisp embroidery. In textile and embroidery workflows, these precision tools help measure thread density, reveal defects, and keep production consistent from loom to finished goods. Whether youre a textile engineer, an embroidery studio owner, or simply curious about why fabrics feel soft and durable, understanding thread counters is your first step toward confident fabric analysis.

If youre exploring an embroidery machine for beginners, seeing how thread counters guide fabric choice and setup will elevate your results.

This guide covers what thread counters are, how they work, major types (from optical tools to digital systems), and practical uses across weaving, embroidery, and industrial quality control. Youll also find step-by-step tutorials, model comparisons, and innovations that are reshaping textile inspection.

2. Understanding Thread Counters: Definition and Core Functions

2.1 What Is a Thread Counter and How It Works

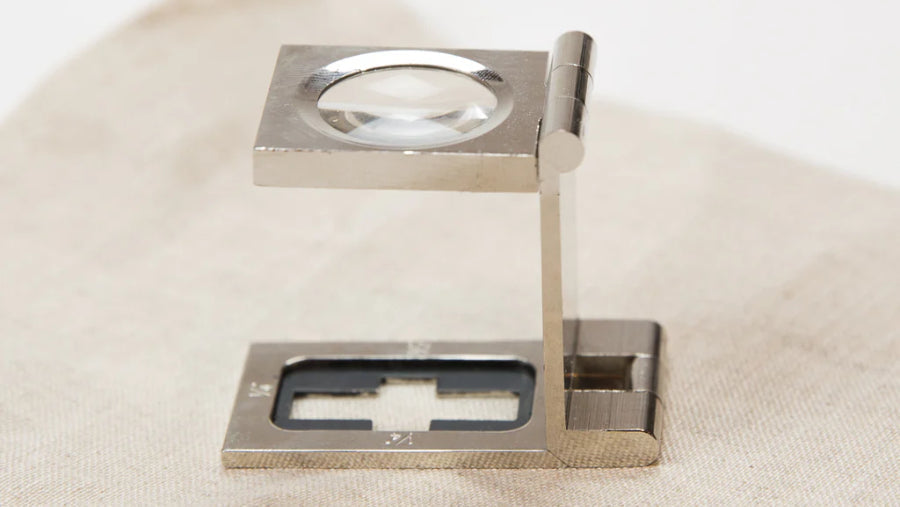

A thread counter is a handheld tool used to measure the density of woven fabrics by counting threads per inch (TPI) or per centimeter (TPC). It typically combines a magnifying lens with a calibrated grid so you can inspect and count both warp (vertical) and weft (horizontal) yarns in a defined area.

How it works:

• Place the grid over the sample, aligned to warp or weft.
• Count the threads crossing the grid within the measurement window (often one inch or a set metric length).
• Record counts for both directions, expressed as warp weft (e.g., 200 200) or summed per square inch (e.g., 400 TPI).

If you rely on an embroidery hoop machine, precise counts make fabric selection and setup more predictable.

2.2 Key Functions in Fabric Quality Assessment

Thread counters do more than tally threads. They support:

1. Thread density measurement - Quantifies warp and weft to reveal weave tightness. Higher counts generally mean finer, smoother, and more durable cloth.
2. Defect detection - Magnification exposes missing threads, broken yarns, or irregular patterns. Digitizing software can help automate defect checks so flaws are caught early.
3. Quality compliance - Many sectors require specific thread counts. Results support ASTM or ISO requirements and validate product claims.

Why thread count matters:

• Durability & softness: Higher counts (about 400 600 TPI) resist pilling and feel smoother; beyond ~600 TPI, returns diminish.
• Transparency & consistency: Denser weaves reduce show-through and look more uniform.
• Material suitability: Cotton, silk, and linen benefit most from thread count analysis; synthetic blends may also need yarn thickness data.

Caution: Some inflate counts by tallying strands in multi-ply yarns. True quality blends thread count, fiber type, and weave integrity.

3. Types of Thread Counters: From Optical to Digital Tools

3.1 Traditional Optical and Microscope-Based Counters

Classic toolslinen testers, pick counters, microscope cloth glassesuse optical magnification and precise grids to deliver dependable results.

Optical instruments:

• Counting glasses: 6x 10x magnifiers with 1-inch or metric grids for quick counts in the field.
• LED-equipped models: Built-in lighting makes defects easier to spot and improves documentation in low light.

Microscope-based counters:

• Stereo microscopes: 3D imaging up to 90:1 for detailed defect analysis.
• Binocular microscopes: Resolutions to 0.32 m with objectives up to 60x for fiber ID and cross-sections.

Historical perspective: Casartelli, Chronik Bros., and Alfred Suter popularized adjustable lenses, rotating scales, and built-in counters in the early 20th centuryoften packaged in velvet-lined kits.

Applications:

• Basic thread counting for cotton, linen, and silk
• Customs/trade checks
• Defect analysis before production or shipment

3.2 Modern Digital and Automated Systems

Digital systems merge optics with software for speed and accuracy.

Digital tools:

• Laser-based counters: Helium-neon lasers and photodetectors penetrate dense fabrics and adjust tension in real time.
• High-speed vision systems: Algorithms track fabric movement, detect patterns, and dynamically count threads; computerized embroidery lines often integrate sensors directly.

Key features:

• Real-time quality control
• Automated feedback for immediate adjustments
• Seamless integration with production lines

Applications:

• Uniform counts in industrial processing
• Compensation for fabric distortions in cutting and sewing
• Higher efficiency with less manual labor

Video demonstrations show how software integration and automation make high-precision analysis accessible to small studios.

4. Practical Applications: Weaving, Defect Detection, and Consistency

Thread counters guide balanced weaves, catch flaws, and support reverse engineering of unknown fabrics.

4.1 Counting Picks and Ensuring Weave Consistency

Pick count (weft yarns per inch) drives texture, drape, and strength.

How thread counters help:

• Weft density measurement: Grid alignment makes picks-per-inch measurable at a glance.
• Traverse thread counters: Magnification and digital displays speed checks and reduce error.
• Real-world weaving: Counting prevents heavy, compact sections on one side and loose, fluffy areas on the other.

Why it matters:

• Balanced weaves: Matching warp and weft counts delivers uniform cloth.
• Material-specific adjustments: Silk often requires higher counts and finer control than cotton.

4.2 Identifying Defects and Quality Control Strategies

Defect detection:

• Missing/broken threads: Grid alignment exposes gaps and irregularities.
• Multi-ply inflation: Verify that counts reflect true thread numbers, not strands within plies.
• Light transmittance test: Less light through the fabric usually means a denser weave (use as a supplement to direct counting).

Quality standards and pitfalls:

• ASTM/ISO: Use counters to document required counts.
• Measurement pitfalls: Avoid counting near selvages; measure in representative areas.
• Limitations: Very high counts can mean thinner fibers that may wear quickly; above ~400 600 TPI, gains taper off.

5. How to Use a Thread Counter: Step-by-Step Tutorials

5.1 Preparation and Basic Counting Techniques

Step 1: Preparation

• Ravel a few warp and weft threads at the edge for clarity.
• Choose a contrasting background for visibility.

Step 2: Counting process

• Warp: Position the tool (LED lighting helps), align the 1-inch or metric window, and count left to right. Repeat 2 3 times.
• Weft: Rotate and repeat.

Step 3: Recording results

• Record as warp weft (e.g., 45 25) and sum for TC per square inch (e.g., 70).

Pro tips:

• Count away from selvages.
• Repeat counts for accuracy.
• Adjust lighting/background to suit fabric color.

5.2 Advanced Methods for Embroidery and Fabric Analysis

Supplementary techniques:

• Tacking stitches: In counted-thread embroidery, temporary stitches mark alignment points and keep designs on track.
• Light transmittance: Hold fabric to light to gauge density as a quick cross-check.

Embroidery-specific tips:

• For double weaves or complex patterns (e.g., Jacquard), count face and back yarns separately, then add them.
• On older or worn textiles, consider yarn diameter changes when interpreting counts.

User-tested advice:

• Use a pointed tool to separate yarns as you count.
• If you lack a specialized tool, a small pin can help.
• Be consistent with your method and tools for repeatable results.

For hooping workflows, a well-aligned magnetic embroidery hoop helps maintain even tension so your counts translate to clean stitching.

6. Comparing Models and Fabric Analysis Best Practices

Choosing the right counterand using it wellimproves accuracy and speeds decisions.

6.1 Evaluating Thread Counter Features and Accuracy

Historical vs. modern models:

• Casartelli & Armstrong (early 1900s): Dual scales (metric/inch), large magnifiers, precise manual adjustments; segmented scales limited continuous measurement but offered flexibility.
• Chronik Triplex (191029): Rotating triangular scales and user-friendly mechanisms.
• Modern hypothetical models: Expect continuous digital scales, high-resolution optics, and app-controlled adjustments for scalable use.

Application suitability:

• Machine embroidery: Finer scales with clear grids suit intricate patterns and frequent checks.
• Industrial settings: Robust builds and large optics simplify bulk inspections when evaluating a used embroidery machine for sale.

Accuracy considerations:

• Tools that distinguish single-ply from multi-ply avoid inflated counts.
• Continuous scales, where available, boost precision over segmented designs.

For daily production, magnetic hoops for embroidery machines can stabilize fabrics so measurements reflect real-world stitching conditions.

6.2 Tips for Accurate Thread Count Interpretation

Best practices:

• Avoid multi-ply inflation: Verify what constitutes one thread.
• Combine TPI with fiber analysis: Weave integrity and fiber type matter.
• Standardize method: Measure away from selvages and keep lighting/background consistent.

Sewtalents role in garment embroidery: Paired with precise counting, Sewtalents magnetic embroidery hoops help prevent slippage and misalignment (garment hooping only, not for caps/hats), making counts more meaningful and results more consistent.

Final advice:

• Higher counts arent always better; very high numbers can indicate thinner fibers.
• Practice and repeat counts to refine technique.

To support consistent setup across stations, consider magnetic embroidery frames that keep fabrics evenly tensioned while you inspect.

7. Modern Digital Thread Counters and Selection Guide

Digital advances are transforming fabric analysis. Manual magnifiers and analog scales now coexist with software-driven counters and smart embroidery systems; some modern multi-needle setups include automatic thread-counting features.

7.1 Software Integration and Automated Features

BERNINA Embroidery Software V8 provides thread usage analytics, estimating consumption by stitch count and design size. Color sequences can be adjusted while maintaining accurate usage data, and syncing with compatible machines streamlines preparation and reduces waste.

Coloreels thread coloring system dynamically colors a single thread during embroidery. The result: fewer thread changes, fewer cuts and lock stitches, and faster workflows.

Automation also extends to hardware. Auto-thread tensioning (as on Texmac Happy Japan machines) removes guesswork and reduces breakage, while digital presser foot adjustments adapt to fabric thickness. Independent embroidery heads (as on Melco EMT16 Plus) let other heads continue running when one needs attention, boosting productivity.

Physical thread counters remain vital in large-scale embroidery for yarn analysis and inventory management. A broader digital thread mindset connects design, machine operations, and post-production analytics for fewer errors and better collaboration.

Key innovations at a glance:

7.2 Choosing the Best Thread Counter for Your Needs

Match the tool to fabric, workflow, and scale:

• Thread weight and material: Fine silks or dense technical textiles benefit from high-resolution optics or digital measurement; robust models suit general garment embroidery.
• Accuracy and ease: Digital counters and software-integrated systems offer top precision; a well-designed optical counter is excellent for manual checks.
• Cost-effectiveness: Digital systems can reduce labor, errors, and waste over time.
• Durability and compatibility: For garment embroidery, Sewtalents magnetic hoops (garments only) deliver stable, even tension so counts translate into clean, consistent results.

8. Conclusion: Enhancing Fabric Analysis with Precision Tools

From traditional optical counters to automated digital systems, todays tools help you measure, analyze, and optimize every thread. Combine modern instruments with best practices in counting and handling, invest in the right gear, and watch your textiles reach new levels of quality and consistency.

9. FAQ on Thread Counters

9.1 Q: What is a good thread count for sheets?

A: A good thread count for sheets typically ranges from 200 to 400 threads per inch. Higher counts can indicate finer, softer fabrics, but anything above 400 is often the result of counting multi-ply yarns or creative marketing rather than a true increase in quality.

9.2 Q: Can thread count be faked?

A: Yes, thread count can be artificially inflated. Some manufacturers count each strand in multi-ply yarns separately, leading to misleadingly high numbers. True quality depends on both thread count and the integrity of the weave and fibers.

9.3 Q: How do I calibrate a thread counter?

A: Calibration typically involves verifying the accuracy of the grid or scale against a known standard, such as a certified ruler or calibration slide. For digital counters, follow the manufacturers instructions for software or hardware calibration to ensure precise measurements.
