1. Introduction: Understanding Bobbin Thread Pickup Challenges
When your sewing machine needle fails to pick up the bobbin thread, frustration can set in quickly—projects stall, creativity halts, and troubleshooting becomes a must. This issue is more common than you might think: according to Perplexity research, a staggering 60% of sewing machine and embroidery machine malfunctions are linked to problems with needle-bobbin thread synchronization. Why is this so critical? Because the precise dance between needle and bobbin thread forms the very foundation of every stitch. When synchronization falters, you’re left with skipped stitches, loose threads, or no stitches at all. In this ultimate guide, we’ll break down the most frequent causes, walk you through step-by-step troubleshooting, and reveal preventative strategies to keep your sewing running smoothly. Ready to get your machine back on track? Let’s dive in.
Table of Contents
- 1. Introduction: Understanding Bobbin Thread Pickup Challenges
- 2. Immediate Step-by-Step Troubleshooting Solutions
- 3. Root Causes of Synchronization Failure
- 4. Preventative Maintenance Protocols
- 5. Lockstitch Mechanics & Tension Dynamics
- 6. DIY Advanced Repairs: Hook Timing Calibration
- 7. Tool & Material Optimization Guide
- 8. Conclusion: Key Takeaways for Flawless Stitching
- 9. FAQ: Expert Answers to Common Dilemmas
2. Immediate Step-by-Step Troubleshooting Solutions
When your needle refuses to catch the bobbin thread, don’t panic—most issues can be resolved with a systematic approach. Let’s walk through the essential steps, from needle checks to thread path diagnostics, so you can get back to sewing with confidence.
2.1 Needle Installation & Condition Verification
The needle is the unsung hero of your sewing machine, but even a tiny misstep here can bring stitching to a standstill. Start by turning off your machine and removing the needle. Inspect it closely—sometimes, microscopic bends or subtle damage are invisible to the naked eye but can derail the entire stitch formation process. Replace the needle if you notice any irregularity, or if it’s been in use for more than eight hours of sewing time, as recommended by industry standards.
Next, ensure proper installation: the flat side of the needle should face the back of the machine (or as specified in your user manual). Insert the needle all the way up into the needle shaft until it won’t go any further, then tighten the securing screw firmly—but don’t overtighten, as this can damage the clamp. A needle that’s even slightly out of position can throw off the delicate timing between needle and hook, leading to missed bobbin thread pickup.
2.2 Bobbin Threading Corrections & Retrieval Techniques
Bobbin issues are notorious culprits in thread pickup failures. Begin by removing the bobbin and checking its orientation. For most machines, the thread should unwind in a clockwise direction when viewed from above, but always consult your machine’s diagram for confirmation. Insert the bobbin into the case, ensuring the thread follows the correct tension guide path—this is crucial for smooth thread delivery.
Secure the bobbin case: it should click or lock into place, with the notch aligned in its groove. If the case feels loose or misaligned, reseat it until it’s firmly in position.
To manually retrieve the bobbin thread, hold both the needle and bobbin threads lightly, then turn the handwheel toward you. As the needle descends and returns to its highest point, a loop of bobbin thread should appear. Gently pull both threads—using your fingers or a small tool—until about six inches are visible, then position them toward the back of the machine before you start sewing.
If you’re still struggling, rethread both the upper and bobbin threads completely. YouTube tutorials and expert videos consistently emphasize that a full rethread often resolves stubborn pickup problems caused by minor threading mistakes.
2.3 Upper Thread Path & Tension Diagnostics
A perfectly threaded upper path is essential for successful bobbin thread pickup. Begin by raising the take-up lever to its highest position before threading—this ensures the thread seats correctly in every guide. Follow your machine’s threading diagram meticulously, making sure the thread passes through all tension discs and guides.
Upper thread tension plays a pivotal role: if it’s too tight, the take-up lever can’t move freely, resulting in incomplete stitches or thread loops. If it’s too loose, the needle may not form a proper loop for the hook to catch. Most machines have a standard tension setting around 4, but always adjust incrementally and test on scrap fabric after each change.
If you notice uneven stitches or thread bunching, pause and check for snags or obstructions along the thread path. Lint or debris can increase resistance, mimicking tension issues. Use a small brush to clear out any buildup around the needle plate and bobbin area—compressed air is not recommended, as it can push debris deeper into the machine.
By methodically checking each component—needle, bobbin, and upper thread path—you’ll often resolve the majority of bobbin thread pickup failures without the need for professional servicing.
3. Root Causes of Synchronization Failure
If your troubleshooting hasn’t restored flawless stitching, it’s time to dig deeper into the mechanical heart of your machine. Understanding the root causes of needle-bobbin synchronization failure can save you hours of guesswork and prevent recurring issues.
3.1 Hook Timing Mechanics & Misalignment Signs
The choreography between needle and hook is everything. For a perfect stitch, the rotating hook must catch the needle thread loop at the precise moment the needle begins its upward stroke after reaching its lowest point. If the timing is off—even by a fraction of a millimeter—the hook misses its cue, and the needle fails to pick up the bobbin thread.
Symptoms of timing misalignment include intermittent skipped stitches, especially with certain fabrics or stitch patterns. Sometimes, the problem only appears with thicker or stretchier materials, hinting at a compromised timing tolerance. Diagnosing timing issues often requires watching the needle and hook interact as you slowly turn the handwheel—if the hook arrives too late or too early, synchronization is lost.
Adjusting hook timing is a technical process best left to professionals unless you’re comfortable with internal machine adjustments. However, knowing these signs can help you determine when it’s time to seek expert help.
3.2 Lint Interference & Mechanical Degradation
Lint and debris are stealthy saboteurs in the sewing world. Over time, fabric fibers and thread fragments accumulate around the bobbin area, tension springs, and even inside the grooves of the bobbin case. This buildup can disrupt the smooth operation of the hook mechanism, alter bobbin rotation, and create irregular timing—all of which contribute to missed thread pickup.
To inspect for lint interference, remove the needle plate and bobbin case, then use a small brush to sweep out visible debris. Pay special attention to tight spaces and tension springs. Avoid using compressed air, as it can force lint deeper into the machine’s inner workings.
Mechanical degradation—such as worn tension springs, damaged bobbin cases, or misaligned components—also plays a role in synchronization failure. Regular inspection and cleaning are your best defense, ensuring that every moving part operates within its intended tolerance.
By understanding these root causes, you can approach persistent needle-bobbin pickup failures with confidence, knowing when to clean, when to adjust, and when to call in professional support.
4. Preventative Maintenance Protocols
Preventative maintenance isn’t just a chore—it’s your machine’s insurance policy against those maddening moments when the needle refuses to pick up the bobbin thread. Let’s break down the daily routines and smart innovations that keep your embroidery running smooth, stitch after stitch.
4.1 Daily Cleaning Routines & Fabric-Specific Precautions
If you’ve ever opened your bobbin area only to find a miniature dust bunny colony, you’re not alone. Lint—especially from high-shedding fabrics like fleece, flannel, or minky—can build up fast, sabotaging your hook timing and thread delivery. The best defense? Clean early, clean often.
How often should you clean?
Aim to remove lint every 2–3 bobbins of sewing, and always after working with extra linty fabrics. Start by powering down and unplugging your machine for safety. Remove the needle, presser foot, needle plate, and bobbin in sequence. Use a micro cleaning brush to reach tight spaces—never compressed air, as it can push debris deeper into the mechanism.
For deep cleaning, gently wipe away grease from gears and springs with a cloth-wrapped tool, turning the handwheel in small increments to access all surfaces. Pay special attention to the springs; these delicate parts are crucial for smooth operation and can easily be dislodged by rough handling.
As demonstrated in Jennifer from Workroom Social’s YouTube tutorial, always check your bobbin case for lint and ensure it’s seated properly. If your bobbin case isn’t locked in place, or if lint is hiding in the back, even the best threading won’t save you from skipped stitches.
Pro tip:
After cleaning, run your machine through all stitch selector positions to clear debris from moving parts. For high-shedding fabrics, consider cleaning immediately after each project to prevent buildup from affecting your next run.
4.2 Threading Best Practices & Hooping Innovations
Threading isn’t just a routine—it’s a ritual. Always follow your manufacturer’s diagram, ensuring the thread passes through every guide and tension disc. Use the correct size spool cap for your thread type to prevent tangling, and lightly hold the thread end during bobbin pickup to avoid it slipping into the shuttle.
When threading, make sure the presser foot is up. This opens the tension discs, allowing the thread to seat properly—if you miss this step, no amount of tension adjustment will fix your stitches.
Now, let’s talk about hooping. Uneven fabric tension in your embroidery hoops and frames is a silent culprit behind loop formation failures and thread pickup issues, especially in garment embroidery. Here’s where Sewtalent magnetic hoops shine. These hoops use a powerful magnetic system to secure your fabric with uniform tension, eliminating the guesswork and muscle strain of traditional screw-based hoops. The result? Fewer thread breaks, less distortion, and a dramatic reduction in variable tension that can sabotage your stitch formation.
Sewtalent magnetic hoops are designed for garment embroidery, providing a consistent hold across a wide range of fabric thicknesses. Their innovative design not only speeds up the hooping process but also ensures your fabric stays perfectly flat—no puckering, no shifting, just flawless stitches.
In summary:
- Clean frequently, especially after high-lint projects.
- Thread with care, following every guide and using the right spool cap.
- For garment embroidery, consider Sewtalent magnetic hoops to maintain even tension and prevent the subtle issues that cause bobbin thread pickup failures.
5. Lockstitch Mechanics & Tension Dynamics
Ever wonder what really happens beneath the presser foot as your machine forms each stitch? Understanding the lockstitch’s inner workings is key to diagnosing why your needle sometimes misses the bobbin thread.
At the heart of every lockstitch is a delicate dance: the needle plunges down, carrying the upper thread through the fabric, then rises to form a loop just as the rotary shuttle hook sweeps by to catch it. If this choreography is even slightly off—if the hook is late, the thread loop is too small, or tension isn’t just right—the result is a missed pickup, skipped stitch, or unsightly loop.
Let’s break down the physics:
- Upper Thread Tension: The tension discs squeeze the thread, controlling how tightly it’s pulled during stitch formation. Too much tension? The bobbin thread gets yanked to the top, creating bumps or loops on your fabric’s surface. Too little? The needle thread pools on the underside, making weak, easily pulled-out seams.
- Thread Elongation: Did you know cotton thread stretches about 3–4%, while polyester can stretch 17–20%? This difference means polyester threads can absorb more tension changes, but also require careful adjustment to prevent loop formation or missed pickups.
- Fabric Thickness: Contrary to popular belief, fabric thickness doesn’t drastically change thread tension dynamics. If you’re having trouble picking up the bobbin thread on thicker fabrics, the culprit is usually mechanical timing, not tension.
- Timing is Everything: The shuttle hook must intercept the needle thread loop at the precise moment of maximum loop formation. If it’s off by even a fraction, the thread won’t be caught, and your stitch will fail. This is why timing issues—rather than just tension—are often to blame for persistent pickup problems.
| Fabric Type | Stabilizer Choice | Why It Works |
|---|---|---|
| Knits | Cut-away + adhesive spray | Prevents stretch distortion |
| Silk | Water-soluble film | Dissolves without residue |
| Leather | Tear-away + masking fabric | Cushions without sticking |
Diagnostic tips:
- Always verify your thread path before adjusting tension. A snag or missed guide can mimic tension problems.
- Adjust bobbin tension first, then fine-tune upper thread tension in small increments, testing over several inches of stitching.
- For heavier threads, expect lower tightening tension—adjust accordingly to maintain balanced stitches.
In short, reliable lockstitch formation is a symphony of timing, tension, and thread dynamics. When things go awry, start by checking mechanical timing, then optimize tension to suit your thread and fabric. That’s the secret to flawless, frustration-free sewing.
6. DIY Advanced Repairs: Hook Timing Calibration
For the brave and mechanically minded, tackling hook timing calibration yourself can transform a "hopeless" machine into a stitch-perfect workhorse. If you're ready to roll up your sleeves, here's how to approach this advanced repair—no panic, just precision.
6.1 Needle Bar Height & Hook Positioning
Before you even think about adjusting the hook, start with the needle bar. Its height determines whether the hook can meet the needle thread loop at the critical moment. Most machines require the needle bar to rise between 1.8 and 2.2 millimeters from its lowest point when the hook point aligns with the needle. Some models include timing marks—align these carefully with the timing bar bushing, or use a ruler for manual measurement.
The gap between the needle and hook point is also crucial. Depending on your machine, you're aiming for a clearance of about 0.01 to 0.16 centimeters (that's 0.04 to 0.1 millimeters). Too wide, and the hook misses the thread; too tight, and you risk damaging both needle and hook.
To adjust, loosen the needle bar clamp slightly—often with a specialized wrench—and move the bar up or down in tiny increments. Watch as the needle descends and the hook rotates: the hook point should intersect the needle just as it begins to rise. This is the "magic moment" for thread pickup.
6.2 Post-Adjustment Testing & Failure Diagnostics
Once you've made your adjustments, it's time for the truth test. Start by slowly turning the handwheel with the bobbin area exposed, watching for the hook to consistently catch the upper thread loop. If the hook misses or skips, revisit your measurements—sometimes it takes a few tweaks to get it just right.
Next, thread your machine and sew on a test fabric. Look for smooth, even stitches with no skipping or looping. If you spot irregularities, double-check both needle bar height and hook clearance. Persistent problems may indicate component wear or damage—if so, it's time to call in professional help.
Safety tip: Always unplug your machine before making internal adjustments, and document every step so you can retrace your work if needed.
In summary:
- Precise needle bar height and hook positioning are non-negotiable for reliable thread pickup.
- Use timing marks or careful measurement to set tolerances within the 1.8–2.2 mm range.
- Test thoroughly after each adjustment, and don't hesitate to seek expert support if issues persist.
Mastering hook timing calibration is like tuning a fine instrument—challenging, but deeply satisfying when you hear (or see) everything working in perfect harmony.
7. Tool & Material Optimization Guide
When your needle refuses to pick up the bobbin thread, sometimes the real culprit isn’t a mechanical fault—it’s a mismatch in tools and materials. The right needle, hoop, and supporting gear can mean the difference between flawless stitching and endless frustration. Let’s break down how smart choices in needle selection and hooping technology can transform your embroidery experience.
7.1 Needle Selection: Ballpoint vs Universal Applications
Choosing the correct needle is like picking the right key for a lock—get it wrong, and nothing works as it should. The debate between ballpoint and universal needles is more than just technical trivia; it’s a practical decision that directly impacts stitch quality, especially when your machine struggles to pick up the bobbin thread.
Universal Needles:
Think of universal needles as the Swiss Army knife of sewing—they’re versatile, with a slightly rounded tip that glides through woven fabrics and some knits without causing runs. Their tapered design allows them to slip between fabric fibers, making them a reliable choice for light to medium woven fabrics and certain synthetics. If you’re working on a project that jumps between cotton, polyester, and blends, a universal needle will usually get the job done.
Ballpoint Needles:
But when it comes to knits—rib knits, interlock, fleece, double knit—ballpoint needles are your secret weapon. Their rounded tip doesn’t pierce the fabric; instead, it gently pushes fibers apart, dramatically reducing the risk of skipped stitches, runs, or fabric damage. This is especially crucial for embroidery on stretch fabrics, where universal needles might falter, leaving you with missed bobbin pickups and uneven designs.
Needle Sizing & Compatibility:
Modern sewing machines use standardized needles, so you don’t have to worry about brand compatibility. Focus on size: finer needles (lower numbers) are for lightweight fabrics; thicker needles (higher numbers) tackle heavier materials. Always match your thread to your needle size—polyester and polyester/cotton blends pair well with both universal and ballpoint needles, but finer threads need finer needles for smooth performance.
Specialty Needles:
For heavy-duty tasks like denim or quilts, jeans/denim needles with a reinforced blade and medium ball point are engineered to punch through thick layers without bending or skipping. Embroidery needles, with their special groove and larger eye, protect delicate threads from shredding, ensuring clean, vibrant designs.
Bottom Line:
If your machine skips stitches on knits, swap in a ballpoint needle. For general use, universal needles are a safe bet—but remember, they’re a compromise. Let your fabric dictate your needle choice, and you’ll sidestep many of the most common thread pickup problems.
7.2 Hooping Solutions for Production Efficiency

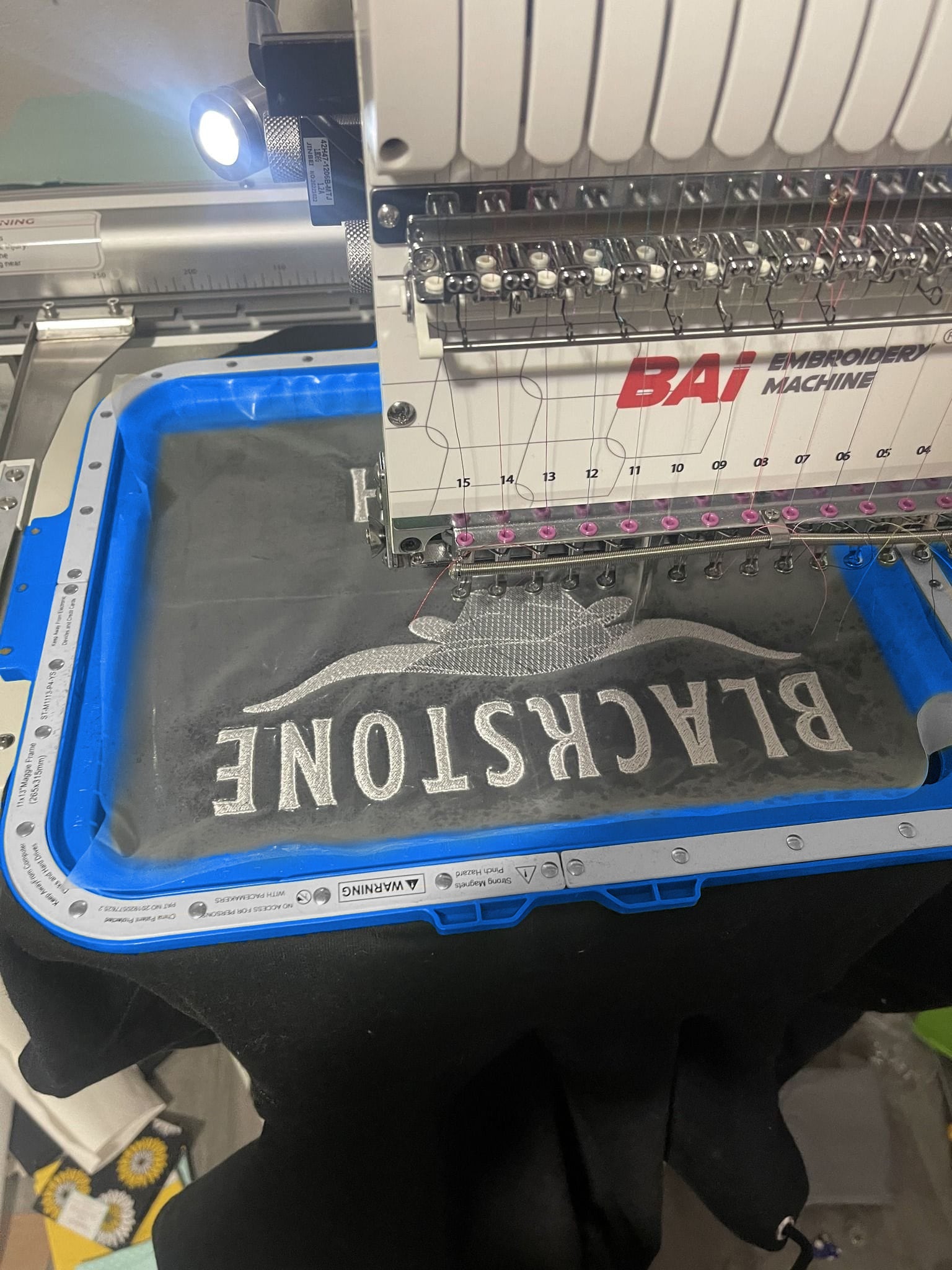

Even the sharpest needle can’t save you if your fabric isn’t hooped correctly. Uneven tension, fabric distortion, and time-consuming adjustments are notorious for causing bobbin thread pickup failures. Enter Sewtalent magnetic frames—a game-changer for garment embroidery.
Why Magnetic Hoops Matter:
Traditional plastic hoops demand patience and muscle, with screw adjustments that eat up precious minutes. Sewtalent magnetic hoops, on the other hand, use powerful magnets in their hooping station to secure fabric instantly and evenly, slashing hooping time by up to 90%. Imagine going from three minutes of fiddling to just thirty seconds per garment—suddenly, large production runs feel less like a marathon and more like a sprint.
Durability That Lasts:
Built from PPSU engineering plastic, Sewtalent hoops boast a durability 40 times higher than standard plastic frames. That means less warping, fewer replacements, and consistent performance even after thousands of uses. If you’re tired of hoops cracking under pressure, this upgrade is a no-brainer.
Precision by Design:
Sewtalent’s reference line alignment system is the unsung hero here. These built-in guides help you position your fabric perfectly every time, eliminating the subtle distortions that can lead to missed bobbin thread pickups or ruined designs. The result? Flatter, more accurate embroidery with less waste and frustration.
Efficiency at Scale:
For businesses and busy studios, the time and labor savings add up fast. Less manual effort, fewer mistakes, and a smoother workflow mean you can focus on creativity—not troubleshooting.
In Summary:
- Use ballpoint needles for knits, universal for general projects, and specialty needles for unique challenges.
- Upgrade to Sewtalent magnetic hoops for garment embroidery to cut hooping time, boost durability, and achieve flawless tension.
- Let your tools do the heavy lifting, so you can get back to what you love—creating beautiful embroidery, one perfect stitch at a time.
8. Conclusion: Key Takeaways for Flawless Stitching
Mastering bobbin thread pickup is all about following a clear diagnostic path: start with needle and bobbin checks, move on to tension adjustments, then examine timing and component wear. Remember, preventative maintenance is your strongest ally—70% of failures can be avoided with regular cleaning, proper threading, and the right tool choices. Invest in quality needles, smart hooping solutions like Sewtalent magnetic frames, and consistent upkeep, and you’ll enjoy smooth, frustration-free stitching on every project.
